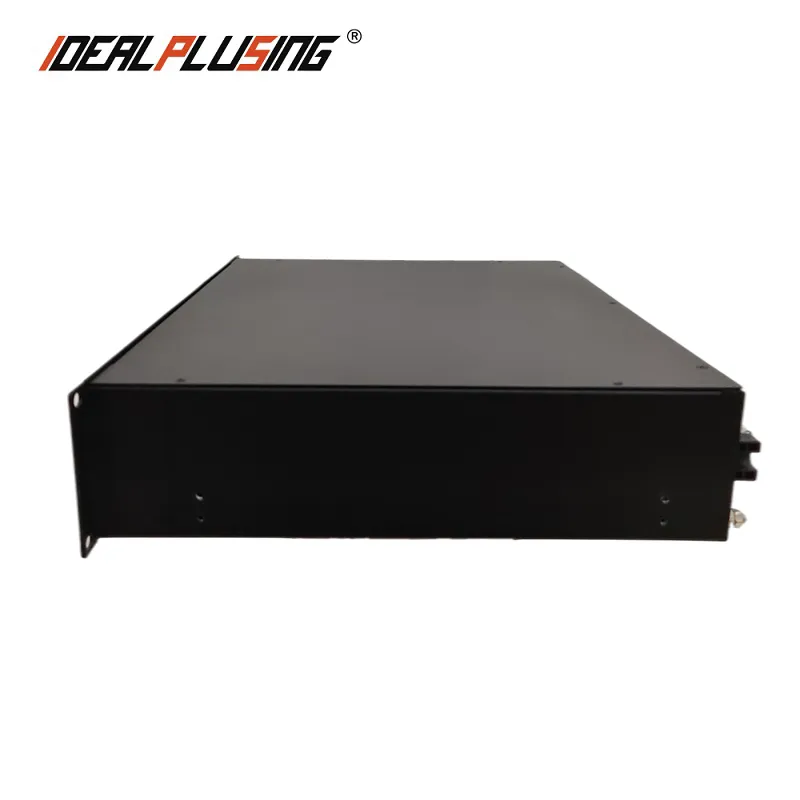

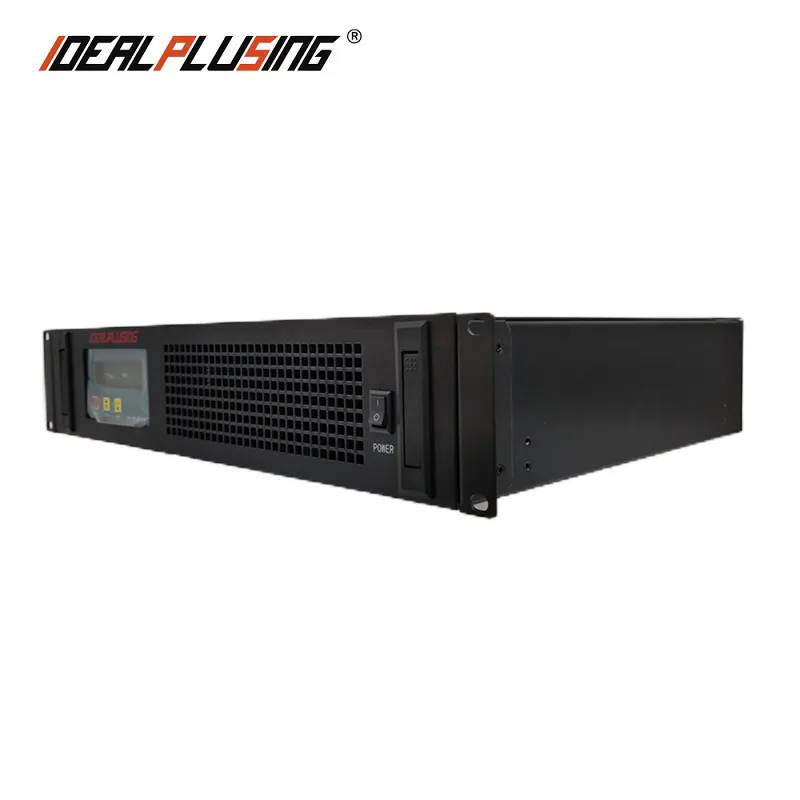

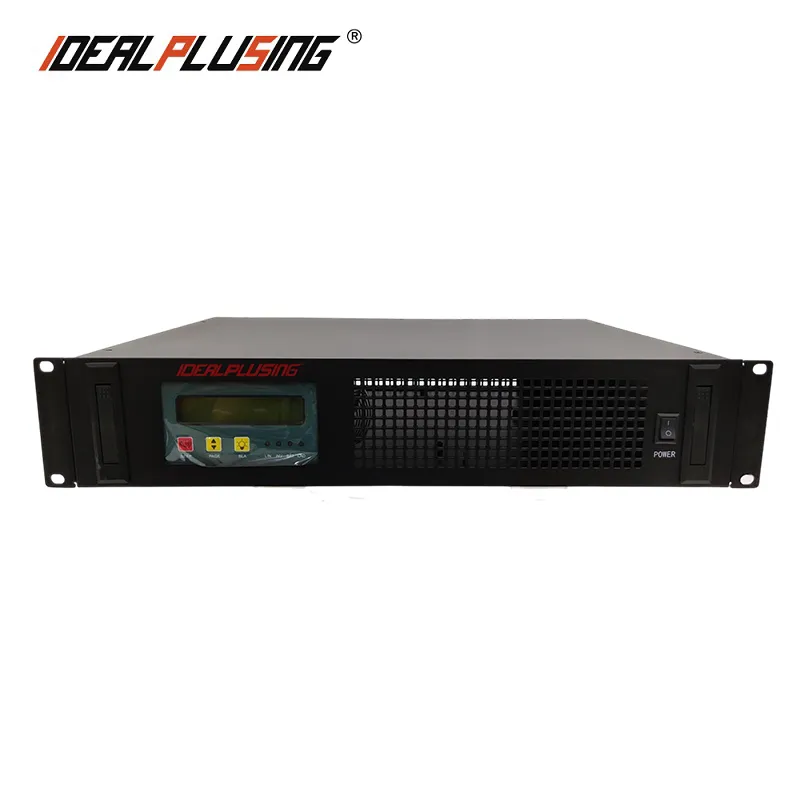

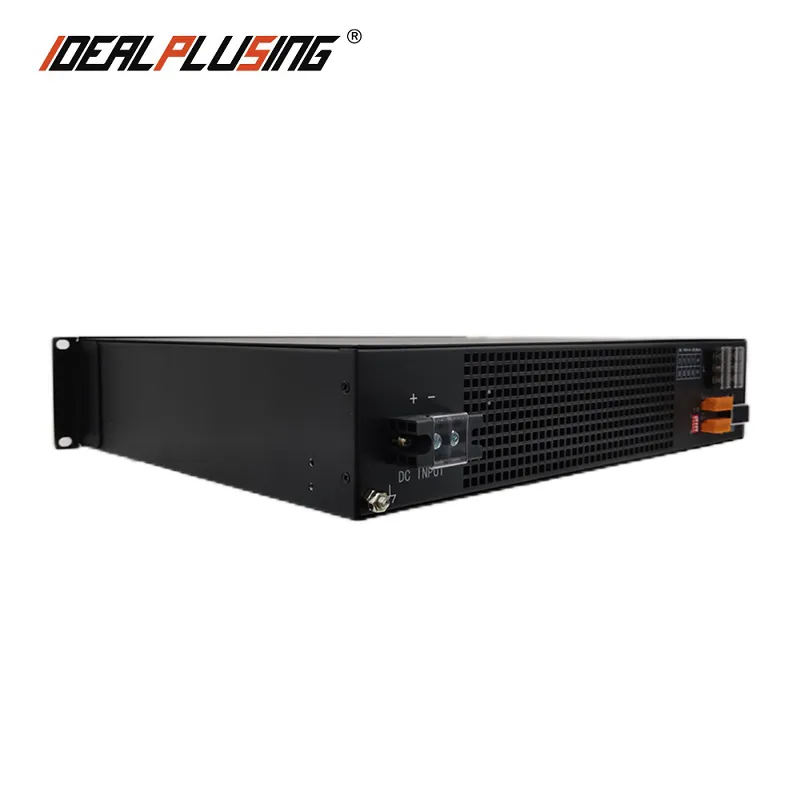

IPS-DTA4000-48(2U) Telecom Use 19inch rack mount dc ac power inverter 48VDC to 110/120VAC power inverter 4KVA pure sine wave with ISO&CE
Model : IPS-DTA4000-48(2U) 4KVA 3200W 48Vdc to 220Vac Power converter ① Wave shape : Pure Sine Wave ② DC Rate Input : 48VDC ③ Working voltage range: 40-58.8V ④ Start up voltage range: 42-57V ⑤ AC By Pass Input: 220VAC ⑥ AC Output : 220V 50Hz or 60Hz ⑦ Rate Capacity4KVA,3200W ⑧ Mounting : 19 inch 2U Rack Type ⑨ Protection : input under voltage, over voltage output overload and short circuit ⑩ Communication interface: RS485 *1 ⑪ LCD indicator*1


I. INTRODUCTION


     1

The pure sine wave inverter is specially designed for electricity and communication systems.

2

It is a conversion device that converts electricity from the mains city ac voltage or batteries dc voltage to an continuous and purified AC power apply for computers and other electrical equipment

3

To prepare for the instability of the city electricity and power cuts. It also prevents various distortions of utility power, such as power supply voltage drop, surge voltage, spike voltage, and broadcast frequency interference.

4

This telecome inverter is a new generation of dual input inverter solution designed for the field of communication applications, which is suitable for the high reliability of the communication system.

5

The solution is equipped with a 110V/220V/230V AC power supply and a 220V DC power supply, which fills the gap between the traditional UPS power supply and common 5600W pure sine wave inverter solutions.

6

It uses a novel design structure that helps users to provide clean, stable, and durable AC power for critical loads, and has the same high reliability as the DC power supply system.

7

The design characteristics of the dedicated communication ensure the seamless conversion between the AC and DC power supply, almost no conversion delay, and no need to use the static switch.

II. FEATURE


     1

AC input startup available: the system could power on with the mains supply 220V input if there is no DC input;

2

Unattended operation: the system switches automatically to provide AC 220V to the load between the DC input and AC input;

3

Safety protection:  DC input polarity converse, over/low voltage, short-road, over-load, over temperature, and inverting malfunction;

4

Converse current control: not disturb another communication device in the same DC cabinet;

5

DC-dominated Mode:  the inverter is providing AC 220V to the load normally, and automatically switches to bypass AC 220V input if a DC input fault occurs.

6

AC-dominated Mode: the inverter is on standby, the bypass is providing AC 220V to the load normal, and the load will switch to the inverter automatically if the bypass AC 220V input fault occurs;

7

Maintenance bypass is available for battery replacement:

8

5 groups of passive dry contacts respectively for DC input fault, AC input fault, overload information, by-pass information, and output fault ;(Standard configuration)

9

Independent RS232 and RS485 communication interfaces to monitor and manage the device in real-time; (Standard configuration)

10

Support built-in TCP/IP interface to monitor and manage the device; (Optional)

11

Support built-in SNMP TCP/IP interface to monitor and manage the device (Optional).



III. CUSTOMIZED RANGE


       Input & Output voltage

Capacity

  1. 19Inch 1U/2U/4U/8U Rack Mount

  2. With LCD Display + With RS485 Communication port

220VAC OUTPUT DESIGN

24VDC-220VAC

1-5KVA

48VDC -220VAC

1~10KVA

110VDC -220VAC

1~12KVA

220VDC-220VAC

1~15KVA

120VAC OUTPUT DESIGN

24VDC-120VAC

1-5KVA

48VDC -120VAC

1-6KVA

110VDC -120VAC

1-6KVA

IV: TECHNICAL PARAMETER


     Brand

IDEALPLUSING

Model

IPS-DTA4000-48(2U)

Rate Capacity(KVA)

4KVA

Rate power(W)

3200W

DC Input

Rate input voltage

48V

Rate input Current

77A

Working voltage range

40~58.8V

Start-up voltage range

42~57V

Reflect noise current

≤10%

AC Input

Allow bypass voltage

220VAC

Bypass switch time (ms)

≤5ms

AC Output

Rated capacity (VA)

4KVA

Rated output power (W)

3200W

Inverter output voltage and frequency

220VAC

Output voltage precision (VAC)

220±10VAC

Output frequency precision (Hz)

50±0.1%  Or  60±0.1%

Waveform

Pure sine wave

Total harmonic distortion (THD)

≤3% (linear load)

Dynamic response time

5% (load 0←→100%)

Power factor (PF)

0.8

Overload capacity

100%-120%  60s121%-150%   10s

Inversion efficiency (80% resistive load)

≥85%

By-pass conversion time (ms)

≤5ms

Operating environment

Dielectric strength (input and output)

1500VAC, 1 minute

Noise (1m)

≤40dB

Operating environment temperature

-20℃~+50℃

Humidity

0~90%, no moisture condensation

Operating altitude (m)

≤2000

Indication

LCD display

Input and output voltage, frequency, output current, temperature, percentage, etc.

inverter status

Normal mains, normal inversion, battery under-voltage and output overload

Mechanical size

Standard rack

L482*W368*H88(MM), 15KG

Mechanical weight

Net weight/Gross weight

15KG/18KG

Protection function

Input under-voltage and over-voltage, output overload and short circuit protections, etc.
