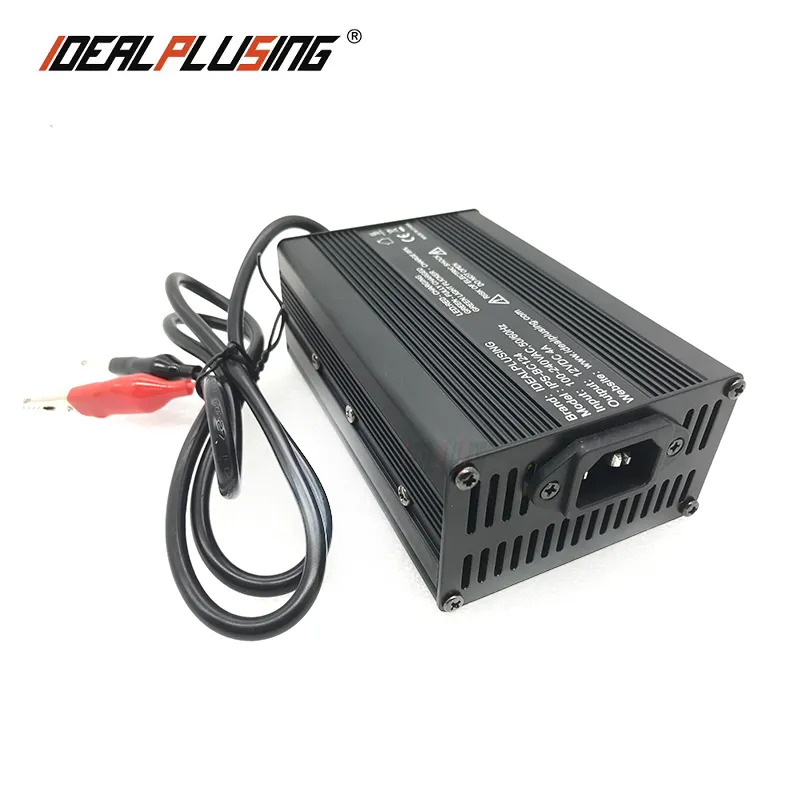

IPS-BC72-6 6a 432w 87.6V 88.2V lithium lifepo4 battery charger 72v electric bike battery charger for Electric Cars
Model :IPS-BC72-6 72VDC 6A Battery Charger ① AC Input: Single phase 200-240VAC 50/60hz or Single phase 100-132VAC ② DC Output voltage: 72VDC ③ Charging current:6A ④ Full electronic voltage:84V or 87.6V or 88.2V ⑤ Machine Size:173*90*63(MM) ⑥ NW: /, GW: / ⑦ AC plug: UK Plug or customized ⑧ DC connector: Standard Battery Jack ⑨ Apply for: Battery type: Lead Acid or Lithium or LiFePO4


Brand

IDEALPLUSING/OEM

Model No

IPS-BC726

Input Voltage

200~240VAC 50HZ/60HZ or single phase 110VAC 50HZ/60HZ

Nominal Voltage

72VDC

Charging Current

6A

Housing

Aluminum Alloy

Net /Gross Weight

Base on model

Product dimension

Base on model

Package dimension

Base on model

CV-Lead acid-14.7V

14.7V

CV-LiFePO4-3.65V

14.6(4S)

CV-Lithium-4.2V

12.6V/16.8V

Charging Principle

Full automatic transition CC,CV and Float/Cut-off

Charging Time

Cut-off point for Li battery is 5% of CC and it can be set between 3-10%.

Transition for Lead acid charger is 20% of CC.

High-Efficiency

≥90%

MTBF

≥50000h

Operating Temperature

-20℃~50℃

Store Temperature

(-40~80)℃

Related humility

90%(40±2℃)

Protection Function

Over-voltage

Over-temperature

Over-current

Short circuit

/

Indicators

Red means power on / charging, Green means full charged

AC Plug

Accept any plug base on your request
