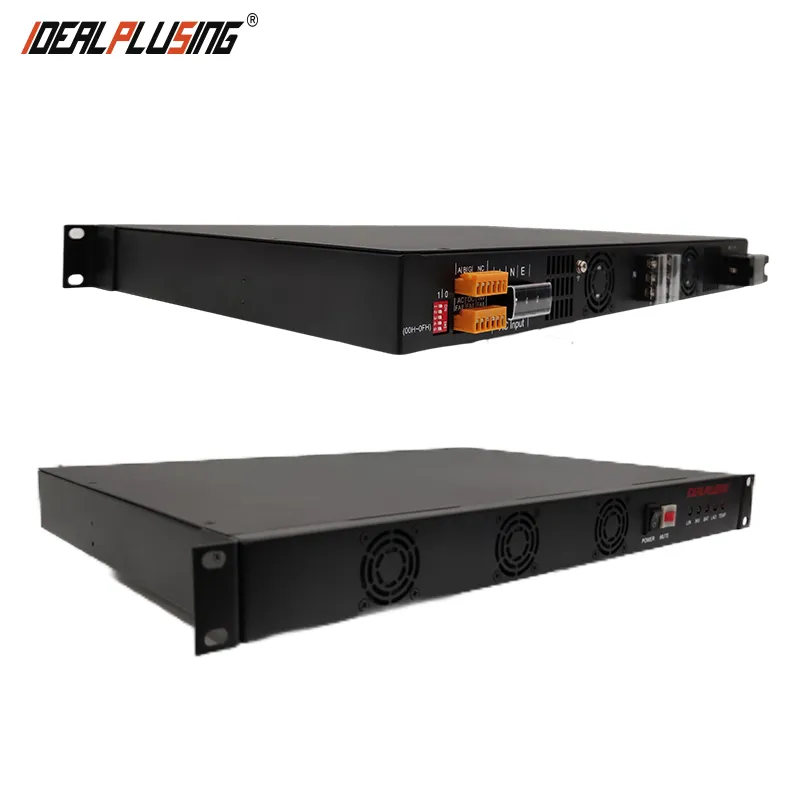

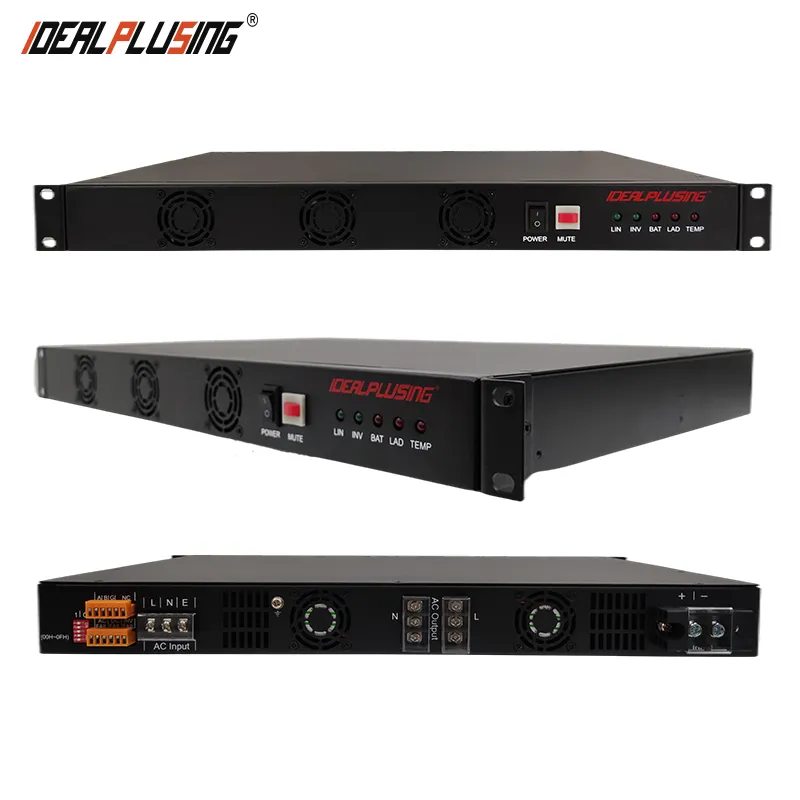

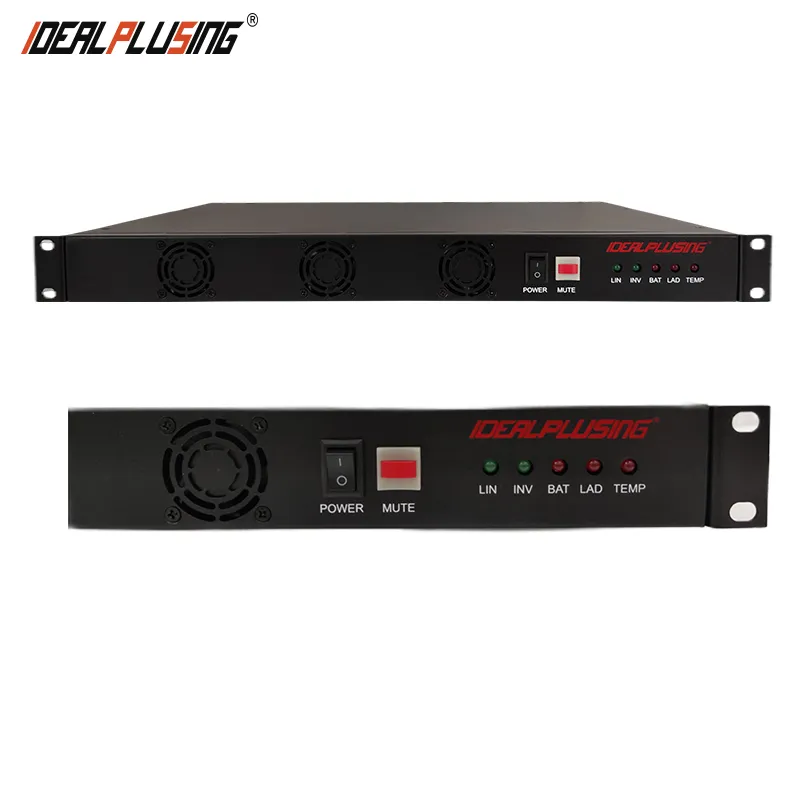

IPS-DTA2000-110-Factory customized LCD display inverters pure sine wave 1600 watt 19 inch rack type 1U 110vdc With AC bypass function
Model : IPS-DTA2000-110 2KVA 110VDC to 220VAC Power Inverter ① Wave shape : Pure Sine Wave ② DC Rate Input : 110VDC ③ Working voltage range: 90~145VDC ④ Start up voltage range: 94~142VDC ⑤ AC By Pass Input: 220VAC ⑥ AC Output : 220V 50Hz or 60Hz ⑦ Rate Capacity: 2000VA, 1600W ⑧ Mounting : 19 inch 1U Rack Type ⑨ Protection : input under voltage, over voltage output overload and short circuit ⑩ Communication interface: RS485 *1

Brand

IDEALPLUSING

Model

IPS-DTA2000-110

Rate Capacity(KVA)

2KVA

Rate power(W)

1600W

DC Input

Rate input voltage

110VDC

Rate input Current

16A

Shut down voltage range

90~145VDC

Start-up voltage range

94~142VDC

Reflect noise current

≤10%

AC Input

Allow bypass voltage

220VAC

Bypass switch time (ms)

≤5ms

AC Output

Rated capacity (VA)

2000VA

Rated output power (W)

1600W

output voltage

220VAC

Output voltage precision

220±10VAC

Output frequency precision

50±0.1%  Or  60±0.1% HZ

Waveform

Pure sine wave

Total harmonic distortion

≤3% (linear load) (THD)

Dynamic response time

5% (load 0←→100%)

Power factor (PF)

0.8

Overload capacity

100%-120%  60s121%-150%   10s

Inversion efficiency (80% resistive load)

≥85%

By-pass conversion time (ms)

≤5ms

Operating environment

Dielectric strength (input and output)

1500VAC, 1 minute

Noise (1m)

65dB

Operating environment temperature

-20℃~+50℃

Humidity

0~90%, no moisture condensation

Operating altitude (m)

≤2000

Indication

LCD display

Input and output voltage, frequency, output current, temperature, percentage, etc.

inverter status

Normal mains, normal inversion, battery under-voltage and output overload

Mechanical size

Standard rack

(Depth * Width * Height) (mm)

482*44*300(MM), 5KG

Protection function

Input under-voltage and over-voltage, output overload and short circuit protections, etc.
