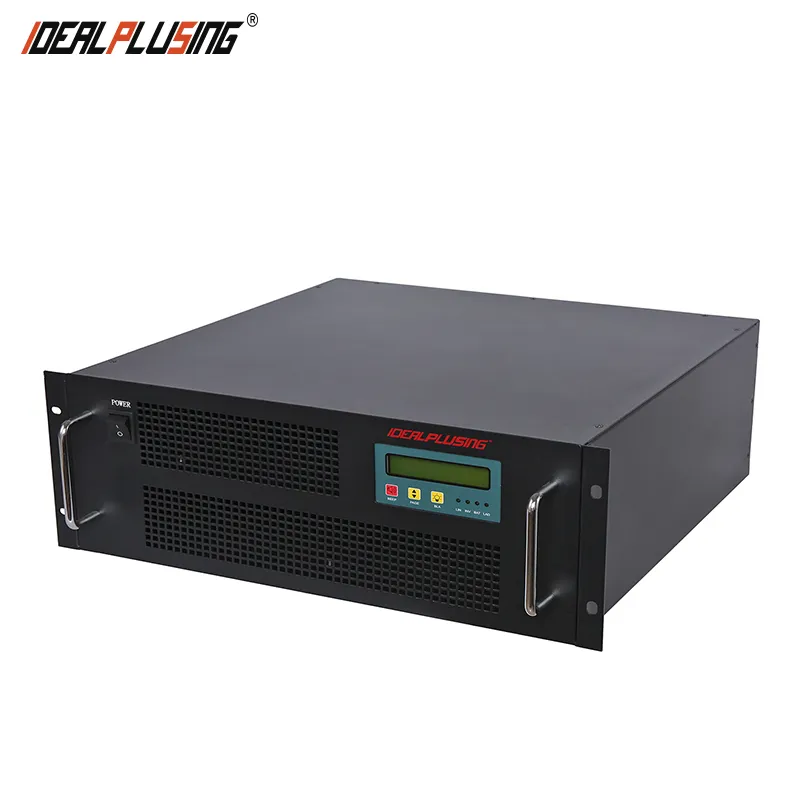

IPS-DTA15000-220-Factory production 220vdc to 220vac 15kva inverter pure sine wave Available in communication field Factory customization
Model : IPS-DTA15000-220 15KVA 220VDC to 220VAC Power Inverter Specification : ① Wave shape : Pure Sine Wave ② DC Rate Input : 220VDC ③ Working voltage range: 180~270VDC ④ Start up voltage range: 190~265VDC ⑤ AC By Pass Input: 220VAC ⑥ AC Output : 220V 50Hz or 60Hz ⑦ Rate Capacity: 15000VA, 12000W ⑧ Mounting : 19 inch 4U Rack Type ⑨ Protection : input under voltage, over voltage output overload and short circuit ⑩ Communication interface: RS485 *1 ⑪ LCD indicator*1 We specialize in customizing DC power supply to meet your specific requirements. With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 2000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

Brand

IDEALPLUSING

Model

IPS-DTA15000-220

Rate Capacity(KVA)

15KVA

Rate power(W)

12000W

DC Input

Rate input voltage

220VDC

Rate input Current

60.6A

Shut down voltage range

180~270VDC

Start-up voltage range

190~265VDC

Reflect noise current

≤10%

AC Input

Allow bypass voltage

220VAC

Bypass switch time (ms)

≤5ms

AC Output

Rated capacity (VA)

15KVA

Rated output power (W)

12000W

output voltage

220VAC

Output voltage precision

220±10VAC

Output frequency precision

50±0.1%  Or  60±0.1% HZ

Waveform

Pure sine wave

Total harmonic distortion

≤3% (linear load) (THD)

Dynamic response time

5% (load 0←→100%)

Power factor (PF)

0.8

Overload capacity

100%-120%  60s121%-150%   10s

Inversion efficiency (80% resistive load)

≥85%

By-pass conversion time (ms)

≤5ms

Operating environment

Dielectric strength (input and output)

1500VAC, 1 minute

Noise (1m)

≤65dB

Operating environment temperature

-20℃~+50℃

Humidity

0~90%, no moisture condensation

Operating altitude (m)

≤2000

Indication

LCD display

Input and output voltage, frequency, output current, temperature, percentage, etc.

inverter status

Normal mains, normal inversion, battery under-voltage and output overload

Mechanical size

Standard rack

(Depth * Width Height) (mm)

482*440*177(MM), 30KG

Protection function

Input under-voltage and over-voltage, output overload and short circuit protections, etc.
