Brand | IDEALPLUSING | |
Name | 24vdc To 12vdc 100amp Voltage Regulator Reducer Module | |
Type | Non-Isolate | |
Model (IPS-***) | IPS-DTD24S1285 | IPS-DTD24S12100 |
INPUT | ||
Rate Volts | 24VDC | |
Volts range | 18~32VDC | |
OUTPUT | ||
Efficiency | 92% | |
Output volts | 12VDC | |
Output current | 85A | 100A |
Rated Power | 1020W | 1200W |
OTHERS | ||
Voltage regulation | < 1% | |
Load regulation | < 2% | |
Ripple | < 50mV | |
No-load current | < 20mA | |
Working Temp | -40°c ~ +80°c | |
Waterproof rating | IP65 | |
Machine size | 220*127*63(MM) | |
NW | 2.3KG | |
Cooling way | Free air convection | |
Certifications | CE, RoHS | |
Customize | Support | |
Sample order | Support | |
OEM & ODM | Support | |
Package | White & colorful package optional | |
SALE CONTACT INFORMATION | ||
power@idealplusing.com | ||
Office Tel | +86-20-89282095 |
Product Categories

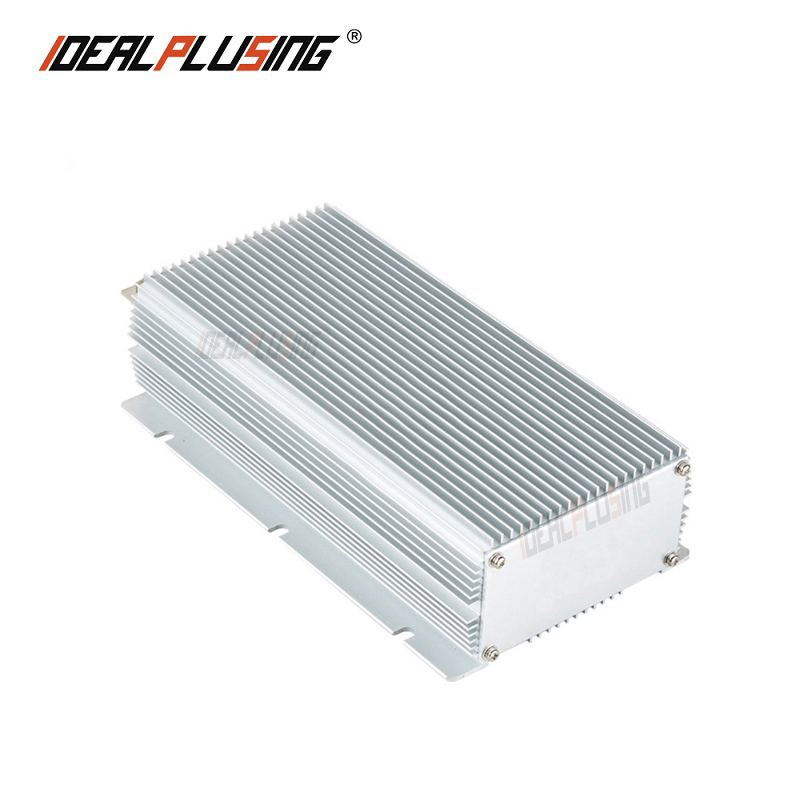

IPS-DTD24S12100-24vdc To 12vdc 100amp Voltage Regulator Reducer Module
24v To 12v 100a Dc Dc Step Down Converter 24vdc To 12vdc 100amp Voltage Regulator Reducer Module Transformer Buck Heavy Duty
Model : IPS-DTD24S12100 24V TO 12V 100A DC DC CONVERTER
Specification :
① Input: 24VDC(18~32VDC)
② Output: 12VDC 100A
③ Max power: 1200W
④ Material of shell: Aluminum
⑤ Size: 220*127*63(MM)
⑥ NW: 2.2KG,GW:2.5KG
⑦ Design: Non isolate and waterproof IP65
⑧ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
