Brand | IDEALPLUSING | |||
Name | 24v to 12v step down converter 2A | |||
Type | Non-Isolate | |||
Model (IPS-***) | IPS-DTD24S122 | IPS-DTD24S123 | IPS-DTD24S124 | IPS-DTD24S125 |
INPUT | ||||
Rate Volts | 24VDC | |||
Volts range | 15~30VDC | |||
OUTPUT | ||||
Efficiency | 92% | |||
Output volts | 12VDC | |||
Output current | 2A | 3A | 4A | 5A |
Rated Power | 24W | 36W | 48W | 60W |
OTHERS | ||||
Voltage regulation | < 1% | |||
Load regulation | < 2% | |||
Ripple | < 50mV | |||
No-load current | < 20mA | |||
Working Temp | -40°c ~ +80°c | |||
Waterproof rating | IP65 | |||
Machine size | 39*21*15(MM) | |||
NW | 35G | |||
Cooling way | Free air convection | |||
Certifications | CE, RoHS | |||
Customize | Support | |||
Sample order | Support | |||
OEM & ODM | Support | |||
Package | White & colorful package optional | |||
SALE CONTACT INFORMATION | ||||
power@idealplusing.com | ||||
Office Tel | +86-20-89282095 |
Product Categories
IPS-DTD24S124-24v to 12v step down converter 2A--24v to 12v step down converter ,DC/DC converters,Regulator Reducer,Car Power Adapter,Voltage Reducer
Factory price hot selling dc dc inversor 24v to 12v step down converter 2A 3A 4A 5A

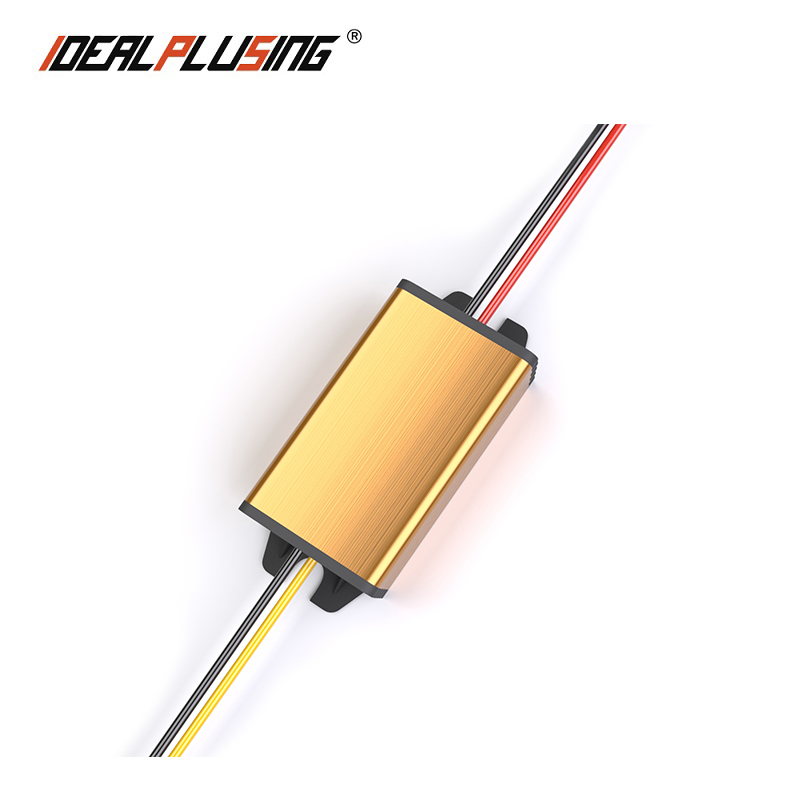

Model : IPS-DTD24S122 24V TO 12V 2A DC DC CONVERTER
Specification :
① Input: 24VDC(15~30VDC)
② Output: 12VDC 2A
③ Max power: 24W
④ Material of shell: Aluminum
⑤ Size: 39*21*15(MM)
⑥ Input & Output cable: 13~15CM
⑦ NW: 35G,GW:45G
⑧ Design: Non isolate and waterproof IP65
⑨ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
