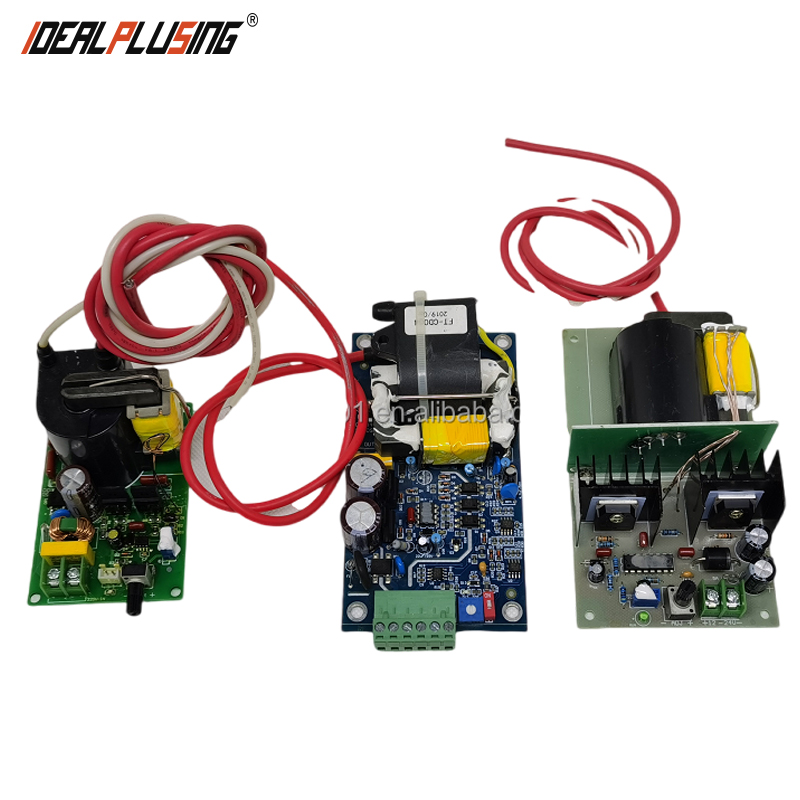

IPS-CX-50TA Oil fume purifier High voltage power supply Air purifier power supply Electrostatic dust removal High voltage power supply 50W 10KV
① Model：IPS-CX-50TA
② Type：Ordinary
③ Case：Plastic
④ Input Voltage ：AC180V-250V （50Hz/60Hz)
⑤ Output Voltage ：DC1000~10000V
Continuous adjustable
⑥ Output Current：0-5mA
⑦ Max Power：50W
⑧ SIZE：240mm*120mm*70mm
⑨ Weight：0. 7kg
IPS-CX-50TA high voltage power supply-IDEALPLUSING
I. APPLICATION
This high-voltage power supply is mainly used in the Oil fume purifier High voltage power supply, Air purifier power supply, Electrostatic dust removal High voltage power supply.
II. DATASHEET
Model | IPS-CX-50TA |
Type | Ordinary |
Case | Plastic |
Input Voltage | AC:180V-250V |
Output Voltage | DC:1000~10000V |
Output Current | 0-5mA |
Discharge distance | ≤2cm |
Max Power | 50W |
SIZE | 240mm*120mm*70mm |
Weight | 0. 7kg |
