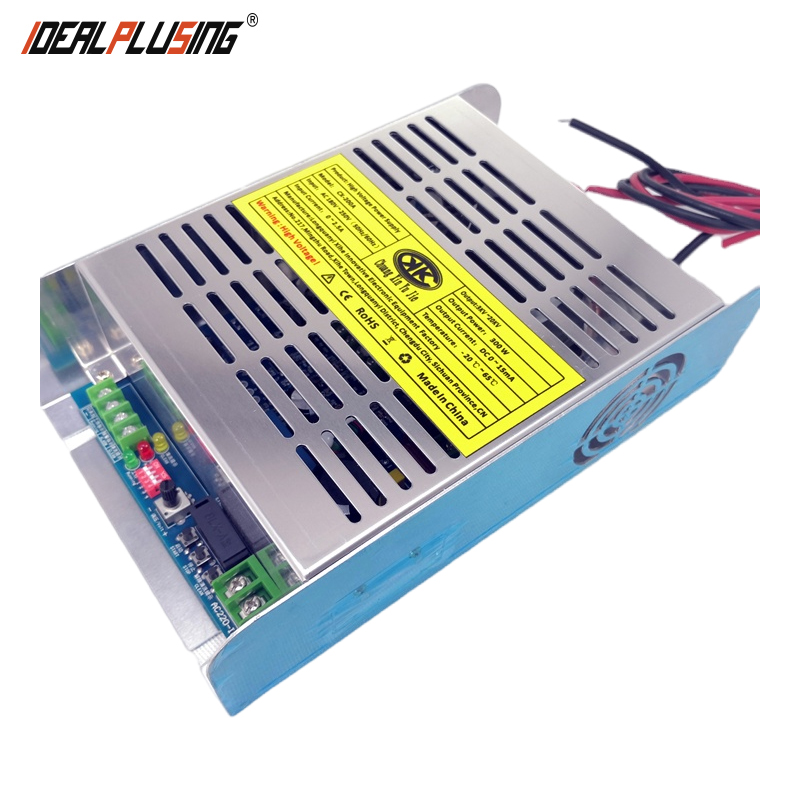

IPS-CX-200B 300W oil fume purifier High voltage power supply oil mist purification intelligent high and low voltage dual

① Model：IPS-CX-200B ②Type：Smart ③ Case：Aluminum ④ Input Voltage：AC180V-250V (50Hz/60Hz) ⑤ Output Voltage： 1st Output: Dc:3KV~10KV 2st Output: Dc:6kV~20KV Continuous adjustable ⑥ Output Current：0-15mA ⑦ Discharge distance：≤3cm ⑧ Max Power：300W ⑨ SIZE：260mm*163mm*70mm ⑩ Weight：1.4kg

IPS-CX-200B high voltage power supply-IDEALPLUSING

I. APPLICATION

This high-voltage power supply is mainly used in the 300W oil fume purifier, High voltage power supply, oil mist purification, intelligent, high and low voltage dual.

II. DATASHEET

Model	IPS-CX-200B
Type	Smart
Case	Aluminum
Input Voltage	AC:180V-250V (50Hz/60Hz)
Output Voltage	1st Output: Dc:3KV~10KV 2st Output: Dc:6kV~20KV Continuous adjustable
Output Current	0-15mA
Discharge distance	≤3cm
Max Power	300W
SIZE	260mm163mm70mm
Weight	1.4kg
