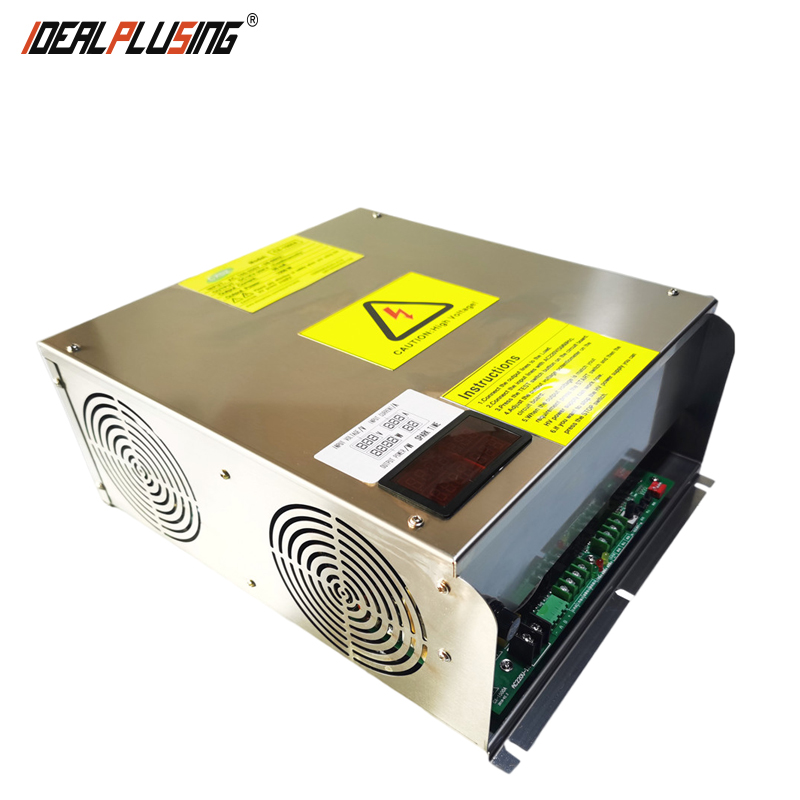

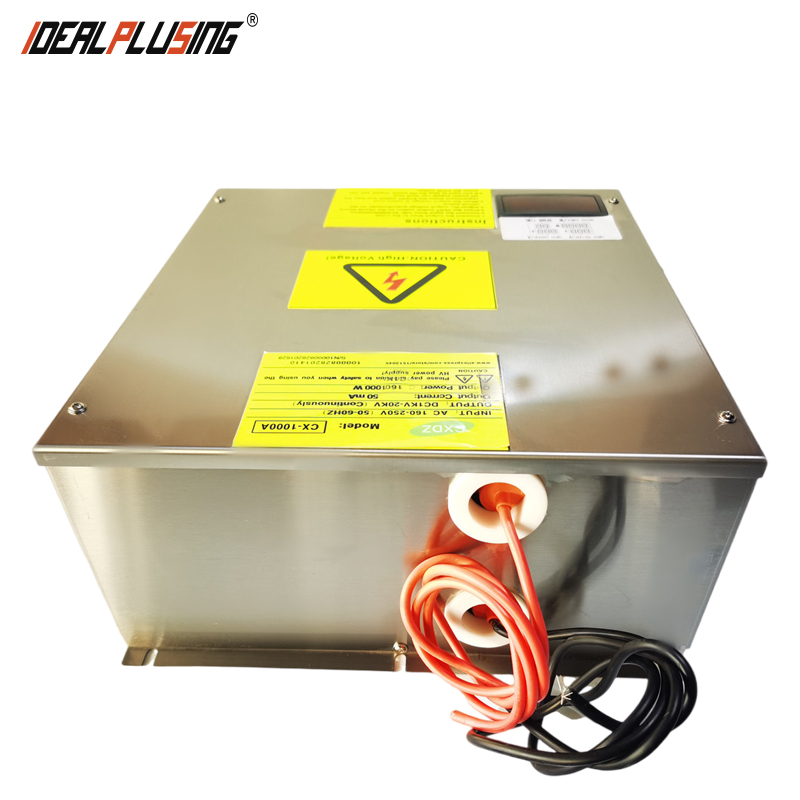

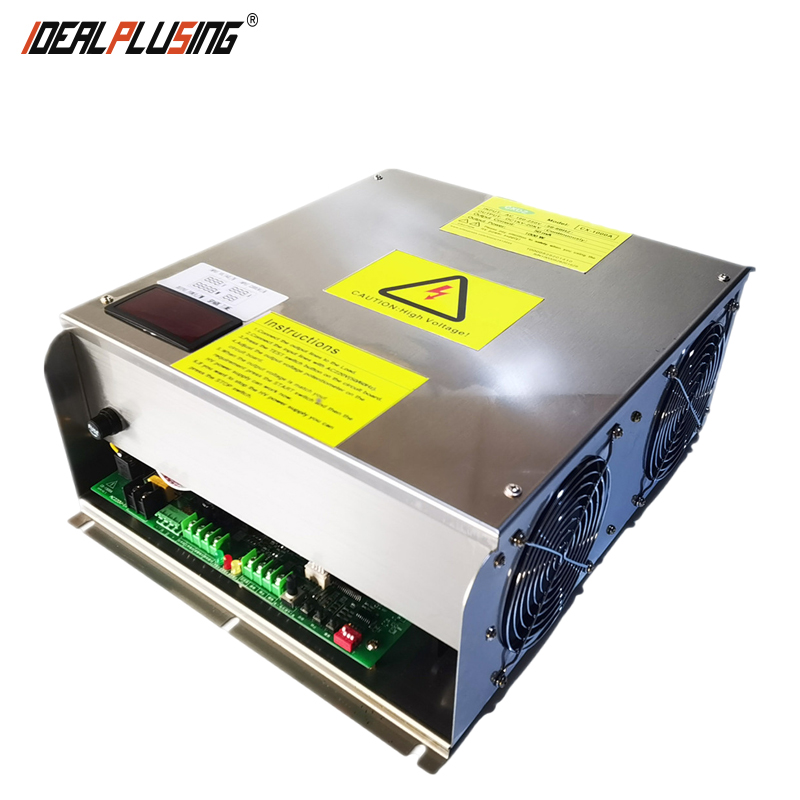

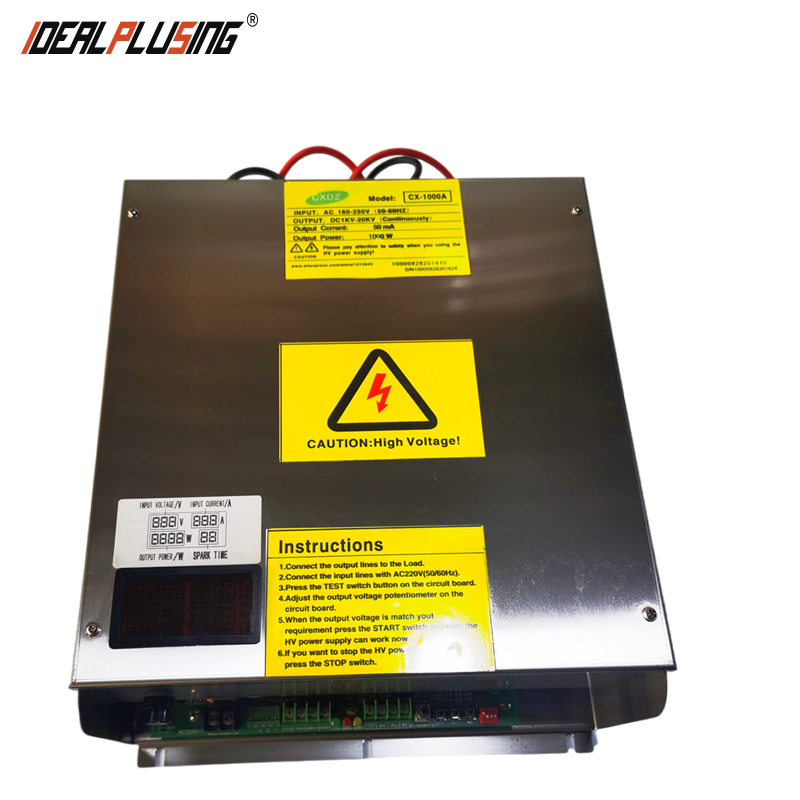

IPS-CX-1500A Purifier special power supply oil fume purification industrial waste gas plasma High pressure generation 1500W 20KV

① Model：IPS-CX-1500A ② Type：Smart ③ Case：Stainless Steel ④ Input Voltage：AC:180V-250V (50Hz/60Hz) ⑤ Output Voltage：DC:2KV~20KV Continuous adjustable ⑥ Output Current：0-80mA ⑦ Discharge distance：≤4cm ⑧ Max Power：1500W ⑨ SIZE：385mm*325mm*145mm ⑩ Weight：13. 0kg

IPS-CX-1500A high voltage power supply-IDEALPLUSING

I. APPLICATION

This high-voltage power supply is mainly used in the Purifier special power supply, oil fume purification, industrial waste gas, plasma, High pressure generation.

II. DATASHEET

Model	IPS-CX-1500A
Type	Smart
Case	Stainless Steel
Input Voltage	AC:180V-250V (50Hz/60Hz)
Output Voltage	Output: DC:2KV~20KV Continuous adjustable
Output Current	0-80mA
Discharge distance	≤4cm
Max Power	1500W
SIZE	385mm325mm145mm
Weight	13. 0kg
