No | Rate voltage | Voltage Range |
#1 | 12VDC | 10~15VDC |
#2 | 24VDC | 20~30VDC |
#3 | 36VDC | 30~40VDC |
#4 | 48VDC | 40~60VDC |
#5 | 60VDC | 50~75VDC |
#6 | 72VDC | 60~90VDC |
DC INPUT | Capacity of Inverter | Size | NW/GW |
12/24/36/48/60/72VDC | 300W | 181*110*56(MM) | 1.2KG/1.6KG |
12/24/36/48/60/72VDC | 600W | 218*173*76(MM | 2.1KG/2.5KG |
12/24/36/48/60/72VDC | 1000W | 310*173*76(MM | 3.4KG/4.1KG |
12/24/36/48/60/72VDC | 1500W | 360*173*76(MM | 3.6KG/4.4KG |
12/24/36/48/60/72VDC | 2000W | 400*242*88(MM | 4.4KG/4.7KG |
12/24/36/48/60/72VDC | 3000W | 400*242*88(MM) | 11KG/12KG |
12/24/36/48/60/72VDC | 4000W | 400*242*88(MM) | 12KG/13KG |
12/24/36/48/60/72VDC | 5000W | 420*242*88(MM) | 13KG/14KG |
MODEL | IPS-PI300-112 | IPS-PI300-124 | IPS-PI300-148 | IPS-PI300-160 | IPS-PI300-172 | ||||
IPS-PI300-212 | IPS-PI300-224 | IPS-PI300-248 | IPS-PI300-260 | IPS-PI300-272 | |||||
OUTPUT | Continual Power | 1500W | |||||||
Surge power | 1500W | ||||||||
Waveform | Pure sine wave | ||||||||
Frequency | 50HZ or 60HZ | ||||||||
AC Regulation | 5% | ||||||||
AC voltage | 110VAC or 220VAC | ||||||||
INPUT | DC Voltage | 12VDC | 24VDC | 48VDC | 60VDC | 72VDC | |||
Voltage range | 10~15VDC | 20~30VDC | 40~60VDC | 50~75VDC | 60~90VDC | ||||
No Load Current Draw | <0.65 | ||||||||
Efficiency | >95% | ||||||||
DC Connector | Cables with Clips OR Car Adapter | ||||||||
PROTECTING | Low Voltage Alarm | 10±0.5VDC | 20V±0.5VDC | 40±0.5VDC | 50±0.5VDC | 60±0.5VDC | |||
Low Voltage Shut down | 15±0.5VC | 30V±0.5VDC | 60±0.5VDC | 75±0.5VDC | 90±0.5VC | ||||
Over Load | Shut Off Output | ||||||||
Over Voltage Shut down | 16.0VDC | 31.0VC | 40.0VDC | 50.0VDC | 60.0VDC | ||||
Over Thermal | Shut Off Output Automatically | ||||||||
Fuses | Short Circuit | ||||||||
ENVIRONMENT | Storage Temperature | Between -30℃ and +70℃ | |||||||
Working Temperature | Between -10℃ and +50℃ | ||||||||
Working Humidity | 20%～90%RH non-condensing | ||||||||
OTHERS | Start | Soft start | |||||||

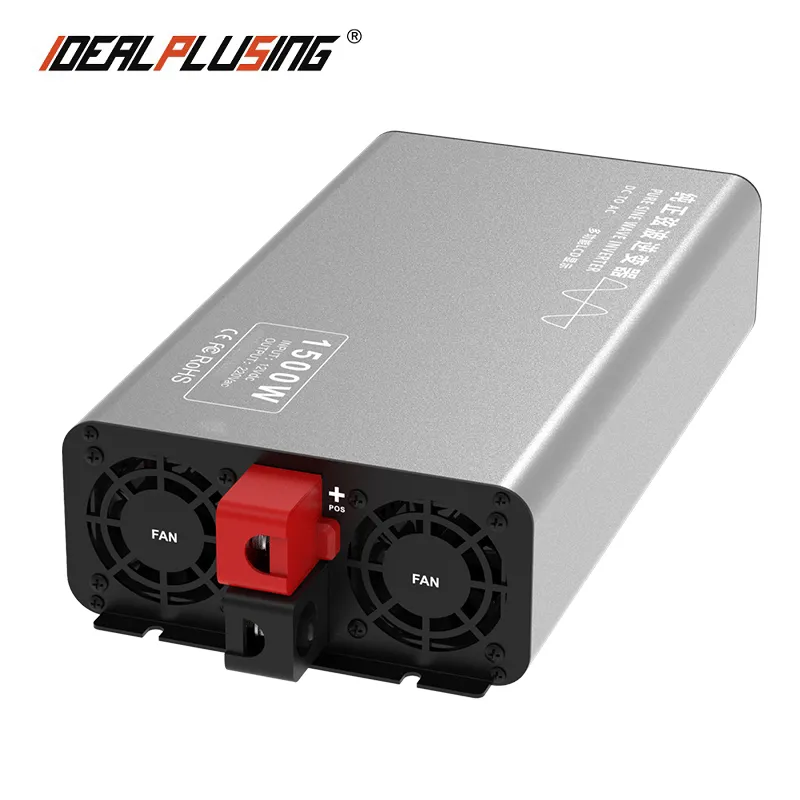

Cooling way | Cooling Fan | ||||||||
Total Harmonic Distortion | THD<4% | ||||||||
Size(MM) | L360*W173*H76(MM) | ||||||||
NW/GW | 3.6KG/4.4KG | ||||||||
