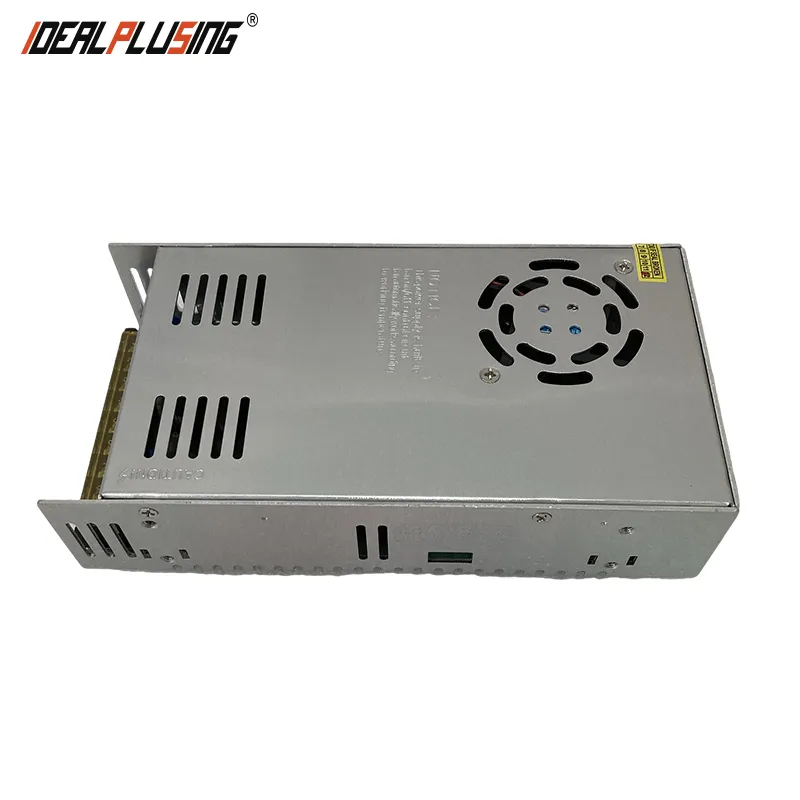

IPS-SP100-1.5 LED dimming power supply 3D printer power supply AC DC input 220v 24v 150W 1A 1.4A 1.5A 1.7A 2.5A 3.1A 4.2A 12.5A SMPS
MODEL:IPS-SP100-1.5 input 220v 24v switching power supply SPECIFICATION: ① AC input: Single-phase 110/220V±15% 50/60hz ② DC output: 0~100VDC, 1.5A ③ Power: 150W ④ Dimension: 200*98*42MM ⑤Package size: 23(L)*13(W)*7H)CM ⑥NW: 0.8KG, GW: 0.9KG

I. FEATURES

1

LED dimming power supply 3D printer power supply AC DC input 220v 24v 150W 1A 1.4A 1.5A 1.7A 2.5A 3.1A 4.2A 12.5A SMPS

2

Adjustable with Compact size, light weight

3

Wide range AC Input , AC input 110V/220Vac input selected by switch

4

100% full load burn-in test

5

Protection: Short circuit / Over load / Over voltage

6

Fixed switching frequency at 25KHz

7

1 year warranty

8

High efficiency, reliability quality, competitive cost

9

0-5Vdc / 0-10Vdc External control output (Optional)

10

Extra adjustable potentiometer (Optional)

11

Output voltage adjustable, output current be fix



























II. COMMON SPECIFICATION

Adjustable range for dc voltage

The output voltage is 100% adjustable through the potentiometer

AC input voltage range

AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch

Input current

115V/2.4A | 230V/1.2A

AC in lash current

Cold start current 25A/230V

leakage current

≤1.5mA 230V AC

Overload protection

Load more than 110%~120% switch to constant current mode

Over-voltage protection

≥15% of output voltage

Setup rise hold time

200ms  100ms  20ms

Vibration

10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes

Withstand voltage

Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC

working temperature

-10℃-65℃, 20%-90%RH

Storage temperature

-10℃--65℃, 20%--95%RH

Net weight

0.8KG

OTHERS

Output voltage tolerance

1%

Wave and noise

150mV P-P

Efficiency

91%

III. MODEL INFOMRATION

Model

Output voltage

Output Current

Output Power

IPS-SP12-12.5

0-12VDC

12.5A

150W

IPS-SP24-6.3

0-24VDC

6.3A

150W

IPS-SP36-4.2

0-36VDC

4.2A

150W

IPS-SP48-3.1

0-48VDC

3.1A

150W

IPS-SP60-2.5

0-60VDC

2.5A

150W

IPS-SP90-1.7

0-90VDC

1.7A

150W

IPS-SP100-1.5

0-100VDC

1.5A

150W

IPS-SP110-1.4

0-110VDC

1.4A

150W

IPS-SP150-1

0-150VDC

1A

150W
