I. APPLICATION SCOPE
| 1 | Motor: electric car motor, electric car controller, DC motor testing and aging debugging, etc. |
2 | Electric appliances: LED/LCD testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification, etc. |
3 | Automotive: starter motor, auto air conditioner, auto motor controller, auto light, cigarette lighter, auto AV testing and aging, etc. |
4 | Electronic devices: capacitors, resistors, relays, transistors, sensors, etc. |
5 | Display: display screen, liquid screen, touch screen, car DVD, cell phone display, etc. |
6 | Electrochemistry: electrolysis, electroplating, anodic oxidation, non-ferrous metals, sewage treatment, etc. |
7 | Aircraft start-up maintenance, power supply for military equipment, etc. |
8 | Physical exploration: power supply of mineral and petroleum equipment, etc. |
9 | Power supply: inverter products aging, inverter maintenance testing, etc. |
10 | Power tools: contact aging, wire pack testing, circuit breaker release test, etc. |
11 | Others |
II. PRODUCT FEATURES
| 1 | Small size and light weight suitable for workbench use and rack mounting. |
2 | Adopting PWM modulation, low power consumption of crystal module, high efficiency, more power saving. |
3 | Well-designed electronic technology circuit, forced air-cooled heat dissipation treatment, with a very low-temperature coefficient. |
4 | Low noise, low ripple. |
5 | Adopt high gain amplifier circuit design, with good fast response characteristics. |
6 | Adopt a 4-digit high sampling rate, high-resolution voltage, and current digital display meter. |
7 | Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable. |
8 | The product is designed with a load terminal voltage detection terminal, with the ability to accurately read the load terminal voltage and accurate control function. |
III. PERFORMANCE FEATURES
| 1 | Display: Output Voltage And Current Led Display. |

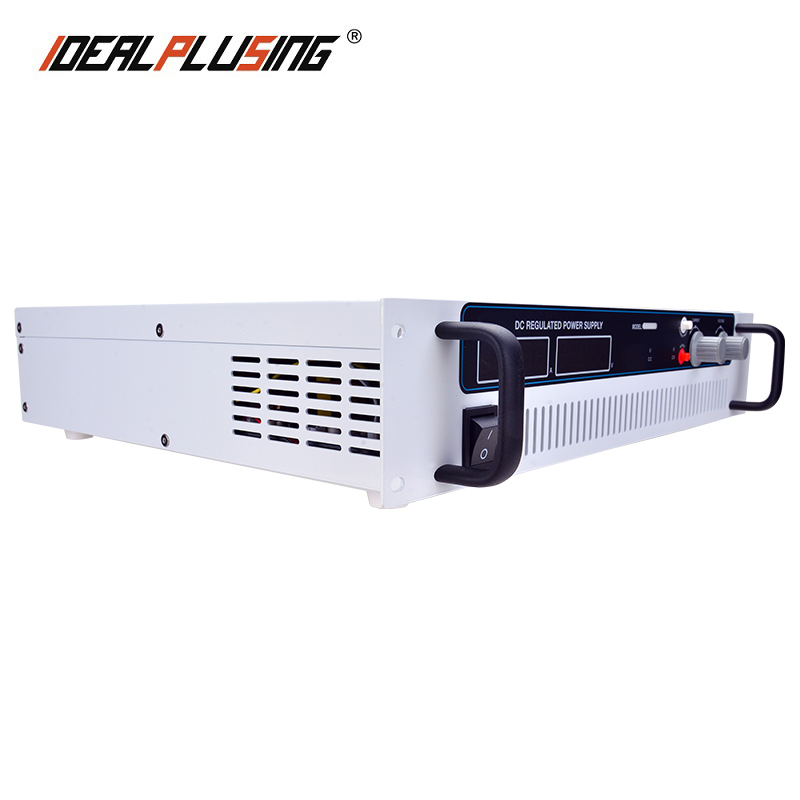

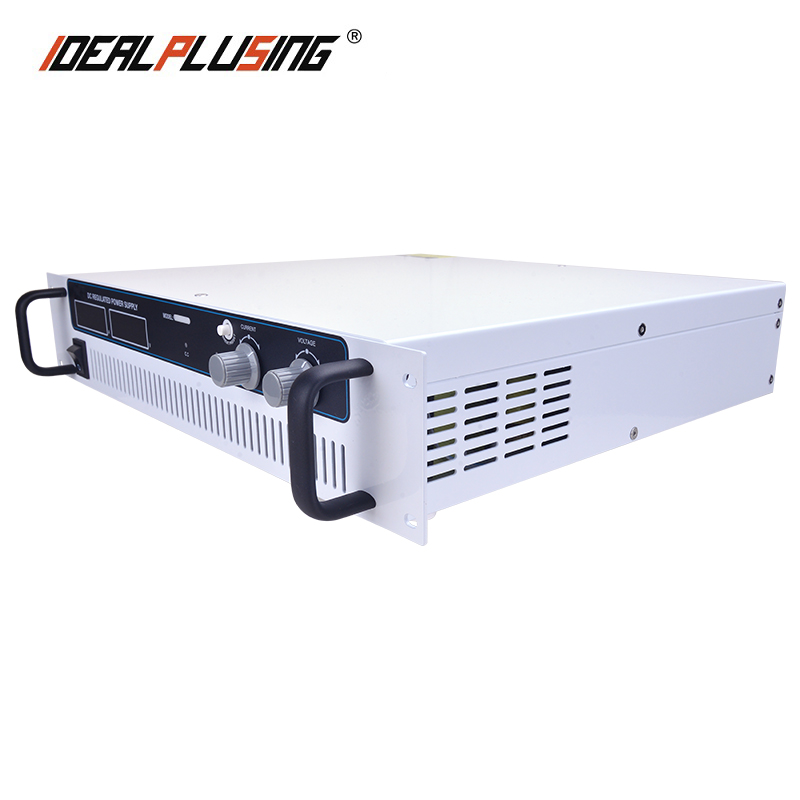

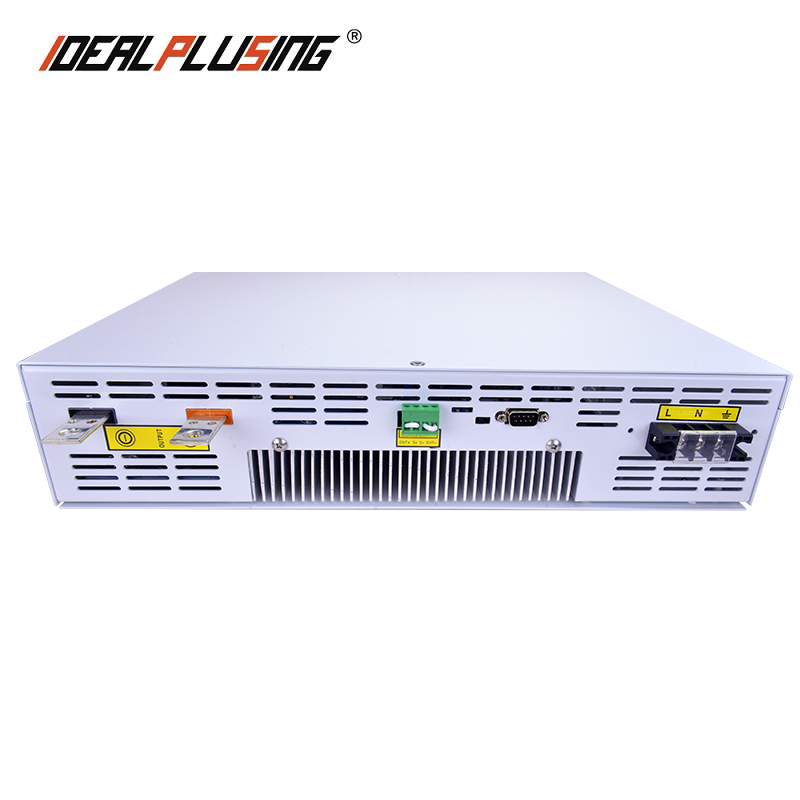

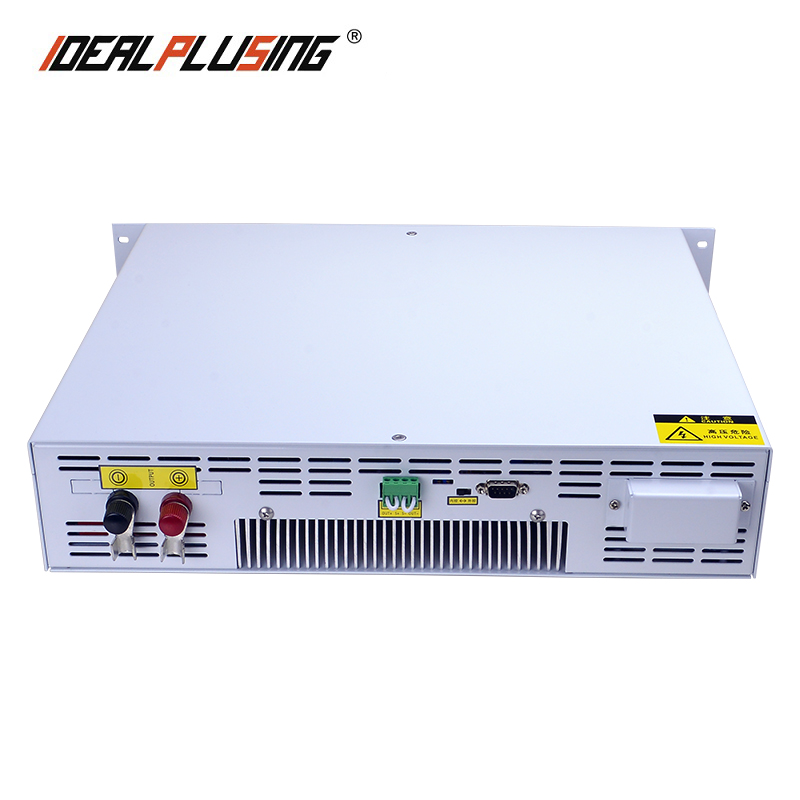

2 | Appearance: Using a Desktop, Cabinet, Or 19-Inch Standardized Size, Can Be Combined And Placed In a Variety Of Workbenches And Racks. |
3 | Advantages: High-Frequency Pwm Hardware-Adjusted Soft-Switching Control Technology Makes The Power Supply High Efficiency, Low Ripple, Low Noise, And High Reliability, Small Size, And Light Weight. |
4 | Constant Voltage And Constant Current: Output Cc, Cv Constant Voltage And Constant Current Automatic Switching, Voltage, And Power Flow Value From Zero To The Rated Value Of Continuous Adjustment |
5 | Protection Functions: Over-Voltage Protection (Ovp, Over-Current Protection (Ocp, Over-Temperature Protection (Otp.)) |
6 | External Compensation: Optional External Compensation (Remote Sensing, Reducing The Circuit Cable Voltage Drop. |
7 | Current Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has Current Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional). |
8 | Voltage Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has a Voltage Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional). |
9 | Computer Program Control Function: Optional Rs485/Rs232 And Other Data Interfaces, Standard Modbus Communication Protocol, Can Be Configured With Computer/Upper Computer Software Control Monitoring. Can Be Multiple Network Control, Or Master-Slave Parallel Control. (Optional) |
10 | Positive And Negative Commutation Function: Can Provide Output Positive And Negative Commutation Function (Bipolar), Commutation Mode: Manual, Timing, Calculator Program Control, Etc. (Optional) |
IV. ABOUT THE PACKAGING.
The use of professional instrument wooden box packaging can reliably protect the power supply. Tight packaging, reduces the logistics process of cargo damage, and cargo difference, to ensure the safety of the goods.
V. TECHNICAL PARAMETRIC
| Brand | IDEALPLUSING |
Model | IPS-ATDK12035 |
AC Input | Single phase 110VAC±15% 50/60hz （Customized-Contact sales for quote） |
Single phase 220VAC±15% 50/60hz (Less than 9000W） | |
Three phase 380VAC±15% 50/60hz (More than 9000W） | |
Input frequency | 50Hz/60Hz |
Output voltage | 0~120VDC |
Output current | 0-35A |
Output Power | 4200W |
Voltage Stabilization | ≤0.3%+10mV |
Load Stabilization | ≤0.5%+30mV |
Ripples and Noises | ≤0.5%+10mVrms |
Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
Remote Adjustment | (Analog control: Voltage adjustable )：0-5VDC；(Current adjustable)：0-5VDC |
Remote Display | (Analog control: Voltage adjustable )： 0-5VDC；(Current adjustable)：0-5VDC |
Output Over Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
Output Over Load Protection | Overload, current limit, constant current output |
Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature |
Voltage Setting | 10-turn precision potentiometer |
Current Setting | 10-turn precision potentiometer |
Output Polarity | Output Positive（+) negative（- ) Can be grounded at will |
Heat Dissipation Way | Forced fan cooling |
Work Conditions | Indoor use design，Temperature：0℃~40℃；Humidity：10%~85%RH |
Storage Conditions | Temperature:-20℃~70℃；Humidity:10%~90%RH |
Machine Dimension | base on model |
Package Dimension | base on model |
Net/Gross Weight | base on model |
