I. PRODUCT INTRODUCTIUON

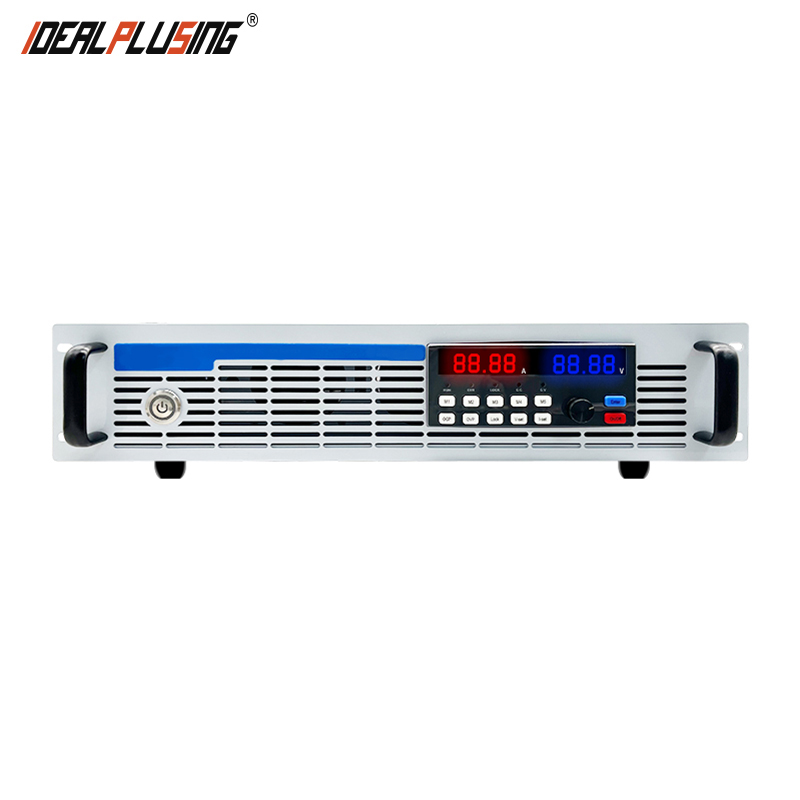

IPS-ATDYP series programmable digital display DC power supply is a high-performance, numerical control DC power supply independently developed by Dongguan Youjin Electronic Technology Co., Ltd. with simple operation, small size, high accuracy, high precision, high indicators, high power density, high cost-effective and other characteristics, with excellent electrical characteristics. Craftsmanship, exquisite design, can be used for desktop operating environment, can also be on the rack integration applications; can be used for automation system integration, aging production line, laboratory, solar inverter test, ATE system integration, motor motor life cycle test and other fields. It is the ideal choice for places that need a stable DC power supply for a long time. In terms of reliability, maintainability, safety and other aspects of the overall leading similar products and continue to innovate and develop.
II. PRODUCT FUNCTION DESCRIPTION
1. Size: standard 19inch rack mount 2U, 3U rack design, custom portable handheld design, suitable for a variety of environments and occasions, can work alone or participate in system integration;
2. Parameters: standard stand-alone maximum output power up to 12KW, voltage output range 0-3000V, current output range 0-500A;
3. Preset: the panel comes with preset buttons, can be pre-set five groups of current and voltage values;
4. Communication interface: standard RS232/RS485, optional 0-5V/0-10V, 4-20mA analogue communication interface, standard MOUDBUS-RTU protocol, SCIP protocol.
5. Voltage sampling: with remote voltage compensation function to compensate the voltage drop on the line.
6. Intelligent: can be linked with PC to form a PC monitor intelligent power supply.
7. Protection unction: over-voltage, over-current, over-temperature, short-circuit and other protection functions;
8. Output polarity: output positive (+), output negative (-);
9. Operating mode:CC/CV switching;
10. Heat dissipation method: adopts PWM speed-regulated fan, air-cooled;
11. Operating environment: Designed for indoor use, temperature 0℃-40℃, humidity 10%-85%RH;
12. Storage environment: Indoor storage, temperature -20℃-70℃, temperature 10%-90%RH;
13. Other: Provide special specifications, size, parameters power supply design customisation and development.
Parameter Selection Table 3000W/Standard 2U Rackmount
Model number | IPS-ATDYP-5060 | IPS-ATDYP-10030 | IPS-ATDYP-20015 | IPS-ATDYP-30010 | IPS-ATDYP-5006 | |
Parametric | 50V/60A | 100V/30A | 200V/15A | 300V/10A | 500V/6A | |
Output
| Voltage | 0-50VDC | 0-100VDC | 0-200VDC | 0-300VDC | 0-500VDC |
Current | 0.6-60A | 0.3-30A | 0.15-15A | 0.1-10A | 0.6-6A | |
Power | 3000W | 3000W | 3000W | 3000W | 3000W | |
Setting Resolution
| Voltage | 50mV | 50mV | 500mV | 500mV | 500mV |
Current | 50mA | 50mA | 50mA | 50mA | 50mA | |
Read back resolution | Voltage | 50mV | 50mV | 500mV | 500mV | 500mV |
Current | 50mA | 50mA | 50mA | 50mA | 50mA | |
Load mediation rate
| Voltage | ≤0.1%+30mV | ≤0.1%+50mV | ≤0.1%+80mV | ≤0.1%+200mV | ≤0.1%+300mV |
Current | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | |
Power mediation rate | Voltage | ≤0.1%+5mV | ≤0.1%+30mV | ≤0.1%+50mV | ≤0.1%+100mV | ≤0.1%+300mV |
Current | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | |
Setting accuracy
| Voltage | ≤0.1%+50mV | ≤0.1%+50mV | ≤0.1%+50mV | ≤0.1%+50mV | ≤0.1%+50mV |
Current | ≤0.1%+50mA | ≤0.1%+50mA | ≤0.1%+50mA | ≤0.1%+50mA | ≤0.1%+50mA | |
Read back accuracy
| Voltage | ≤0.1%+20mV | ≤0.1%50mV | ≤0.1%+100mV | ≤0.1%+200mV | ≤0.1%+300mV |
Current | ≤0.1%+60mA | ≤0.1%+60mA | ≤0.1%+60mA | ≤0.1%+60mA | ≤0.1%+60mA | |
Ripple noise
| Voltage | ≤200mVp-p | ≤350mVp-p | ≤470mVp-p | ≤550mVp-p | ≤550mVp-p |
Current | ≤150mArms | ≤150mArms | ≤150mArms | ≤150mArms | ≤150mArms | |
Rising time
| Empty load | ≤300mS | ≤300mS | ≤300mS | ≤300mS | ≤300mS |
Full load | ≤500mS | ≤500mS | ≤500mS | ≤500mS | ≤500mS | |
Descent time
| Empty load | ≤15S | ≤15S | ≤15S | ≤15S | ≤15S |
Full load | ≤150mS | ≤150mS | ≤150mS | ≤150mS | ≤150mS | |
Model number | IPS-ATDYP-10003 | IPS-ATDYP-15002 | IPS-ATDYP-20001.5 | IPS-ATDYP-30001 | |
Parametric | 1000V/3A | 1500V/2A | 2000V/1.5A | 3000V/1A | |
Output
| Voltage | 0-1000VDC | 0-1500VDC | 0-2000VDC | 0-3000VDC |
Current | 0.3-3A | 0.2-2A | 0.15-1.5A | 0.1-1A | |
Power | 3000W | 3000W | 3000W | 3000W | |
Setting Resolution
| Voltage | 500mV | 500mV | 5V | 5V |
Current | 50mA | 50mA | 50mA | 50mA | |
Read back resolution | Voltage | 500mV | 500mV | 5V | 5V |
Current | 50mA | 50mA | 50mA | 50mA | |
Load mediation rate
| Voltage | ≤0.1%+300mV | ≤0.1%+300mV | ≤0.1%+300mV | ≤0.1%+300mV |
Current | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | |
Power mediation rate
| Voltage | ≤0.1%+300mV | ≤0.1%+300mV | ≤0.1%+300mV | ≤0.1%+300mV |
Current | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | ≤0.1%+10mA | |
Setting accuracy
| Voltage | ≤0.1%+50mV | ≤0.1%+50mV | ≤0.1%+500mV | ≤0.1%+500mV |
Current | ≤0.1%+50mA | ≤0.1%+50mA | ≤0.1%+50mA | ≤0.1%+50mA | |
Read back accuracy
| Voltage | ≤0.1%+500mV | ≤0.1%+500mV | ≤0.1%+800mV | ≤0.1%+900mV |
Current | ≤0.1%+60mA | ≤0.1%+60mA | ≤0.1%+60mA | ≤0.1%+60mA | |
Ripple noise
| Voltage | ≤850mVp-p | ≤880mVp-p | ≤1500mVp-p | ≤1800mVp-p |
Current | ≤150mArms | ≤150mArms | ≤150mArms | ≤150mArms | |
Rising time
| Empty load | ≤300mS | ≤300mS | ≤300mS | ≤300mS |
Full load | ≤500mS | ≤500mS | ≤500mS | ≤500mS | |
Descent time
| Empty load | ≤16S | ≤17S | ≤18S | ≤19S |
Full load | ≤151mS | ≤152mS | ≤153mS | ≤154mS | |
