I. INPUT CHARACTERISTICS
Input Voltage | 176-262Vac |
Input frequency | 50/60Hz |
Input Current | Input voltage 230Vac, output full load, input current 12A max. |
Efficiency | Input voltage of 174~264ac and full load operation, the efficiency should be ≥86%. |
No load power consumption | Input voltage of 264Vac and full no load operation, power consumption should be less than 5W. |
Surge current | When the input voltage is 230Vac and the ambient temperature is 25℃ for cold start, the inrush current should be ≤52.85A. |
Start time | Input voltage 230Vac, ambient temperature 25℃ Cold start, start-up time should be ≤3.5s |
Hold time | Input voltage is 230Vac, ambient temperature is 25℃ Hold time should be ≥10ms during cold start |
Input structure | Three wire input, respectively: fire wire, zero wire, ground wire |
Linear adjustment rate | Line regulation <±2% over the input voltage range |
Input protection | When the input current is higher than the rated current of the fuse, the fuse will blow. |
High voltage testing | Primary to shell 1500Vac 5mA 3sec 50Hz |
Insulation impedance | Primary to Secondary 500Vdc 100MΩ |
II. OUTPUT CHARACTERISTIC
2-1. Output voltage and current
Output voltage | Error Range | Output Current | |
0-36VDC | ±1% | MIN | MAX |
0A | 55.5A | ||
2-1 Load Regulation
Under the conditions of AC input voltage, output load current, and ripple noise changes, the rate of change of output voltage should be within ±5% of the rated output voltage.
2-3. Ripples and noise
Output voltage | Ripple and noise |
36VDC | 420mV (MAX) |
Explanation:The ripple test was performed with an oscilloscope with a bandwidth of 20 MHz and a room temperature of 25°C. A 10uF/50V electrolytic capacitor and a 0.1uF/50V ceramic capacitor were connected in parallel to the output.
2-4. Overvoltage protection
When the output voltage is higher than 30% of the rated output voltage, the machine will enter a protective state and can resume normal operation after returning to the rated output voltage.
2-5. Overcurrent protection
When the working current of the machine is greater than 56A, the power supply will operate in constant current mode.
2-6. Short circuit protection
When the machine is operating normally (with normal input voltage and load), a short circuit at the output end will not cause damage or safety issues to the machine itself, and the machine can resume normal operation after the short circuit is cancelled.
2-7. Leakage current
When the input voltage is 264Vac 50Hz, the leakage current should be ≤ 3.5mA.
2-8. Indicator lights
Style | Indicator light (green) |
Proper functioning | bright |
No voltage output | extinguished |
2-9. Static electricity requirements
1.) This power adapter
Must comply with EN50082-1:1997 standard
2.)The basic standards are as follows:
a. EN61000-4-3
b. EN61000-4-4
c. EN61000-4-5
III. ENVIRONMENTAL CHARACTERISTICS
3-1 Temperature
1. Working temperature: -10 ℃ to+50 ℃
2. Storage temperature: -20 ℃ to+85 ℃
3-2. Humidity
1. Working relative humidity: 10% to 90% (non condensing)
2. Storage relative humidity: 5% to 95% (non condensing)
3-3. Temperature Derating Curve
|
3-4. Altitude
1.) Working height: 10000 feet
2.) Storage height: 40000 feet
IV. EMI/EMC STANDARDS
Complies with GB9254-1998 GB17625.1-2003 EN55022B
V. SAFETY STANDARDS
Compliant with CE
VI. RELIABILITY
Mean time between failures: Under normal input voltage, room temperature of 25 ℃, and full load operation, the MBTF should be ≥ 50000 hours
VIII. MECHANICAL CHARACTERISTICS
7-1. Appearance dimensions
Length: 246mm
Width: 142mm
Height: 67mm
7-2. Weight
Gross weight: 2117g

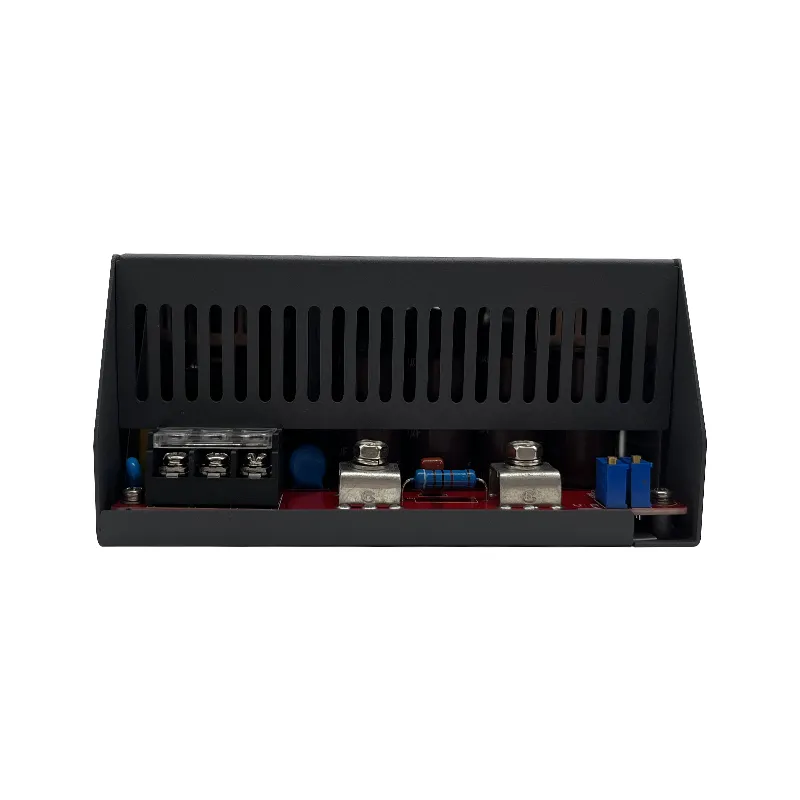

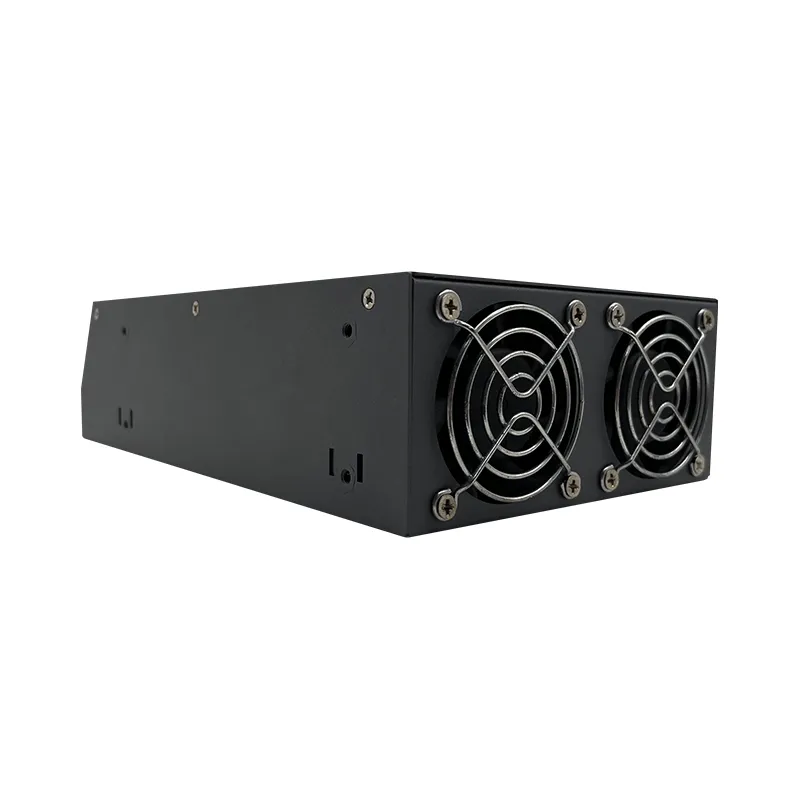

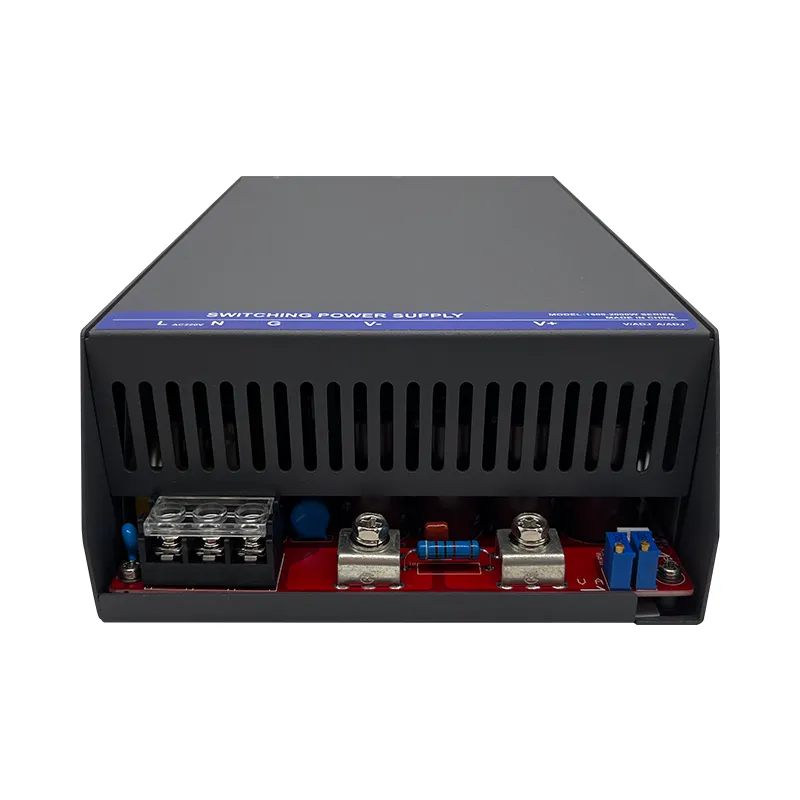

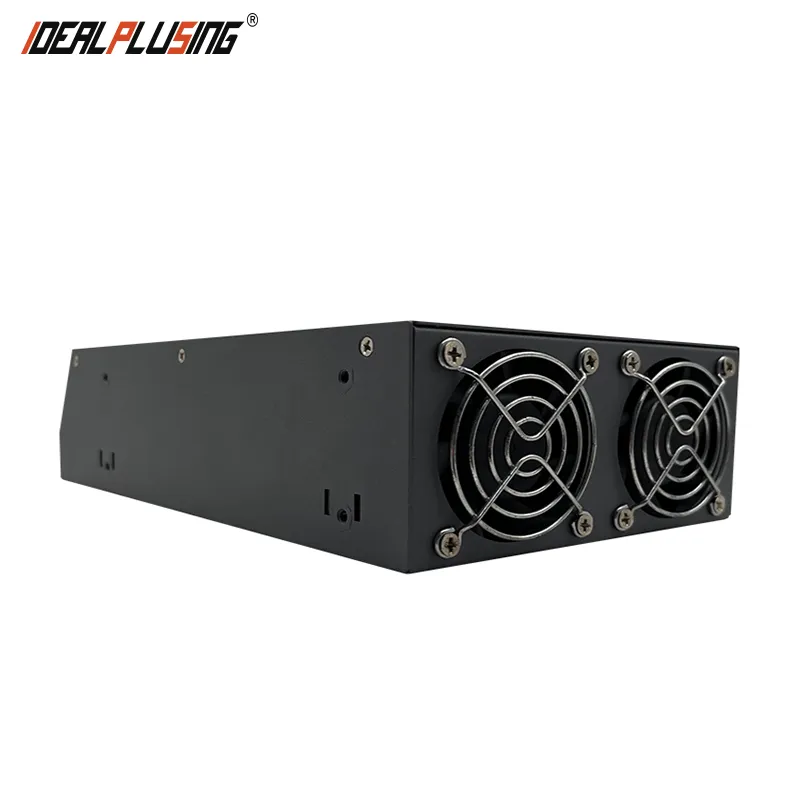

IX. REFERENCE PICTURE
|
