IPS-SP100-20 Factory Price Power Supply 2000W 100VDC 20A switching mode voltage adjustable for Industrial control
MODEL:IPS-SP20-100 switching power supply 20v 2000w SPECIFICATION: ① AC input: Single-phase 110/220V±15% 50/60hz ② DC output: 0~20VDC, 100A ③ Power: 2000W ④ Dimension: 246*142*67mm ⑤Package size: 45(L)*26(W)*41(H)CM ⑥NW: 2.5KG, GW: 3KG

I. INPUT CHARACTERISTICS

Input Voltage

176-262Vac

Input frequency

50/60Hz

Input Current

Input voltage 230Vac, output full load, input current 12A max.

Efficiency

Input voltage of 174~264ac and full load operation, the efficiency should be ≥86%.

No load power consumption

Input voltage of 264Vac and full no load operation, power consumption should be less than 5W.

Surge current

When the input voltage is 230Vac and the ambient temperature is 25℃ for cold start, the inrush current should be ≤52.85A.

Start time

Input voltage 230Vac, ambient temperature 25℃ Cold start, start-up time should be ≤3.5s

Hold time

Input voltage is 230Vac, ambient temperature is 25℃ Hold time should be ≥10ms during cold start

Input structure

Three wire input, respectively: fire wire, zero wire, ground wire

Linear adjustment rate

Line regulation <±2% over the input voltage range

Input protection

When the input current is higher than the rated current of the fuse, the fuse will blow.

High voltage testing

Primary to shell 1500Vac 5mA 3sec 50Hz

Insulation impedance

Primary to Secondary 500Vdc 100MΩ



II. OUTPUT CHARACTERISTIC

2-1. Output voltage and current

Output voltage

Error Range

Output Current

0-100VDC

±1%

MIN

MAX

0A

20A



2-1 Load Regulation

Under the conditions of AC input voltage, output load current, and ripple noise changes, the rate of change of output voltage should be within ±5% of the rated output voltage.



2-3. Ripples and noise

Output voltage

Ripple and noise

100VDC

420mV (MAX)


Explanation:The ripple test was performed with an oscilloscope with a bandwidth of 20 MHz and a room temperature of 25°C. A 10uF/50V electrolytic capacitor and a 0.1uF/50V ceramic capacitor were connected in parallel to the output.



2-4. Overvoltage protection



When the output voltage is higher than 30% of the rated output voltage, the machine will enter a protective state and can resume normal operation after returning to the rated output voltage.



2-5. Overcurrent protection



When the working current of the machine is greater than 20A, the power supply will operate in constant current mode.



2-6. Short circuit protection



When the machine is operating normally (with normal input voltage and load), a short circuit at the output end will not cause damage or safety issues to the machine itself, and the machine can resume normal operation after the short circuit is cancelled.



2-7. Leakage current



When the input voltage is 264Vac 50Hz, the leakage current should be ≤ 3.5mA.



2-8. Indicator lights



Style

Indicator light (green)

Proper functioning

bright

No voltage output

extinguished



2-9. Static electricity requirements



1.) This power adapter



Must comply with EN50082-1:1997 standard



2.)The basic standards are as follows:



a. EN61000-4-3



b. EN61000-4-4



c. EN61000-4-5



IIIENVIRONMENTAL CHARACTERISTICS



3-1 Temperature



1. Working temperature: -10 ℃ to+50 ℃



2. Storage temperature: -20 ℃ to+85 ℃



3-2. Humidity



1. Working relative humidity: 10% to 90% (non condensing)



2. Storage relative humidity: 5% to 95% (non condensing)



3-3. Temperature Derating Curve




3-4. Altitude



1.) Working height: 10000 feet



2.) Storage height: 40000 feet



IVEMI/EMC STANDARDS



Complies with GB9254-1998 GB17625.1-2003 EN55022B



VSAFETY STANDARDS



Compliant with CE



VIRELIABILITY



Mean time between failures: Under normal input voltage, room temperature of 25 ℃, and full load operation, the MBTF should be ≥ 50000 hours



VIIIMECHANICAL CHARACTERISTICS



7-1. Appearance dimensions



Length: 246mm

Width: 142mm

Height: 67mm



7-2. Weight



Gross weight: 2117g

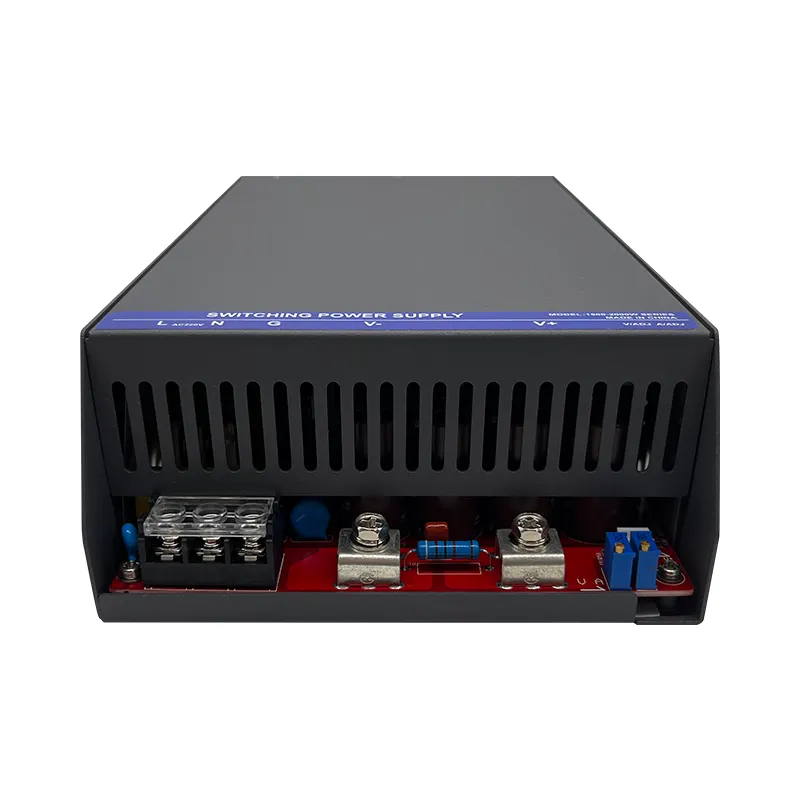

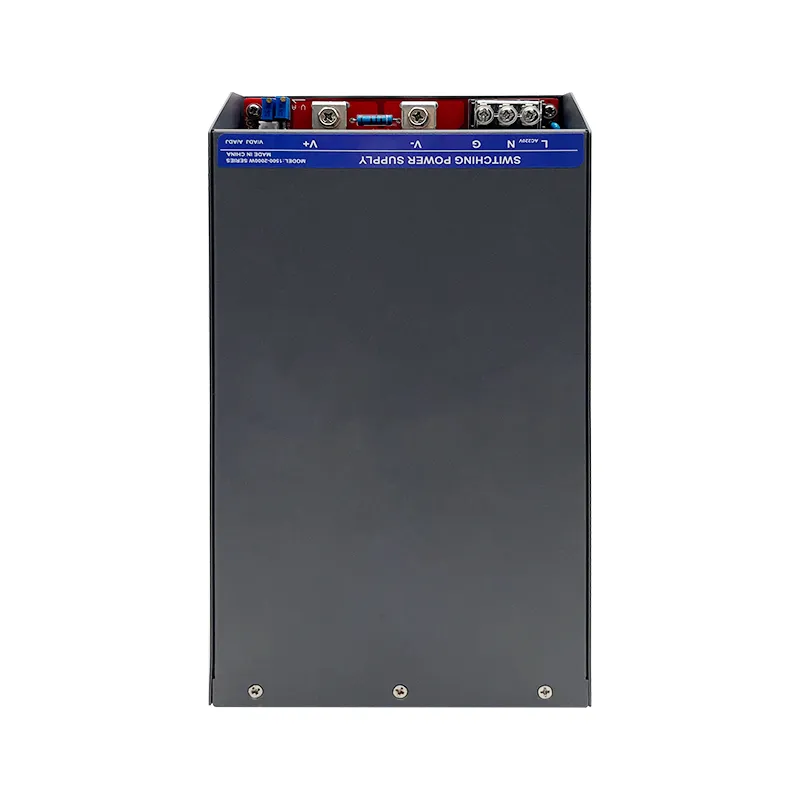

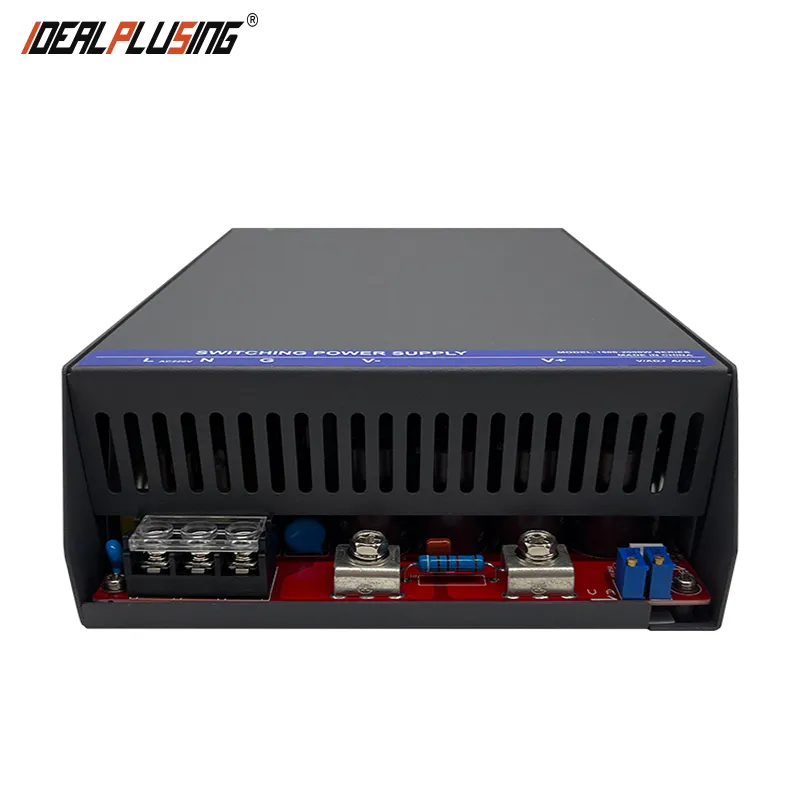

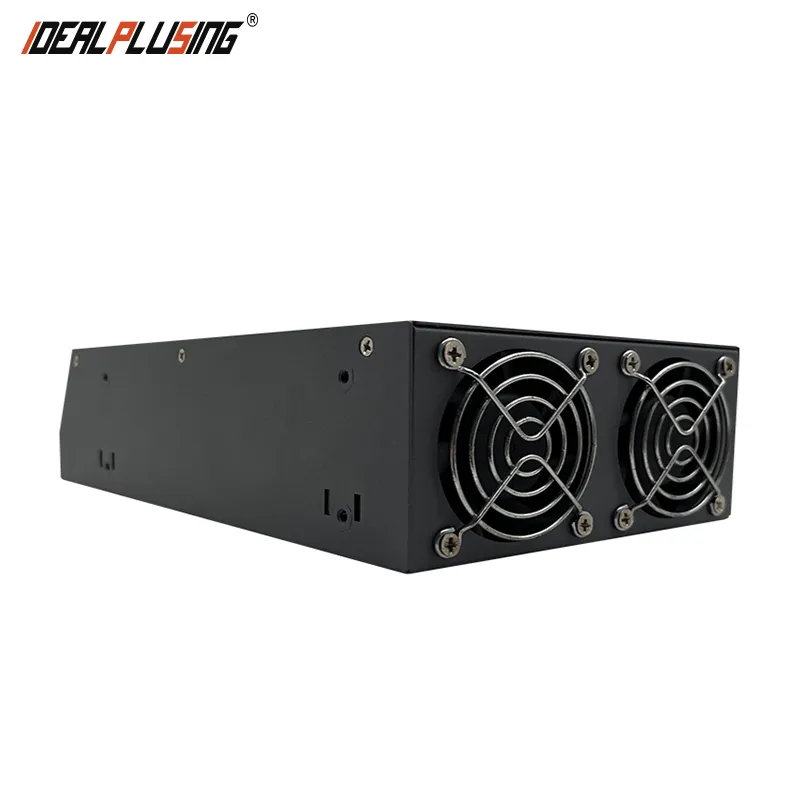

IX. REFERENCE PICTURE
