Brand | IDEALPLUSING |
Model | IPS-ATD2045 |
Input Voltage | 1 Phase 220VAC±15%,50Hz/60Hz |
Output Voltage/Current | 0.2~20VDC,Stabilizer value. 1% to 100% adjustable 0.45~45A,Constant current value. 1% to 100% adjustable |
Output Power | 900W |
Source Voltage Regulation Rate | ≤0.5% |
Load Regulation | Stabilizer Voltage ≤1%; Constant Current≤2% |
Voltage Display Accuracy | + 1.2% |
Current Display Accuracy | + 1.5% |
Display form | 0.000 to 9999 |
Output Voltage Overshoot | ≤2% of maximum output |
Operation Temperature | (-20~45)℃ |
Over-Temperature Protection | 75~85 Degree |
Heat Dissipation Mode/ Cooling mode | Fan heat dissipation |
Ripple Voltage | Vpp≤2% |
Efficiency | ≥86% |
Start-up Output voltage setting time | ≤3S |
Protection | lower voltage, over voltage, over current, short circuit, overheating Protection |
Insulation Strength | Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
Insulation Resistance | Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ。 |
MTTF | ≥50000h |
CUSTOMIZE FUNCTION | |
Remote Control Function (Option) | 0-5Vdc /0-10Vdc analog signal control output voltage & current |
0-5Vdc /0-10Vdc analog signal to read-back output voltage & current | |
0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF | |
4-20mA analog signal control output voltage & current | |
RS232/RS485 Communication port control by computer | |
Machine/Package Dimension | L165*W330*H88(MM)/L420*W260*H170(MM) |
Net Weight/Gross Weight | 3.5KG/5.5KG |
Adjustable Voltage / Current Mode | Knob type & Keystroke type for option |
Color | Grey |
SALE CONTACT INFORMATION | |
ATTN | Sue Yo |
Wechat ID | idealplus_power |
Wechat Number | +86-15989132799 |
Whatsapp ID | +86-15989132799 |
Skype ID | +86-15989132799 |
susan@idealplusing.com | |
Office telephpone number | +86-20-89282095 |
Product Categories
AC DC Power Supply
19Inch Rack Mount Design
For electrolysis & electric heating
For anodization
For aging and test
For water treatment
300-1000W
1001-1500W
1501-2000W
2001-3000W
3001-4000W
4001-5000W
5001-6000W
6001-7000W
7001-8000W
8001-9000W
9001-10000W
10.1-12KW
12.1-15KW
15.1-20KW
20.1-30KW
30.1-50KW
50.1-100KW
101-300KW
DC Converter-Isolated
19 inch rack mount
Step Down Converter

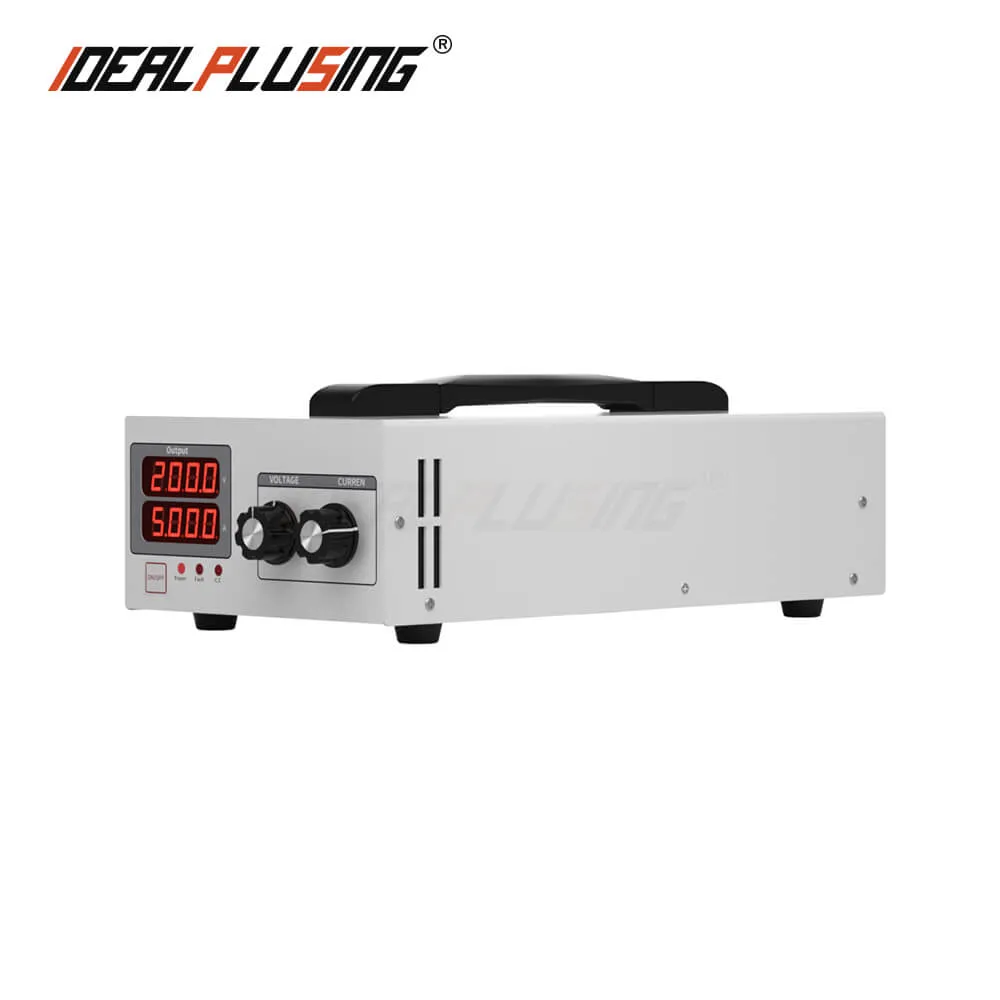

IPS-ATD2045-20VDC 45A 900W Adjustable AC DC Power Supply
20VDC 45A 900W Adjustable AC DC Power Supply/Constant dc power supply/variable dc power supply
① AC INPUT: Single phase 220VAC±15% 50/60HZ
② DC OUTPUT: 0.2~20VDC, 0.45~45A
③ Max Power: 900W
④ Machine size : 330(L)*165(W)*88(H)MM
⑤ Package size: 420(L)*250(W)*165H)MM
⑥ NW: 3.5KG, GW: 5KG
We specialize in customizing DC power supply to meet your specific requirements.
With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 2000A.
We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing.
Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
Thank you for considering our services.
