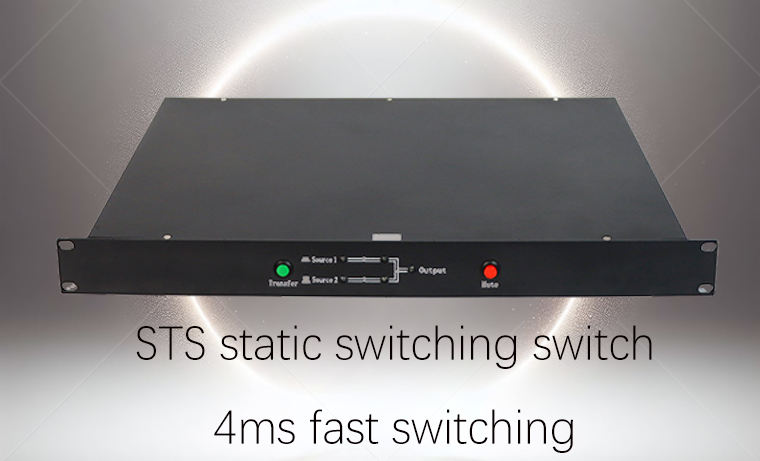

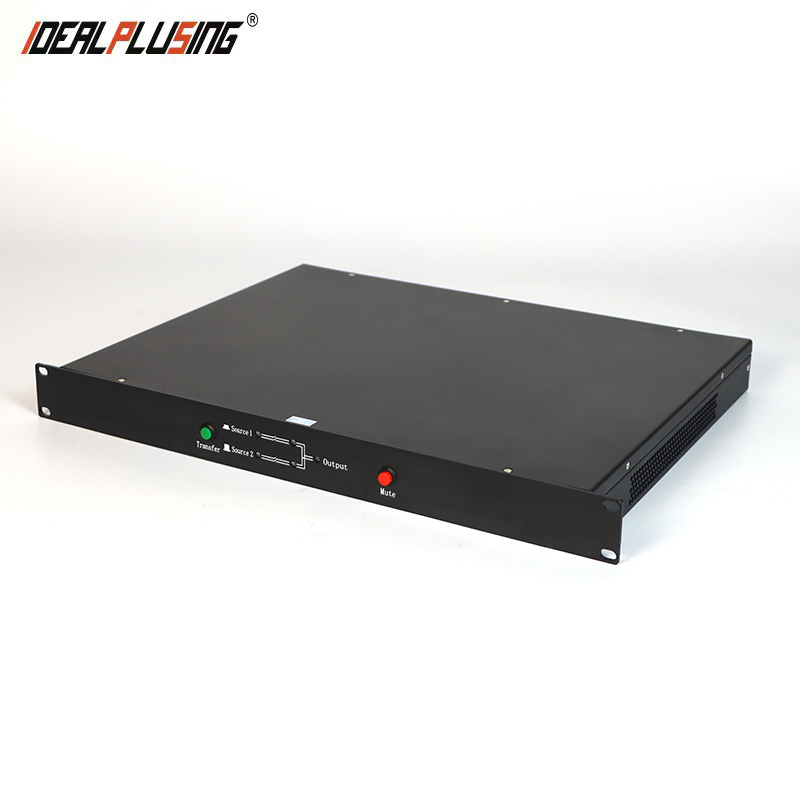

IPS-DQ25J IDEALPLUSING special power manufacturer 220v ac 25a sts static transfer switch with wooden case packing static transfer switch working principle

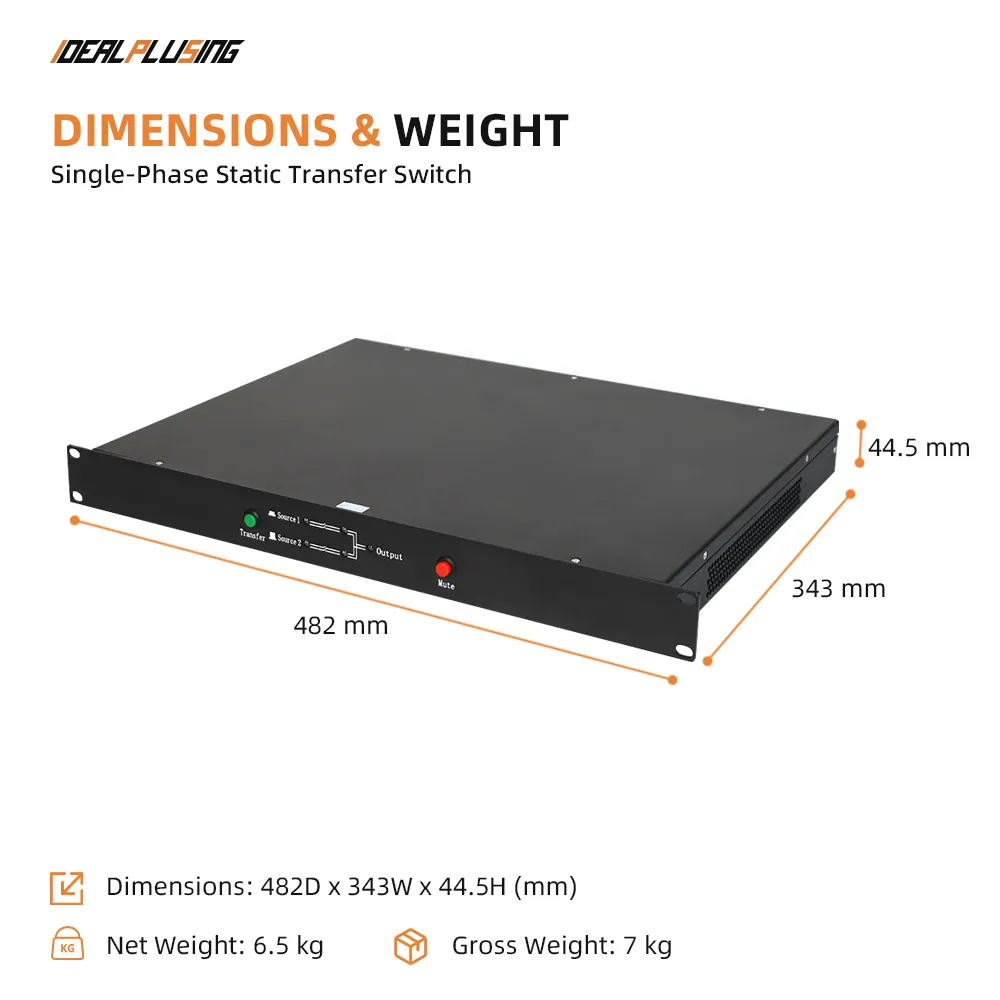

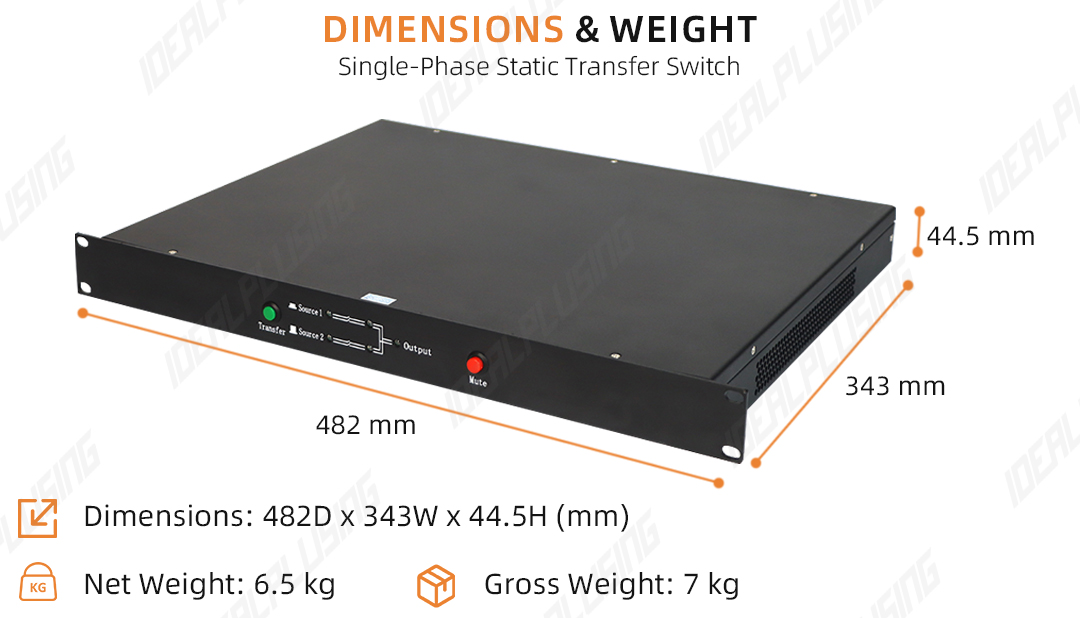

Model: IPS-DQ25J ① Input Voltage: 190~260VAC ② Input Frequency: 50/60HZ ③ Rated Input Voltage: 220VAC ④ Output Current: 25A ⑤ Switching Types: Dual ⑥ Display Type: LED ⑦ Machine Dimensions: 482*44.5*343(MM) ⑧ Packaging Size: 560*88*525(MM) ⑨ NW; GW: NW: 6KG; GW: 6.5KG



INTRODUCTION

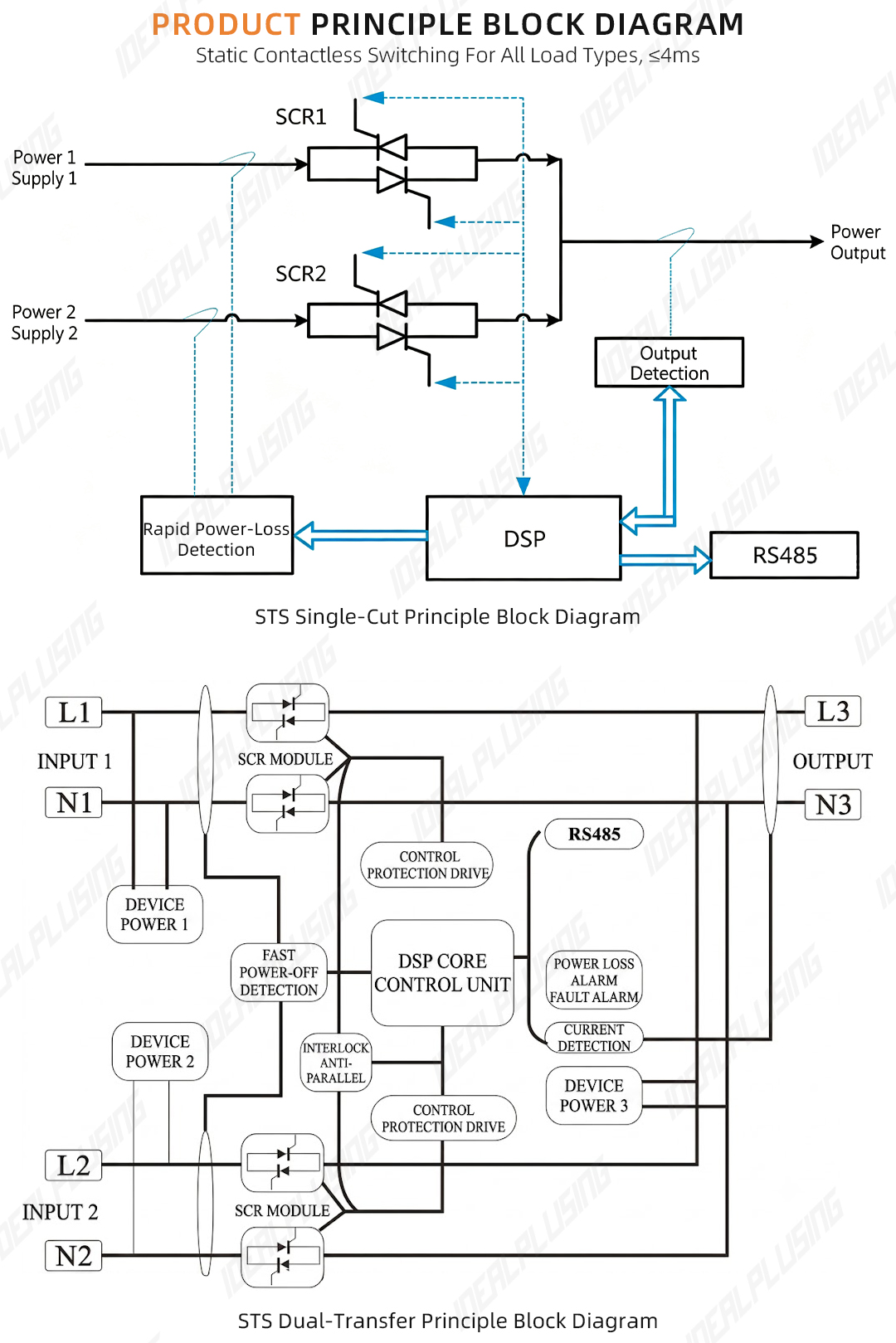

In many important occasions, the reliability of the load of electricity consumption is very important. In order to improve the reliability of the load, the general power supply system adopts dual power supply, such as dual main power, one main power and UPS. However, the more reliable method is to use dual UPS power supply, such as many IDC computer rooms, bank business outlets, telecommunications, mobile, and many important loads in the power systems. For dual power supply, how to safely, quickly and effectively switch directly affect load reliability, especially many equipment acceptable outage time is extremely demanding, such as: outage time cannot exceed 10ms, in the face of this requirement, ordinary ATS mechanical contacts is not bear, and high speed static no contact STS and rapid power detection can quickly, safely and effectively realize double power switch.



KEY SPECIFICATIONS

Model

Input Voltage

Input Frequency

Output Current

Switching types

Display type

IPS-DQ25J

190~260VAC

50/60HZ

25A

Dual

LED



ELECTRICAL CHARACTERISTICS

Brand

IDEALPLUSING

Model

IPS-DQ25J

Switching types

Dual

Display type

LED

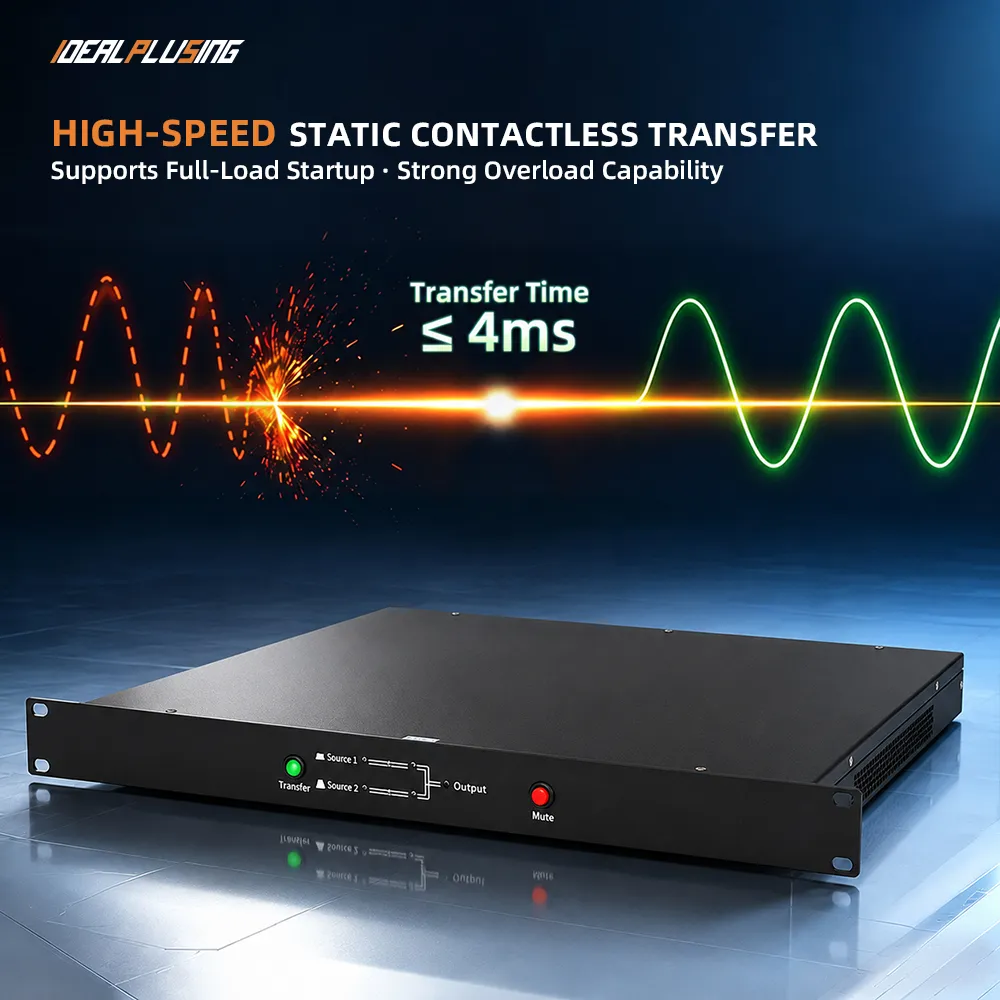

Switch time

Priority switching

≤4m s

Input characteristics

Rated voltage

220VAC

Input voltage range

190~260VAC

rated frequency

50/60HZ

power factor

1

Auto convert threshold voltage

 190Vac ± 5Vac   or

260Vac ± 5Vac

Auto convert threshold frequency

45Hz±0.2Hz   or

65Hz±0.2Hz

Over-limit protection shutdown threshold voltage

160Vac or 265Vac, return ± 5V

Over-limit protection shutdown threshold frequency

45Hz or 65Hz, with differential ± 0.2Hz

overload capacity

Load current is 110%, operating continuously

Load current> 110%, immediately shut-off;

Environment

insulation strength

2KVAC,1min

Noise (1m)

≤55dB

operating ambient temperature

-25~50℃

Transport and storage temperature

40~70℃

humidity

0~90%, with no condensation

levels of protection

IP20

height (m)

≤3000

2000~3000m

Output reduction of 2% per 100m increase

defencive function

Input under voltage, over voltage protection, output overload protection, over temperature protection, short circuit protection

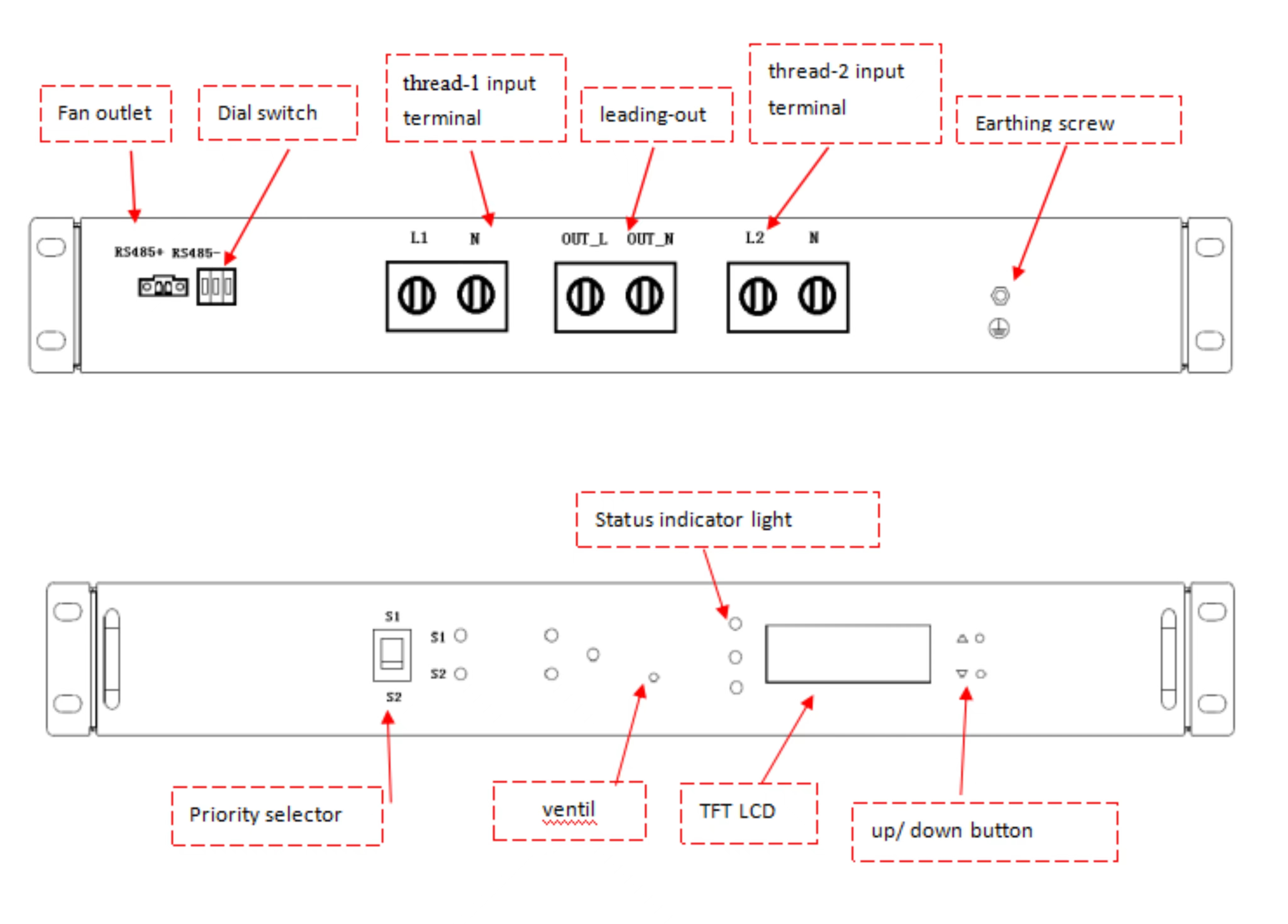

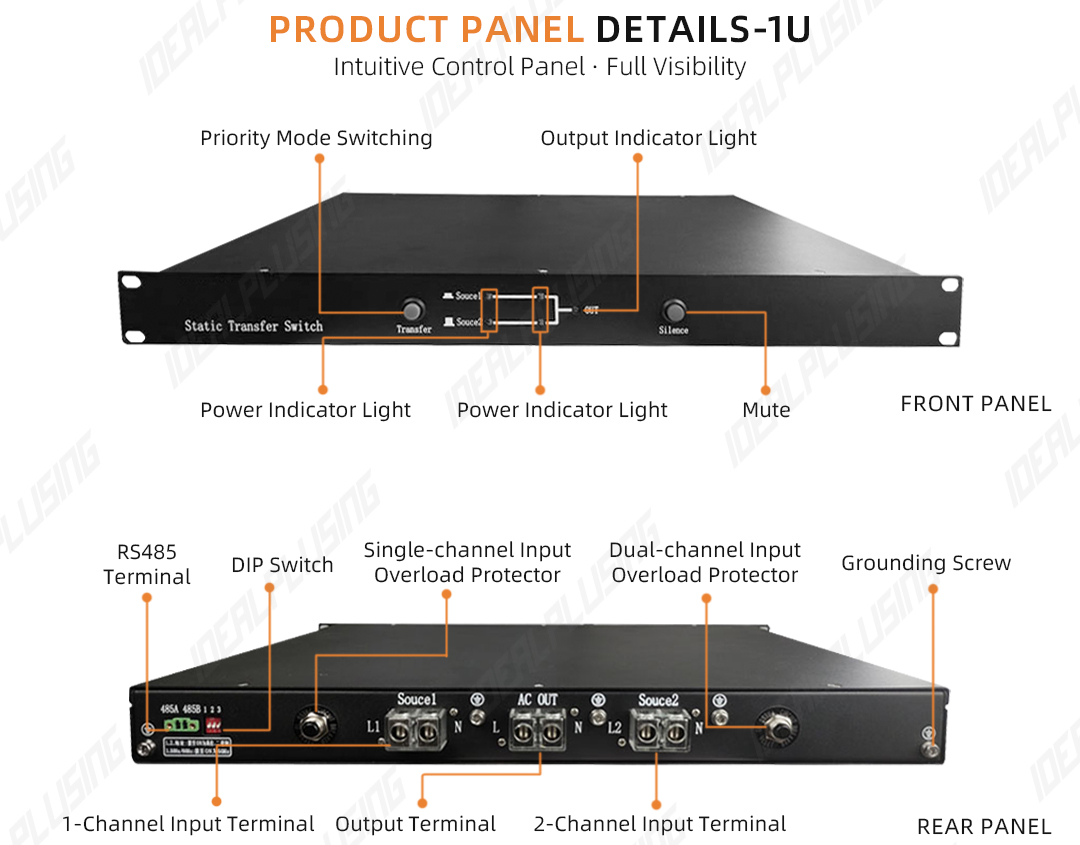

DETAILS IMAGES

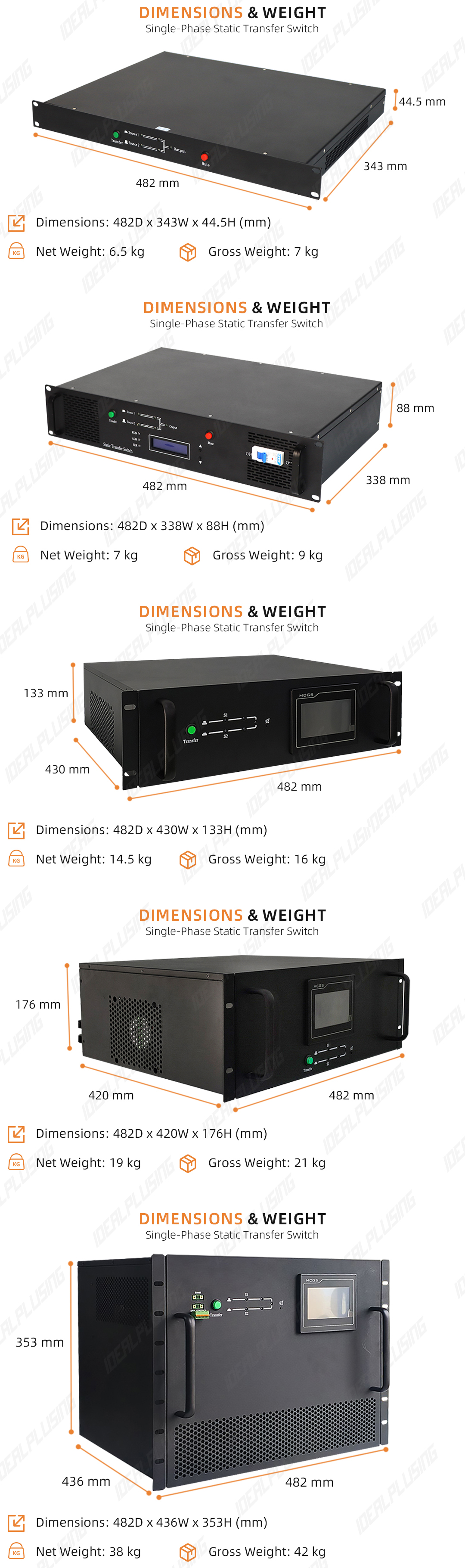

MODEL LIST

Model

Input Voltage

Output Current

Relay version  STS

IPS-DQ16J

190~260VAC

16A

IPS-DQ25J

190~260VAC

25A

IPS-DQ32J

190~260VAC

32A

Thyristor board STS

IPS-STS16S

190~260VAC

16A

IPS-STS25S

190~260VAC

25A

IPS-STS32S

190~260VAC

32A

IPS-STS40S

190~260VAC

40A

IPS-STS45S

190~260VAC

45A

IPS-STS16D

190~260VAC

16A

IPS-STS25D

190~260VAC

25A

IPS-STS32D

190~260VAC

32A

IPS-STS40D

190~260VAC

40A

IPS-STS45D

190~260VAC

45A

IPS-STS063SM

190~260VAC

63A

IPS-STS080SM

190~260VAC

80A

IPS-STS100SM

190~260VAC

100A

IPS-STS125SM

190~260VAC

125A

IPS-STS063DM

190~260VAC

63A

IPS-STS080DM

190~260VAC

80A

IPS-STS100DM

190~260VAC

100A

IPS-STS125DM

190~260VAC

125A

IPS-STS063SMT

323~437VAC

63A
