IPS-HDR-30-24 Rail industrial Switching Power supply 30w 24v 1.5a guide rail industrial power supply

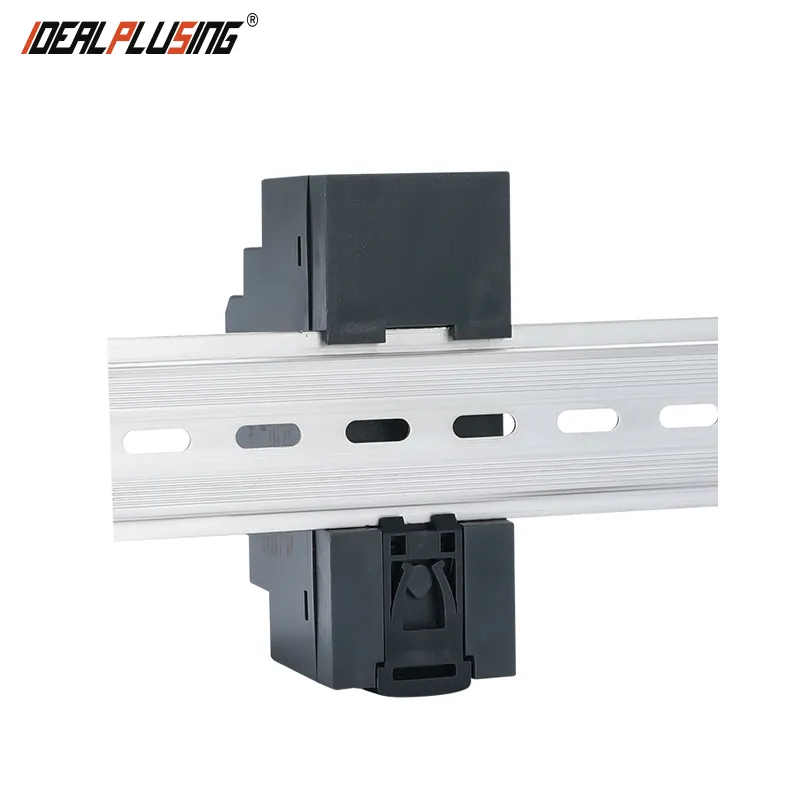

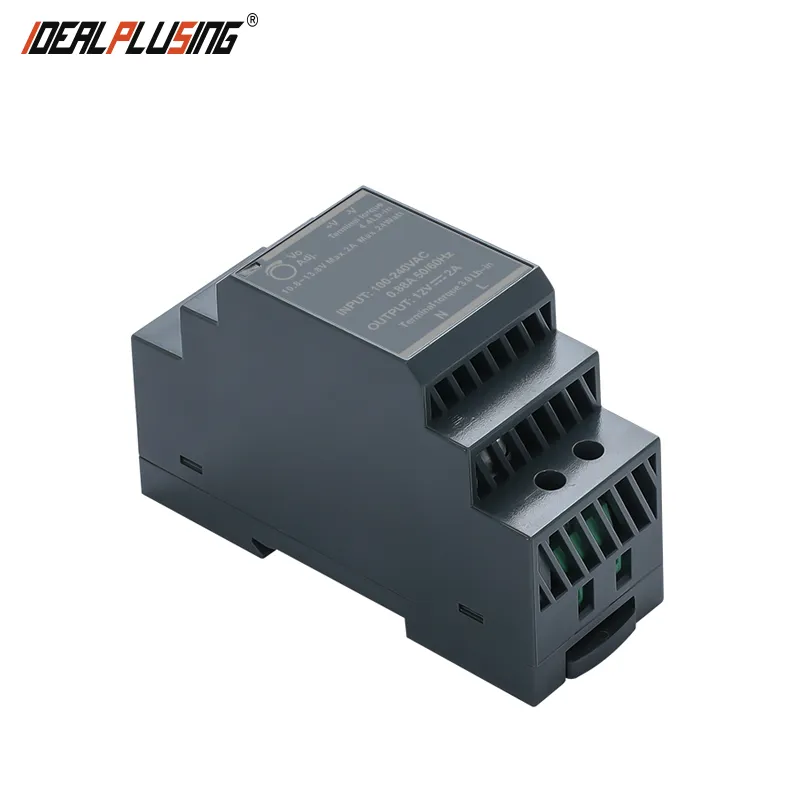

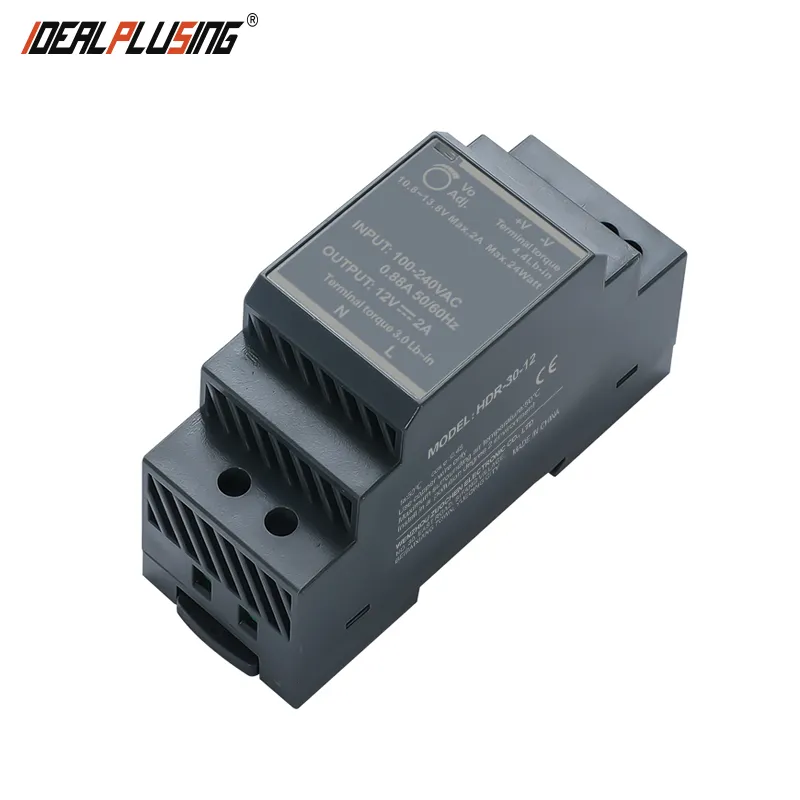

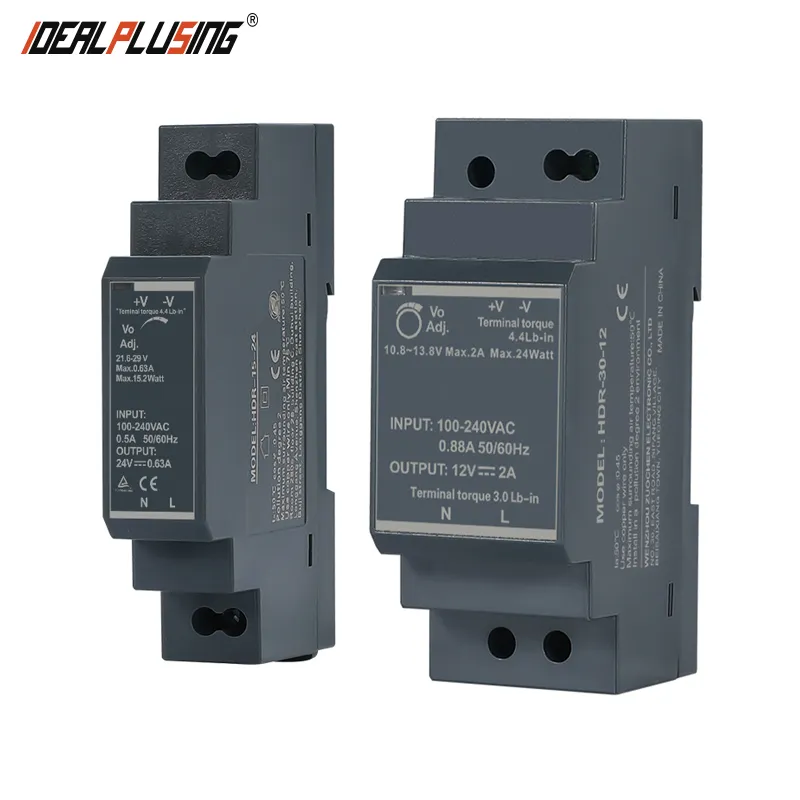

MODEL:IPS-HDR-30-24 Rail Power Supply 24v 30w SPECIFICATION: ① AC input: Single-phase 100-240VAC 50/60hz ② DC output: 24VDC,1.5A ③ Power: 30W ④ Dimension: 35*90*54.5MM ⑤ NW: 0.12KG

Features:

1. International universal voltage input range: 85-264VAC/120-370VDC

2. Protection type: Short circuit ,Over current ,Over voltage.

3. Natural air cooling

4. Up to 88% work efficiency

5. Standby power consumption as low as 0.3W

6. 100% full load burn-in test

7. 2-year warranty



1.Electrical specifications

Module

HDR-30-5

HDR-30-12

HDR-30-15

HDR-30-24

HDR-30-48

Output characteristic

DC output voltage

5V

12V

15V

24V

48V

Rated current

3A

2A

2A

1.5A

0.75A

Current range

0-3A

0-2A

0-2A

0-1.5A

0-0.75A

Rated power

15W

24W

30W

36W

36W

Ripple&Noise (maximum)

80mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

Voltage adjustment range

4.5-5.5V

10.8-13.8V

13.5-18V

21.6-26.4V

43.2-55.2V

Voltage accuracy

± 2%

± 1%

± 1%

±1%

± 1%

Linear adjustment rate

± 1%

± 1%

± 1%

±1%

± 1%

Load adjustment rate

± 1%

± 1%

± 1%

±1%

± 1%

Start&Rise Time

2000mS,30mS/ 1 15VAC  (Full load);1500mS ,30mS/230VAC

Hold time

30mS/230VAC (Full load)  10mS/ 1 15VAC (Full load)

Input characteristics

input voltage

85-264VAC      120-370V DC

Input frequency

47-63Hz

efficiency

82%

85%

86%

88%

88%

Input current

0.88A/ 1 15VAC   0.48/230VAC

power factor

0.65/230VAC (Full load)

Surge current

40A/230VAC (Cold start)

Protective characteristics

Over load protection

Over current protection

10% -130% of rated power

Protection mode: Hiccup protection, automatically restored after abnormal conditions are removed

Short circuit protection

working temperature

10% -130% of rated current

Protection mode: Hiccup protection, automatically restored after abnormal conditions are removed

Working humidity

Storage temperature/humidity

Short circuit between positive and negative poles at the output end

Protection mode: Hiccup protection, automatically restored after abnormal conditions are removed



Environmental characteristics

Anti vibration

-30 ℃~70 ℃ (refer to the derating curve)

Withstand voltage

20~90% RH without condensation

Insulation impedance

-40 ℃~85 ℃ 10~95% RH, no condensation

Electromagnetic compatibility emission

10~500HZ, 5G 10 minutes/cycle, X, Y, Z each 60 minutes

Safety and electromagnetic compatibility

Electromagnetic compatibility immunity

Input to output: 800VAC

Safety regulations

Input to output: 100M hms/500V DC/25 ℃/70% RH

Rated current

35*90*54.5mm(L*W*H)

Current range

0. 12kg/pcs



Notes

1. All parameters, unless otherwise specified, are measured at 230VAC voltage input, rated load, and 25 ℃ conditions.

2. Ripple and noise voltage are applied at the end of a 12 inch twisted pair oscilloscope with a bandwidth of 20MHz and an additional 0.1 μ And 47 μ The capacitance is measured at a bandwidth of 20MHZ. 3. Accuracy: including setting error, linear adjustment rate, and load adjustment rate.

4. In the case of low input voltage, it is necessary to derate the output. Please refer to the static characteristic curve for details.

5. The startup time is measured during cold start, and frequent switching on and off may increase the startup time.
