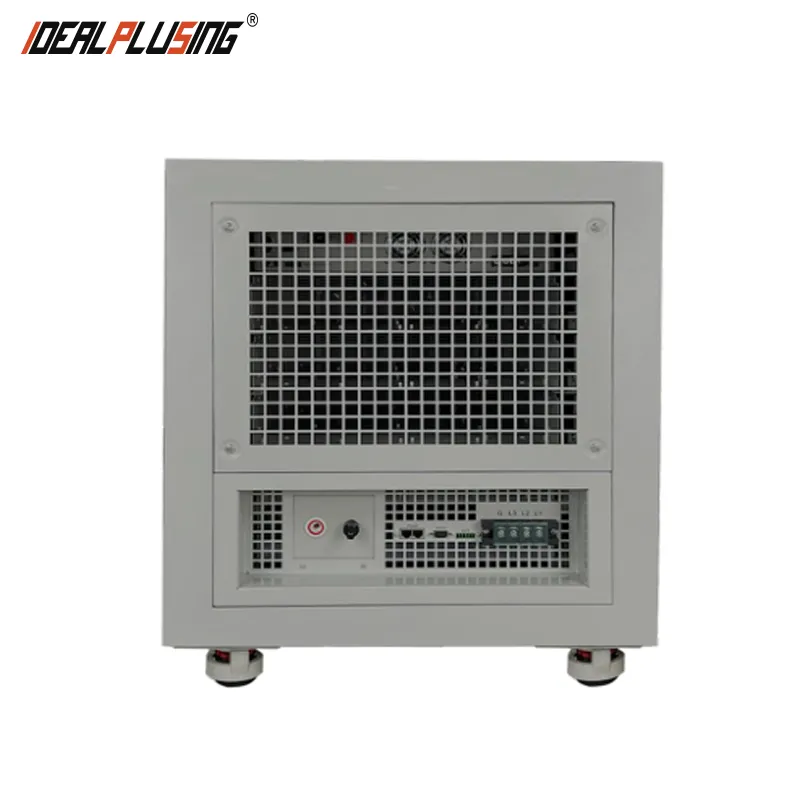

IPS-ATDL4KV-2500mA 4KV 2500mA 10000W Programmable DC Power Supply-IDEALPLUSING
I. INTRODUCTION
IPS-ATDL The series is a high power DC power supply with a continuously adjustable output rating of 5KW/10KW/15KW/20KW/30KW/50KW. With a maximum voltage rating of up to 12KV, this series of power supplies offers excellent performance in its class. In addition, the power supply offers local operation with the addition of remote control and detection functions, greatly enhancing the flexibility and versatility of the power supply. These power supplies can be used in a wide range of electronic component ageing systems, test equipment and electronic application laboratories.
II. KEY SPECIAL FEATURES AND BENEFITS ARE AS FOLLOWS
1 | 19" 12U standard cabinet or 19" 20U standard cabinet available |
2 | Constant voltage and constant current function |
3 | Low ripple and high stability |
4 | Continuously adjustable output voltage and current |
5 | ZVZCS switching mode for high conversion efficiency |
6 | Over-voltage, over-heat and under-voltage protection for mains input |
7 | RS232 and RS485 communication interfaces |
8 | MODBUS-RTU standard communication protocol |
9 | Monitorable via PC software |
10 | Software calibratable parameters |
11 | Dual local and programmable operation modes |
12 | Output rated power 5KW/10KW/15KW/20KW/30KW/50KW |
13 | Rated voltage 1KV~12KV, rated current 500mA~50A Various models available |
III. DATASHEET
Model | IPS-ATDL4KV-2500mA | |
Input | 3 phases 380VAC±15% 50Hz～60Hz | |
Dimension | L732*W600*H755(MM) (Standard 19inch rack mount) | |
Rating | Output voltage | 4KV |
Output current | 0~2500mA | |
Over-voltage protection | 0~12600V 0~-12600V | |
Programmed solutions Degree of analysis | Over-voltage | 1V |
Voltage | 1V | |
Current | 1mA | |
Display resolution | Voltage | 1V |
Current | 1mA | |
Accuracy of displayed values | Voltage | ≤0.3%+2LSB |
Current | ≤0.5%+2LSB | |
Load regulation rate | Voltage | ≤0.5%+2LSB |
Power regulation rate | Voltage | ≤0.1%+2LSB |
Ripple | Voltage | ≤0.1% FS |

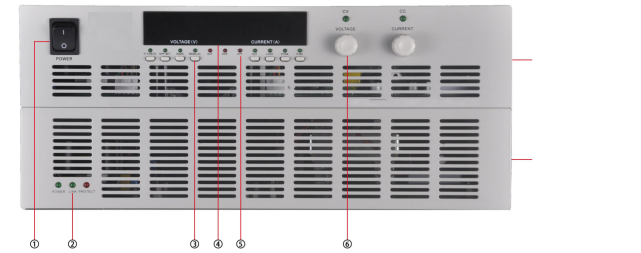

III. POWER SUPPLY APPEARANCE AND CONFIGURATION INTRODUCTION
| |
| |||
① | Power on switch | ||
② | Explanation of slave status indicators. | POWER | Slave power supply indicator |
LINK | Slave communication connection indicator | ||
PROTEC | Slave protection indicator | ||
③ | Key Function Explanation | VI-CHECK | BUTTON FOR VOLTAGE AND CURRENT PRESET DISPLAY |
OVP-SET | OVER-VOLTAGE SETTING SELECTOR BUTTON | ||
ADDR | ADDRESS SETTING SELECTOR BUTTON | ||
REM | BUTTON FOR SWITCHING BETWEEN LOCAL CONTROL AND REMOTE CONTROL | ||
OUT | POWER OUTPUT ENABLE BUTTON | ||
LOCK | KEY AND ADJUSTMENT KNOB ENABLE BUTTON. | ||
VFINE | TOGGLE BUTTON FOR INITIAL AND FINE ADJUSTMENT OF THE VOLTAGE ADJUSTMENT KNOB | ||
IFINE | TOGGLE BUTTON FOR INITIAL AND FINE ADJUSTMENT OF THE CURRENT ADJUSTMENT KNOB | ||
④ | Digital display area: Includes voltage display area, current display area | ||
⑤ | Analysis of status indicators | VI-CHECK | VOLTAGE AND CURRENT PRESET DISPLAY INDICATOR |
OVP-SET | OVER-VOLTAGE PROTECTION SETTING INDICATOR | ||
ADDR | ADDRESS SETTING INDICATOR | ||
REM | REMOTE CONTROL INDICATOR | ||
ACF | INPUT OVER AND UNDER-VOLTAGE PROTECTION INDICATOR | ||
OVP | OVER-VOLTAGE PROTECTION INDICATOR | ||
OTP | OVER TEMPERATURE PROTECTION INDICATOR | ||
OUT | EXTERNAL SHUTDOWN INDICATOR | ||
LOCK | KEY AND ADJUSTMENT KNOB ENABLE INDICATOR | ||
VFINE | VOLTAGE FINE-TUNING INDICATOR | ||
IFINE | CURRENT FINE-TUNING INDICATOR | ||
CV | CONSTANT VOLTAGE INDICATOR | ||
CC | CONSTANT CURRENT INDICATOR | ||
⑥ | Adjust Areas | VOLTAGE | Output voltage regulator |
CURRENT | Output constant current regulator | ||

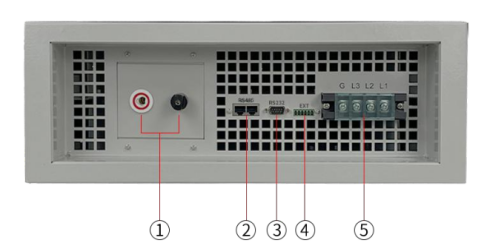

V. POWER INTERFACE BOARD LAYOUT AND FUNCTION INTRODUCTION
| |
① | Output Connector: Black terminal for earth, red terminal for high voltage output from the stomach |
② | RS-485 Communication interface |
③ | RS-232 Communication interface |
④ | External sampling control interface |
⑤ | City power input |
| IPS-ATDL High Voltage and High Voltage DC Power Supply | |||||
| NO | Model | AC INPUT (VAC) | DC Output (VDC) | DC Output (mA) | Capacity (Watt) |
| 2 | IPS-ATDL6KV-833mA | 380VAC±15% | 6KVDC | 0~833mA | 5000W |
| 3 | IPS-ATDL8KV-625mA | 380VAC±15% | 8KVDC | 0~625mA | 5000W |
| 4 | IPS-ATDL10KV-500mA | 380VAC±15% | 10KVDC | 0~500mA | 5000W |
| 5 | IPS-ATDL12KV-417mA | 380VAC±15% | 12KVDC | 0~417mA | 5000W |
| 6 | IPS-ATDL1.2KV-8300mA | 380VAC±15% | 1.2KVDC | 0~8300mA | 10000W |
| 7 | IPS-ATDL2KV-5000mA | 380VAC±15% | 2KVDC | 0~5000mA | 10000W |
| 8 | IPS-ATDL4KV-2500mA | 380VAC±15% | 4KVDC | 0~2500mA | 10000W |
| 9 | IPS-ATDL6KV-1670mA | 380VAC±15% | 6KVDC | 0~1670mA | 10000W |
| 10 | IPS-ATDL8KV-1250mA | 380VAC±15% | 8KVDC | 0~1250mA | 10000W |
| 11 | IPS-ATDL10KV-1000mA | 380VAC±15% | 10KVDC | 0~1000mA | 10000W |
| 12 | IPS-ATDL12KV-833mA | 380VAC±15% | 12KVDC | 0~833mA | 10000W |
| 13 | IPS-ATDL1.2KV-16670mA | 380VAC±15% | 1.2KVDC | 0~16670mA | 20000W |
| 14 | IPS-ATDL2KV-10000mA | 380VAC±15% | 2KVDC | 0~10000mA | 20000W |
| 15 | IPS-ATDL4KV-5000mA | 380VAC±15% | 4KVDC | 0~5000mA | 20000W |
| 16 | IPS-ATDL6KV-3330mA | 380VAC±15% | 6KVDC | 0~3330mA | 20000W |
| 17 | IPS-ATDL8KV-2500mA | 380VAC±15% | 8KVDC | 0~2500mA | 20000W |
| 18 | IPS-ATDL10KV-2000mA | 380VAC±15% | 10KVDC | 0~2000mA | 20000W |
| 19 | IPS-ATDL12KV-1670mA | 380VAC±15% | 12KVDC | 0~1670mA | 20000W |
| 20 | IPS-ATDL1.2KV-25000mA | 380VAC±15% | 1.2KVDC | 0~25000mA | 30000W |
| 21 | IPS-ATDL2KV-15000mA | 380VAC±15% | 2KVDC | 0~15000mA | 30000W |
| 22 | IPS-ATDL4KV-7500mA | 380VAC±15% | 4KVDC | 0~7500mA | 30000W |
| 23 | IPS-ATDL6KV-5000mA | 380VAC±15% | 6KVDC | 0~5000mA | 30000W |
| 24 | IPS-ATDL8KV-3750mA | 380VAC±15% | 8KVDC | 0~3750mA | 30000W |
| 25 | IPS-ATDL10KV-3000mA | 380VAC±15% | 10KVDC | 0~3000mA | 30000W |
| 26 | IPS-ATDL12KV-2500mA | 380VAC±15% | 12KVDC | 0~2500mA | 30000W |
