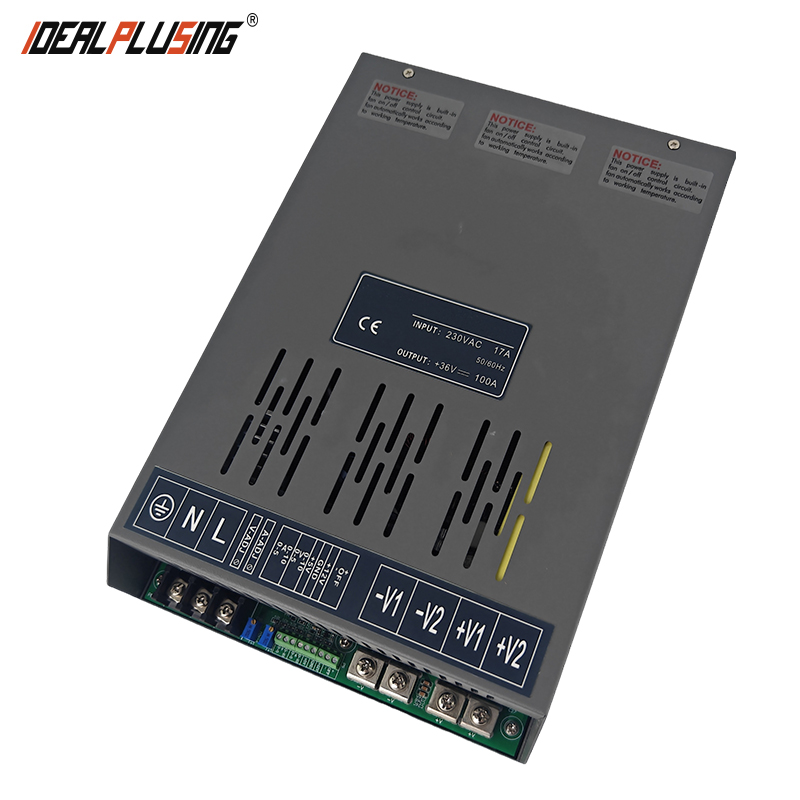

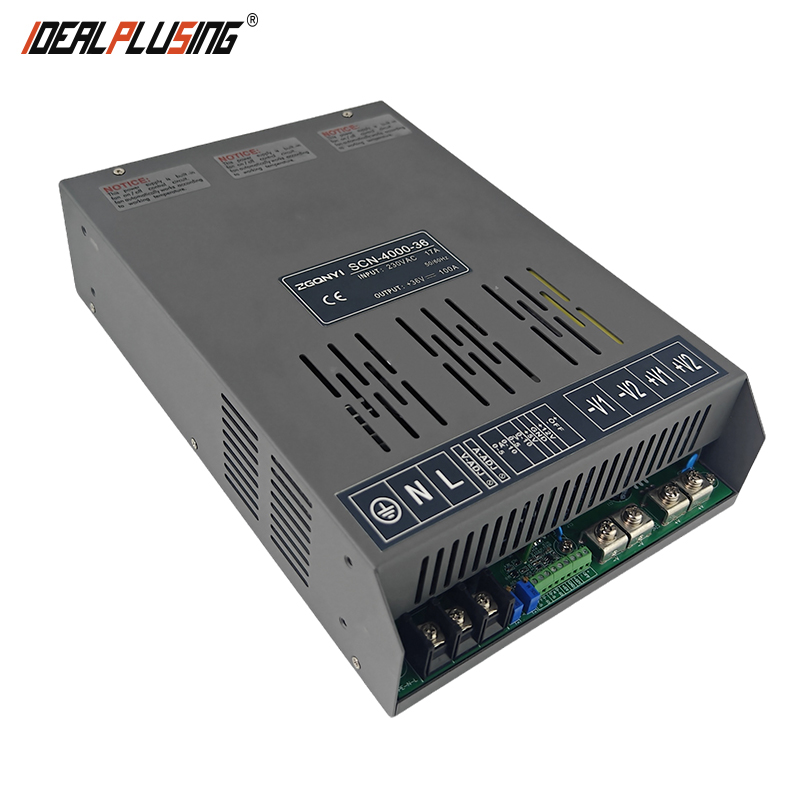

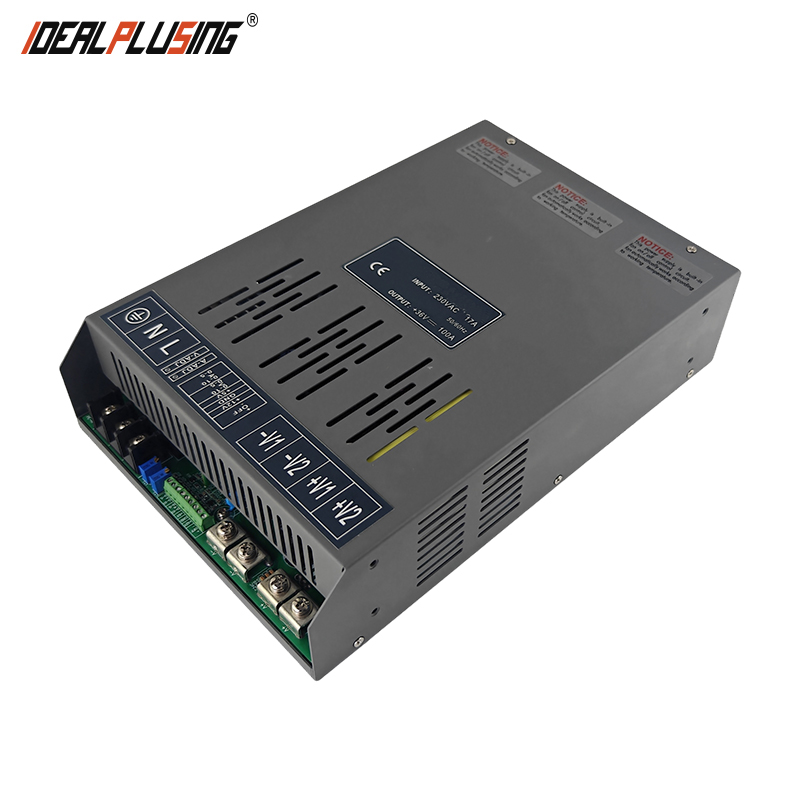

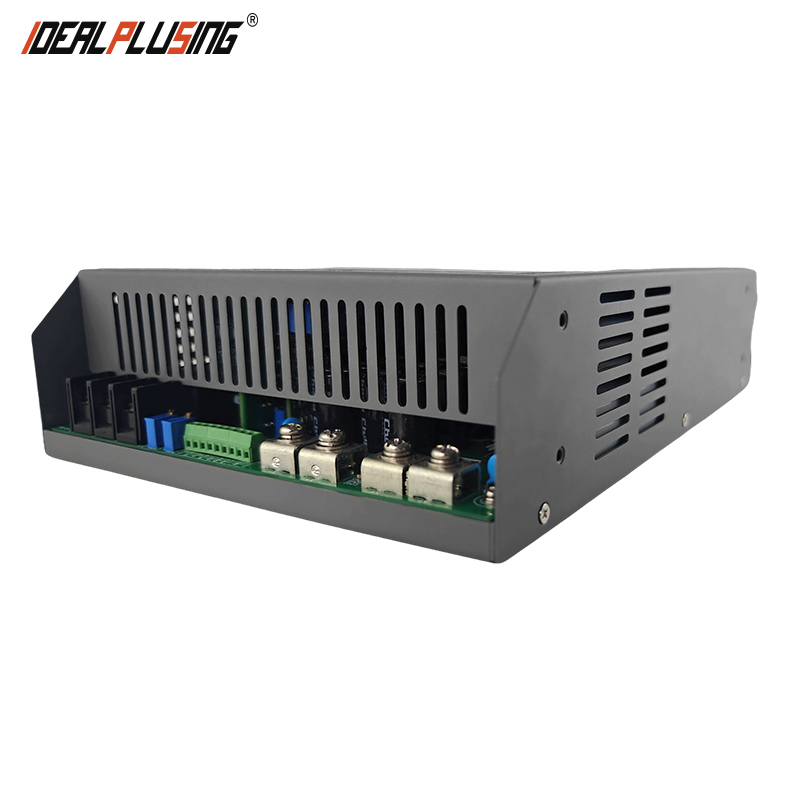

IPS-SPT25-160 4000W Series Switching Power Supply-IDEALPLUSING
I. FEATURES
1 | IPS-SPT25-160 4000W Series Switching Power Supply-IDEALPLUSING |
2 | Adjustable with Compact size, light weight |
3 | Wide range AC Input , AC input 110V/220Vac input selected by switch |
4 | 100% full load burn-in test |
5 | Protection: Short circuit / Over load / Over voltage |
6 | Fixed switching frequency at 25KHz |
7 | 1 year warranty |
8 | High efficiency, reliability quality, competitive cost |
9 | 0-5Vdc / 0-10Vdc External control output (Optional) |
10 | Extra adjustable potentiometer (Optional) |
11 | Output voltage adjustable, output current be fix |
II. COMMON SPECIFICATION
Adjustable range for dc voltage | The output voltage is 100% adjustable through the potentiometer |
AC input voltage range | AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch |
Input current | 115V/10.57A | 230V/5.28A |
leakage current | ≤1.5mA 230V AC |
Overload protection | Load more than 110%~120% switch to constant current mode |
Over-voltage protection | ≥15% of output voltage |
Setup rise hold time | 200ms 100ms 20ms |
Vibration | 10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes |
Withstand voltage | Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC |
working temperature | -10℃-65℃, 20%-90%RH |
Storage temperature | -10℃--65℃, 20%--95%RH |
Net weight | 4.5KG |
Dimension | 300L*200W*70H (MM) |
OTHERS | |
Output voltage tolerance | 1% |
Wave and noise | 150mV P-P |
Efficiency | 87% |
III. MODEL INFOMRATION
Model | Output voltage | Output Current | Output Power |
IPS-SP13.3-300 | 0-13.3VDC | 300A | 4000W |
IPS-SP16-250 | 0-16VDC | 250A | 4000W |
IPS-SP20-200 | 0-20VDC | 200A | 4000W |
IPS-SP24-166 | 0-24VDC | 166A | 4000W |
IPS-SP25-160 | 0-25VDC | 160A | 4000W |
IPS-SP36-111 | 0-36Vdc | 111A | 4000W |
IPS-SP40-100 | 0-40Vdc | 100A | 4000W |
IPS-SP48-83 | 0-48Vdc | 83A | 4000W |
IPS-SP50-80 | 0-50Vdc | 80A | 4000W |
IPS-SP80-50 | 0-80Vdc | 50A | 4000W |
IPS-SP100-40 | 0-100Vdc | 40A | 4000W |
IPS-SP160-25 | 0-160Vdc | 25A | 4000W |
IPS-SP200-20 | 0-200VDC | 20A | 4000W |
IPS-SP250-16 | 0-250VDC | 16A | 4000W |
IPS-SP400-10 | 0-400VDC | 10A | 4000W |
