Ⅰ. Main technical indicators
Brand | IDEALPLUSING | |
Model | IPS-3150 | |
Input | Rated voltage | Three-phase 380VAC |
Voltage regulation range | ± 15% | |
Frequency | 50 Hz /60 Hz | |
Output | Rated voltage | Three-phase 380V |
Voltage stabilization accuracy | ±1-5% Adjustable | |
Response time | ≤1-10s Adjustable | |
Load current | 225A | |
Capacity | 150KVA | |
Waveform distortion | No additional waveform distortion (same as input waveform) | |
Efficiency | ≥97% or above | |

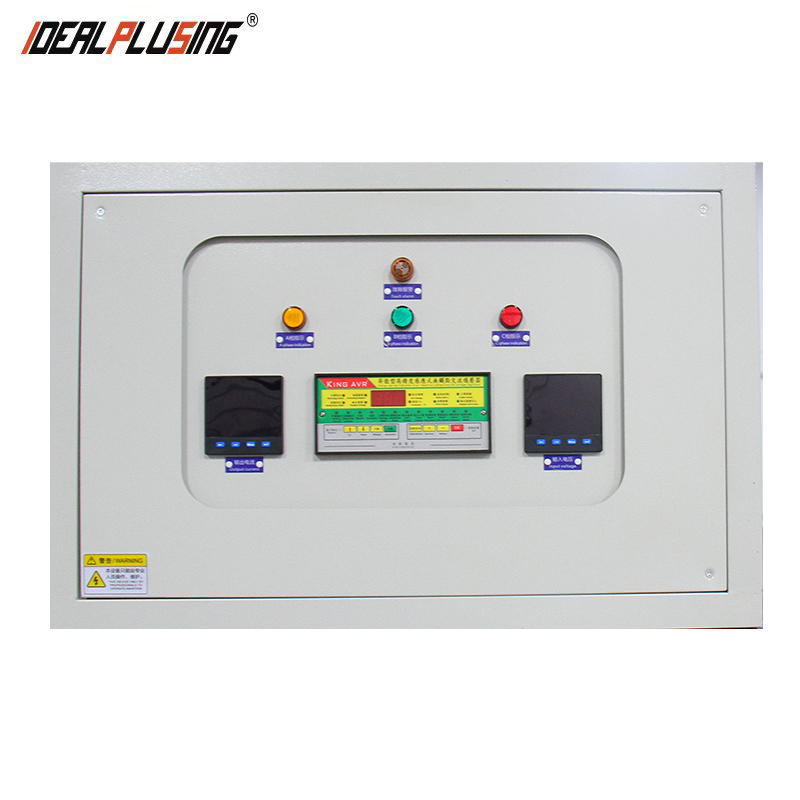

Instruct | Voltage | Input voltage and output voltage digital display |
Current | Output current digital display | |
Indicator Lights | Have | |
Abnormal | Over voltage, under voltage, phase loss, sound and light alarm indication | |
Control method | DSP Computing and metering chip intelligent control technology | |
Way of working | With automatic voltage stabilization and long-term operation function | |
Cooling method | Oil-immersed self-cooling | |
Ambient temperature | -25~+40℃ | |
Operating temperature | -25~+55℃ | |
Insulation grade | A | |
Protection level | IP67 | |
Voltage adjustment method | Three-phase regulation | |
Weight (approx.) | 550 kg | |
Overall dimensions ( mm ) | 750*750*1350 | |
Ⅱ. Process and special requirements
1) Exquisite appearance, easy to move with forklift and hand trailer, simple
installation and wiring;
2) Fuel tank material: Baosteel (or Wuhan Iron and Steel) cold-rolled steel plate corrugated fuel tank;
3) Surface treatment: G139 → phosphating + PZ 660 primer + powder coating ( RAL 7032 );
4) Packaging: strong and beautiful
Ⅲ. Product working environment requirements:
Use site: Indoor (outdoor can be customized), no vibration, bumps, no gas, steam, chemical deposition that seriously affects the insulation of the stabilizer , Dust, dirt and other explosive and corrosive media.
Ⅳ. Principle and characteristics of inductive contactless voltage stabilizer:
Ⅴ. Model list
Voltage stabilizer | |||||
Model | Capacity | Load current | Use Voltage | Size(MM) | Weight(KG) |
IPS-3100 | 100KVA | 152A | X2.X3.X4 | 650*650*1000 | 450 |
IPS-3150 | 150KVA | 225A | X2.X3.X4 | 750*750*1350 | 550 |
IPS-3200 | 200KVA | 304A | X2.X3.X4 | 910*910*1558 | 750 |
IPS-3250 | 250KVA | 380A | X2.X3.X4 | 910*910*1558 | 850 |
IPS-3300 | 300KVA | 456A | X2.X3.X4 | 1000*1000*1636 | 1100 |
IPS-3350 | 350KVA | 532A | X2.X3.X4 | 1000*1000*1636 | 1150 |
IPS-3400 | 400KVA | 608A | X2.X3.X4 | 1090*1090*1636 | 1200 |
IPS-3500 | 500KVA | 760A | X2.X3.X4 | 1090*1090*1700 | 1250 |
IPS-3600 | 600KVA | 912A | X2.X3.X4 | 1200*1200*1700 | 1400 |
IPS-3800 | 800KVA | 1216A | X2.X3.X4 | 1170*1170*1958 | 1800 |
IPS-31000 | 1000KVA | 1520A | X2.X3.X4 | 1170*1170*1958 | 1900 |
IPS-31250 | 1250KVA | 1900A | X2.X3.X4 | 1170*1170*1958 | 2000 |
IPS-31600 | 1600KVA | 2432A | X2.X3.X4 | 1300*1300*1958 | 2200 |
IPS-32000 | 2000KVA | 3040A | X2.X3.X4 | 1550*1550*1980 | 4000 |
IPS-32500 | 2500KVA | 3800A | X2.X3.X4 | 1600*1600*2300 | 5500 |
IPS-33000 | 3000KVA | 4560A | X2.X3.X4 | 1700*1700*2400 | 6500 |
IPS-34000 | 4000KVA | 6080A | X2.X3.X4 | 1660*1660*2358 | 7500 |
IPS-35000 | 5000KVA | 7600A | X2.X3.X4 | 1660*1660*2358 | 8500 |
| X2: Input 3ψ4 W220V | ||||
