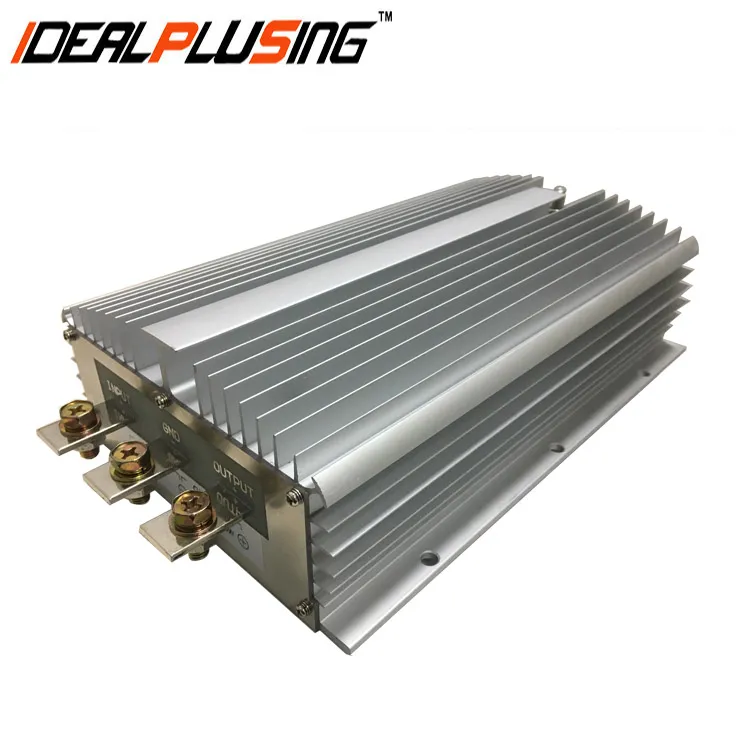

IPS-DTD72S48120 72V TO 48V 120A dc to dc boost converter for motorcycle
① Input: 72VDC(55-90VDC)
② Output: 48VDC 120A
③ Max power:5760W
④ Size:300*198*89(MM)
⑤ NW: /,GW: /
⑥ Design: Non isolate
⑦ Waterproof: IP65
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Brand | IDEALPLUSING |
Type | Non-Isolate |
Model | IPS-DTD72S48120 |
INPUT | |
Rate Volts | 72VDC |
Volts range | 55-90VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 48VDC |
Output current | 120A |
Rated Power | 5760W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | / |
NW | / |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
