IPS-DTD1224S540 Wholesale 12v 24v To 5v 40a 200w Electric Condictioner Customize Buck Step Down Converter Catalytic Promotion
Wholesale 12v 24v To 5v 40a 200w Electric Condictioner Customize Buck Step Down Converter Catalytic Promotion

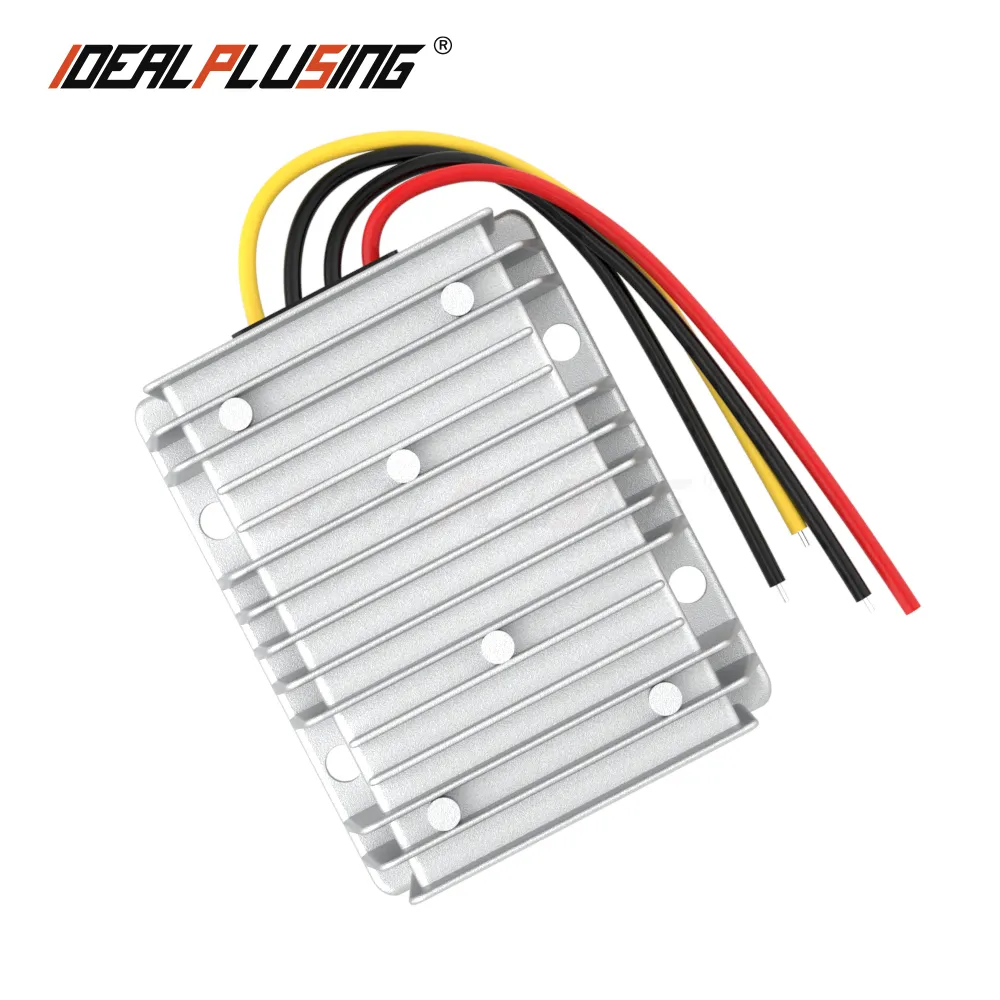

Model : IPS-DTD1224S540 12/24V TO 5V 40A DC DC CONVERTER
Specification :
① Input: 12/24VDC（8~32VDC）
② Output: 5VDC 40A
③ Max power: 200W
④ Material of shell: Aluminum
⑤ Size: 100*80*39MM
⑥ Input & Output cable: 13~15CM
⑦ NW:500G,GW: 800G
⑧ Design: Non isolate and waterproof IP65
⑨ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Brand | IDEALPLUSING | |
Name | 12v 24v To 5v 40a Buck Step Down Converter | |
Type | Non-Isolate | |
Model (IPS-***) | IPS-DTD1224S540 | IPS-DTD1224S550 |
INPUT | ||
Rate Volts | 12/24VDC | |
Volts range | 8-32VDC | |
OUTPUT | ||
Efficiency | 92% | |
Output volts | 5VDC | |
Output current | 40A | 50A |
Rated Power | 200W | 250W |
OTHERS | ||
Voltage regulation | < 1% | |
Load regulation | < 2% | |
Ripple | < 50mV | |
No-load current | < 20mA | |
Working Temp | -40°c ~ +80°c | |
Waterproof rating | IP65 | |
Machine size | 100*80*39(MM) | |
NW | 480G | |
Cooling way | Free air convection | |
Certifications | CE, RoHS | |
Customize | Support | |
Sample order | Support | |
OEM & ODM | Support | |
Package | White & colorful package optional | |
