IPS-DTD1224S560 dc dc 8~32v 12v 18v 19v 20v 28v 24v to 5v 60a 300w power supply module
Efficient Converter of Exit Price dc dc 8~32v 12v 18v 19v 20v 28v 24v to 5v 60a 300w power supply module

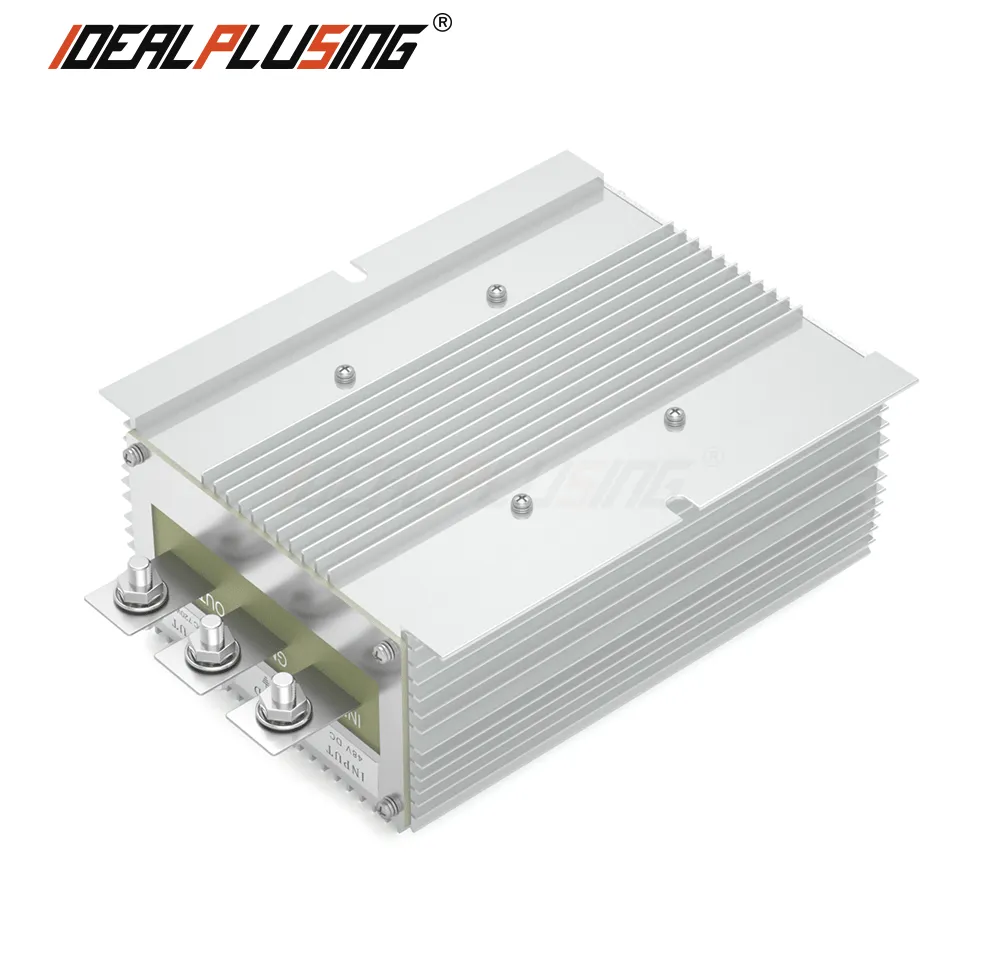

Model : IPS-DTD1224S560 12/24V TO 5V 60A DC DC CONVERTER
Specification :
① Input: 12/24VDC（8~32VDC）
② Output: 5VDC 60A
③ Max power: 300W
④ Material of shell: Aluminum
⑤ Size: 150*127*63MM
⑥ NW:1.55KG,GW: 2KG
⑦ Design: Non isolate and waterproof IP65
⑧ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Brand | IDEALPLUSING |
Name | dc dc 8~32v 12v 18v 19v 20v 28v 24v to 5v 60a 300w power supply module |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD1224S560 |
INPUT | |
Rate Volts | 12/24VDC |
Volts range | 8-32VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 5VDC |
Output current | 60A |
Rated Power | 300W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 150*127*63 MM |
NW | 1.55KG |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
