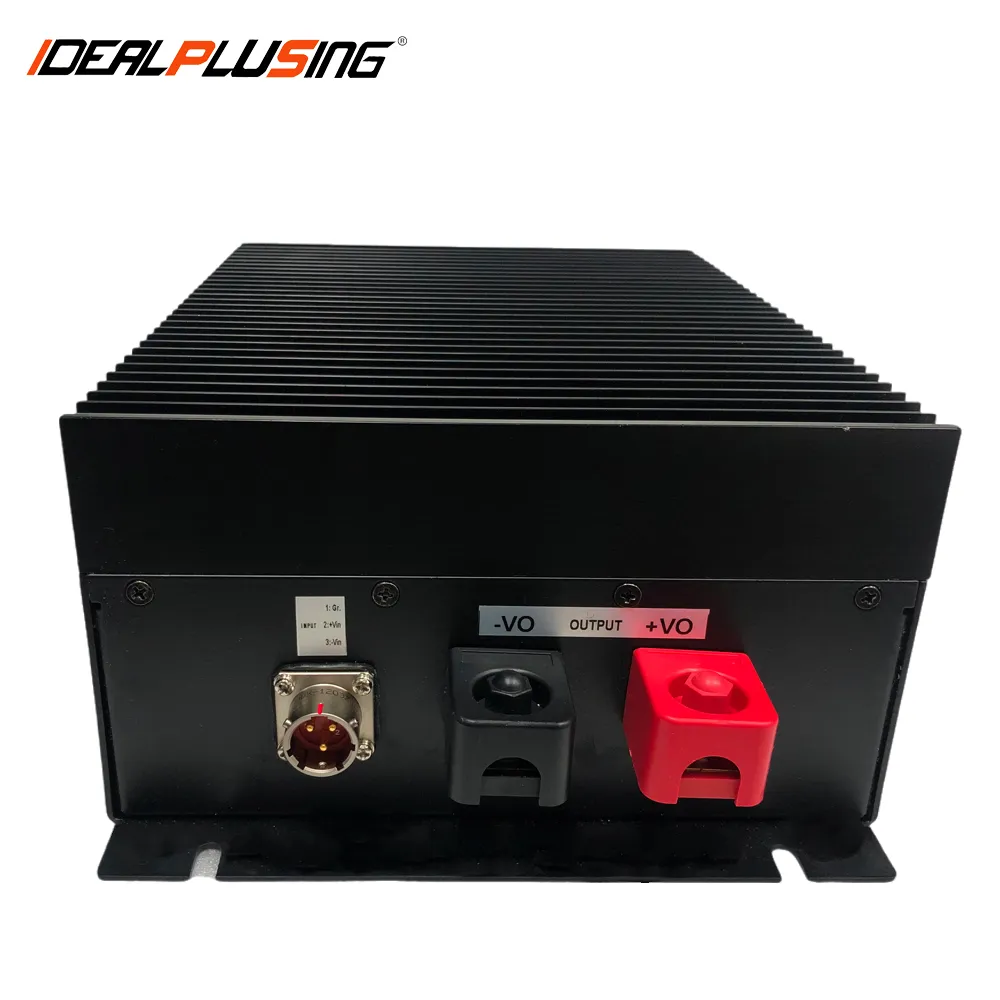

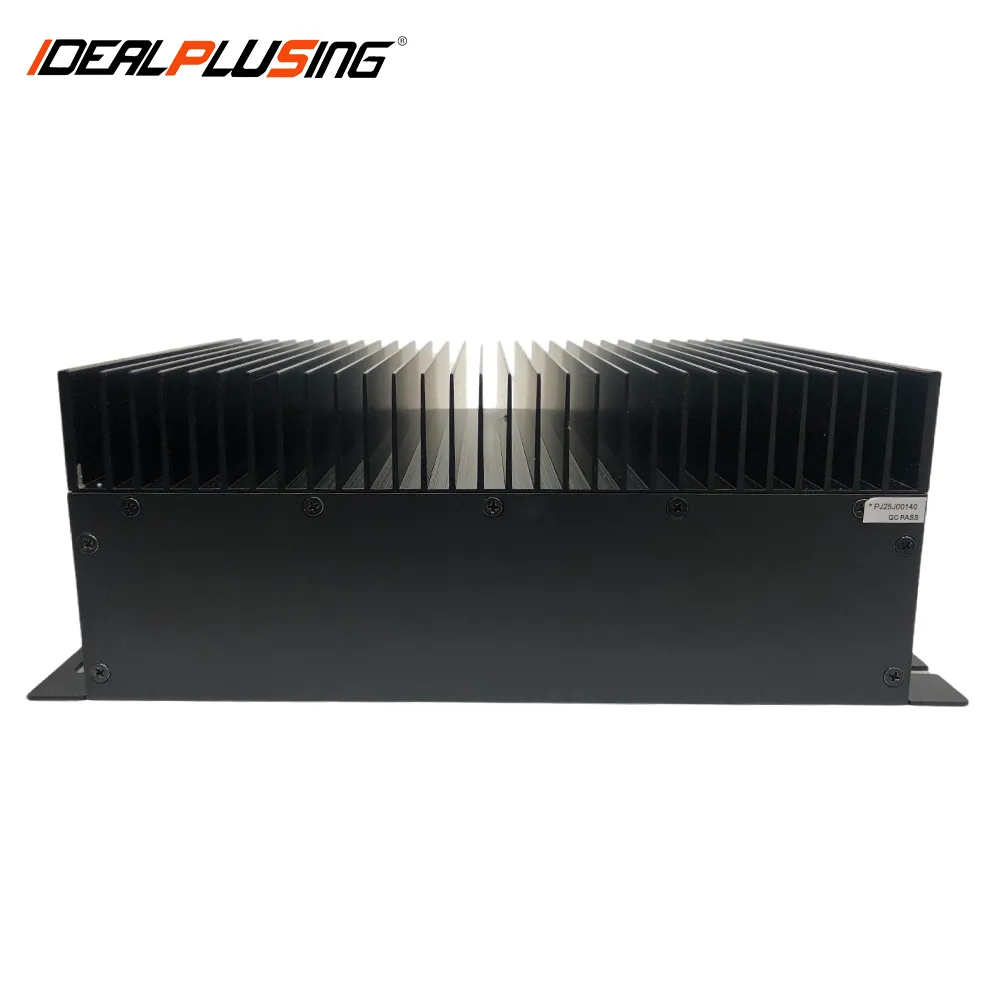

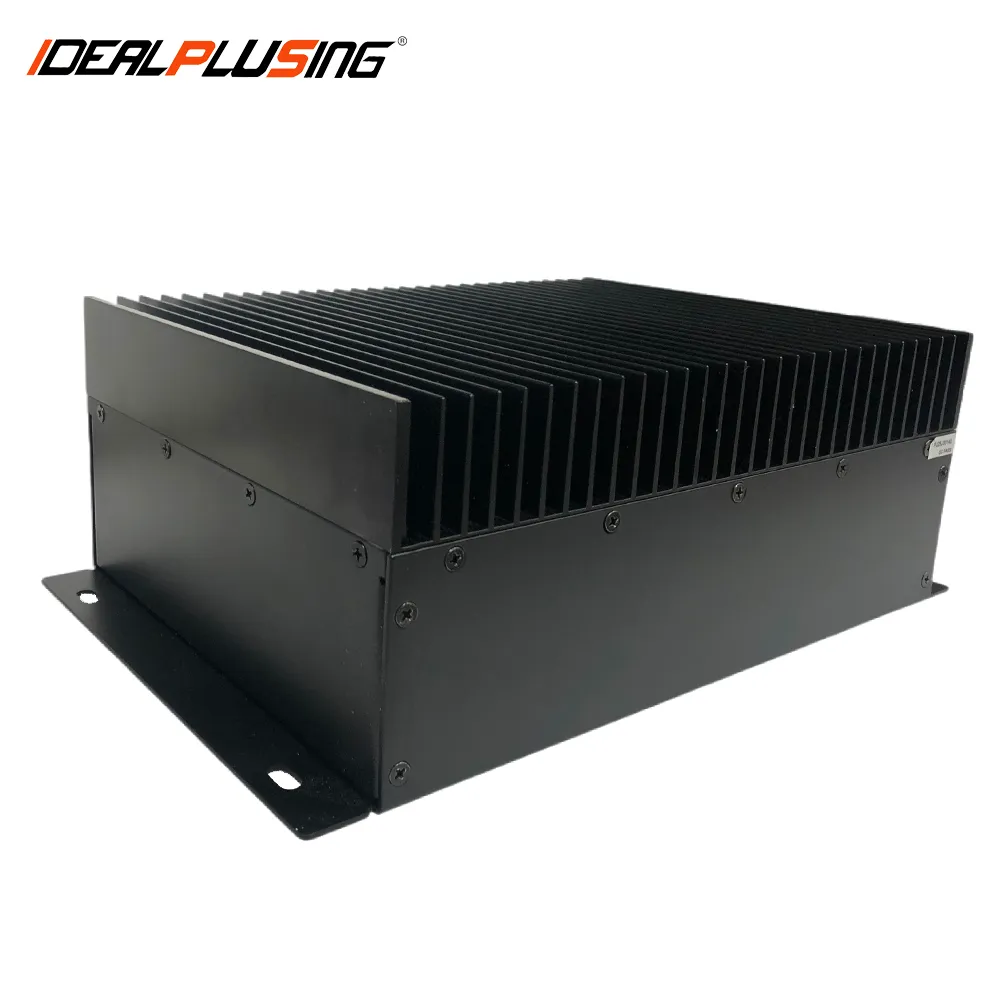

IPS-DTD280-420S48-30 280V 300V 350V 420V to 48V 10A 20A 30A 1500W Isolated DC DC Converter
IPS-DTD280-420S48-30 280V 300V 350V 420V to 48V 10A 20A 30A 1500W Isolated DC DC Converter
① Model: IPS-DTD280-420S48-30
② DC Input : 280-420VDC
③ DC Output voltage : 48VDC
④ DC Output current: 30A (continuous ≤24A ）
⑤ Max power: 1500W
⑥ Size: 350*225*124 (MM)
⑦ NW: 17KG; GW: 19KG
⑧ Input & Output: Terminal Blocks
⑨ Design : Input and output are completely isolated
⑩ Cooling Method: Air Cooling
⑪ HS code: 8504409999
If you can not find the right specification to meet your requirement.
Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us!
Our dedicated team endeavors to respond within one hour.
Datasheet： Download
| IPS-DTD280-420S48-30 280V 300V 350V 420V to 48V 10A 20A 30A 1500W Isolated DC DC Converter | ||||||
| Name | Isolated DC DC Converter | Model | IPS-DTD280-420S48-30 | |||
| Product Size | 350*225*124 MM MM | Design | Input and output are completely isolated | |||
| Net Weight | 17KG | Gross Weight | 19KG | |||
| Technical Parameters | Minimum | Typical Value | Maximum | Unit | Condition | Remark |
| Input voltage range | 280 | 350 | 420 | VDC | ||
| Output voltage | 48 | VDC | ||||
| Output current | 30 | A | ||||
| Voltage regulation | ±1 | % | ||||
| Load regulation | ±1 | % | ||||
| Ripple and noise | 200 | Mvp-p | ||||
| General Features | ||||||
| Insulation withstand voltage | 1050 | VDC | Input to housing | |||
| Insulation withstand voltage | 500 | VDC | Output to housing | |||
| Isolation voltage | 1500 | VDC | Input to output | |||
| Insulation impedance | 200 | MΩ | ||||
| Protection function | Input undervoltage, over-temperature protection, output overcurrent, short circuit protection | |||||
| Environmental characteristics | ||||||
| Operating shell temperature | -25 | 85 | ℃ | |||
| Storage temperature | -45 | 105 | ℃ | |||
| Waterproof grade | / | NO waterproof | ||||
| Cooling method | Air Cooling | |||||
| Output method | Terminal Blocks | |||||
| Remark | ||||||
| Remark: All the above parameters are theoretical values, please refer to the actual product testing data for actual products. | ||||||
