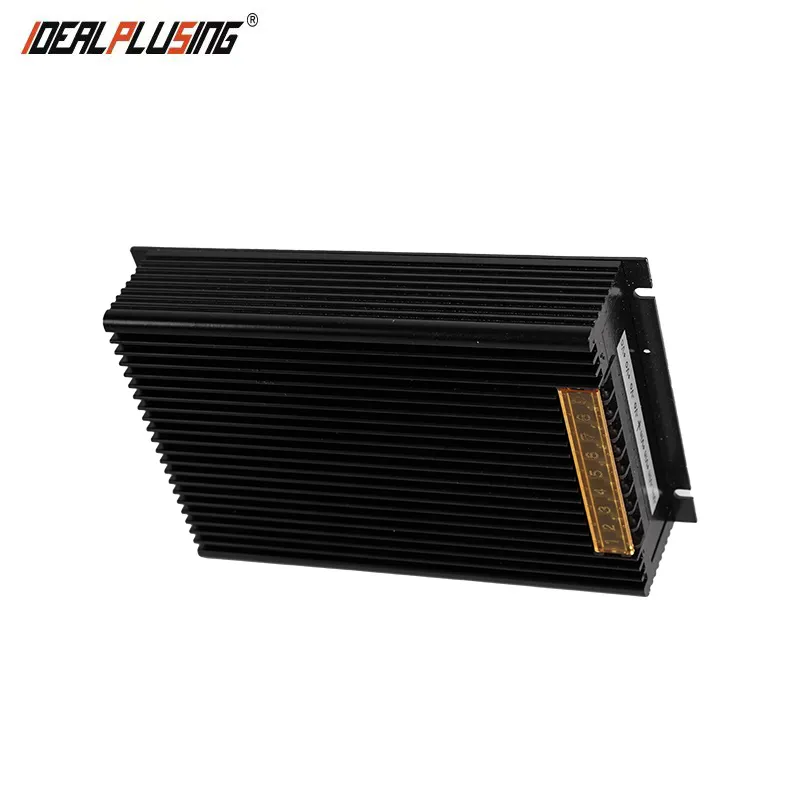

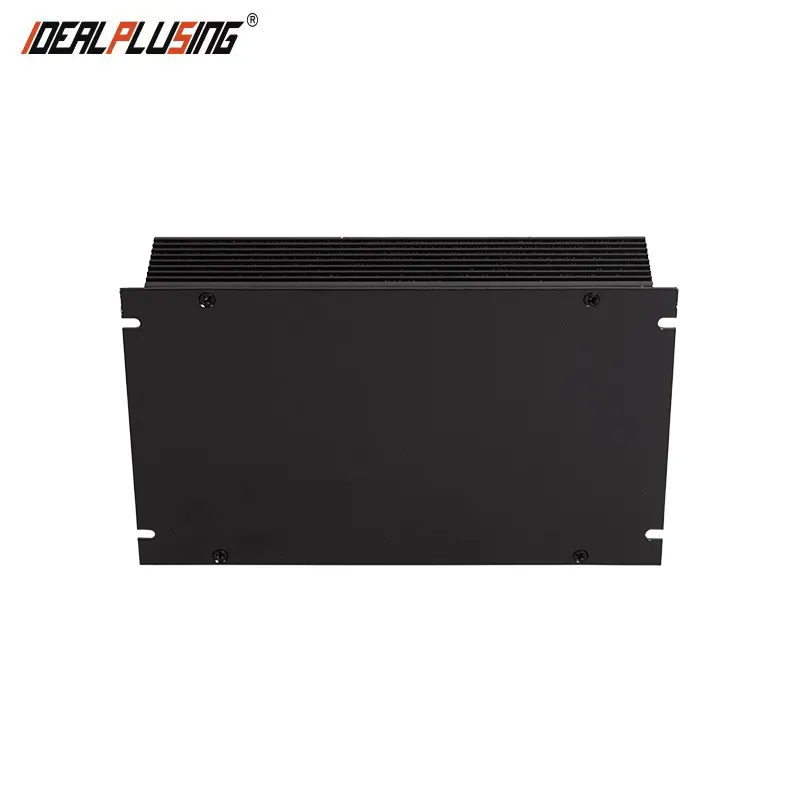

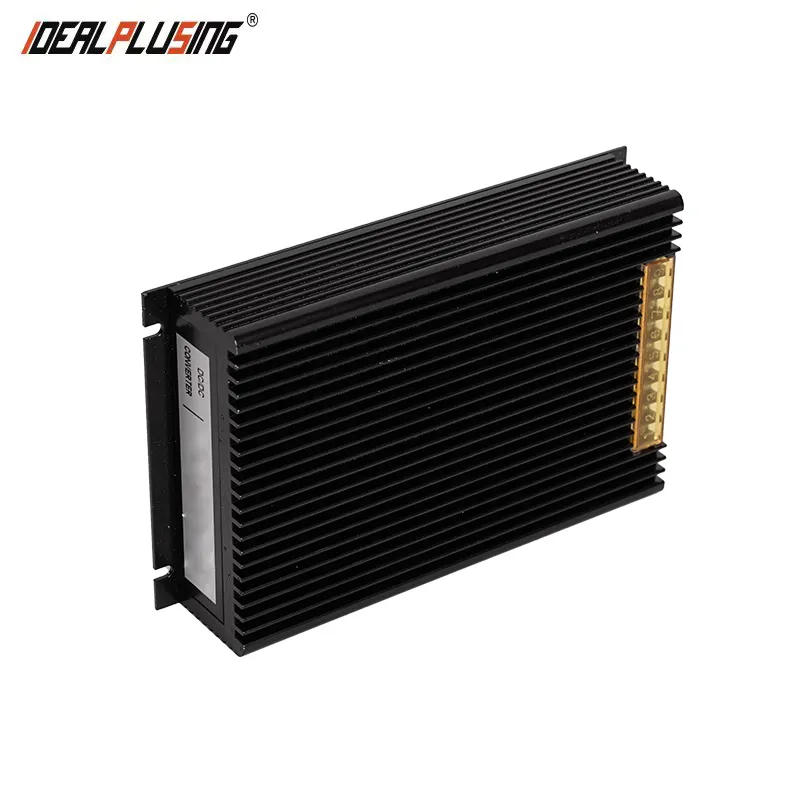

IPS-DTD18-36S5-10/12-10 18V 24V 36V to 5V 12V 2A 6A 10A 170W Isolated DC DC Converter
IPS-DTD18-36S5-10/12-10 18V 24V 36V to 5V 12V 2A 6A 10A 170W Isolated DC DC Converter ① Model:IPS-DTD18-36S5-10/12-10 ② DC Input : 18-36VDC ③ DC Output voltage : 5V 12V ④ DC Output current: 10A (continuous ≤8A ) ⑤ Max power: 170W ⑥ Size: 180*110*39 (MM) ⑦ NW: 1.2KG; GW: 1.7KG ⑧ Input & Output: Terminal Blocks ⑨ Design : Input and output are completely isolated ⑩ Cooling Method: Self Cooling ⑪ HS code: 8504409999 If you can not find the right specification to meet your requirement. Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us! Our dedicated team endeavors to respond within one hour.
Datasheet: Download
IPS-DTD18-36S5-10/12-10 18V 24V  36V to 5V 12V 2A 6A 10A 170W Isolated DC DC Converter
NameIsolated DC DC Converter ModelIPS-DTD18-36S5-10/12-10
Product Size180*110*39MMDesignInput and output are completely isolated
Net Weight 1.2KG Gross Weight 1.7KG
Technical ParametersMinimumTypical ValueMaximumUnitConditionRemark
Input voltage range182736VDC

①Output voltage
5
VDC

①Output current
10
A

②Output voltage
12
VDC

②Output current
10
A

Voltage regulation
±1
%

Load regulation
±1
%

Ripple and noise
200
Mvp-p
