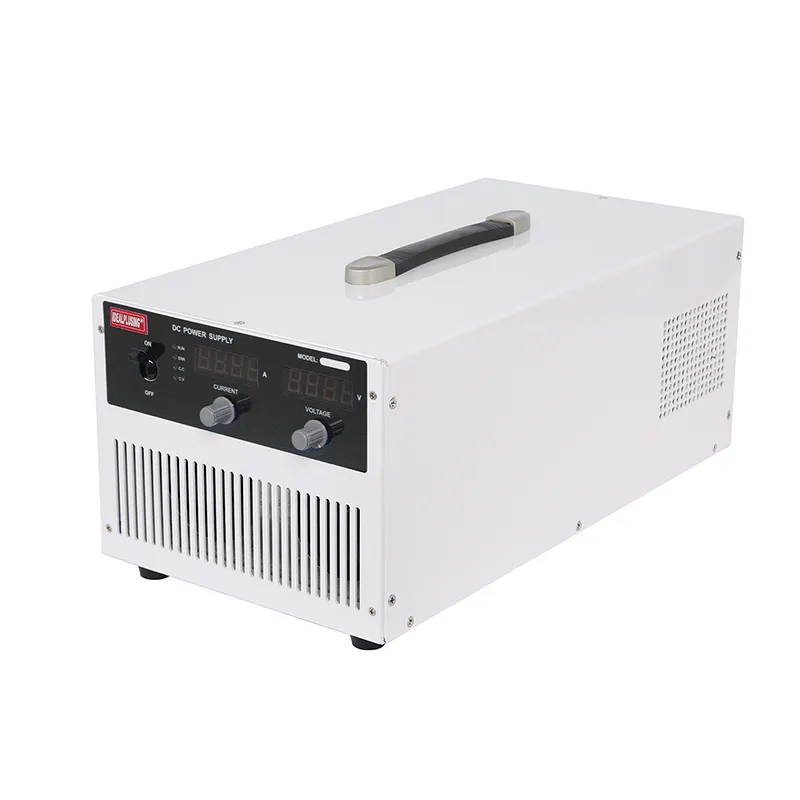

IPS-ATDY20015 High lifespan customized variable voltage adjustable current 0~200V 15a 220vac to 200vdc dc output power supply
Model :IPS-ATDY20015 200VDC 15A 3000W DC Power Supply Specification : ① AC INPUT: Single phase 220VAC±15% 50/60HZ ② DC OUTPUT: 0~200VDC, 0~15A ③ Max power: 3000W ④ Machine size: 220*460*170MM ⑤ NW: 13KG, GW: 15KG ⑥ Protection:lower voltage, over voltage, over current, short circuit, overheating ⑦ Package: Pearl cotton and carton double protection

Model

IPS-ATDY20015

AC Input

Single phase 220VAC±15%

Input Voltage Range

220VAC±15%

Input frequency

50Hz/60Hz

Output voltage

0~200VDC

Output current

0~15A

Output Power

3000W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Remote Adjustment

(Analog control: Voltage adjustable )0-5VDC(Current adjustable)0-5VDC

Remote Display

(Analog control: Voltage adjustable )0-5VDC(Current adjustable)0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%  heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive+) negative- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use designTemperature0℃~40℃Humidity10%~85%RH

Storage Conditions

Temperature-20℃~70℃Humidity10%~90%RH

Product Dimension

220*460*170MM

Net Weight

13KG
