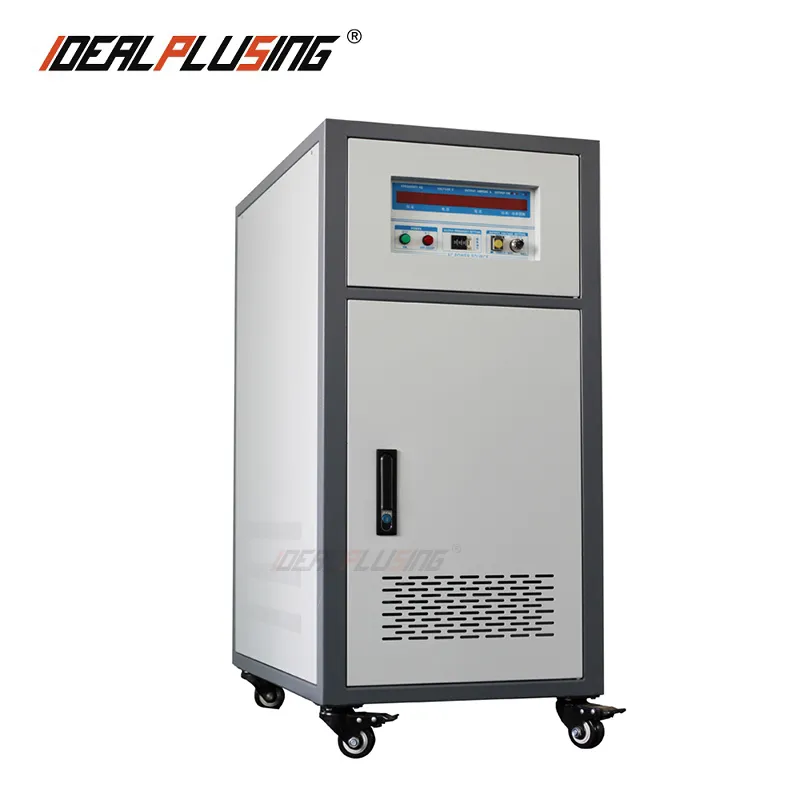

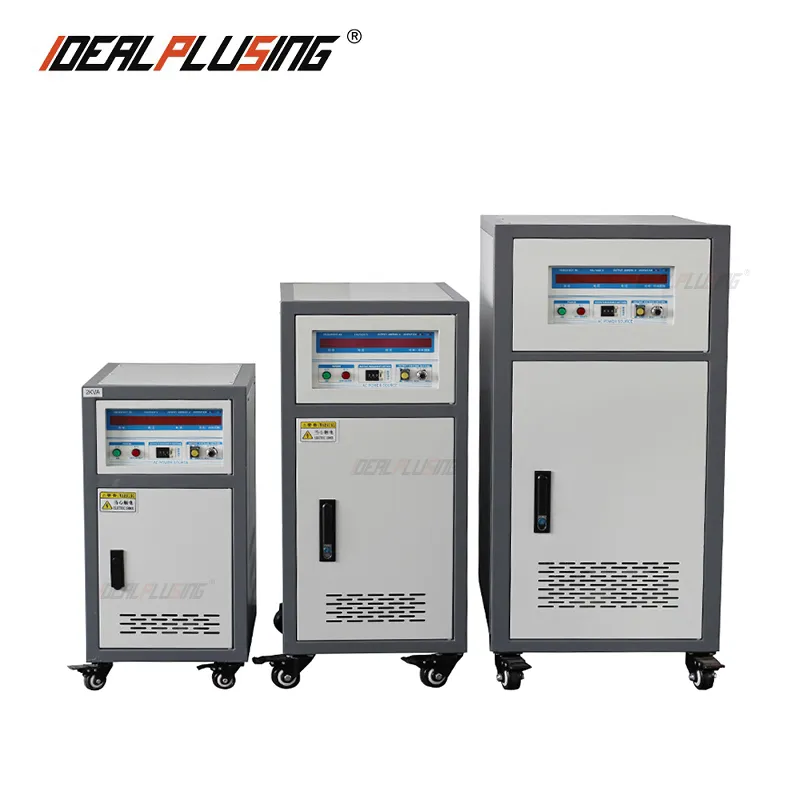

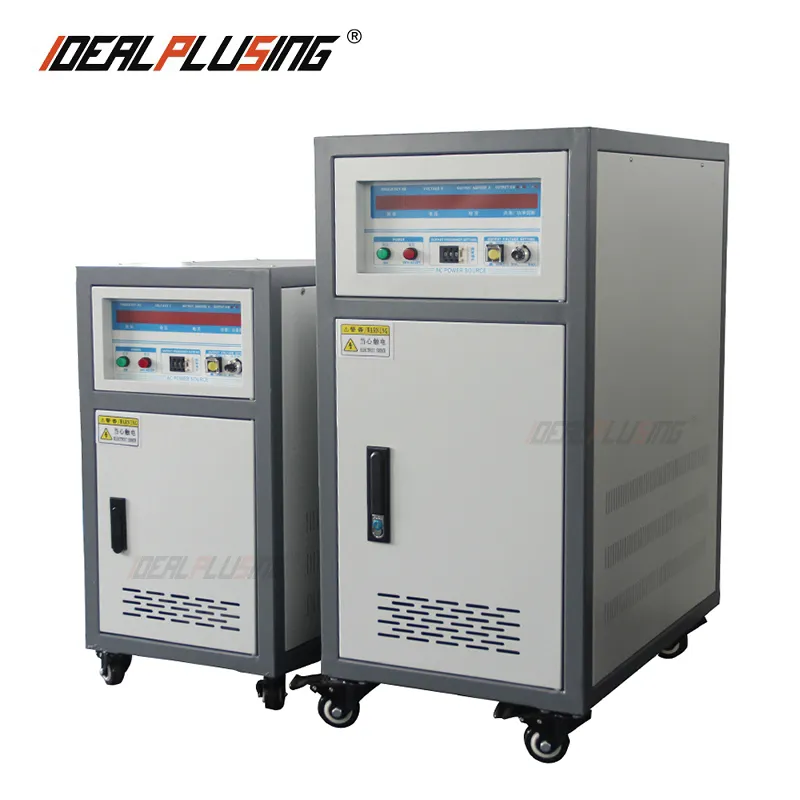

IPS-FC6105 5kva 1 Phase ac power source converter 220v 400hz power supply
① AC INPUT: 1 phase 220VAC±10% 50/60HZ ② Output capacity: 5KVA ③ Output frequency: 50Hz, 60Hz; FM 45-400hz, ④ Machine size: L380*W780*H520(MM) ⑤ NW: 65KG, GW: 80KG ⑥ Protection:Overload, overcurrent, overheating (85p ± 5p), short circuit, overvoltage and other protection ⑦ Package: Pearl cotton and carton double protection"

PERFORMANCE CHARACTERISTICS

1

Complete isolation of input and output technology, safe and reliable power supply

2

SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output

3

IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency

4

The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads

5

High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency

6

Suitable for resistive, inductive, rectifier, and other loads

7

It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit

8

It has the function of setting parameter memory, (10-groups) shortcut key operation

9

The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time

APPLICATION

1

Home appliances

8

Photovoltaic

2

Motors

9

Lamps

3

Power tools

10

Electronic transformers

4

Switching power supplies

11

Electronic components

5

Power adapters

12

Low-voltage distribution

6

UPS

13

Power

7

Information and communication

14

Other industries

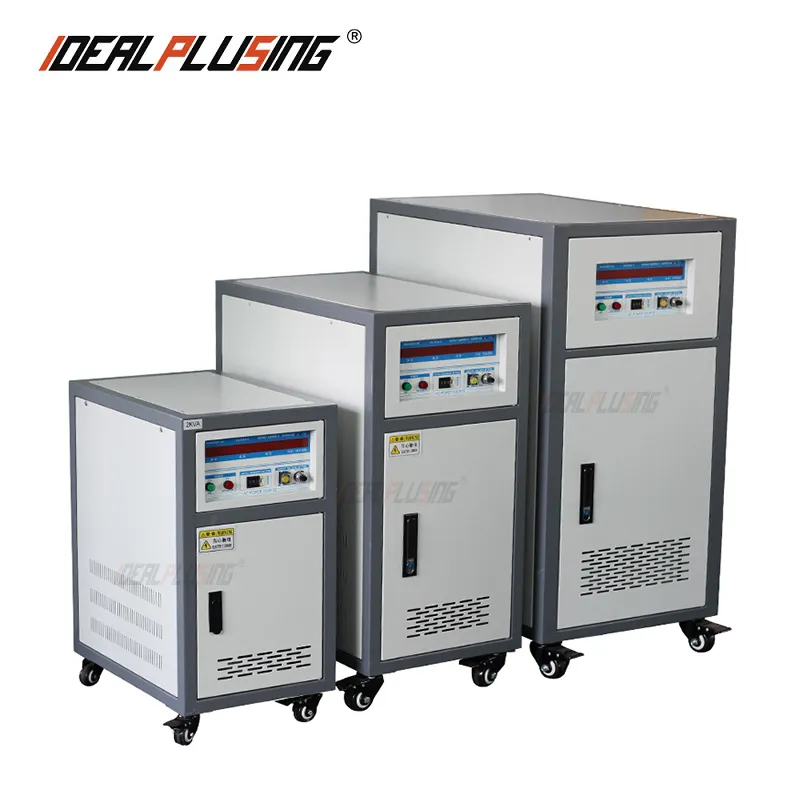

SPECIFICATION-IPS-FC61 SERIES

Brand

IDEALPLUSING

Model

IPS-FC6101

IPS-FC6102

IPS-FC6105

IPS-FC6110

Output capacity

1KVA

2KVA

5KVA

10KVA

Input format

Single phase 2 wires+GND wire

Input voltage

Single phase 220VAC±15%

Input frequency

50Hz/60Hz±5Hz

Output format

Single phase 2 wires+GND wire

Output voltage

Low grade

0.1V~150.0V

High grade

0.1V~300.0V

Voltage regulation step

0.1V

Current

Low grade 110V

9.0A

18.0A

45.0A

91.0A

Low grade 220V

4.5A

9.0A

22.50A

45.8A

Output frequency

Fixed frequency: 50Hz, 60Hz; FM 45-400hz,

Frequency adjusted stride

0.1Hz

Frequency stability

≤± 0.05%

Voltage stability

<±1%

Waveform distortion

≤±0.5%

Load effect

≤±1%

Efficiency

≥80%(Full load test)

≥85%(Full load test)

Display

Frequency

Resolution 0.1Hz-Accuracy ± 0.02% reading

Display

Voltage

Resolution 0.1V-Accuracy: ± 0.5% reading + (± 0.2% range)

Display

Cureent

Resolution 0.001/0.01/0.1A

Accuracy: ± 0.5% reading + (± 0.5% maximum range), and the resolution varies with the power supply capacity

Display

Capacity

Resolution 0.001/0.01kW

Accuracy: ± 0.5% reading + (± 0.5% range), resolution varies with power supply capacity

Preset function

Output voltage, output frequency

Memory group function

With 10 groups of quick memory functions (when displayed as LCD touch screen)

Protection function

Overload, overcurrent, overheating (85p ± 5p), short circuit, overvoltage and other protection

Alarm function

After the protection device acts, it sends out alarm signal and displays fault information to facilitate fault finding

Enclosure protection class

IP20

Communication interface

RS232 (standard), RS485 (optional)

Remote control

Analog control (optional)

Dimention: W*H*D(MM)

480*175*520

480*175*520

380*780*520

380*780*520

Net weight(KG)

25

35

65

100

Remark

Products can be customized according to requirements; The appearance of the product will be updated at any time. Please refer to the actual power supply.
