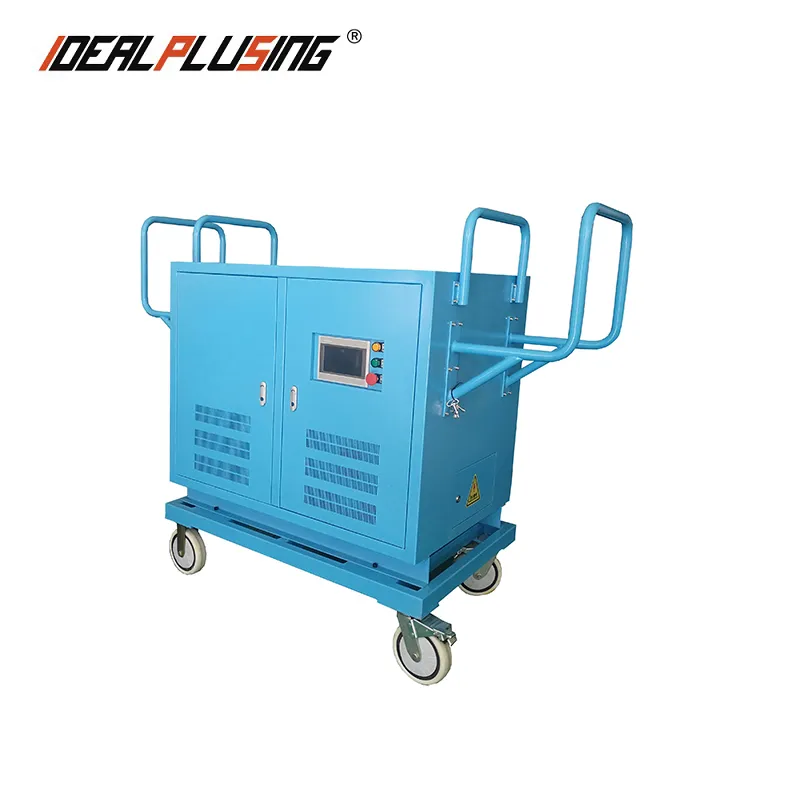

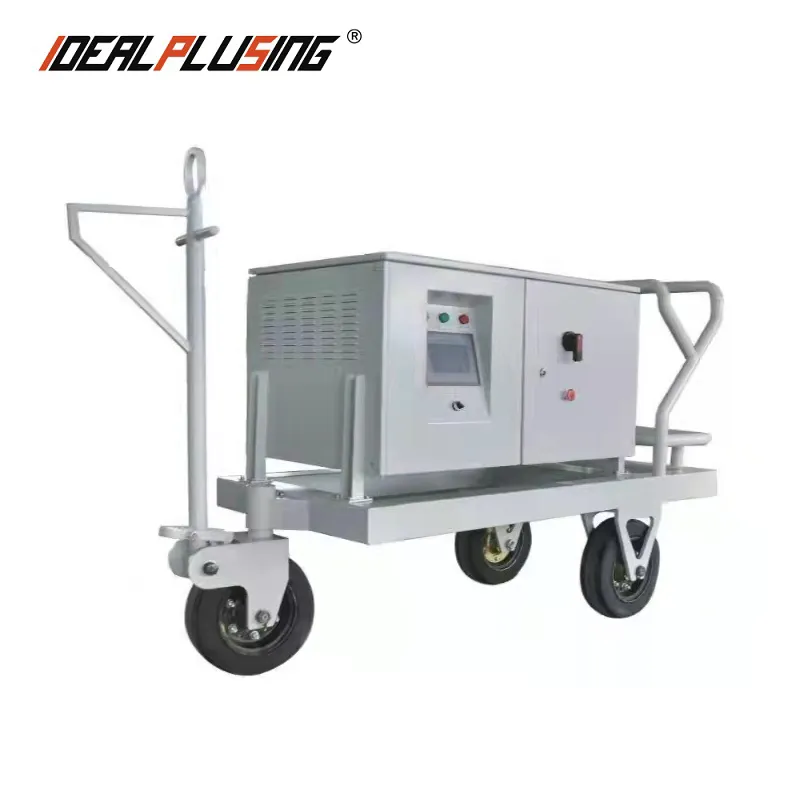

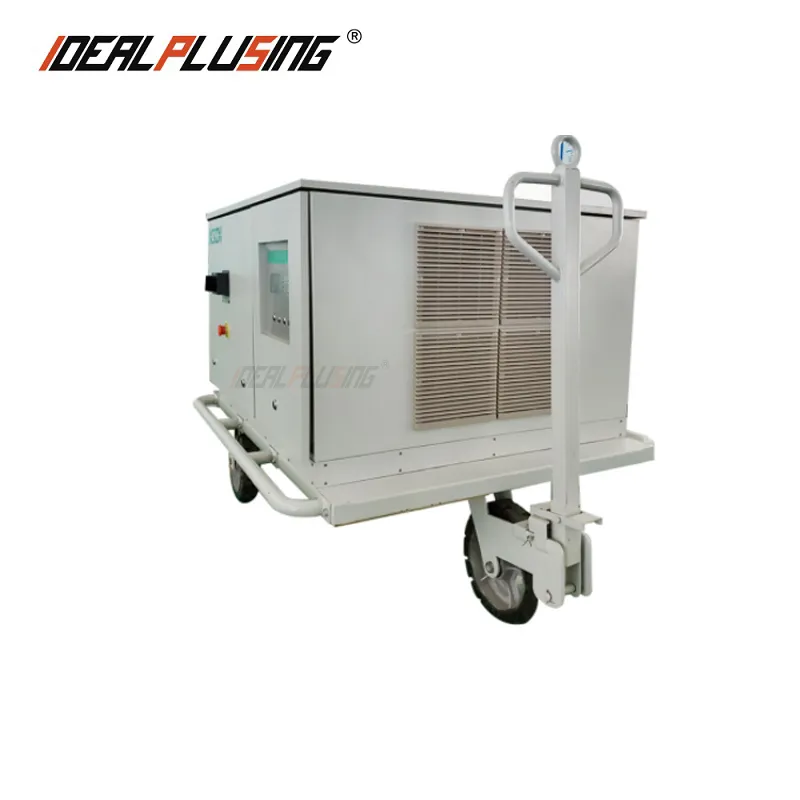

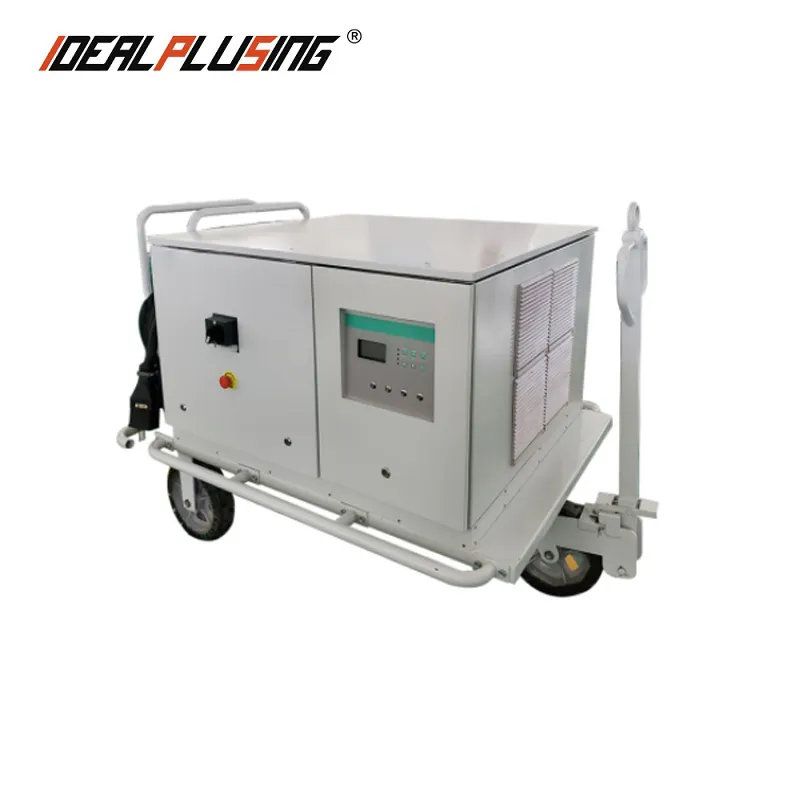

IPS-ATDA28.5-500 Made in China GPU28 20A~2000A static aircraft ground power unit 28v 10~60kw dc power supply
Model: IPS-ATDA28.5-500 28.5VDC 500A Ground Power Unit ① AC Input : Single phase 220V±20% 50/60hz or 3 phases 380VAC ±20% 50/60hz ② DC Output : 28.5VDC 500A ③ Output voltage adjust range: 5.0~33.0VDC ④ Output current adjust range: 0~500A ⑤ Max power: 14250W ⑥ Size: W750*H1000 (with universal wheels)D680(MM) ⑦ NW: 140KG; GW: 160KG ⑧ Communication: RS485*1 ⑨ Indicator: 7 inch color LCD touch screen


Ⅰ. WHO WE ARE?
We have own factories (locate in shenzhen China), and more than 20 cooperationed factories, more than 60 workers and 10000 different models with specification of power supply.

It is one of suppliers on integrating , developing, manufacture , sales,engineering design and construction for different kind of power supply.

We strict implement the operation guideline of  “Leading Technology, Reliable Quality, Satisfactory Service & Customers First ! ”.


Ⅱ. WHAT WE DO?
    We supply reliable and innovative Ground Power Units.
  Looking for a reliable and innovative Ground Power Unit to supply your aircraft?
  No matter which type of Ground Power Unit you are looking for, we have the power to cover your needs.
  We have a full range of solid-state, diesel-driven, and battery-powered Ground Power Units from 400 Hz frequency converters to 28 VDC /270 VDC Ground Power Unit or a combination.
  Whether you require a power supply for hangar use, for use at aircraft parking positions, or in remote areas,  we have the right solution.
   We got you covered!

[ DC-DC converter (Isolated and non-isolated), voltage from 12vdc to 1000vdc, power from 1-200kw. ]
   [ AC DC power supply, voltage from 0 to 200kv, current from 0-20k amps. ]
 [ DC AC inverter, dc voltage from 12vdc to 2000vdc, and power from 100w to 500kw. ]
 [ AC AC power source, single phase or 3 phases, 10-500hz, power supply from 1kva to 500kva.]
 [ AC DC Ground Power Unit, from 300 amps to 50000 amps.]


Ⅲ.INTRODUCTION & APPLICATION

1

IPS-APSA-28.5 Series is designed to give continuous high-quality DC power.

2

This continuous high power model is ideal for crew training, aircraft servicing in workshops, on the ramp, or in the field, diagnostic work, pre-flight checks, charging the onboard battery, or for continuous powering of equipment during operations, without draining the onboard aircraft batteries.

3

The safety features include Over Voltage, Overload, and Internal Thermal, Short Circuit protection. The power modules conform to EMC standards for noise emissions and immunity


Ⅳ. PERFORMANCE CHARACTERISTICS

1

Robust metal cabinet housing

2

Compact size

3

Fixed or Mobile are available

4

Low ripple content ≤ 150mV (RMS)

5

Self diagnose and alarm

6

Complete protection


Ⅴ. DATASHEET

 Model Specification

IPS-ATDA28.5-500

Input

Standard

Single phase or 3 phases

Voltage

220VAC±20% or 380VAC±20% Or 450VAC±20%

Frequency50/60HZ  or 400HZ or 36HZ optinal

Output

Power

14250W (Can customized other lower or higher current)

Rated voltage

28.5VDC

Voltage regulation range

5.00V-32.00VDC

Current

500.0A(Can customized other lower or higher current)

Restricted Flow Range

0-500.0A(Can customized other lower or higher current)

Source voltage effect/load effect

≤0.5% FS

DC voltage ripple

≤0.5% FS(Vrms)

Indicator

7 inch color LCD

Output voltage display

4-digits LCD, resolution 0.01V

Maximum allowable error: ≤±0.5%FS (Note: FS means full scale)

Output current display

4-digits LCD, resolution 0.1A

Maximum allowable error: ≤0.5%FS (10% above rated value)

Insulation resistance

Input to housing and output:≥20M(DC 1000V)
                      Output to housing:≥20M(DC 1000V)

Electrical strength resistance

Input to housing and output:AC 1500V/min,Leakage current<20mA
                      Output to housing:AC 500V/min,Leakage current<20mA

Overall machine efficiency

≥85%

Automatic protection function

Automatic protection in case of output overvoltage, overcurrent, module overheating and short circuit

Communication Interface

Communication RS485, modbus rtu protocol

Ambient temperature

Temperature: -10℃-45℃, relative humidity 10-95% (25℃ non-condensing state)

Dimension/Weight

Trailer type (including cable hanger): width 650 height 800 (with universal wheels) depth 600

Remarks

The standard offer does not including any cable for this power supply.


Ⅵ.MODEL LIST GROUND POWER UNIT

 (DC28V 0-33V)Nominal Voltage: 28.5VDC

NO

Model

INPUT (VAC)

OUTPUT
                    VDC

OUTPUT
                    (AMPS)

CAPACITY
                    (WATTS)

1

IPS-ATDA28.5-50

Single phase 220VAC 50Hz/60Hz

0~28.5VDC

0-50A

1425

2

IPS-ATDA28.5-100

Single phase 220VAC 50Hz/60Hz

0~28.5VDC

0-100A

2850

3

IPS-ATDA28.5-200

Single phase 220VAC 50Hz/60Hz

0~28.5VDC

0-200A

5700

4

IPS-ATDA28.5-400

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-400A

14250

5

IPS-ATDA28.5-500

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-500A

14250

6

IPS-ATDA28.5-600

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-600A

17100

7

IPS-ATDA28.5-800

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-800A

22800

8

IPS-ATDA28.5-1000

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-1000A

28500

9

IPS-ATDA28.5-1200

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-1200A

34200

10

IPS-ATDA28.5-1500

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-1500A

42750

11

IPS-ATDA28.5-1800

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-1800A

51300

12

IPS-ATDA28.5-2000

3 phases 380VAC 50Hz/60Hz

0~28.5VDC

0-2000A

57000

(DC270V 0-330V) Nominal Voltage: 270VDC

NO

Model

INPUT (VAC)

OUTPUT
                    VDC

OUTPUT
                    (AMPS)

CAPACITY
                    (WATTS)

13

IPS-ATDA270-30

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-30A

8100

14

IPS-ATDA270-50

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-50A

13500

15

IPS-ATDA270-100

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-100A

27000

16

IPS-ATDA270-150

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-150A

40500

17

IPS-ATDA270-200

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-200A

54000

18

IPS-ATDA270-300

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-300A

81000

19

IPS-ATDA270-500

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-500A

135000

20

IPS-ATDA270-800

3 phases 380VAC 50Hz/60Hz

0~270VDC

0-800A

216000
