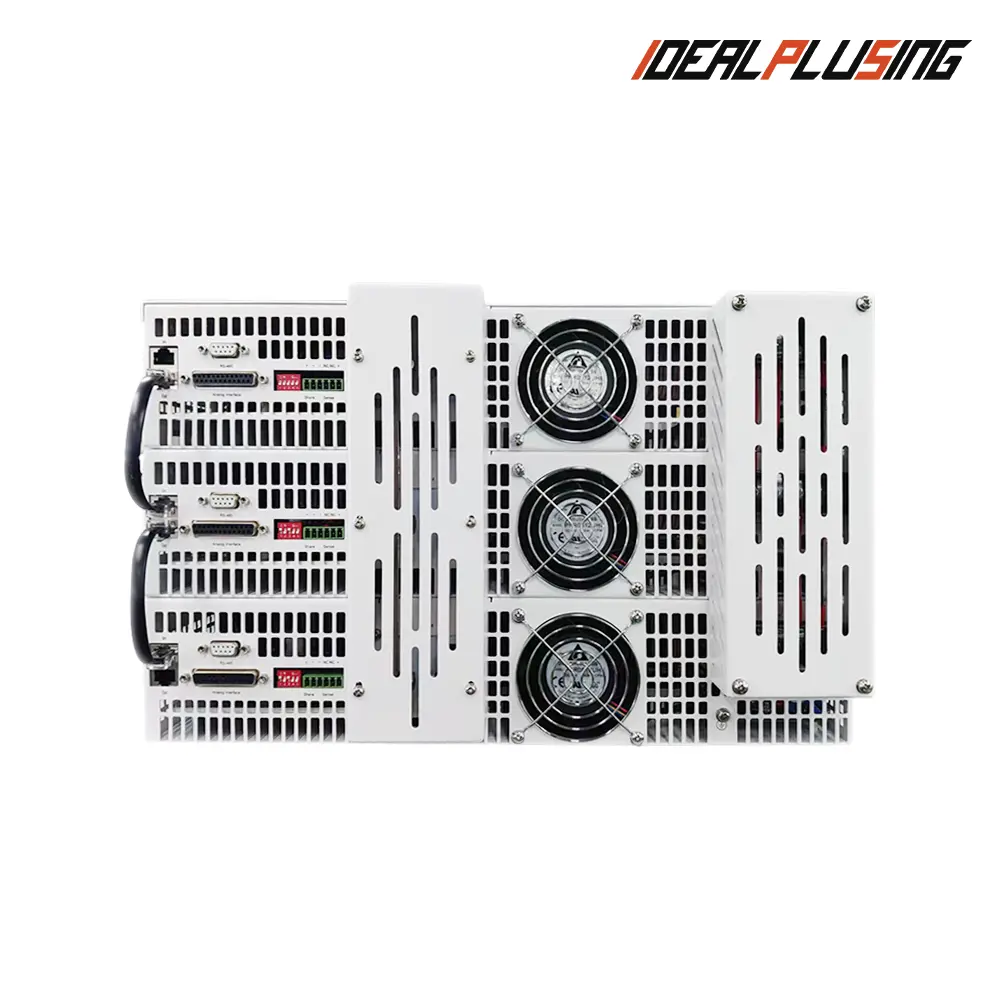

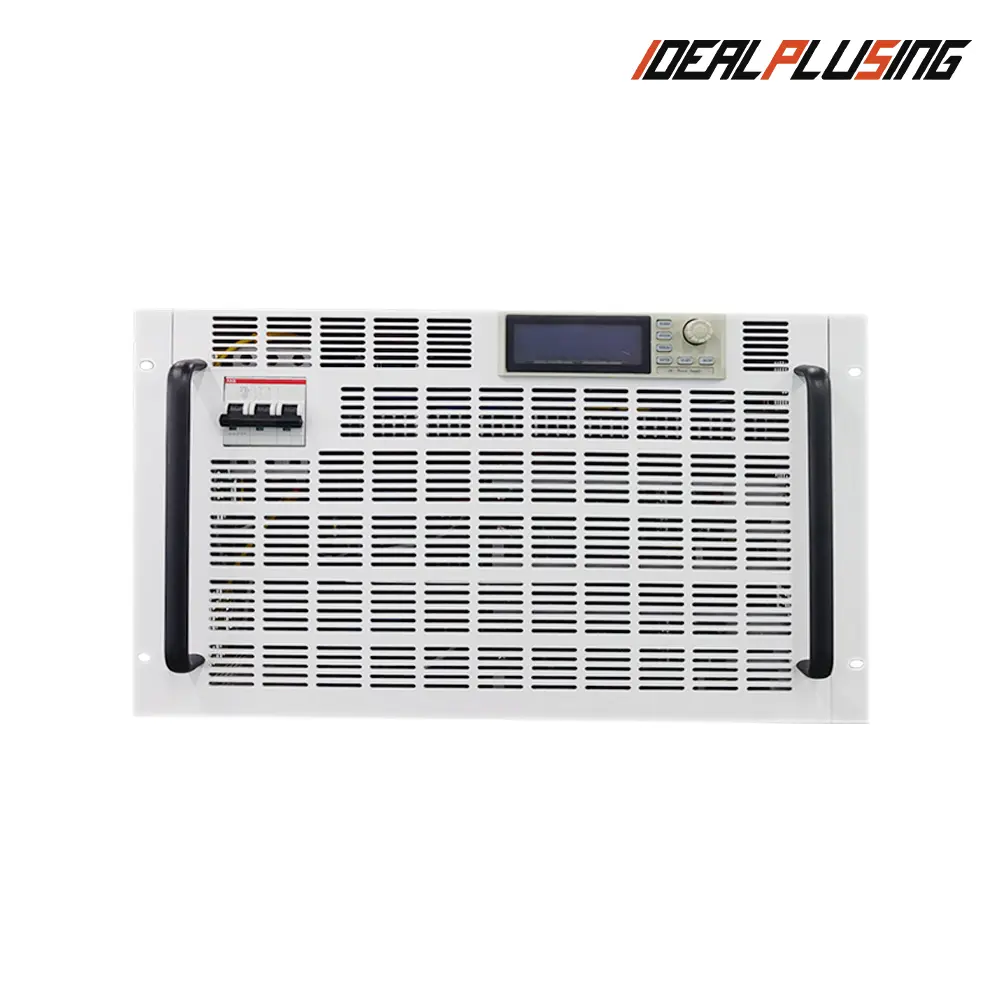

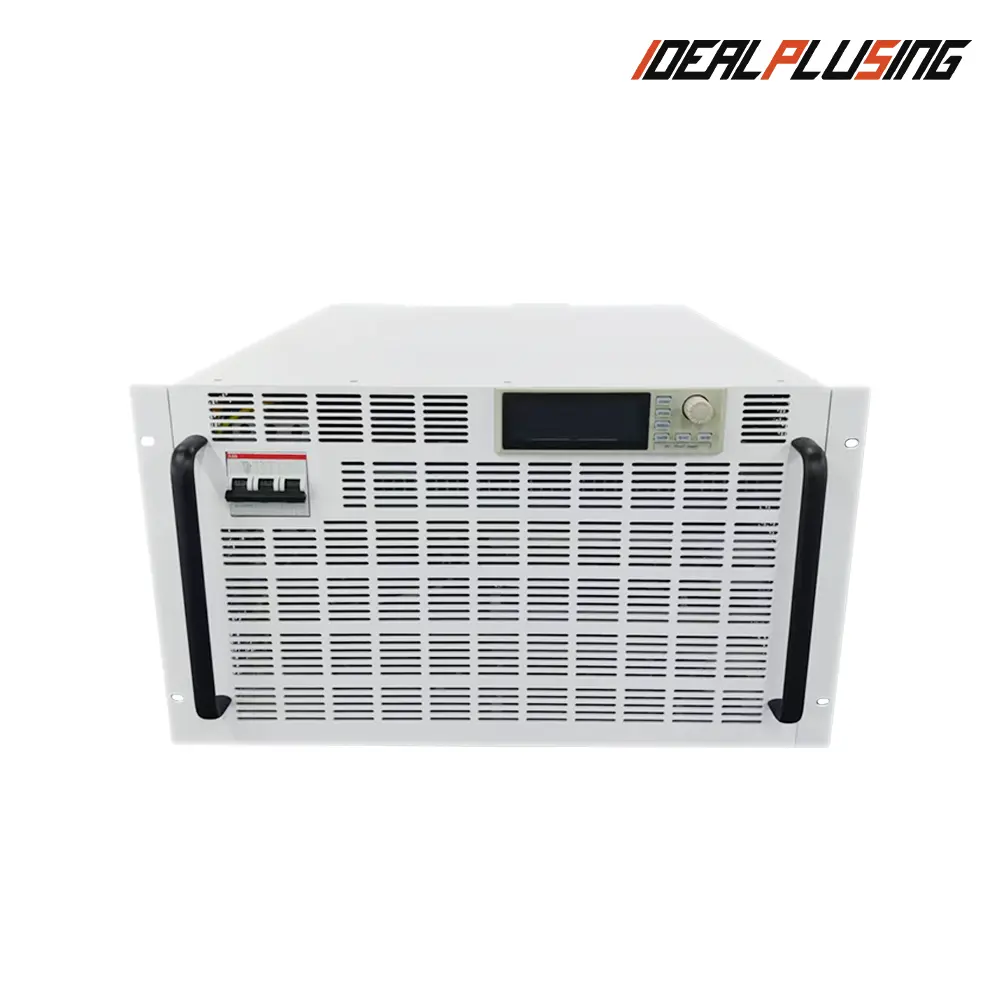

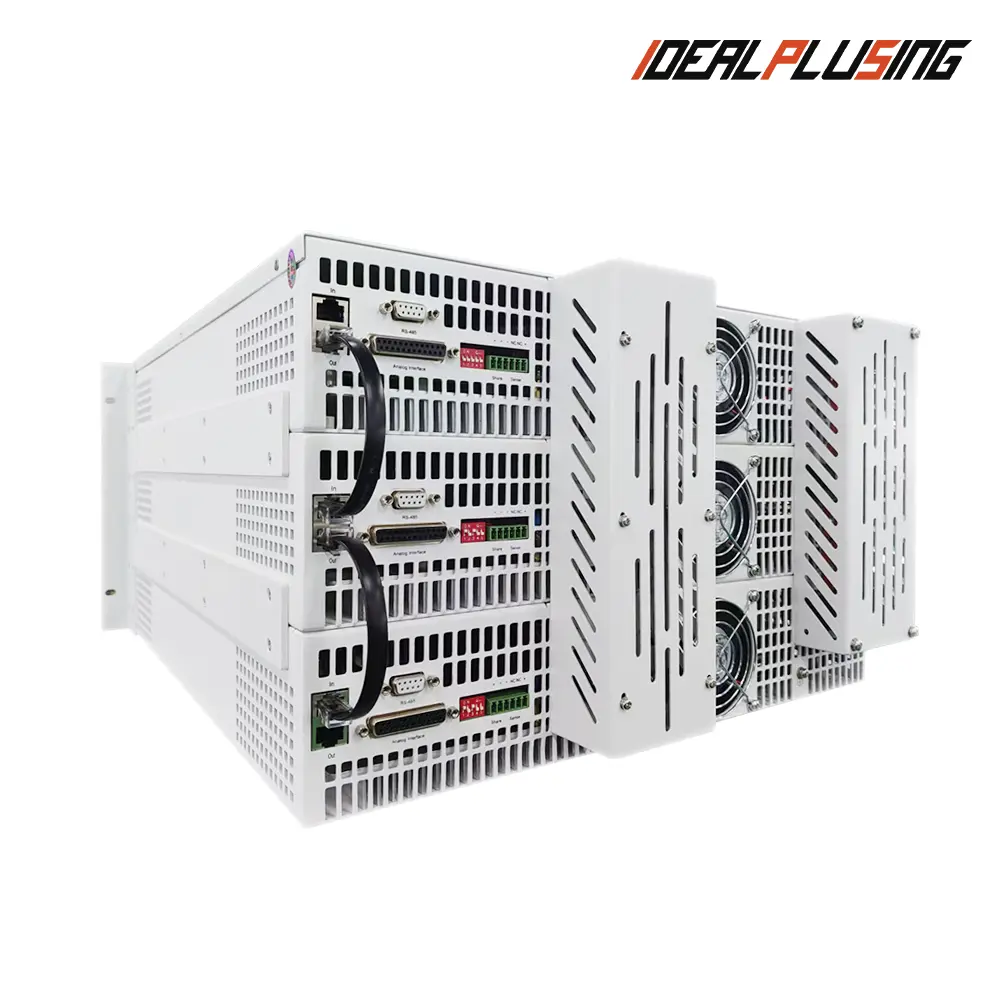

Rated output value | IPS-HS700-42 | |
Adjustable voltage range (*1) | V | 700V(0～710V adjustable) |
Adjustable current range (*2) | A | 42A(Adjustable from 0 to 45A) |
Rated power (OPP = 110% of rated value) | W | 30KW |
Input characteristics | ||
Voltage | -- | Three-phase 380VAC±15% |
frequency | -- | 47～63Hz |
Power factor (@380Vac full load) | -- | ≥0.97 |
Efficiency (@380Vac full load) | % | ≥90% |
Constant voltage mode (CV) | ||
Source effect (*3) | -- | 0.05% + 10mV of rated output voltage |
Load effect | -- | 0.2% +10mV of rated output voltage |
Ripple and noise (p-p, 20MHz) | mV | 950 |
Ripple frequency (r.m.s.) 5Hz~1MHz | mV | 350 |
Transient response time | mS | ≤2mS (The time it takes for the output voltage to recover within 0.5% of its rated output when the load changes to 10-90% of the rated output current) |
Startup delay | ≤ | 6S (Time taken for the power switch to be turned on and the device to enter standby mode) |
Constant current mode (CC) | ||
Source effect (*3) | -- | 0.05% + 10mA of rated output current |
Load effect | -- | 0.2% + 10mA of rated output current |
Ripple frequency (r.m.s.) 5Hz~1MHz | mA | ≤100 |
Programmable | ||
Analog output voltage control | -- | 0~5V or 0~10V (default) corresponds to 0~100% output voltage; accuracy: ±1% of rated output voltage. |
Analog output current control | -- | 0~5V or 0~10V (default) corresponds to 0~100% output current; accuracy: ±1% of rated output current. |
Analog output voltage feedback | -- | 0~5V or 0~10V (default) corresponds to 0~100% output voltage; accuracy: ±1% of rated output voltage. |
Analog output current feedback | -- | 0~5V or 0~10V (default) corresponds to 0~100% output current; accuracy: ±1% of rated output current. |
Remote power on/off analog signal | -- | Passive dry contact switching signal or high/low level signal controls power on/off (default low level for power on). |
Digital control | -- | Standard RS-485 communication interface; optional RS-232 and USB communication conversion module cables are available, supporting Modbus communication protocol. |
Function | ||
Series/Parallel Operation | -- | Supports series/parallel operation of models of the same specification to expand voltage, current, and power. |
Voltage and Current Slope Control | -- | Programmable output rise and fall slopes. Programming range: 0.01~100V/s or A/s. |
Dynamic LIST Output | -- | Can save 4 LIST program files, each file can be edited with up to 200 steps of data; three execution modes are available: cyclic, continuous, and single-step. |
Timer Function | -- | Minutes can be set from 0-9999 minutes. |
Fast Data Storage/Recall | -- | Can store 4 sets of commonly used voltage/current parameters. |
Protection | -- | Output overvoltage, overcurrent, overload, overtemperature, short circuit, input undervoltage, and overvoltage protection. |
Panel monitoring | ||
Operation Method | -- | Encoder knob + multi-function buttons |
Display Method | -- | 5-digit OLED screen displays output voltage, current, power, and operating status information; supports Chinese and English dual-language menu switching. |
Voltage Display Accuracy | -- | 0.05%+0.05% F.S. |
Current Display Accuracy | -- | 0.2%+0.2% F.S. |
Voltage Setpoint Accuracy | -- | 0.05%+0.05% F.S. |
Current Setpoint Accuracy | -- | 0.2%+0.2% F.S. |
Setpoint Resolution | -- | 5-digit OLED, display format: 99999, fixed resolution without incrementing digits, maximum resolution: 0.001 |
Display Resolution | -- | 5-digit OLED, display format: 99999, current value decreases by one digit, decimal point automatically increases by one digit, maximum resolution: 0.001 |
Environmental adaptability | ||
Operating ambient temperature / storage temperature | °C | 0℃～+40℃ / -20℃～+70℃ |
Operating humidity / Storage humidity | % | 20~90%RH (non-condensing) / 10~95%RH (non-condensing) |
Heat dissipation method | -- | Forced air cooling (temperature-controlled speed fan, ensuring normal operation while minimizing fan noise and extending fan life). |
Dimensions / Weight | -- | |
Dimensions (excluding output copper busbars, etc.) | mm | Width 480 (430) mm, Height 176 mm, Depth 535 mm (Standard 4U size) |
Weight | Kg | Approx. 41 kg |
