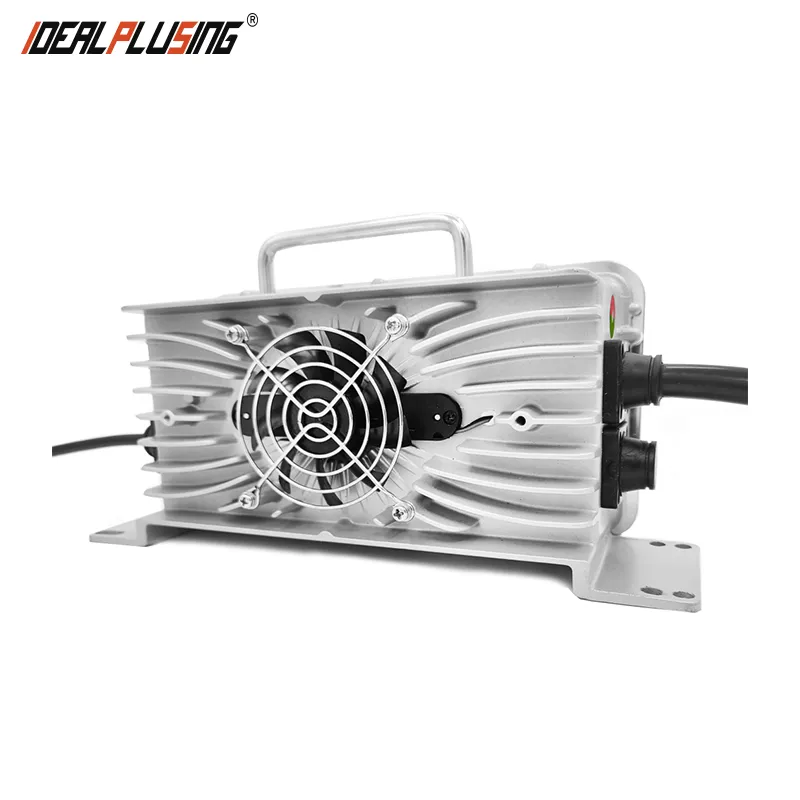

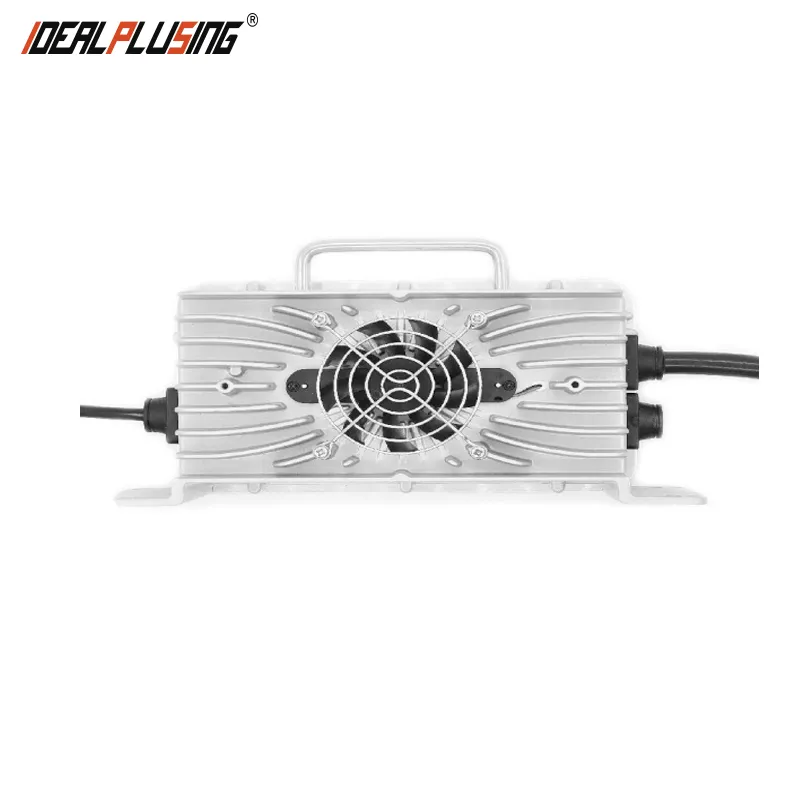

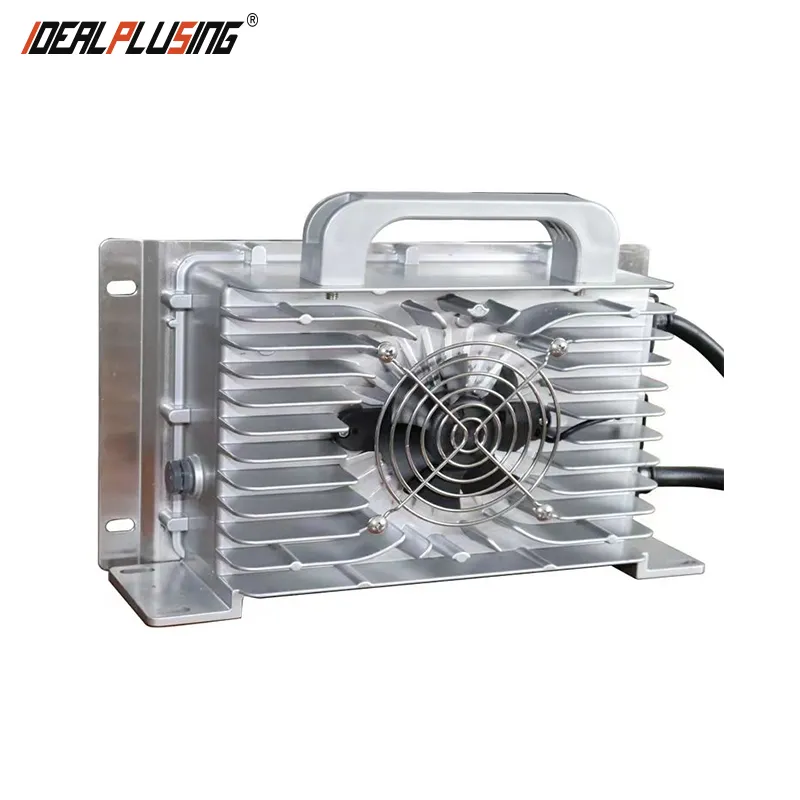

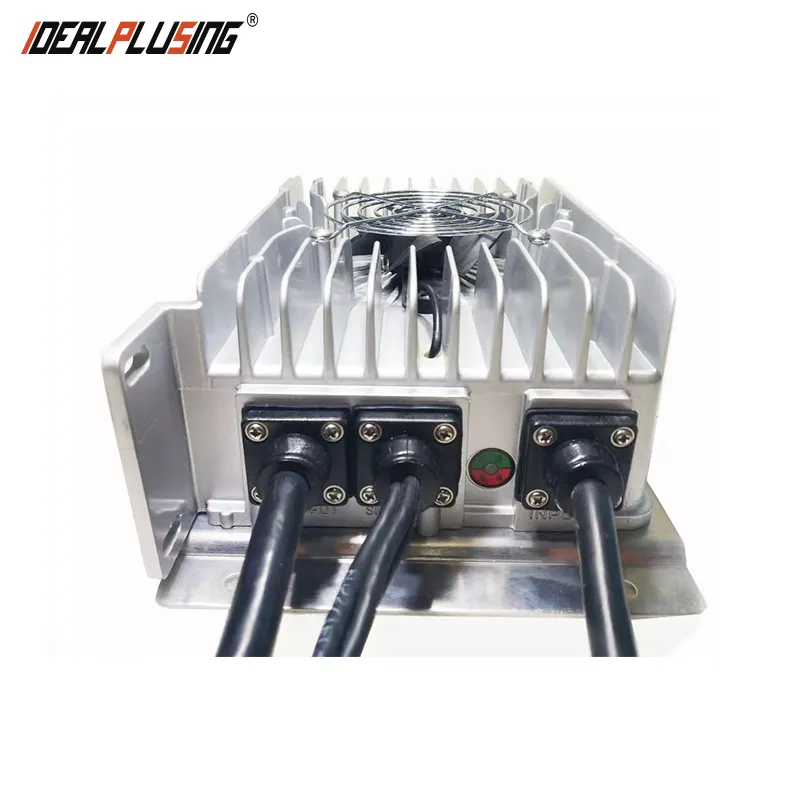

IPS-BCW36-25 Lithium ion Battery Charger for Electric Bike Scooter Power Supply Balance Car Charger 36V 15A 25A 30A 15A
MODEL:IPS-BCW36-25 36VDC 25A charger ① Input Voltage: Single phase 220VAC±15% 50/60hz ② Charging Voltage: 37.8VDC(9S*4.2V) for Lithium battery ③ Charging current: 25A ④ Output Power: 945W ⑤ Dimension: L282*W166*H120(MM) ⑥ Net Weight: 3.3KG ⑦ Cooling method: Fan Heat ⑧ Water proof grade: IP65

36V 15A 25A 30A Lithium battery charger

Brand

IDEALPLUSING

Battery Type

Lithium battery

Model

IPS-BCW36-15

IPS-BCW36-25

IPS-BCW36-30

Input voltage

220VAC

Output  voltage

36VDC

CV-Lithium-4.2V

37.8VDC(9S)

Output Current

15A

25A

30A

Power

 567W

945W

 1134W

Input frequency

50Hz±2%

Weight

3.7KG

Size

L282*W166*H120(MM)

Application

96%

Product features

Maximum efficiency>93%

100% full load aging test

Power factor > 0.98 (APFC function)

Seismic grade of automobile grade

Strong protection function

Operating temperature range of wide temperature class

Intelligent temperature compensation for battery

Maximum efficiency>93%

Protection characteristics

Output over-voltage protection

Output short circuit protection

Over temperature protection of charger

Output over current protection

Output reverse current protection

Output reverse current protection

Protection

-40℃~+60℃

Storage temperature

-40℃~+90℃

Relative humidity

5%~95%

Heat dissipation mode

Forced air cooling

Water proof grade

IP65

Customized

Support
