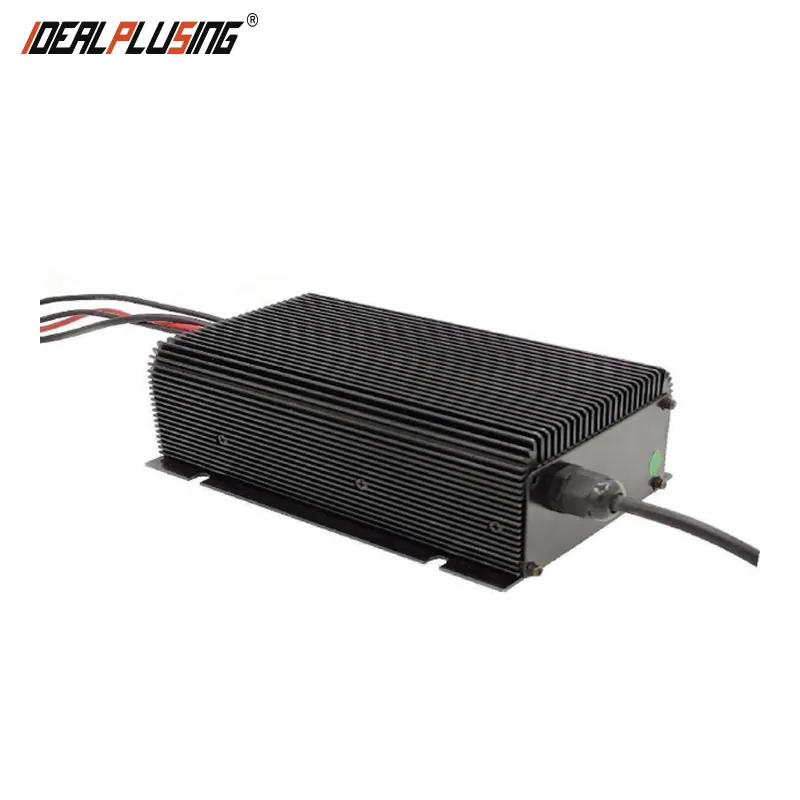

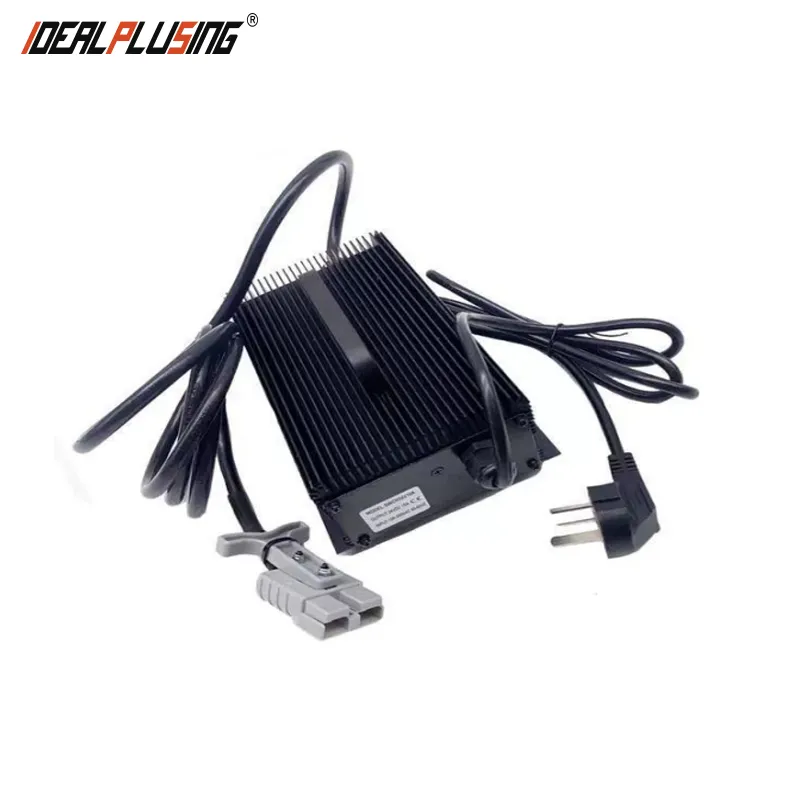

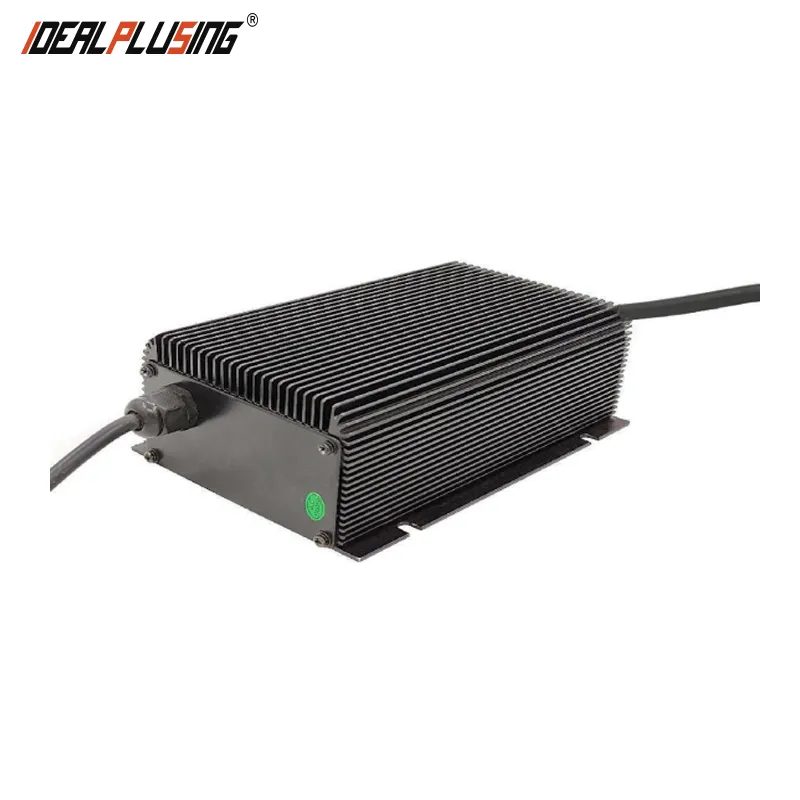

IPS-BCW48-15 48V 15A 20A 25A 30A 756W 1008W 1260W 1512W lithium ion battery charger for electric motorcycle battery charger
MODEL:IPS-BCW48-15 48VDC 15A charger ① Input Voltage: Single phase 220VAC±15% 50/60hz ② Charging Voltage: 50.4VDC(12S*4.2V) for Lithium battery ③ Charging Current: 15A ④ Output Power: 756W ⑤ Dimension: L282*W166*H120(MM) ⑥ Net Weight: 3.3KG ⑦ Cooling method: Fan Heat ⑧ Water proof grade: IP65

48V 15A 20A 25A 30A Lithium battery charger

Brand

IDEALPLUSING

Battery Type

Lithium battery

Model

IPS-BCW48-15

IPS-BCW48-20

IPS-BCW48-25

IPS-BCW48-30

Input voltage

220VAC

Output  voltage

48VDC

CV-Lithium-4.2V

50.4VDC(12S)

Output Current

15A

20A

25A

30A

Power

756W

1008W

1260W

1512W

Input frequency

50Hz±2%

Weight

3.3KG

Size

L282*W166*H120(MM)

Application

96%

Product features

Maximum efficiency>93%

100% full load aging test

Power factor > 0.98 (APFC function)

Seismic grade of automobile grade

Strong protection function

Operating temperature range of wide temperature class

Intelligent temperature compensation for battery

Maximum efficiency>93%

Protection characteristics

Output over-voltage protection

Output short circuit protection

Over temperature protection of charger

Output over current protection

Output reverse current protection

Output reverse current protection

Protection

-40℃~+60℃

Storage temperature

-40℃~+90℃

Relative humidity

5%~95%

Heat dissipation mode

Forced air cooling

Water proof grade

IP65

Customized

Support
