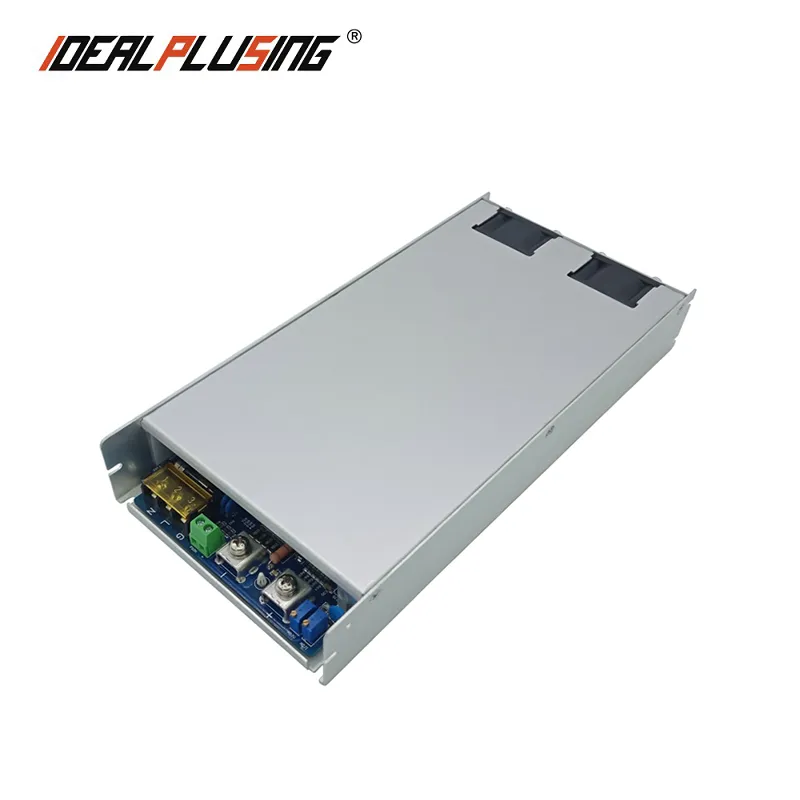

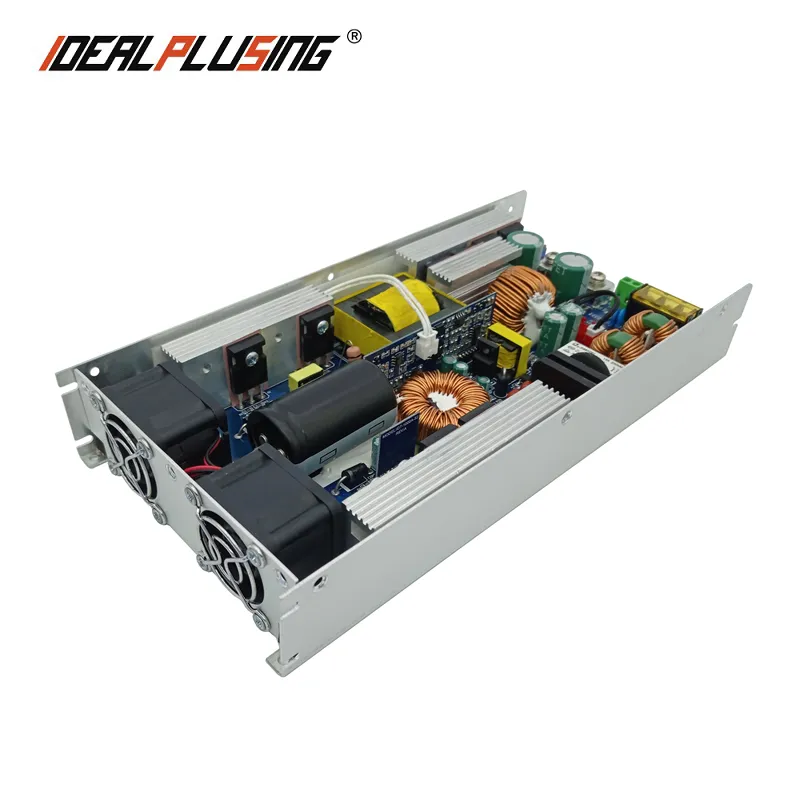

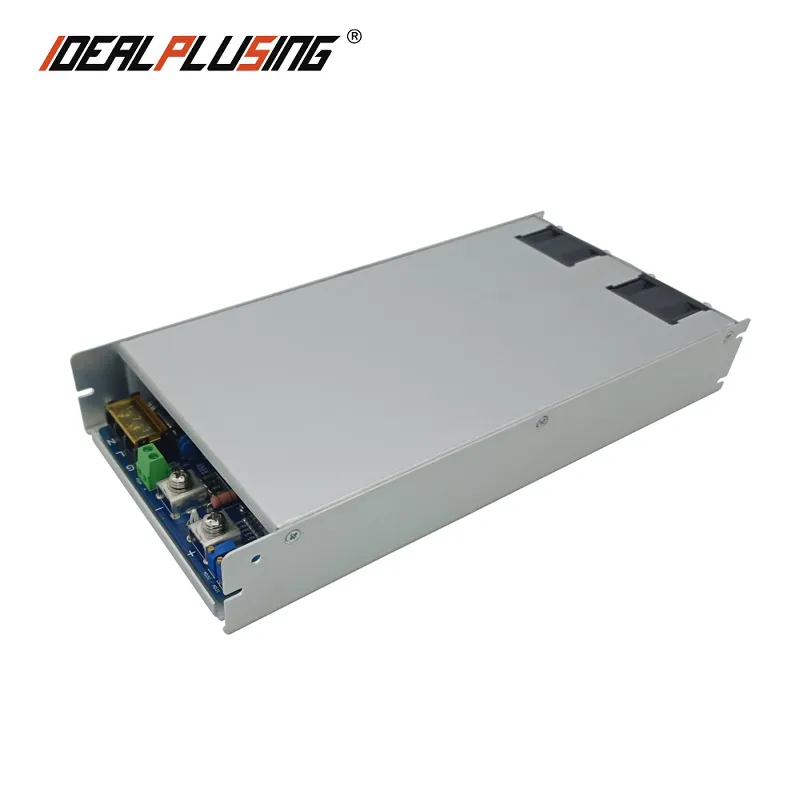

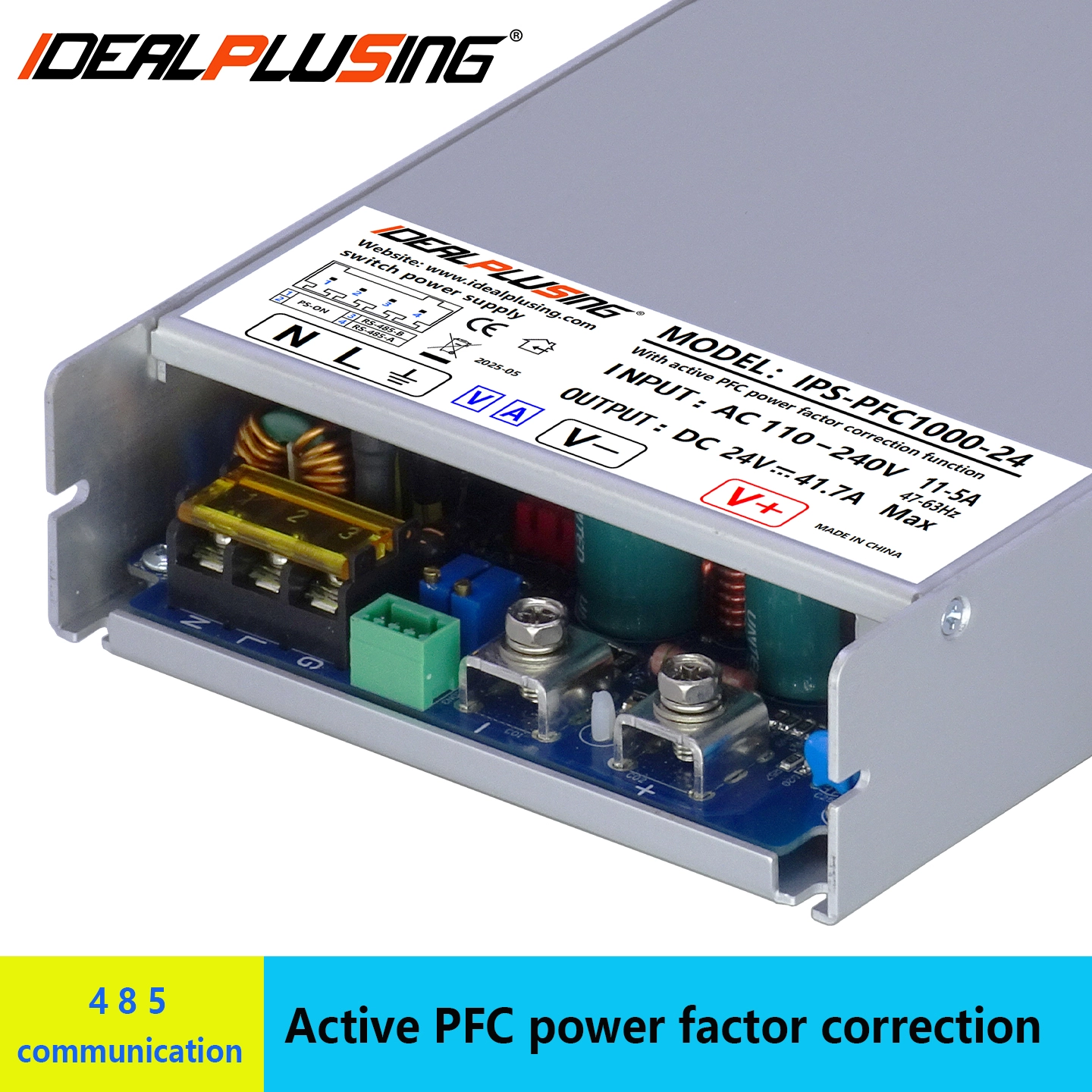

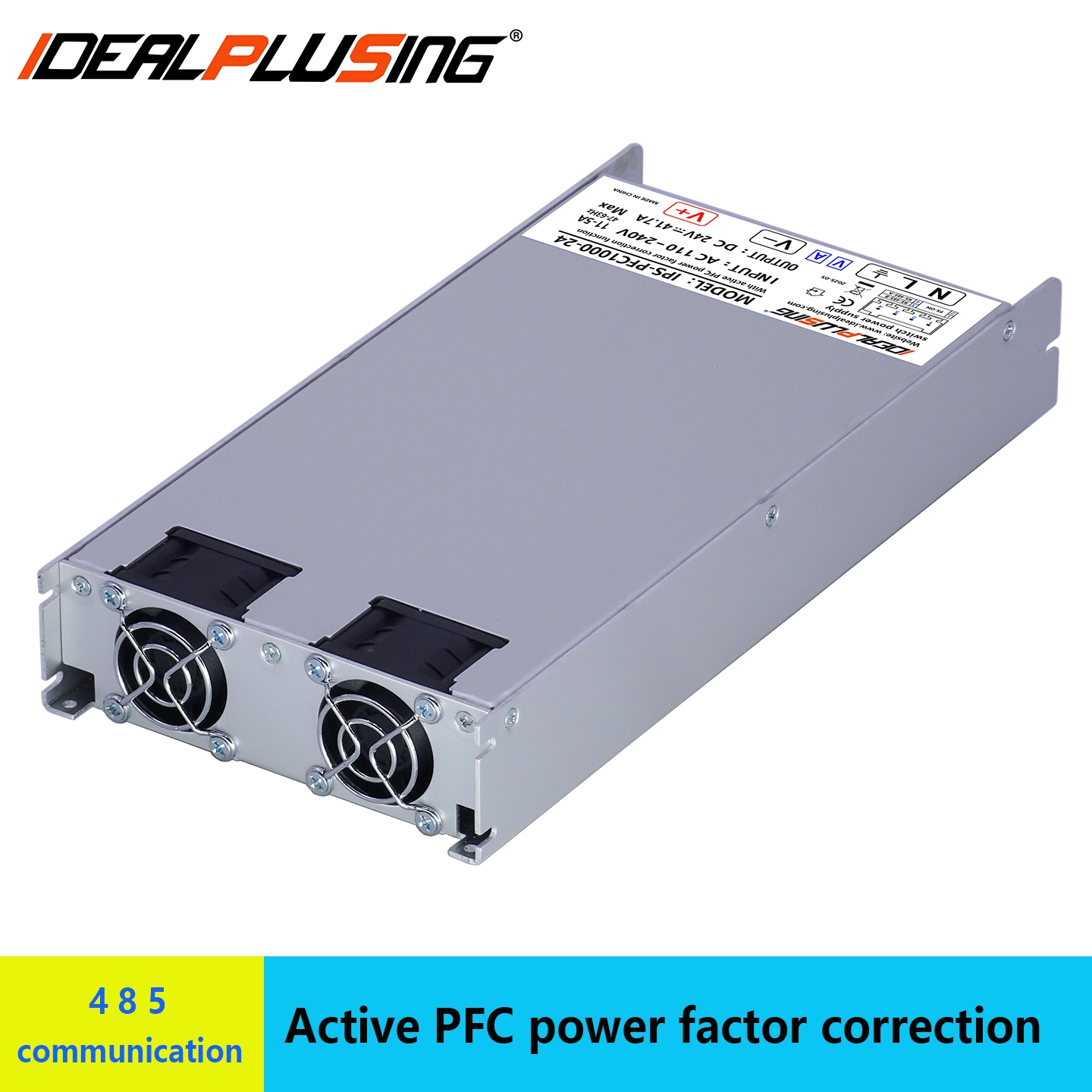

IPS-PFC-1000-48 Switching power supply 110vac 220vac 24v 36v 48v 60v 72v 110v 220v ac dc switching power supply

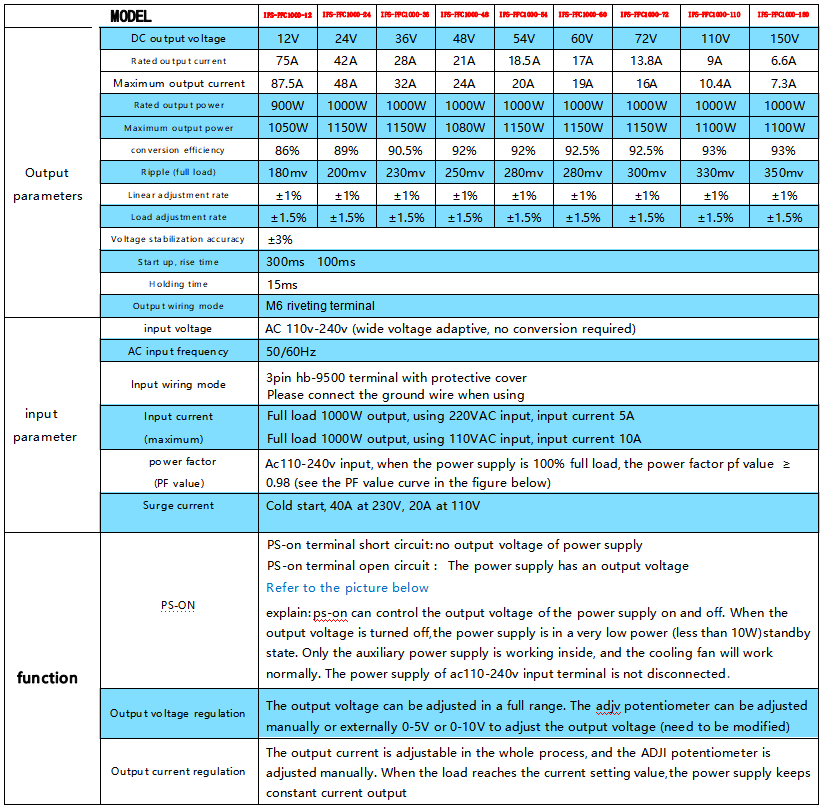

MODEL：IPS-PFC-1000-48 48VDC 20.83A 1000W Switching power supply SPECIFICATION： ① AC input: single phase 110 / 220V ± 15% 50 / 60Hz ②　DC output: 0 ~ 48VDC, 20.83A ③　Max power: 1000W ④　Machine size: L268*W130*H40(MM) ⑤　NW: 1.4KG, GW: 2.3KG ⑥　Adjustment mode: potentiometer adjustment ⑦ PFC power factor correction function ⑧　Package: Pearl cotton and carton double protection Wechat ID：idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephpone number:+86-20-89282095

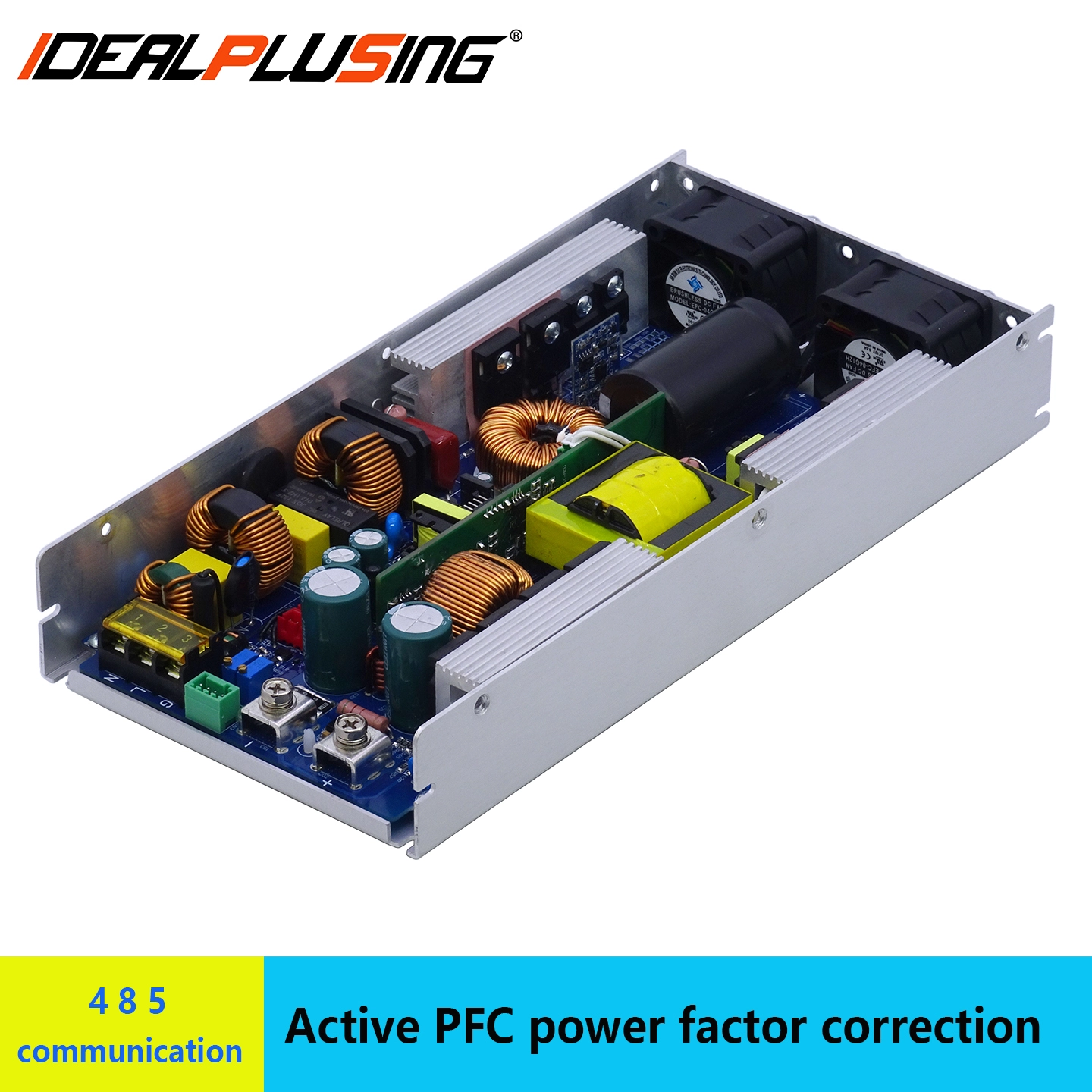

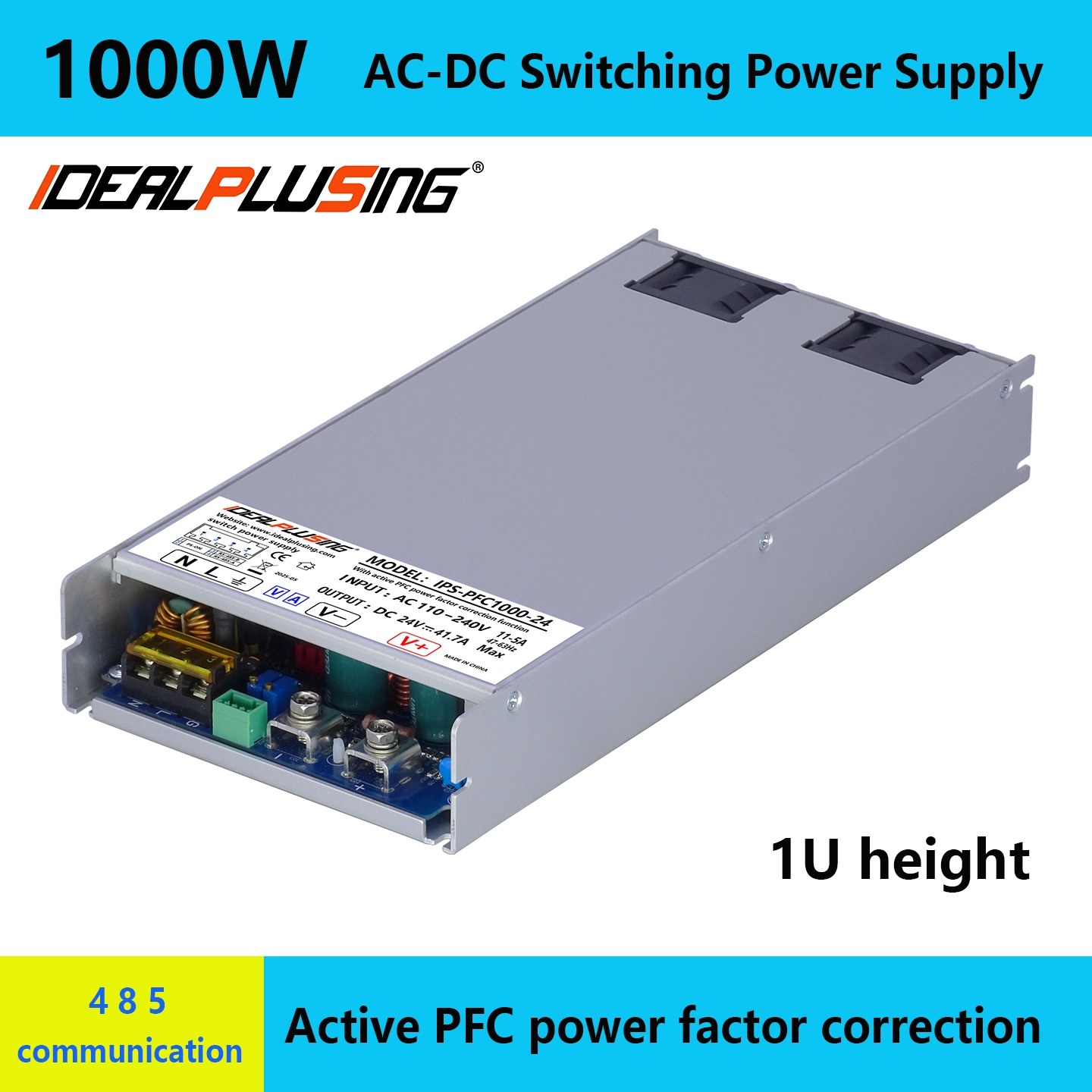

1000W (with active PFC) single output



Telephone: +86-20-89282095

Mobile: +86-15989132799

Whatapp: +86-15989132799

Wechat: +86 15989132799

QQ: 2274914457

E-mail：info@idealplusing.com

ADD: NO.85 Gaopu Road, Tianhe, Guangzhou, Guangdong Province, China. 510520.
