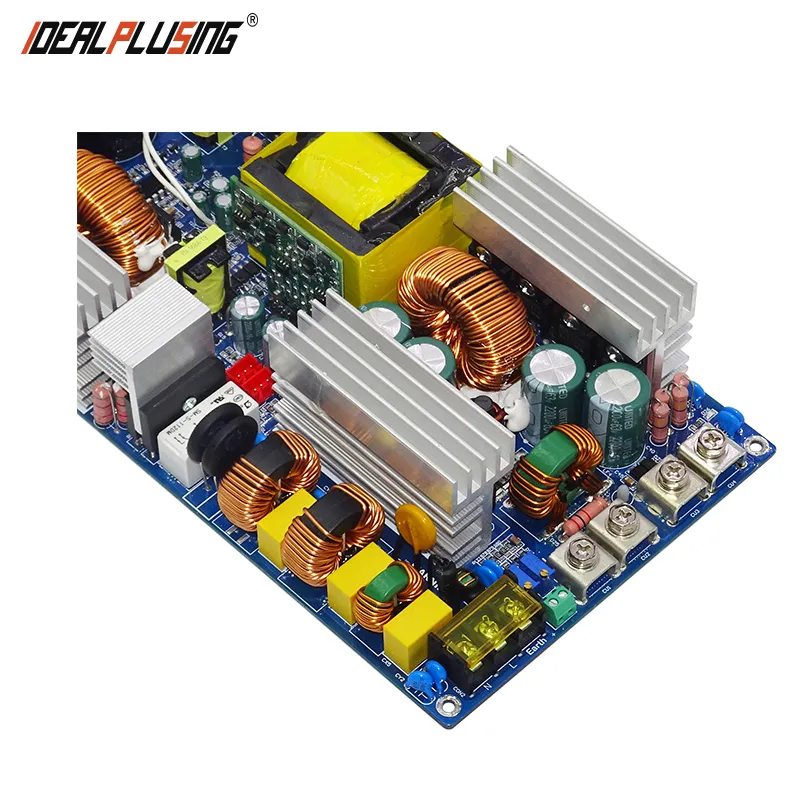

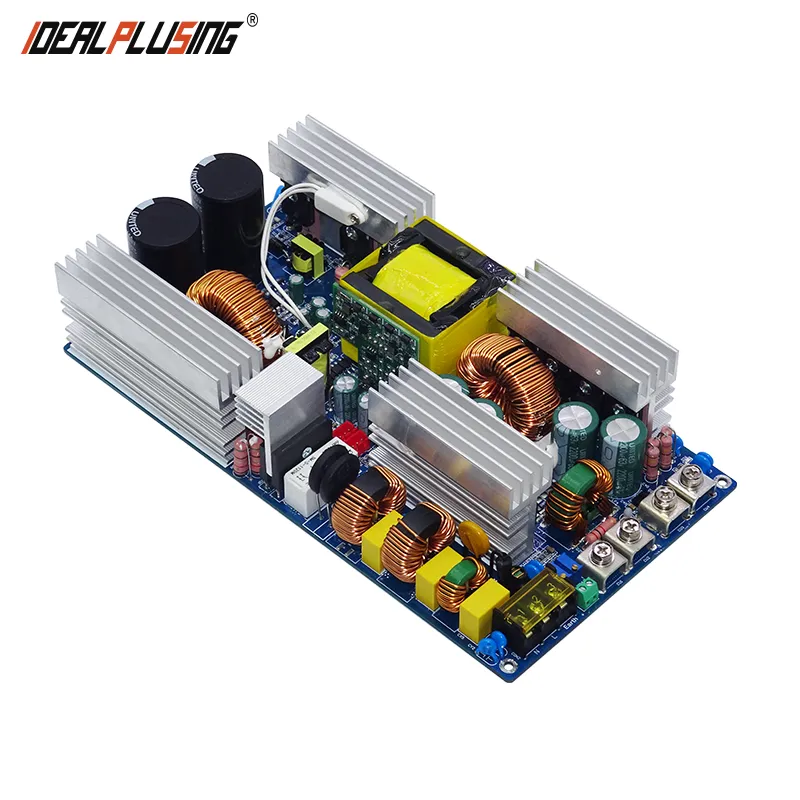

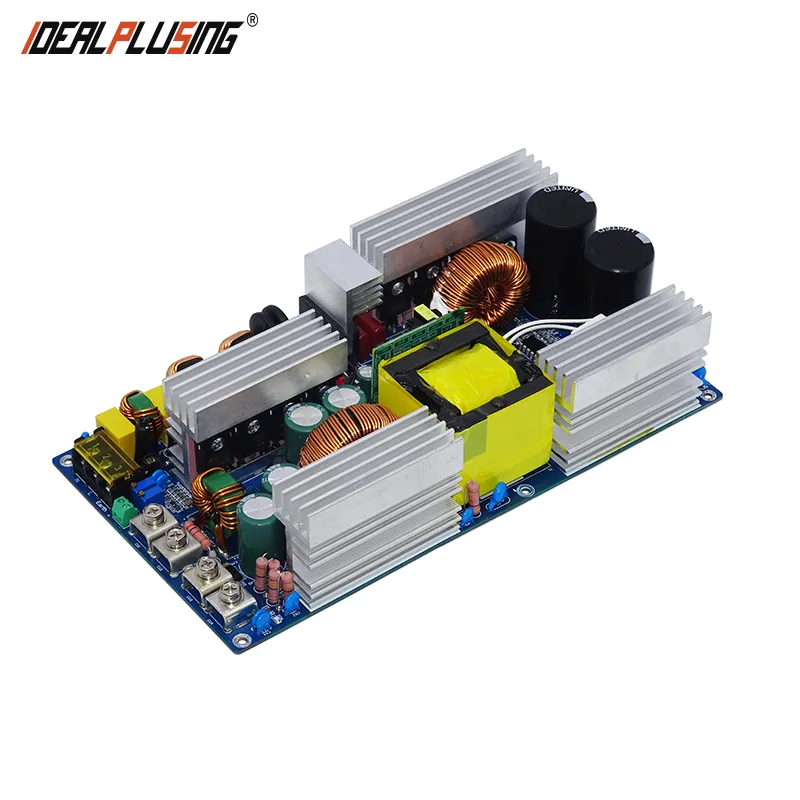

IPS-PFC-2000-60 AC 220V 110V TO DC 24V 36V 48V 110V 150V Switching Power Supply 2000W Transformer LED Drive Power Adapter

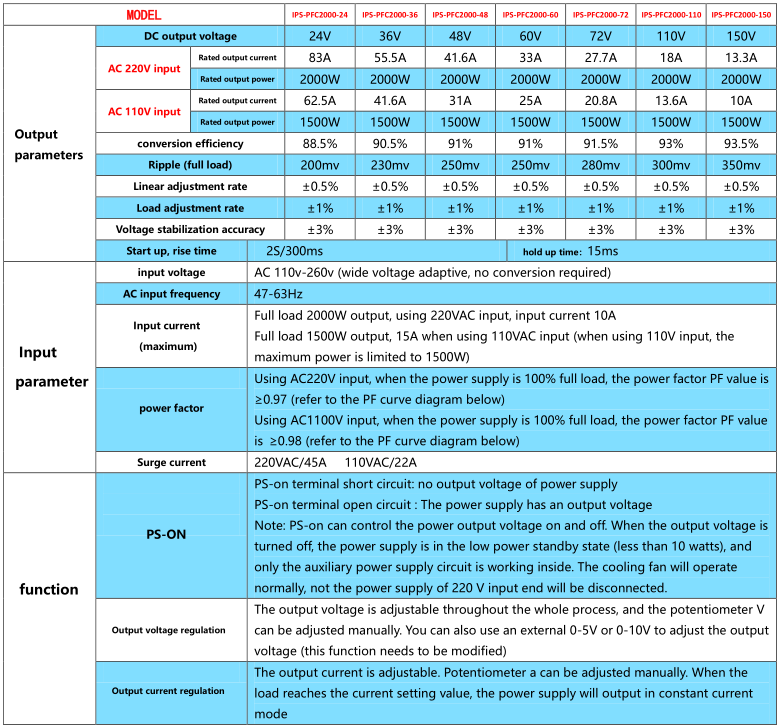

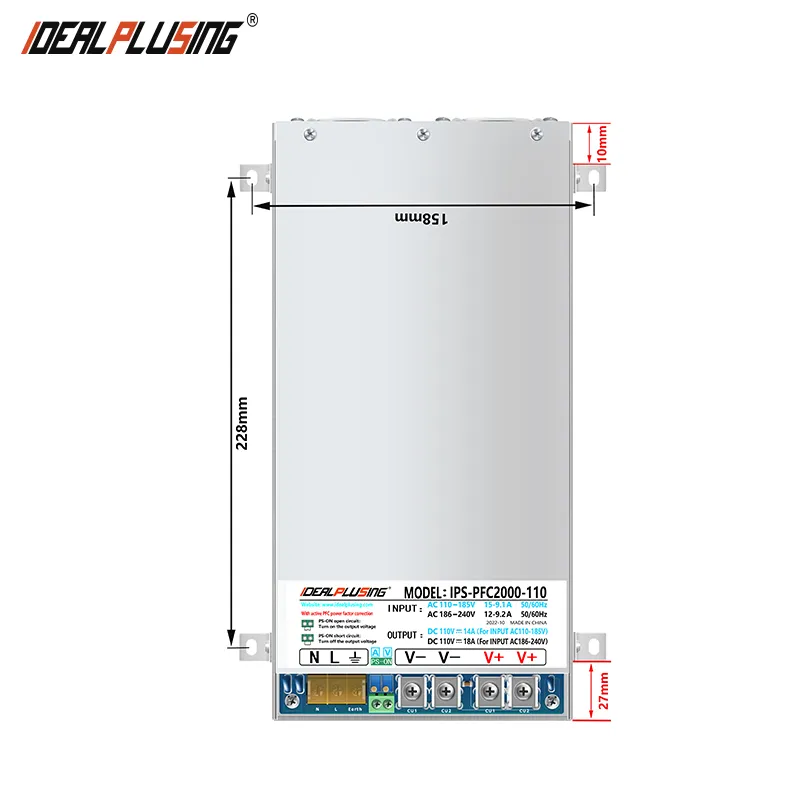

MODEL：IPS-PFC-2000-60 60VDC 33.3A 2000W Switching power supply SPECIFICATION： ① AC input: single phase 110 / 220V ± 15% 50 / 60Hz ②　DC output: 0 ~ 60VDC, 33.3A ③　Max power: 2000W ④　Machine size: L280*W140*H165(MM) ⑤　NW: 2.3KG, GW: 3.5KG ⑥　Adjustment mode: potentiometer adjustment ⑦ PFC power factor correction function ⑧　Package: Pearl cotton and carton double protection Wechat ID：idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephpone number:+86-20-89282095

2000W (with active PFC) single output
