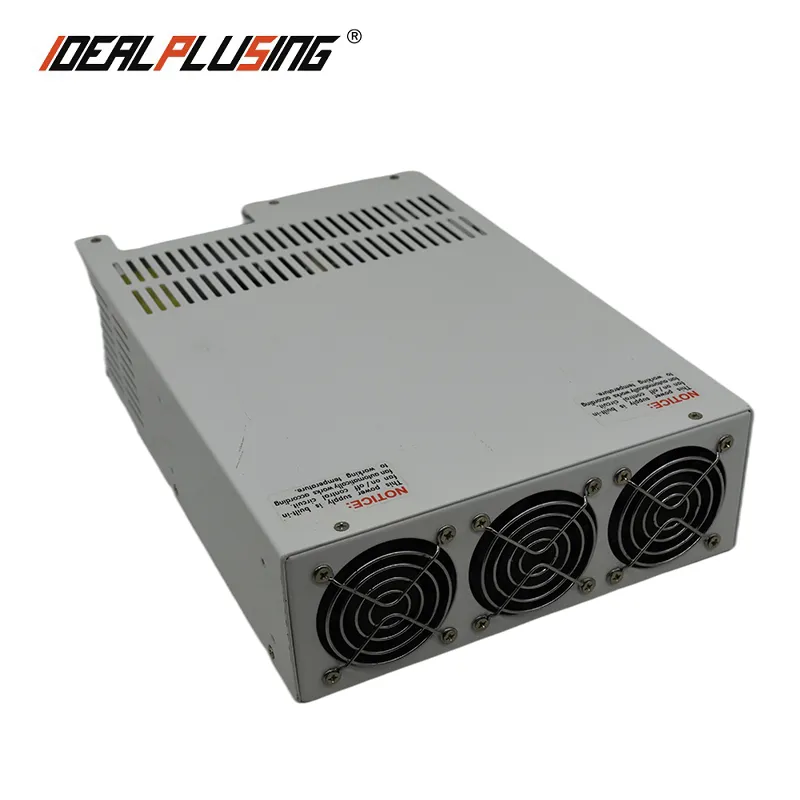

IPS-SPT24-166 Work high quality AC 200V-240V to DC 300A 250A 200A 166A 160A 111A 100A 83A 80A 50A Switching SMPS Power Supply
Model:IPS-SPT24-166 24V 166A 4000W switching power supply ① AC input: Single-phase 110/220V±15% 50/60hz ② DC output: 0~24VDC, 0~166A ③ Power: 4000W ④ Dimension: 315*208*73 (MM) ⑤ Net weight: 6KG, Gross weight: 7KG ⑥ Support customization Wechat ID:idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephone number:+86-20-89282095

Model

IPS-SPT12-260

IPS-SPT24-166

IPS-SPT36-1111

IPS-SPT48-83.3

IPS-SPT100-40

IPS-SPT200-20

IPS-SPT400-10

Item

Technical indicators

Output

DC voltage

12VDC

24VDC

36VDC

48VDC

100VDC

200VDC

400VDC

Rated current

0~260A

0~166.6A

0~111A

0~83.3A

0-40A

0~20A

0~10A

Rated power

4000W

Ripple and noise

<150mV

<150mV

<240mV

<240mV

<240mV

<240mV

<240mV

Voltage accuracy

±1%

Output voltage regulation range

0~12VDC

0~24VDC

0~36VDC

0~48VDC

0~100VDC

0~200VDC

0~400VDC

Load adjustment rate

0.3%

Linear adjustment rate

0.5%

Input

Voltage range

180-264VAC 340-440VAC;254VDC~370VDC

Efficiency (typical)

>85%

Working current

220VAC;21A

Impulse current

60A 230VAC

Start, rise, hold time

2000ms、50ms、20ms;230VAC

Protect

Over temperature protection

105% ~ 135% type; Constant current output + V0 drop undervoltage point cut-off output reset; Power on again

Over temperature

RTH3;The fan operates normally, ≥ N90°C, and the output is closed

Environment

Operating temperature, humidity

-10°C~+50°C;20%-90RH

Storage temperature, humidity

-20°C~+85°C;10%~95RH

Safety regulations

Withstand voltage

Input-output: 1.5kVac input housing: 1.5kVac output housing: 05kvac for 1 minute

Leakage current

Input-output  1.5KVAC Time< 6mA

Leakage current

Input-output  220VAC Time<1.5mA

Isolation resistance

Input-output, input-housing, output-housing,500VDC/100MΩ

Other

Size

315*208*73(MM)

NW/GW

6KG/7KG
