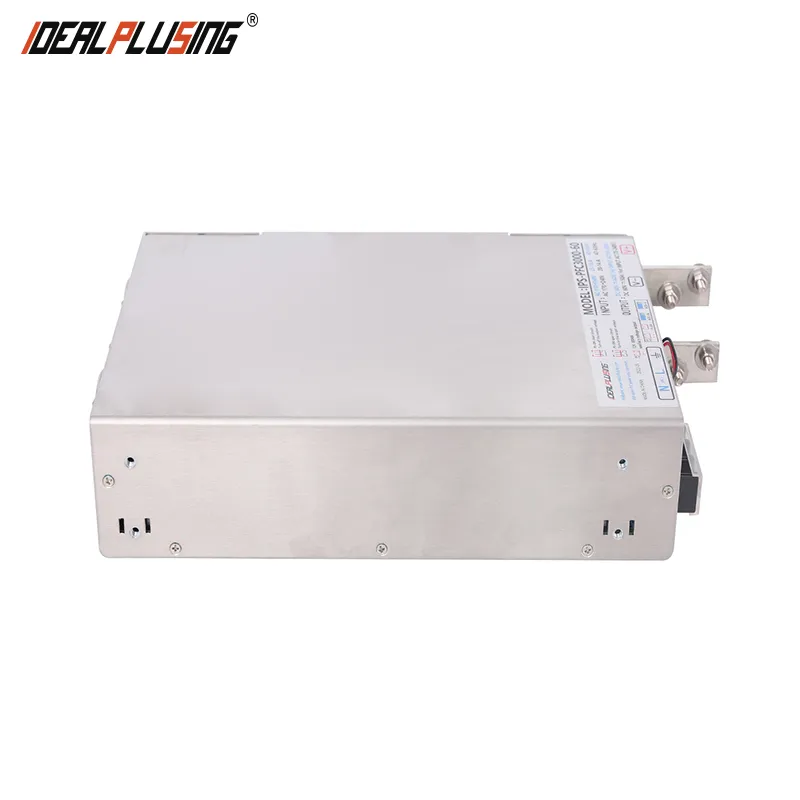

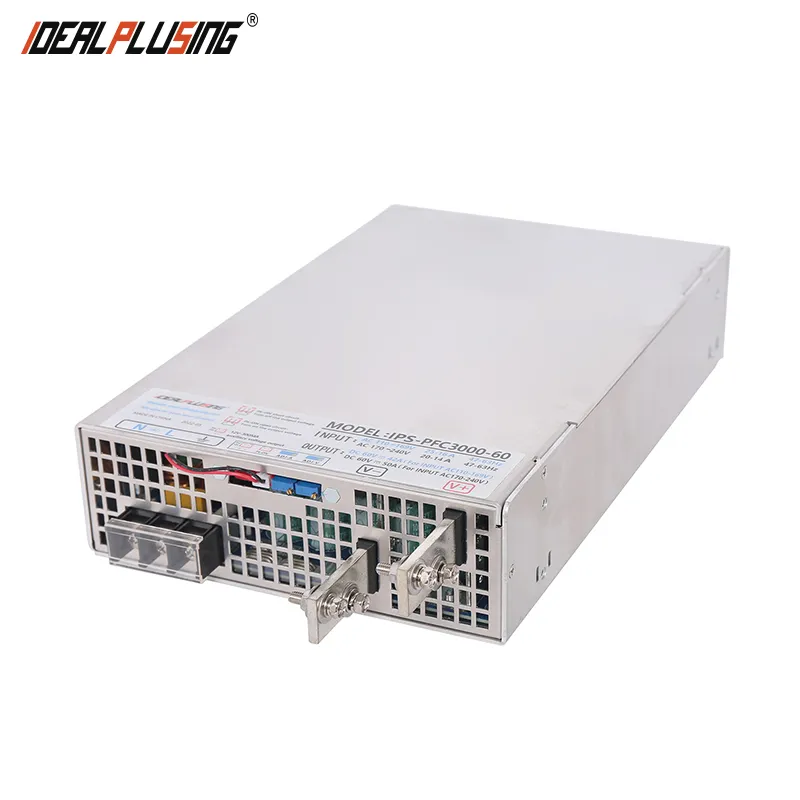

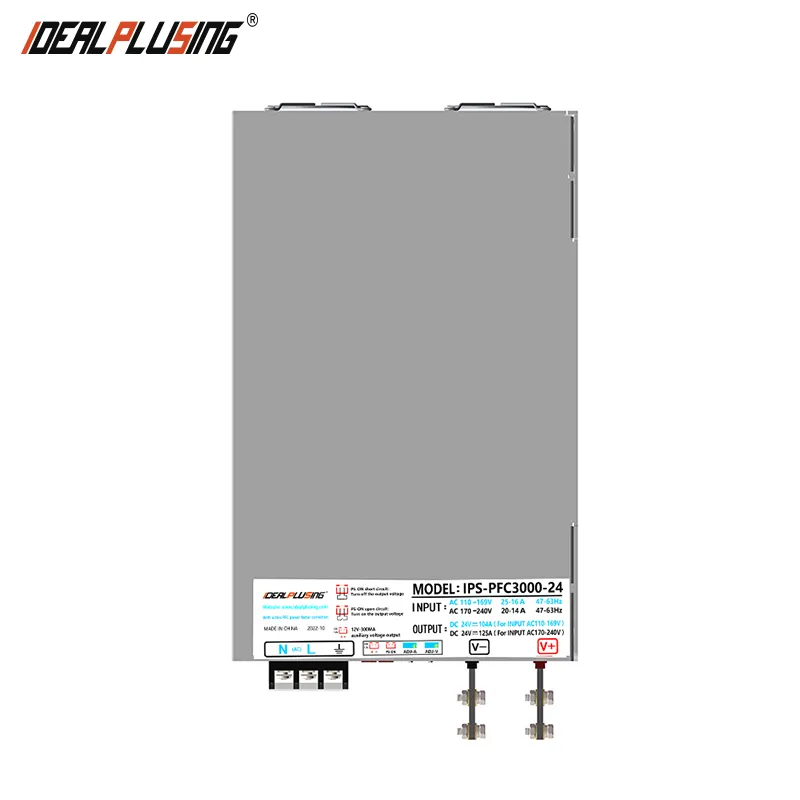

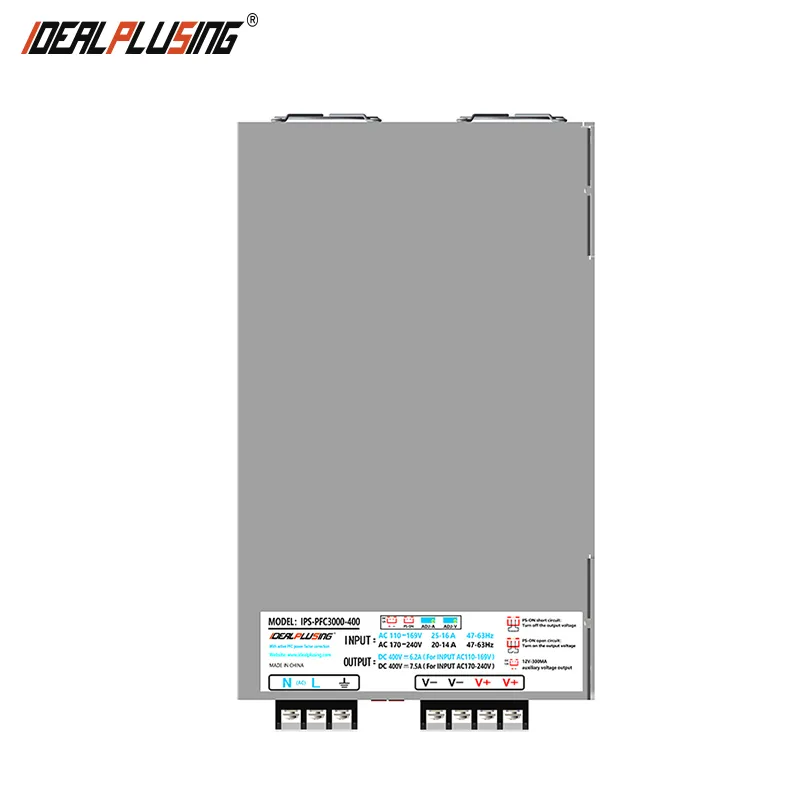

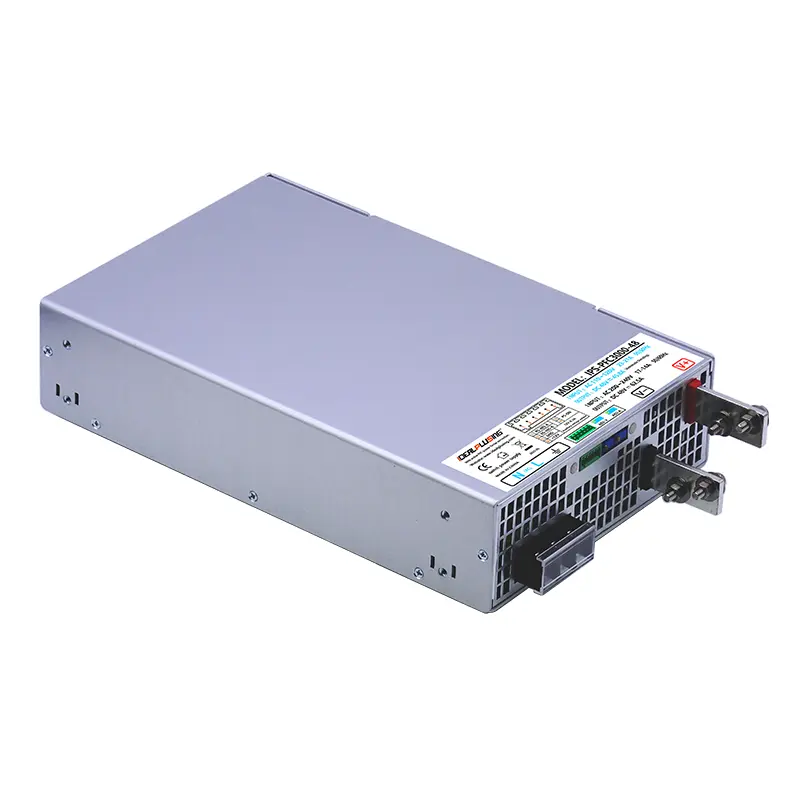

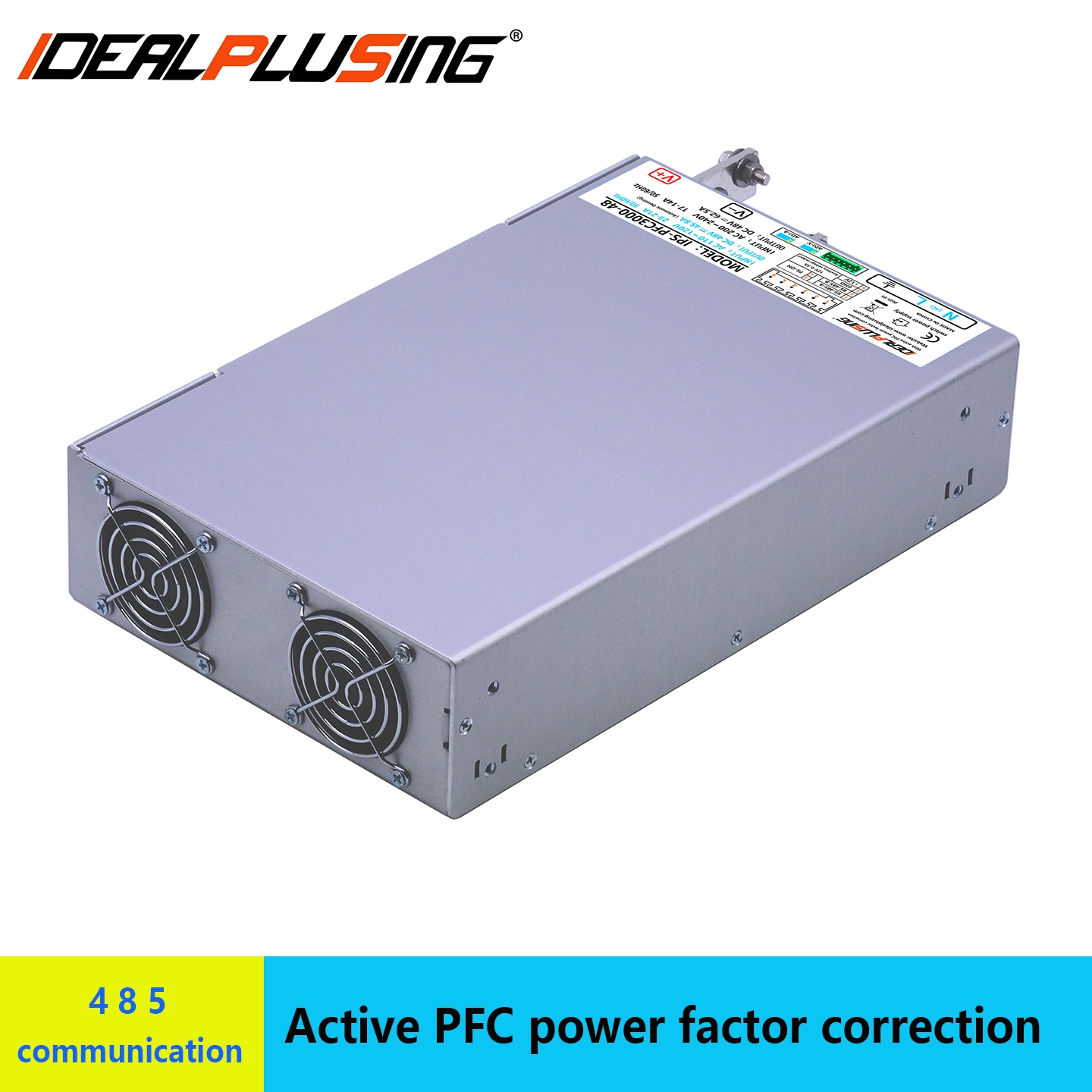

IPS-PFC3000-72 Power Supply CE RoHS 3000W 72V 41.6AMP High Power AC/DC Switching Power Supply 24V 36V 48V 60V 72V 110V 150V 3000W IPS-PFC3000-72

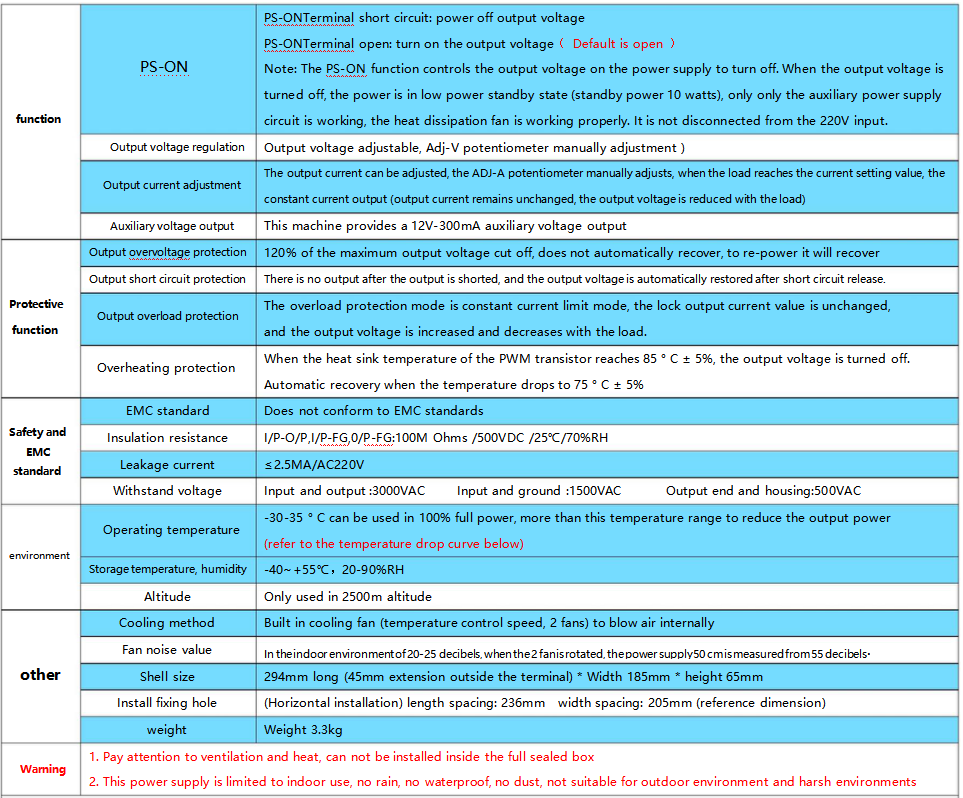

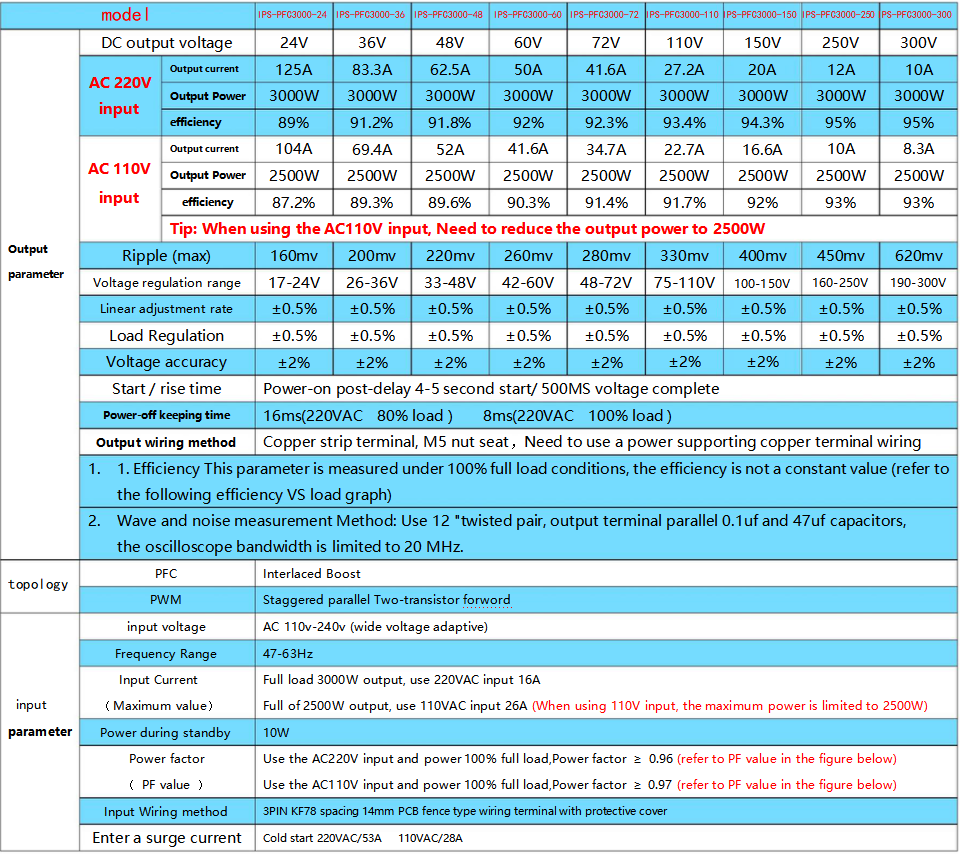

MODEL：IPS-PFC3000-72 72VDC 41.66A 3000W Switching power supply SPECIFICATION： ① AC input: single phase 110 / 220V ± 15% 50 / 60Hz ②　DC output: 0 ~72VDC,41.66A ③　Max power: 3000W ④　Machine size: L294*W185*H65(MM) ⑤　NW: 3.7KG, GW:5KG ⑥　Adjustment mode: potentiometer adjustment ⑦ PFC power factor correction function ⑧　Package: Pearl cotton and carton double protection Wechat ID：idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephpone number:+86-20-89282095

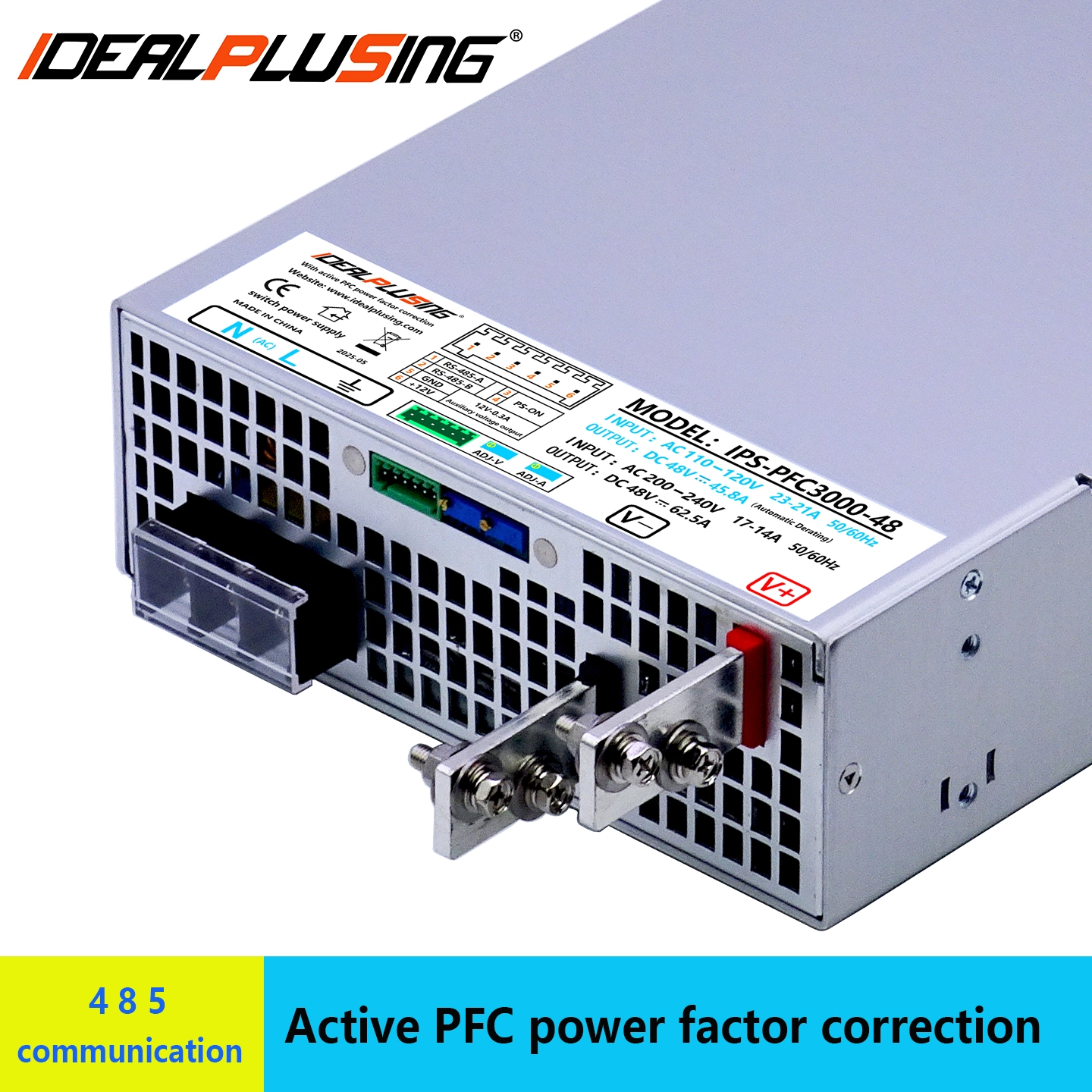

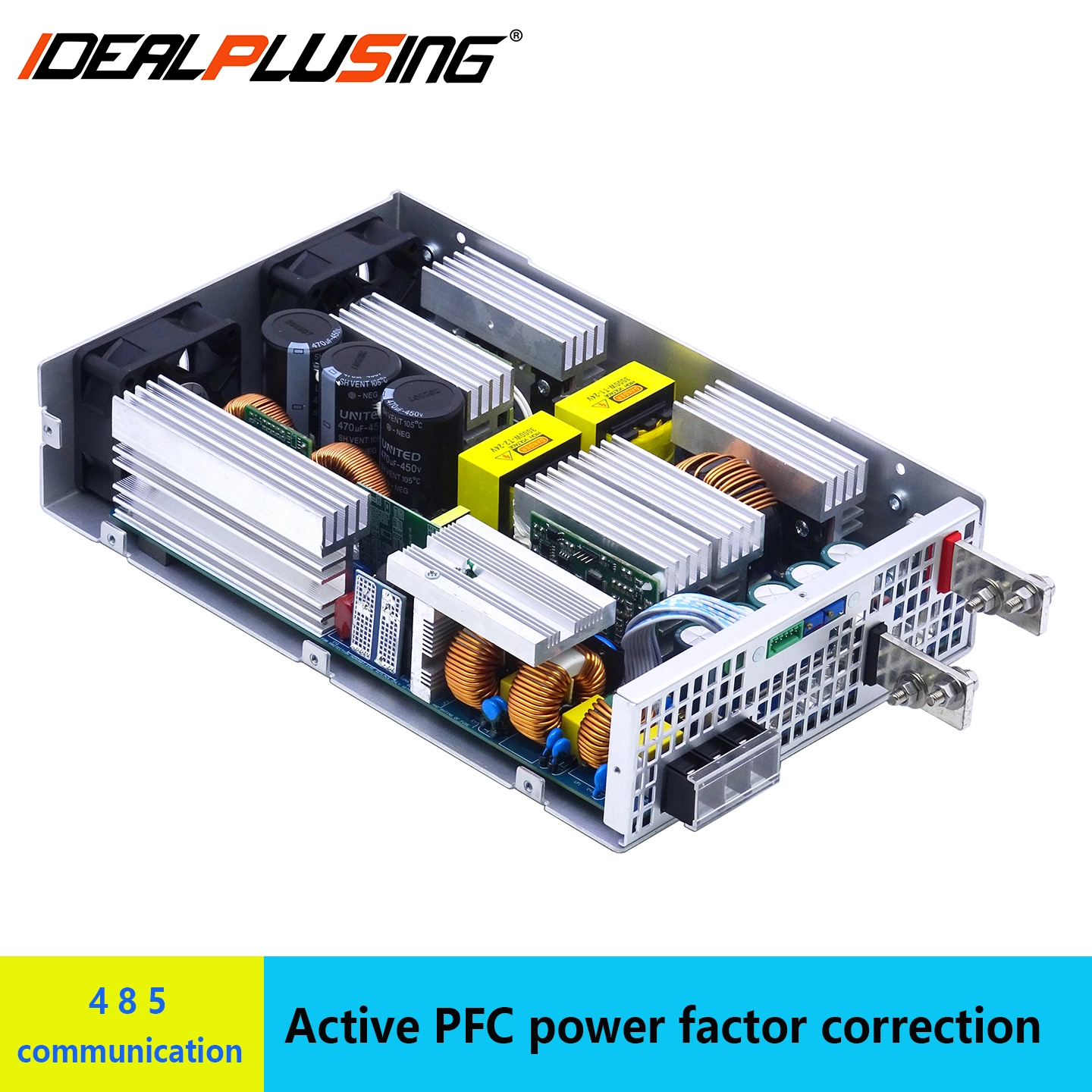

3000W (with active PFC) switching power supply
