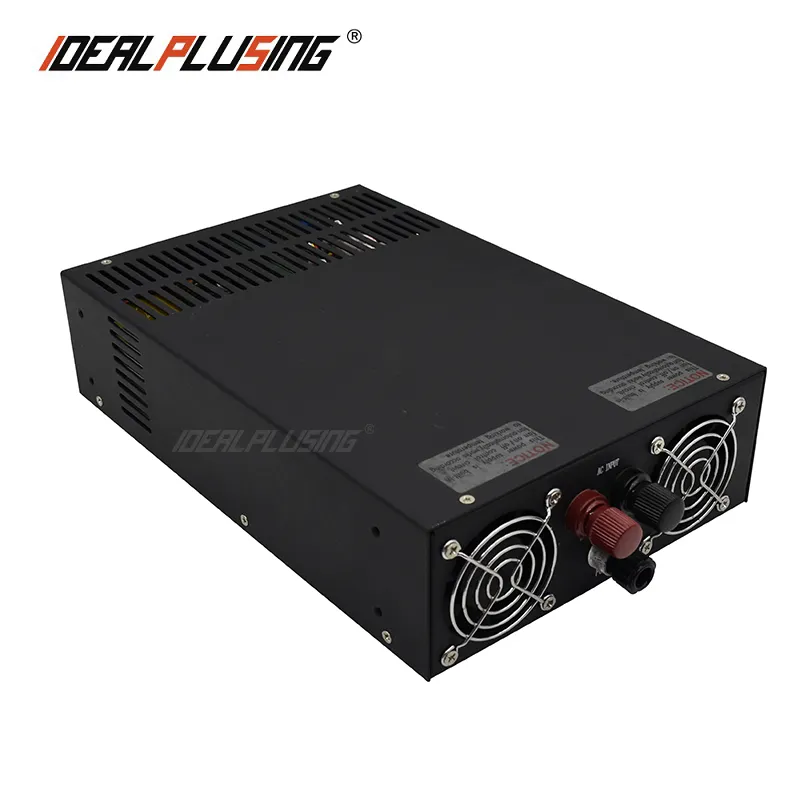

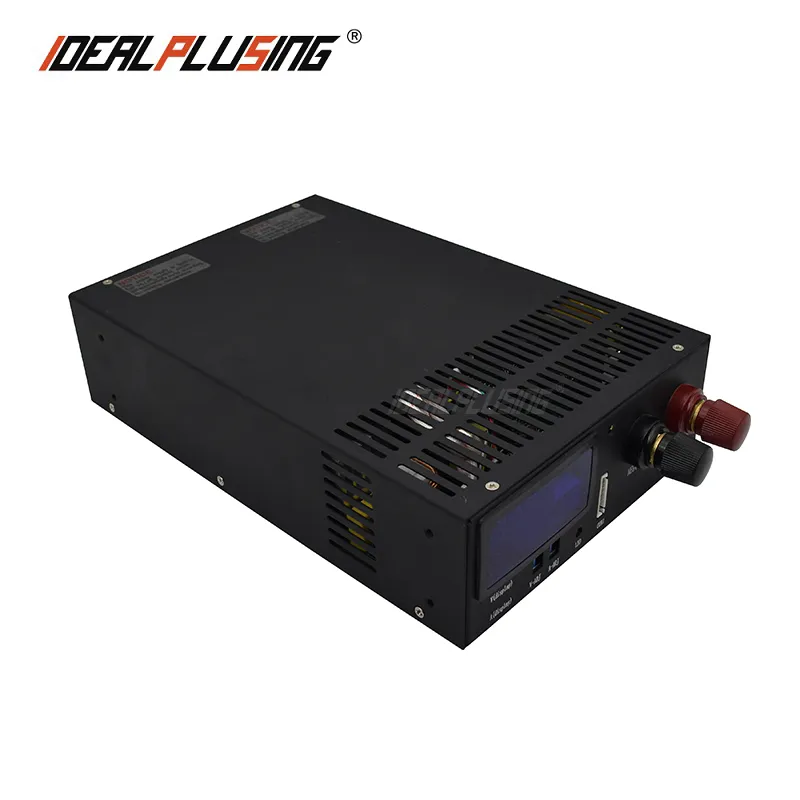

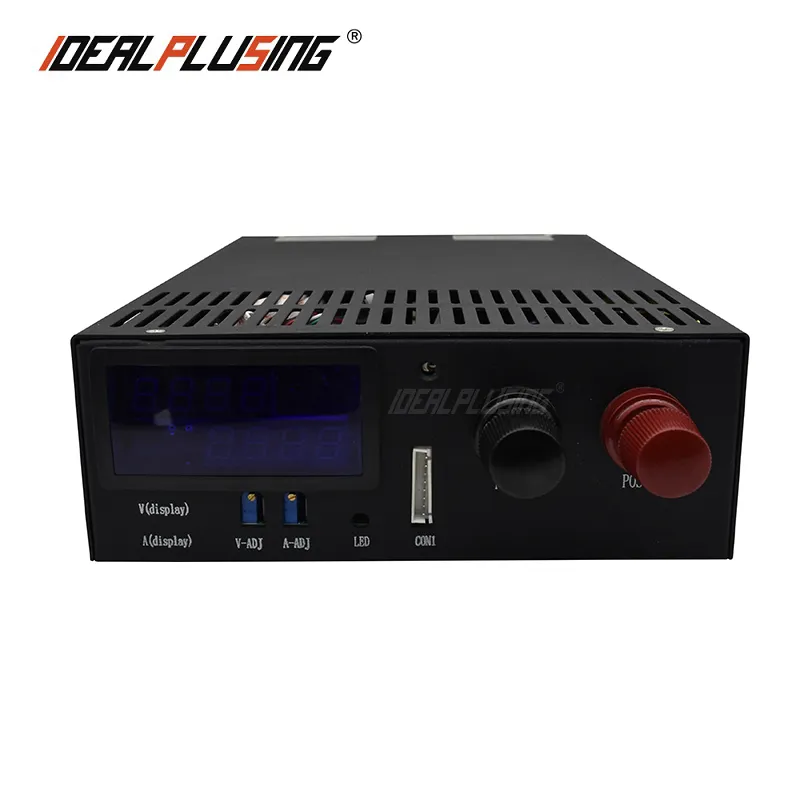

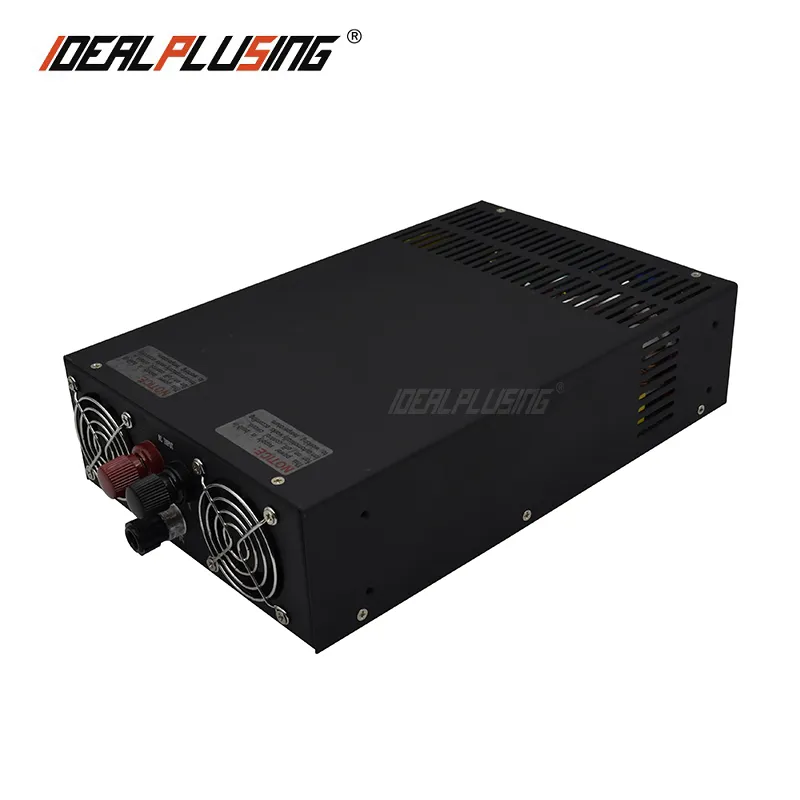

IPS-SPT2500-36 IDEALPLUSING brand new ac 110v 220v 0~24v/0~36v/0~48v /0~60v power system adjustable voltage power supply with digital LED display
Model: IPS-SPT2500-36 36V 69.4A 2500W switching power supply ① AC input: Single-phase 110/220V±15% 50/60hz ② DC output: 0~36VDC, 0~69.4A ③ Power: 2500W ④ Dimension: 285*185*70(MM) ⑤ Net weight: 3.9KG, Gross weight: 4.5KG ⑥ Support customization Wechat ID:idealplus_power Wechat Number/Whatsapp ID:+86 159 8913 2799 Email:power@idealplusing.com Office telephone number:+86-20-89282095

IDEALPLUSING brand new ac 110v 220v 0~24v/0~36v/0~48v /0~60v  power system adjustable voltage power supply with digital LED display

Model

IPS-SPT12-208

IPS-SPT24-104

IPS-SPT36-69

IPS-SPT48-52

IPS-SPT50-50

IPS-SPT100-25

IPS-SPT250-10

Item

Technical indicators

Output

DC voltage

12VDC

24VDC

36VDC

48VDC

50VDC

110VDC

250VDC

Rated current

0~208A

0~104A

0~69A

0~52A

0-50A

0~25A

0~10A

Rated power

2500W

Ripple and noise

<150mV

<150mV

<240mV

<240mV

<240mV

<240mV

<240mV

Voltage accuracy

±1%

Output voltage regulation range

0~12DC

0~24VDC

0~36VDC

0~48VDC

0~50VDC

0~110VDC

0~250VDC

Load adjustment rate

0.3%

Linear adjustment rate

0.5%

Input

Voltage range

180-264VAC 340-440VAC;254VDC~370VDC

Efficiency (typical)

>85%

Working current

220VAC;21A

Impulse current

60A 230VAC

Start, rise, hold time

2000ms、50ms、20ms;230VAC

Protect

Over temperature protection

105% ~ 135% type; Constant current output + V0 drop undervoltage point cut-off output reset; Power on again

Over temperature

RTH3;The fan operates normally, ≥ N90°C, and the output is closed

Environment

Operating temperature, humidity

-10°C~+50°C;20%-90RH

Storage temperature, humidity

-20°C~+85°C;10%~95RH

Safety regulations

Withstand voltage

Input-output: 1.5kVac input housing: 1.5kVac output housing: 05kvac for 1 minute

Leakage current

Input-output  1.5KVAC Time< 6mA

Leakage current

Input-output  220VAC Time<1.5mA

Isolation resistance

Input-output, input-housing, output-housing,500VDC/100MΩ

Other

Size

285*185*70(MM)

NW/GW

3.9KG/4.5KG
