I. INTRODUCTION
1 | This series of high voltage power supplies is specially designed for Electrostatic spinning equipment, electrostatic flocking, electrostatic spraying, electrostatic sorter, melt blown cloth to increase filtering efficiency, melt blown cloth to add static electricity, super capacitor charging, etc； |

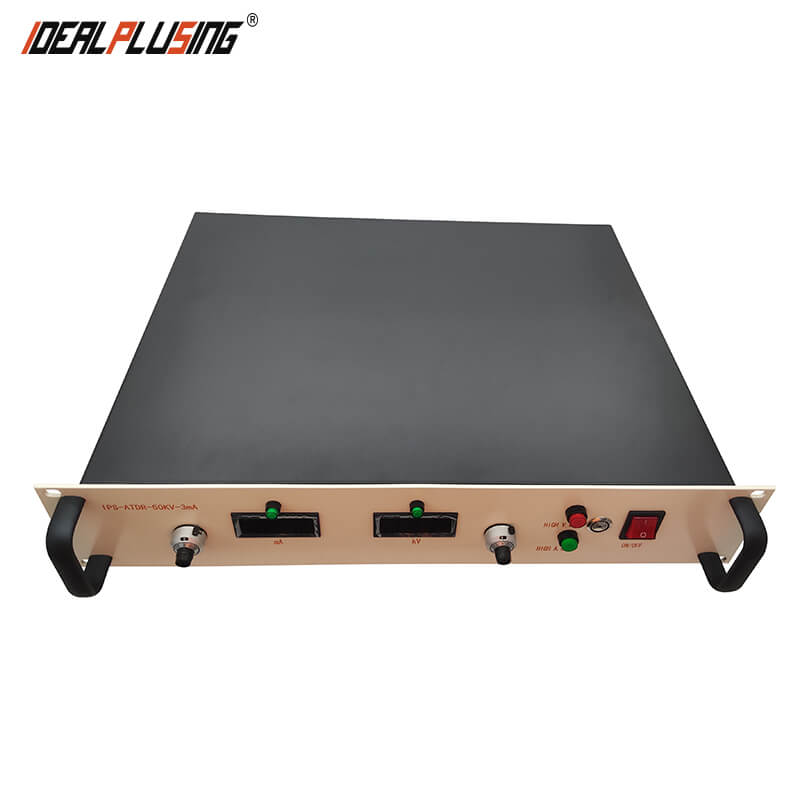

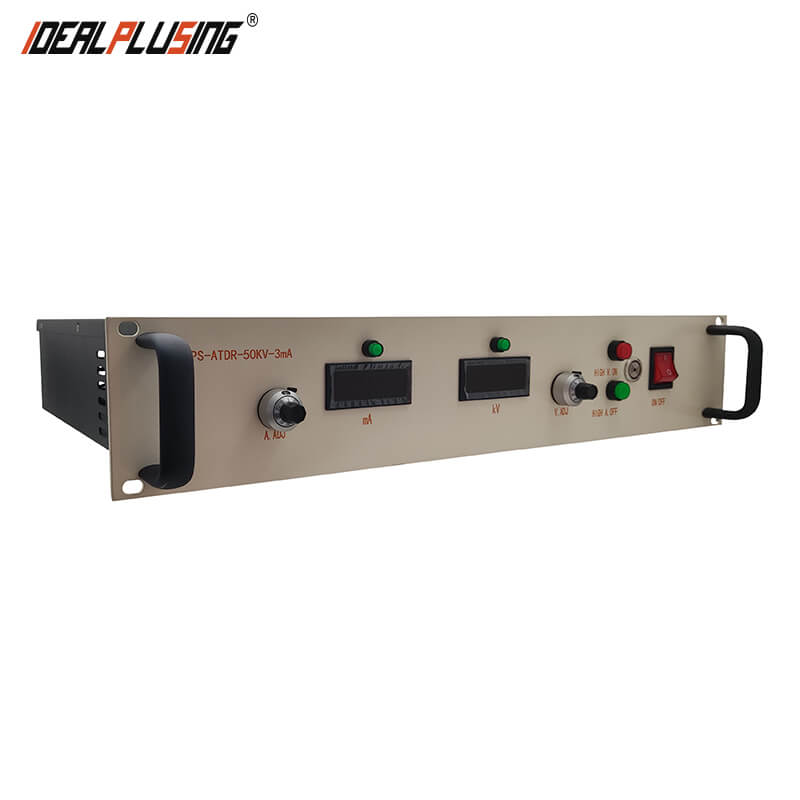

2 | Its output voltage is adjustable, and the power supply has a voltage and current LCD display instrument on the front panel, which can realize the linear and smooth rise of high voltage output. |
3 | The series power supply can also be external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with over-voltage and short circuit protection, safety interlock and other functions. |
4 | The voltage regulating potentiometer is a 10-turn 50K imported potentiometer and knob with high precision and long life. |
II. PRODUCT FEATURES
1 | Closed-loop control, high precision, digital voltage and current indication |
2 | Electrostatic spinning, electrostatic flocking |
3 | Capillary electrophoresis, electrostatic spraying, electrostatic dust removal |
4 | Scientific experiment |
5 | Optiona function: Output short-circuit stop function |
III. SPECIFICATION
Brand | IDEAPLUSING |
Model | IPS-ATDR1KV-10mA |
INPUT | Single phase 220VAC±10% 50/60HZ |
OUTPUT voltage | 1KV adjustable |
OUTPUT current | 10mA |
OUTPUT capacity | 10W Max |
Voltage Control | Power supply panel: The output voltage can be set between 0V and the maximum voltage by the potentiometer of the power supply. |
External remote control: External control signal (0~10V) can adjust the output from 0V to between the maximum output current. | |
Current Control | Output current can be freely set by external multi-turn potentiometer of power supply |
Voltage Adjustment Rate | Relative load: 0.01% (no load to rated load) |
Relative input: ±0.01% (±10% change in input voltage) | |
Current Adjustment Rate | Relative load: 0.01% (no load to rated load) |
Relative input: ±0.01% (±10% change in input voltage) | |
Ripple voltage | Ripple voltage peak-to-peak of 0.05% of the maximum output voltage subject to the rated output voltage (smaller ripple optional)） |
Ambient temperature | -30 to +50°C during operation; -20°C to +80°C during storage. |
Temperature coefficient | 0.02% per degree Celsius. |
Stability | Less than 0.01% every 8 hours after half an hour of power on (Higher stability is optional) |
Voltage & current indication | 0 to +10V, 1% accuracy at rated output conditions |
Remote control & indication | Remote control of output voltage with external potentiometer and +10V (optional) voltage reference inside the power supply DB15 contains voltage and current indication signals from 0 to +10V (optional) and can be externally connected to various digital or pointer meters |
Dimension | 420L*483W*88H(MM) |
NW/GW | 11KG/14KG |

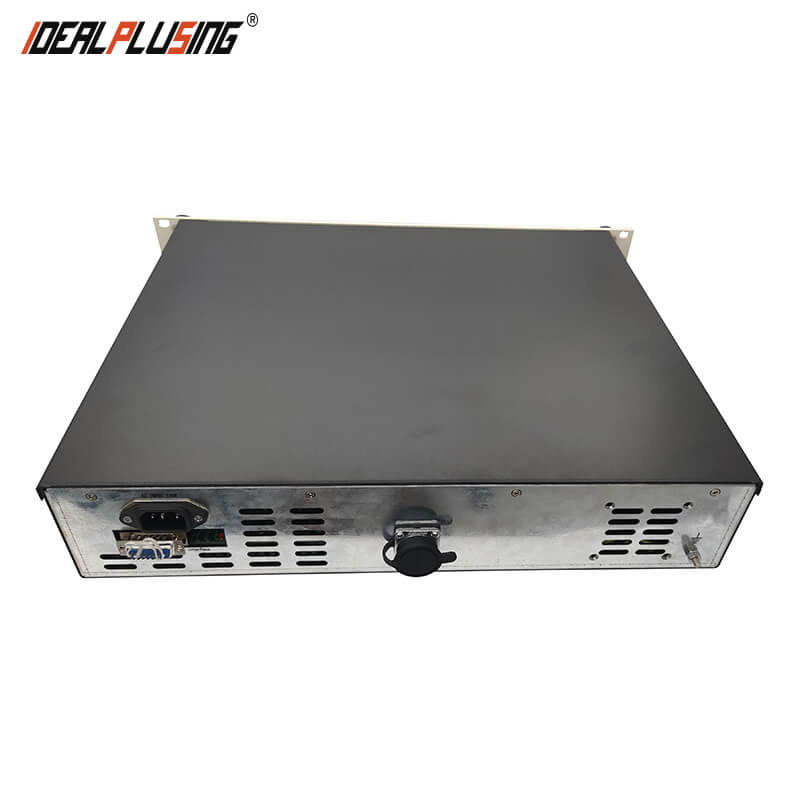

Connectors & Accessories | Recessed teflon insulated conduit, φ20 metal connector, high voltage cable total length 1 m. DB15 interface contains control and display signals |
Customize | Support |
