AC power supply refers to a power supply that outputs AC power, while DC power supply refers to a power supply that outputs DC power. In some cases, we may need to convert AC power to DC power to meet specific application requirements. But sometimes, we may encounter a problem that the AC power supply cannot output DC power. In this case, we need some solutions to solve this problem.
Check the power supply itself
If the AC power supply cannot output DC power, the reason may be that there is a fault in the power supply itself. Therefore, first you need to check whether the AC power supply itself is working properly. You can use an oscilloscope to check whether the AC output is normal. If the AC output is not normal, you may need to check the internal circuit of the power supply, including the rectifier circuit and filter circuit at the input end of the power supply. If a fault is found, you need to repair or replace the power supply.
Add a filter
In some cases, even if the AC power supply is working properly, it cannot output DC power. This may be because the DC voltage cannot pass through the output end of the power supply. In this case, we can try to solve this problem by adding an appropriate filter. The filter can help filter out the AC signal and only retain the DC signal. Common filters include capacitor filters and inductor filters. Capacitor filters are suitable for low-power applications, while inductor filters are suitable for high-power applications. We can choose the appropriate filter to solve the problem according to the specific application requirements.
Add a voltage stabilization circuit
There is also a situation where the AC power supply can output normal DC power, but the stability of the DC power is poor. In this case, we can solve this problem by adding a voltage stabilization circuit. The voltage stabilization circuit can help convert unstable DC power into stable DC power. Common voltage regulator circuits include linear voltage regulator circuits and switching voltage regulator circuits. Linear voltage regulator circuits are suitable for applications with high stability requirements, while switching voltage regulator circuits are suitable for applications with high power requirements. We can choose a suitable voltage regulator circuit to solve the problem according to the specific application requirements.
Use DC power module
If the AC power supply cannot output DC power, we can also consider using a DC power module to solve the problem. A DC power module is a device specifically used to convert AC power into DC power. It usually includes a rectifier circuit, a filter circuit, and a voltage regulator circuit. We can connect the DC power module to the output end of the AC power supply to obtain stable DC power.
When solving the problem of no DC output of the AC power supply, we need to consider a variety of factors, including the working state of the power supply, the DC voltage stability requirements at the output end of the power supply, and the load requirements at the output end of the power supply. By choosing a suitable solution, we can effectively solve the problem of no DC output of the AC power supply and meet specific application requirements.
In short, when the AC power supply has no DC output, we can solve this problem by checking whether the power supply itself is working properly, adding filters, using voltage stabilization circuits or DC power modules, etc. With the right solution, we can effectively convert AC power to DC power to meet specific application requirements.
IDEALPLUISNG Power Expert：

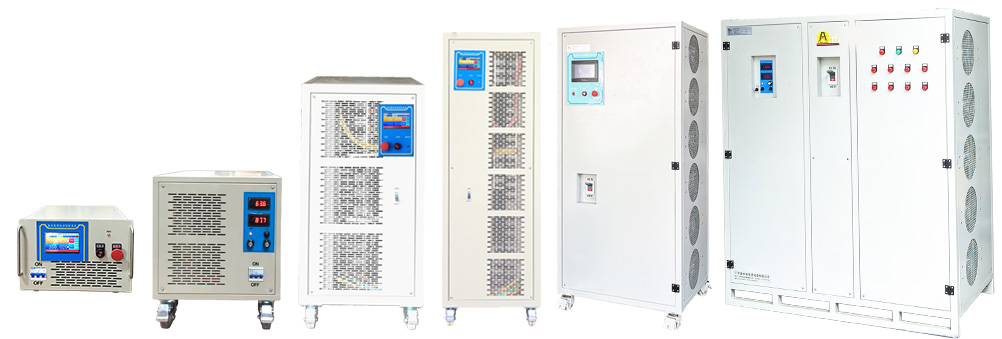

We focus on the research and development, sales and services in the fields of DC-DC power modules, AC-DC rectifier modules, DC-AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, rectifier systems, etc., providing personalized, efficient, reliable and cost-effective power solutions for all walks of life.
