In industrial production and precision equipment applications, although the high-frequency switching characteristics of frequency conversion power supply can achieve efficient speed regulation and voltage adjustment, they are prone to generating input and output interference. Such interference not only causes unstable operation of the frequency conversion power supply itself but also may affect the normal work of peripheral equipment, and even lead to data transmission errors or hardware failures. Mastering scientific anti-interference methods is crucial to ensuring the stable performance of frequency conversion power supply.
Solutions for Suppressing Input Interference in Variable Frequency Power Supplies
Input interference in variable frequency power supplies mainly comes from power grid harmonics, surge voltages, and external electromagnetic radiation. Solutions should address both source blocking and filtering.
1.Install a dedicated EMI filter, preferably an LC low-pass structure containing a common-mode choke, installed near the variable frequency power supply input terminal, to effectively attenuate high-frequency interference signals from 10kHz to 30MHz.
2.Connect an AC reactor in series to suppress current transients and improve the power factor on the input side of the variable frequency power supply, especially suitable for scenarios with severe power grid pollution.
3.Use an isolation transformer to block common-mode interference coupling through the electrostatic shielding layer between the primary and secondary windings, reducing the impact of power grid noise on the internal circuitry of the variable frequency power supply.
Targeted Solutions for Output Interference in Variable Frequency Power Supplies
Output interference from variable frequency power supplies often manifests as excessive dv/dt, common-mode current, and radiated noise, directly affecting the lifespan of loads such as motors.
1.Configure an output reactor or dv/dt filter to weaken high-order harmonics in the output current, reduce the peak voltage at the motor terminals, prevent insulation damage, and reduce electromagnetic radiation.
2.Use shielded power cables to connect the variable frequency power supply to the load. The shielding layer should be reliably grounded at one end, with a grounding resistance of less than 4Ω, to significantly suppress radiated interference and common-mode current.
3.Optimize the control strategy of the variable frequency power supply, using soft switching technology or adjusting PWM modulation parameters to slow down the switching speed and reduce di/dt and dv/dt, balancing interference suppression and operating efficiency.
Auxiliary Anti-interference: Wiring and Grounding Optimization Details
Detailed handling is crucial for the anti-interference effect of variable frequency power supplies. Reasonable wiring and grounding can cut off interference propagation paths. The input and output cables of the variable frequency power supply should be laid separately from the control cables, with a parallel spacing of at least 30 cm, and crossing at a 90° angle to avoid signal coupling.
1.An independent grounding system should be established. The inverter body, filter shielding layer, and load grounding terminal should be connected to the same grounding busbar. The grounding wire should be short and straight, with a wire diameter no less than half of the power phase wire.

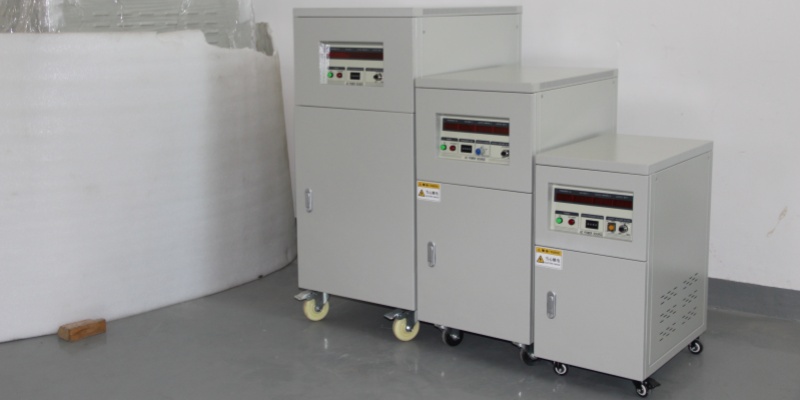

2.Variable frequency power supply brands like IDEALPLUSING, which prioritize electromagnetic compatibility design, have already mitigated some interference risks through careful hardware selection. Combining this with standardized installation procedures can further enhance stability.
3.The anti-interference design of the variable frequency power supply must be implemented throughout the entire process of selection, installation, and commissioning. Only through a three-pronged approach of "suppressing interference sources, cutting off propagation paths, and enhancing anti-interference capabilities" can stable operation in complex environments be ensured. The rational application of filtering, shielding, and wiring measures can both leverage the energy-saving advantages of the variable frequency power supply and reduce its impact on surrounding systems.
