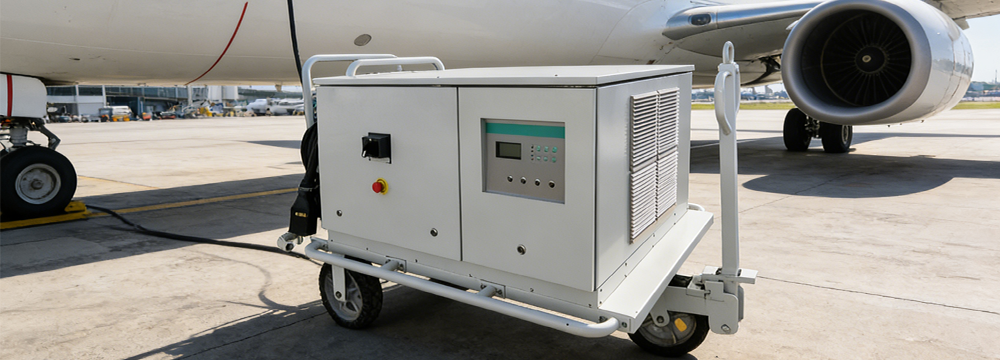

Across civil aviation airports, general aviation bases, and aircraft maintenance scenarios, the Aircraft Ground Power Unit (GPU) serves as essential equipment to guarantee the safe operation of aircraft.Prior to gate docking, maintenance, debugging, or engine startup, aircraft depend on a stable, clean, and reliable external power supply. This power supports the regular operation of cockpit avionics, cabin lighting, environmental control systems, navigation and communication devices, as well as aircraft starting systems. Grid power cannot directly meet the stringent power standards of aircraft. The Aviation Ground Power Unit (GPU), through professional energy conversion, precise regulation, and multiple protection mechanisms, becomes an indispensable "energy heart" for aircraft ground operations, providing all-weather, high-quality power supply for aircraft start-up, shutdown, and avionics.
I. Precise Output Adaptability to Aircraft Models, Meeting Aircraft Start-up Power Supply Requirements
Different aircraft models have strict and uniform standards for the voltage, frequency, and power of ground power supplies, commonly 115V/400Hz AC, with some models also supporting 28V DC power. The core function of the Aviation Ground Power Unit (GPU) is to precisely output electrical energy that meets aviation standards, providing strong support for aircraft start-up. The GPU employs an AC-DC-AC high-frequency conversion structure, converting airport mains power into a 400Hz intermediate-frequency power supply suitable for aircraft. It boasts high output voltage accuracy and frequency stability, enabling rapid response to the high current demands of aircraft startup. Unlike ordinary industrial power supplies, the GPU possesses exceptional instantaneous load-carrying capacity, smoothly driving the aircraft's starter motor and preventing startup failures or equipment damage due to insufficient power supply or voltage drops. It also supports multi-aircraft compatibility, stably matching power supply parameters for commercial airliners, cargo planes, and general aviation aircraft, ensuring safe and smooth aircraft start-up and shutdown processes.
II. Enhancing Power Quality and Protecting Avionics: Modern aircraft avionics systems are highly
Integrated and sensitive, extremely susceptible to harmonics, voltage fluctuations, and transient impacts. Any power supply anomalies can lead to instrument malfunctions, data errors, and even hardware damage. The aviation ground power supply GPU strengthens power quality from a design perspective, providing a "clean and pollution-free" power environment for avionics.
The GPU input is equipped with EMI filtering and PFC power factor correction circuitry to effectively filter out noise and harmonic interference from the power grid. The output employs a high-precision filtering scheme, resulting in an output waveform close to a perfect sine wave, with total harmonic distortion (THD) far below industry standards. During voltage fluctuations and sudden load changes, the GPU can achieve millisecond-level rapid adjustment to maintain output stability, preventing voltage surges from interfering with or damaging flight control computers, navigation equipment, communication systems, cockpit displays, etc., ensuring high-precision and high-reliability operation of the avionics system from the power supply head.
III. Stable Response to Dynamic Loads, Adapting to the Varied Needs of Onboard Equipment
When the aircraft is on the ground, avionics systems, air conditioning, lighting, fuel pumps, galley equipment, etc., may be put into use simultaneously or in batches, resulting in frequent and significant load changes. The aviation ground power supply GPU possesses excellent dynamic response capabilities, quickly adapting to load changes and maintaining uninterrupted and stable power supply at all times.
Internally, it employs closed-loop real-time control technology, allowing the power supply to rapidly adjust output power and maintain voltage and frequency stability when the load onboard equipment increases or decreases. It possesses strong overload and shock resistance capabilities, capable of withstanding peak loads for short periods without tripping, shutting down, or experiencing output drops. This ensures uninterrupted operation, no restarts, and no data loss in the avionics system, meeting the continuous power supply requirements throughout the entire process of aircraft ground inspection, debugging, and standby.
IV. Multiple Safety Protection Mechanisms, Building a Solid Safety Line for Aircraft Power Supply Aviation
Safety has zero tolerance for risks. The aviation ground power supply GPU is equipped with a comprehensive protection system to fully safeguard the safety of the aircraft, avionics equipment, and airport personnel. The GPU features overvoltage, undervoltage, overcurrent, overload, short circuit, overheat, phase loss, and reverse current protection functions, and monitors the power supply status in real time.
In the event of an anomaly, the power supply can automatically cut off the output or perform current limiting protection within a very short time, preventing fault current and abnormal voltage from entering the aircraft circuitry and preventing safety accidents such as avionics equipment burnout and short circuits. It also features insulation monitoring and fault alarm functions, displaying the operating status in real time, facilitating rapid troubleshooting by maintenance personnel, and providing a reliable safety barrier for aircraft ground operations.
Aircraft Ground Power Units (IGPUs) serve as a stable power source for aircraft ground operations. They ensure reliable power supply for aircraft start-up, shutdown, and avionics by precisely adapting to aircraft power standards, purifying power quality, rapidly responding to dynamic loads, and providing comprehensive safety protection.

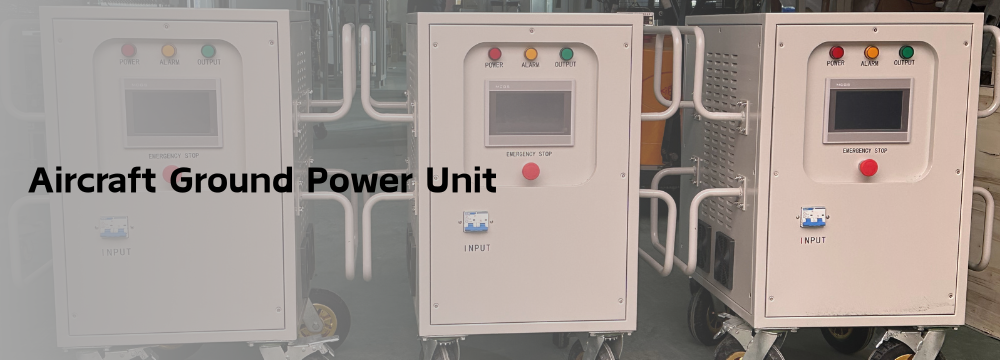

As the civil aviation industry evolves towards higher efficiency, intelligence, and safety, the stability, accuracy, and reliability of aviation ground power GPUs will continue to improve. IDEALPLUSING, a professional brand specializing in power supplies, offers Aircraft Ground Power Units in various specifications, including 400Hz intermediate frequency AC and 28V/270V DC. Equipped with high-precision output, low harmonic distortion, strong load capacity and comprehensive protection functions, these units fully satisfy the power supply requirements of civil aviation, general aviation, maintenance bases and airport aprons.
