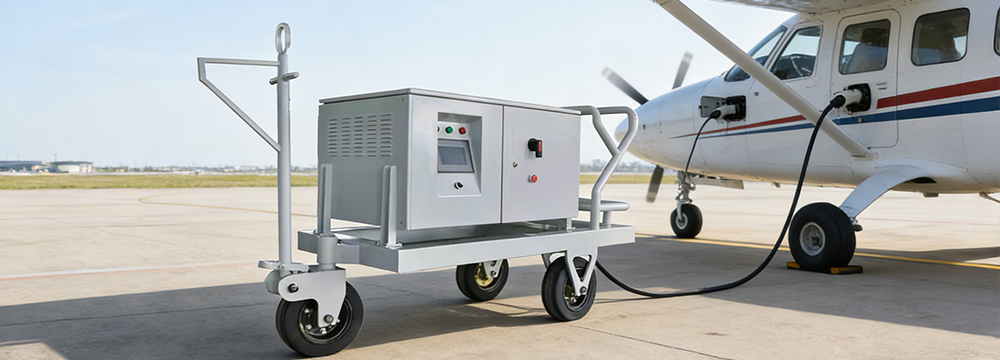

In civil aviation airports, general aviation bases, military aircraft support, and aircraft maintenance scenarios, aircraft types exhibit diverse characteristics—from civil airliners and cargo planes to military fighters and general aviation helicopters. Different aircraft types have significantly different avionics systems, startup requirements, and power supply standards. As the "energy hub" for aircraft ground operations, aerospace ground power GPUs (Ground Power Units) must possess strong multi-aircraft adaptability to meet the power supply needs of different aircraft and ensure efficient, safe, and smooth ground support operations. So, through what design and technology do GPUs achieve comprehensive adaptability to multiple aircraft types, becoming a universal aerospace ground support equipment?
I. Precisely Matching Multiple Power Supply Standards to Establish a Solid Foundation for Adaptability
Different aircraft types have strict industry standards for power supply parameters. The core prerequisite for GPU adaptation is accurately covering the voltage and frequency requirements of various aircraft types. According to the civil aviation standard MH/T 6019—2026, mainstream aircraft ground power units must supply 400Hz, 115/200V AC and 28V DC power. These form the core power specifications for most civil and military aircraft.
High‑quality GPUs come with a wide‑range adjustable design. They deliver stable 115V/400Hz intermediate-frequency AC power and support the widely used 28V DC standard.High‑end models also provide 270V DC power, fully meeting the electrical demands of civil aircraft , military aircraft and helicopters
With high-precision voltage and frequency regulation, these GPUs keep output accuracy within ±1%. This ensures ideal parameter matching for aircraft systems and prevents avionics damage caused by unstable or incorrect power.
II. Multi-interface and Multi-mode Design for Seamless Switching and Adaptation
Aircraft differences are not only reflected in power supply parameters but also in power interface specifications. This necessitates that the GPU possess multi-interface compatibility capabilities. GPUs typically come equipped with multiple sets of standard aviation connectors, including 6-pin NATO interfaces and 3-pin Shara interfaces, which can match the power interfaces of different aircraft models, eliminating the need for additional adapters and enabling rapid power connection.
Simultaneously, the GPU supports switching between multiple operating modes such as constant voltage, constant current, and constant power, flexibly adapting to the load characteristics of different aircraft models. For example, passenger aircraft avionics systems have stable loads, employing constant voltage mode to ensure stable power supply; military aircraft require instantaneous high current during startup, switching to constant current mode to provide strong startup power, perfectly adapting to different operating conditions such as pulse startup and continuous power supply, balancing the dual power supply needs of startup and avionics operation.
III. Intelligent Control and Dynamic Response to Adapt to Load Fluctuation Needs
Different aircraft models have significantly different load requirements. Even for the same aircraft model operating on the ground, the operation of avionics, air conditioning, galley, and other equipment can cause load fluctuations. This requires the GPU to possess powerful dynamic response and intelligent control capabilities. The GPU integrates a microcontroller and closed-loop control circuitry, enabling real-time monitoring of load changes and millisecond-level response for voltage and current adjustments. This prevents power supply drops or tripping caused by sudden load changes. For example, when large commercial airliners are under heavy load during ground standby, the GPU can automatically increase its output power; when small general aviation aircraft are under lighter load, it automatically adjusts its power output, ensuring stable power supply while avoiding energy waste. Furthermore, some GPUs are equipped with intelligent recognition capabilities, automatically detecting the aircraft's power requirements and switching to the corresponding parameters with a single click, reducing operational complexity and improving adaptation efficiency.
IV. Modular and Standardized Design, Balancing Adaptability and Scalability
To address the evolving needs of different aircraft models, the GPU employs a modular design. Core components can be flexibly replaced and upgraded without requiring a complete equipment replacement, adapting to the power supply requirements of new aircraft models. For instance, when the power supply specifications of a new aircraft model change, rapid adaptation can be achieved by upgrading the power module and expanding interfaces, reducing the investment cost of airport support equipment.
Here’s a fully rewritten version with varied structure, inverted sentences, natural professional tone, and simpler clauses:
Not only does the GPU comply strictly with military and civil aviation standards, but also its interfaces, electrical parameters and protection functions fully meet industry specifications.It supports aircraft from various manufacturers worldwide, achieving universal adaptation across different models and application scenarios.Whether used for power supply at airport jet bridges, engine startup on the apron, or field support for military aircraft, it maintains stable and reliable performance.
V. High Environmental Adaptability for Full‑Scenario Multi‑Aircraft Compatibility
Complex and demanding are the working conditions for aerospace ground support equipment.High or low temperatures, high altitude, and high humidity may all affect the performance of a GPU.Civil airliners mainly operate within airports, while military aircraft often serve in high‑altitude field environments.Only equipment with outstanding environmental adaptability can meet such diverse support requirements.
Designed with corrosion resistance, dustproofing and low‑temperature tolerance, high‑performance GPUs can operate steadily in temperatures ranging from −20 °C to 55 °C.Certain advanced models can even work reliably at altitudes above 2500 meters.They also possess excellent electromagnetic interference resistance, preventing interference with aircraft avionics systems and ensuring stable and reliable power supply for various aircraft models in diverse scenarios.
The core reason why aviation ground power GPUs can adapt to the power supply needs of multiple aircraft models lies in their precise parameter coverage, multi-interface and multi-mode design, intelligent dynamic control, modular expansion, and strong environmental adaptability. Through standardized and universal design, they break down power supply barriers between different aircraft models, achieving "one machine for multiple uses," reducing equipment investment for airports and support units while improving ground support efficiency.
With the development of the aviation industry and the increasing variety of aircraft models, the requirements for GPU adaptability are also continuously increasing. In the future, GPUs with intelligence, modularity, and universality will further optimize adaptation technologies, covering more aircraft models and scenarios, providing more efficient and reliable power support for aviation ground support, and contributing to the safe and efficient development of the aviation industry.
