In industrial power supply and equipment matching scenarios, the power of a single switching power supply is often insufficient to meet the power supply needs of high-power equipment. Parallel use of switching power supply outputs becomes a common method to increase power supply capacity and ensure power redundancy. Parallel connection of switching power supplies is not simply a direct connection of the output terminals; it requires adherence to the core principles of matching and current sharing. Through standardized operation and reasonable configuration, multiple switching power supplies can work collaboratively. IDEALPLUSING switching power supplies, due to their stable output parameters and good current sharing adaptability, have become a popular choice in many parallel power supply scenarios.
Properly Match Switching Power Supply Parameters Before Parallel Connection
The primary prerequisite for parallel use of switching power supplies is to ensure unified parameter matching of multiple devices. This is fundamental to avoiding circulating currents between power supplies and preventing component burnout. It is essential to ensure that the switching power supplies involved in parallel connection are of the same model and specifications, with identical output voltage, rated current, and power rating. Simultaneously, it must be confirmed that the output characteristics of the switching power supplies are in constant voltage mode; constant current mode switching power supplies are not suitable for direct parallel connection. In addition, the output voltage fine-tuning knob of each switching power supply should be checked and adjusted to the same value to ensure consistent initial output across all power supplies, preparing for subsequent parallel current sharing.
Using Appropriate Current Sharing Methods to Ensure Current Distribution
The core of paralleling multiple switching power supplies lies in achieving current sharing, distributing the output current of each power supply evenly to prevent overload of any single device. Common methods include passive and active current sharing. Passive current sharing involves connecting a current-sharing resistor in series at the output of each power supply, using the resistor's current-limiting effect to balance the current of each power supply. This method is simple to operate and suitable for paralleling low-power switching power supplies. Active current sharing, on the other hand, interconnects the current-sharing pins of the power supplies, using internal current-sharing circuitry to achieve precise current distribution. This method is suitable for high-power, high-requirement parallel power supply needs and significantly improves the stability of parallel power supply.

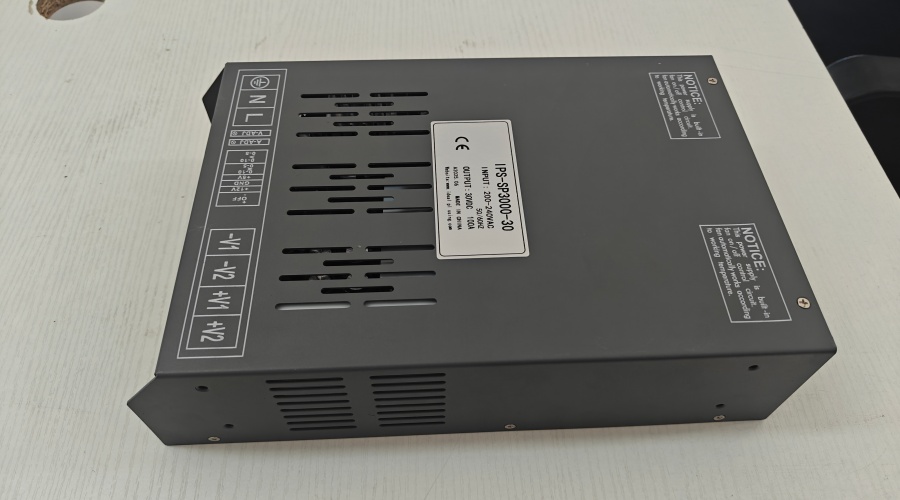

Standardizing Parallel Wiring Operations for Switching Power Supplies
Parallel wiring of switching power supplies requires attention to the standardization and consistency of the wiring to minimize the impact of line impedance on power supply. When wiring, use wires of the same specification to connect the positive terminals of each switching power supply to each other and the negative terminals to each other. The wire length and diameter should be consistent to avoid uneven current distribution due to different line impedances. At the same time, ensure good contact at the connection points, and perform proper crimping and insulation treatment to prevent loose connections and short circuits. A fuse and voltmeter can be installed at the output terminal of the switching power supply to monitor the power supply status in real time and troubleshoot line faults promptly.
After completing the hardware connection of the switching power supplies, no-load and load testing are required to verify the stability of the parallel power supply. First, perform a no-load test. After connecting the power, check if the output voltage of each switching power supply is consistent. If there are no abnormalities, then connect the load, gradually increasing the load power and observing the output current of each switching power supply to confirm that the current is evenly distributed and that no single unit is overloaded. Simultaneously, monitor the operating temperature of the switching power supplies. If localized overheating occurs, stop the system immediately and check the current sharing effect and wiring connections. Only after successful testing can the parallel system of switching power supplies be put into formal use.
Parallel operation of switching power supplies is an effective way to increase power output. The key lies in controlling four aspects: parameter matching, current sharing control, wiring specifications, and post-commissioning. Only by following scientific operating methods can multiple switching power supplies work stably and collaboratively, meeting high-power demand while improving the reliability and redundancy of the power supply system, allowing switching power supplies to play a more flexible power supply role in various industrial power supply scenarios.
