1. A Quiet Restructuring of Airport Energy Architecture
Airport energy systems were historically built around diesel-driven support equipment. Aircraft Ground Power Units (GPU) were treated as auxiliary tools for temporary power supply. However, with ongoing airport electrification, GPUs are increasingly becoming part of a unified electrical infrastructure rather than standalone devices.
Modern airports are integrating multiple subsystems—ground power units, baggage systems, electric tow tractors, and gate utilities—into a coordinated electrical framework.
In this structure, the GPU is no longer just a machine; it becomes a load node within the airport energy network.
2. From Mobile Equipment to Fixed Infrastructure Nodes

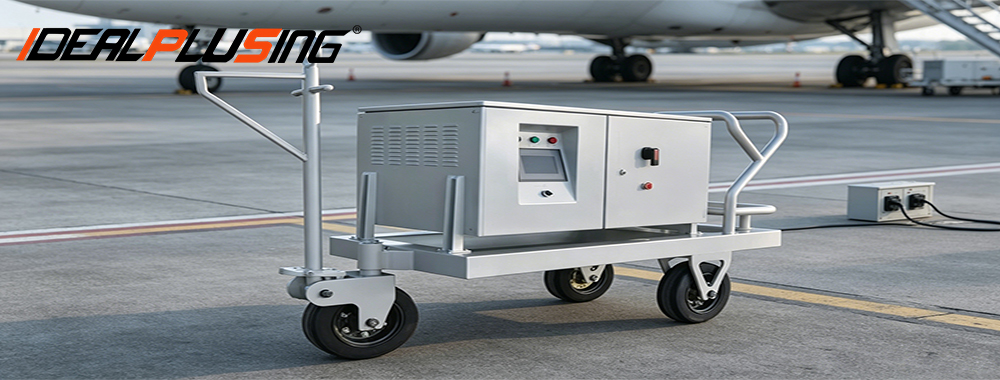

Traditional ground power units were designed as mobile diesel or hybrid systems, allowing flexible movement across the apron. While effective, these systems often suffer from higher emissions, noise, and maintenance complexity.
A new configuration is emerging: fixed ground power systems installed at gate positions or jet bridges. These systems convert airport grid power into standardized aviation outputs such as 115V/400Hz AC or 28VDC.
As a result, aircraft ground power is gradually shifting from mobile equipment to permanent infrastructure.
3. Parallel Development of 400Hz and 28VDC Systems
Two primary output standards continue to dominate aircraft ground power applications:
400Hz AC systems for commercial aircraft onboard power supply
28VDC systems for startup, testing, and light aircraft operations
Within electrified airports, their roles are evolving. 400Hz systems are moving toward fixed high-stability converters, while 28VDC systems are increasingly integrated with maintenance platforms and monitoring systems.
Hybrid AC/DC GPU configurations are also becoming more common, enabling broader aircraft compatibility.
Basic Electrical Parameter Comparison | ||
Parameter Item | 400Hz Aviation AC Power Supply | 28V DC Power Supply |
Output Type | Three-phase AC | DC |
Standard Voltage | 115/200 VAC | 28 VDC |
Frequency | 400 Hz ±0.1% | N/A (No frequency in DC) |
Voltage Stability | ≤ ±1% | ≤ ±1% |
Power Range | 90 kVA – 240 kVA (typical) | 2 kW – 20 kW (typical) |
Load Characteristics | Suitable for high-power continuous loads | Suitable for starting / control / auxiliary loads |
Output Mode | Three-phase balanced output | Single-channel DC output |
4. Electrification Reshapes GPU Design Logic
The industry focus is shifting from pure power capacity toward system adaptability. Key considerations now include:
Compatibility with airport microgrids
Efficiency under low-load conditions
Remote monitoring capability
Integration with energy storage systems
Hybrid operation modes
In advanced airport planning, GPUs are increasingly treated as controllable energy assets rather than isolated equipment.
5. Electric Ground Power Units Enter Practical Deployment
Electric GPUs are gaining traction as airports move toward low-emission ground operations. Compared with diesel systems, they offer:
Lower emissions
Reduced noise
Night-time charging flexibility
Better indoor usability
However, challenges remain in battery management, charging infrastructure, and performance stability under extreme conditions.
In many cases, electric GPUs are deployed alongside fixed 400Hz systems, forming transitional hybrid architectures.
6. Digital Control Becomes Standard
Modern GPUs are increasingly equipped with digital monitoring and communication functions, including:
Remote diagnostics
Industrial communication protocols
Fault logging systems
Multi-unit synchronization
This transforms GPUs into network-connected energy terminals rather than isolated power devices.
Manufacturers such as IDEALPLUSING are gradually incorporating these functions into standard designs.
7. Toward a Unified Airport Energy Model
Future airport energy systems are expected to operate like microgrids. In such systems, GPUs, PCA units, electric vehicles, and charging stations are centrally coordinated.
Instead of independent operation, ground power units will respond dynamically to flight schedules and energy demand patterns.
This evolution positions GPUs as essential nodes within a broader energy ecosystem.
8. Conclusion
Airport electrification is not reducing the importance of ground power systems; instead, it is redefining their role.
From mobile diesel units to fixed 400Hz infrastructure and now toward intelligent electric systems, Aircraft Ground Power Units are evolving into integrated energy network components.
The future competition will no longer focus only on power rating, but on system intelligence, energy efficiency, and interoperability.
