Basic introduction of pure sine wave inverter
A pure sine wave inverter is a device that can convert direct current into alternating current. The output AC waveform is a pure sine wave, which is basically the same as the AC waveform of the mains power grid, and the distortion is very low. It has a variety of input voltage specifications, such as 12v, 24v, 48v, 60v, etc., which can convert these low-voltage direct currents into 220v AC to meet the power needs of various scenarios such as home, industry, and vehicle.
Customer experience

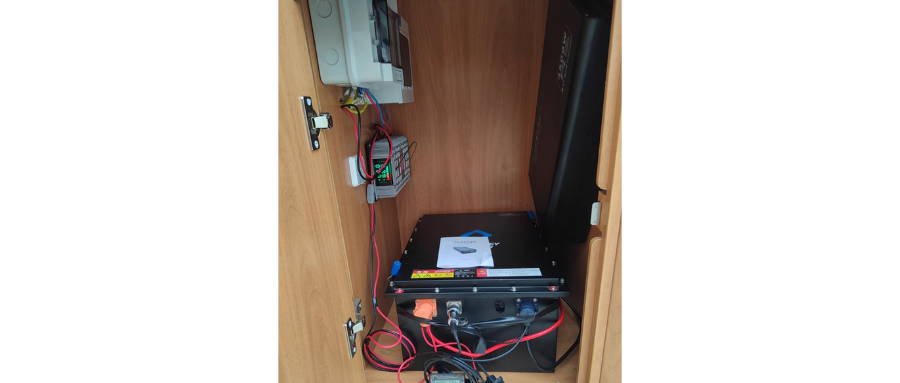

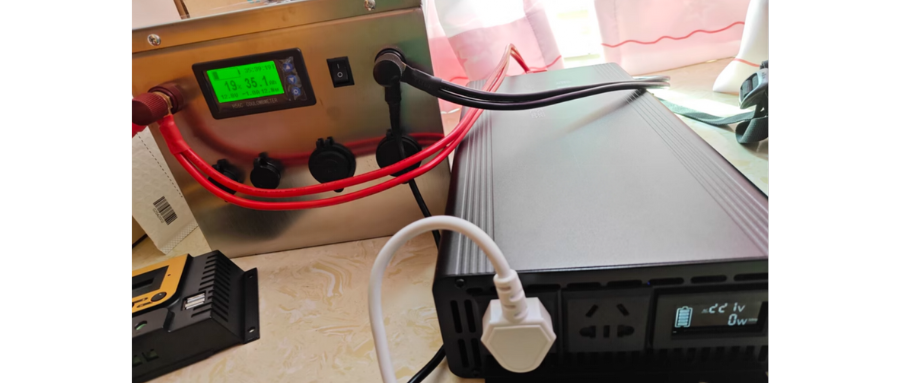

I have been using a pure sine wave inverter for a while, mainly for vehicle and outdoor camping. In vehicle use, it allows me to conveniently charge various electronic devices, such as laptops, cameras, etc., while driving, and I no longer have to worry about the problem of insufficient power or lack of fast charging of the car charger. Moreover, using a pure sine wave inverter to charge these devices feels no different from using mains power to charge at home, and the charging speed and performance of the equipment can be well guaranteed.
It plays a huge role when camping outdoors. I can connect a small refrigerator to store food and drinks to keep them fresh; I can also use an electric oven to bake delicious food to increase the fun of camping. With a pure sine wave inverter, it is like bringing the electricity at home to the outdoors, making camping life more comfortable and convenient.
However, I also encountered some problems during use. Once, when connecting a high-power electric kettle, the inverter suddenly sounded an alarm and then stopped working. After inspection, it was found that the power of the electric kettle exceeded the rated power of the inverter, causing the inverter to enter the overload protection state. Later, I checked the manual of the inverter and learned that different models of inverters have different rated powers. When using it, you must pay attention to the power of the connected electrical appliances. It cannot exceed the tolerance range of the inverter, otherwise overload protection will occur.
What is the difference between a pure sine wave inverter and a modified sine wave inverter?
The waveform output by the pure sine wave inverter is basically the same as the AC waveform of the mains power grid, with very low distortion, which can better adapt to various precision electronic equipment, such as computers, TVs, refrigerators, etc., and cause less damage to the equipment. The waveform output by the modified sine wave inverter is relatively poor, with certain distortion. For some precision equipment with high requirements for power quality, it may affect its normal operation or shorten the life of the equipment.
How to choose the power of a pure sine wave inverter that suits you?
First, you must clarify the electrical equipment you commonly use and its power, then add the power of these devices, and multiply it by an appropriate safety factor (generally recommended to be 1.2-1.5). The result is the approximate power of the required inverter. For example, if the frequently used electrical appliances include a 500W electric kettle, a 300W laptop, and a 200W electric fan, then the total power is 1000W, multiplied by the safety factor of 1.2, you need to choose an inverter with a power of 1200W or more.
What types of power supplies can be connected to a pure sine wave inverter?
Common DC power sources such as batteries and car cigarette lighters can be connected. When connecting the battery, pay attention to the correct connection of the positive and negative poles to avoid short circuit damage to the inverter and battery; when connecting the car cigarette lighter, make sure that the output voltage and current of the cigarette lighter can meet the requirements of the inverter. Generally, the maximum output power of a small car cigarette lighter is about 150W. Exceeding this power may cause the cigarette lighter fuse to blow.
Why does the inverter heat up during use?
The inverter will convert electrical energy when working, and there will be a certain amount of energy loss in this process. This lost energy will be dissipated in the form of heat. In addition, if the connected electrical appliances have a large power or are used for a long time, the inverter will also heat up more. In general, the inverter has corresponding heat dissipation design, such as cooling fans, to ensure that it operates within the normal operating temperature range.
What is the principle of the inverter's overload protection?
When the power of the electrical appliance connected to the inverter exceeds its rated power, the circuit inside the inverter will detect that the current is too large. In order to protect the inverter and the connected electrical equipment from damage, it will automatically cut off the output circuit and enter the overload protection state. At this time, you need to turn off some electrical equipment, reduce the load power, and then restart the inverter to resume normal operation.
How high is the conversion efficiency of a pure sine wave inverter?
Generally, the conversion efficiency of a pure sine wave inverter is around 85%-95%, and the conversion efficiency of inverters of different brands and models may vary. The higher the conversion efficiency, the less energy is lost during the power conversion process, and the more energy-saving and power-saving it is.
What should I pay attention to when using the inverter outdoors?
Pay attention to waterproofing, moisture-proofing, and dust-proofing to prevent the inverter from being eroded by rain, dew, etc., which will affect its performance and life. At the same time, choose a well-ventilated location to place the inverter for heat dissipation. In addition, when connecting electrical equipment, ensure that the connection is firm to avoid loose connections due to vibration and other reasons, resulting in poor contact.
How to judge the quality of the inverter?
It can be judged from the following aspects: First, check the brand and reputation. Choose an inverter with a well-known brand and good reputation, and the quality is relatively more guaranteed; second, check the parameters and performance of the product, such as rated power, conversion efficiency, waveform distortion, protection function, etc. The better the parameters, the better the performance; third, check the workmanship and material of the product. Good quality inverters are usually finely made, with excellent materials and no obvious defects in appearance.
Can the inverter be used continuously for a long time?
In general, the inverter can be used continuously for a long time, but it should be determined according to its rated power and heat dissipation conditions. If the connected load power is within the rated power range of the inverter and the heat dissipation is good, it can be used continuously for a long time. However, if the load power is large or the heat dissipation conditions are poor, long-term continuous use may cause the inverter to overheat, affect its performance and life, and may even damage the inverter.
What are the requirements for the battery of a pure sine wave inverter?
First, the battery voltage must match the input voltage of the inverter, such as 12v, 24v, 48v, etc. Secondly, the capacity of the battery should be large enough to meet the power demand and usage time of the electrical equipment. In addition, attention should be paid to the charging and maintenance of the battery to avoid overcharging and over-discharging to extend the service life of the battery.
