The IDEALPLUSING communication inverter uses advanced back-feed noise suppression technology, and does not interfere with communication equipment; and has an unattended function. The full range of communication-specific inverters supplied by our company can be equipped with AC input units according to user needs. When the mains power is normal, the mains power is stabilized and filtered to supply power to the load, which greatly meets the needs of various applications, reduces the capacity of the DC screen, and reduces the system configuration cost.
The intuitive front panel LCD display and alarm function of the communication inverter make human-computer communication more friendly; it can be connected to the computer through the optional RS232 communication port to understand the working history of the inverter power supply, automatic power on and off, parameter monitoring, unattended and extended to remote network monitoring functions, which can meet the use of advanced network systems.
The functions of the various parts of the modern communication inverter power inverter system are as follows:
1. Rectification circuit: The rectifier circuit uses rectifier switching devices, such as semiconductor diodes, thyristors (silicon controlled rectifiers) and self-shutoff switching devices, to convert AC power into DC power. In addition, the rectifier circuit should also have the function of suppressing current harmonics and adjusting the power factor.
2. Inverter circuit: The function of the inverter circuit is to convert direct current into alternating current, that is, by controlling the operating frequency and output time ratio of the inverter circuit, the frequency and amplitude of the inverter's output voltage or current can be flexibly changed according to people's wishes or the requirements of equipment operation.
3. Control circuit: The function of the control circuit is to generate and adjust a series of control pulses as required to control the conduction and shutdown of the inverter switch tube, so as to cooperate with the inverter main circuit to complete the inverter function.
4. Auxiliary circuit: The function of the auxiliary circuit is to convert the input voltage of the inverter into a DC voltage suitable for the working needs of the control circuit. For AC grid input, power frequency step-down, rectification, linear voltage regulation and other methods can be used, and of course DC-DC converters can also be used.
5. Protection circuit: The functions to be realized by the protection circuit mainly include: input over-voltage and under-voltage protection; output over-voltage and under-voltage protection; overload protection; over-current and short circuit protection; overheating protection, etc.

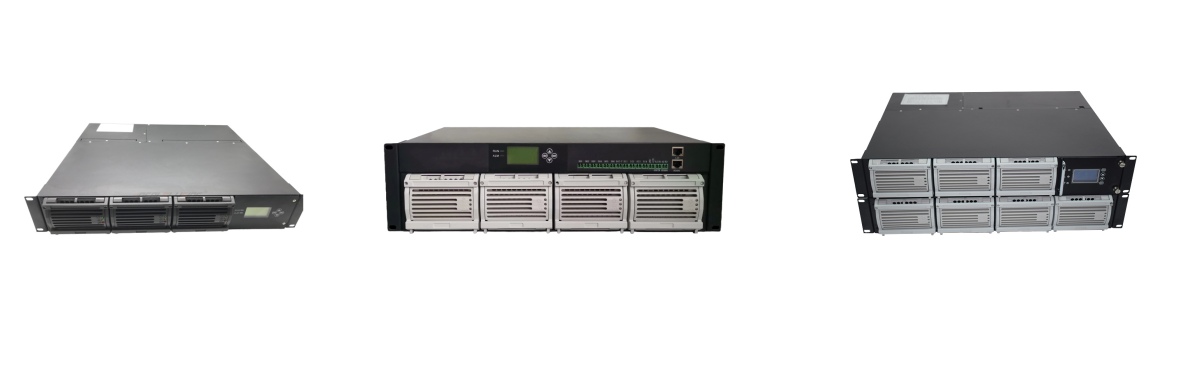

Introduction to hot-selling models:
Model: IPS-RS22020
① Rated Input Voltage: Single phase 220VAC
② Output Voltage: 220VDC
③ Output Current: 20A
④ Size: 482*410*88(MM)
⑤ NW/GW: 21KG/23KG
