With the continuous advancement of technology, CNC machine tools are increasingly used in the manufacturing industry. The performance and machining accuracy of CNC machine tools directly impact the final quality of the product. The proper operation of CNC machine tools depends on a stable and reliable power supply. Therefore, the research and application of DC regulated power supplies for CNC machine tools is particularly important. This article will detail the importance, classification, and application of DC regulated power supplies for CNC machine tools.

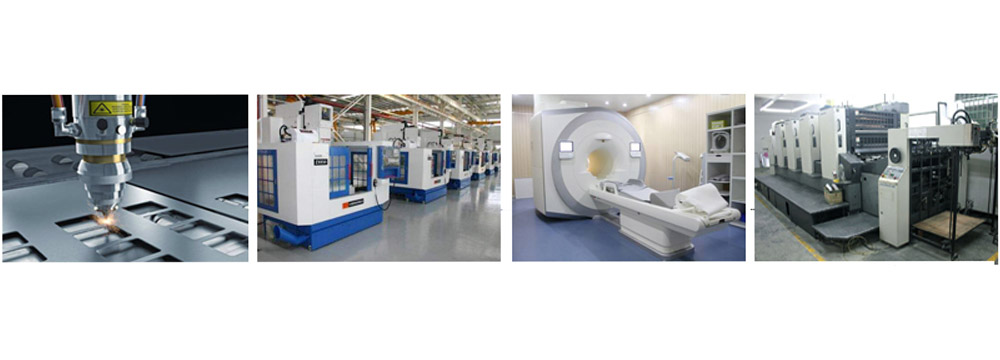

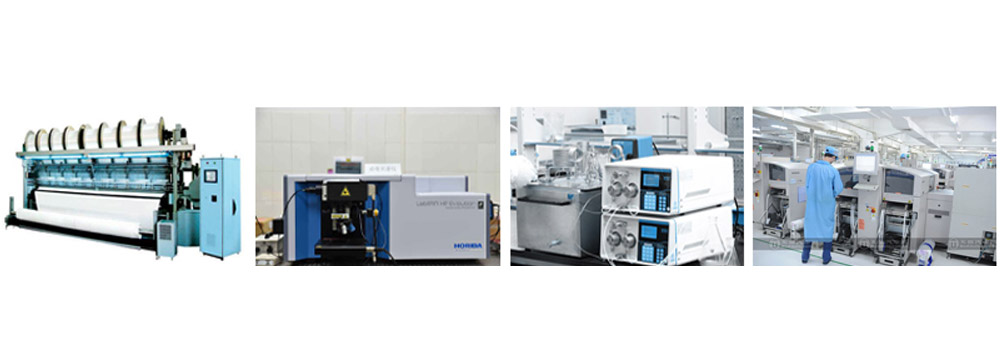

Voltage stabilizers are widely used in industrial, medical, oilfield, railway, rail transit, construction sites, schools, hospitals, postal and telecommunications, hotels, scientific research, and other sectors where stable power supply voltage is required, including electronic computers, precision machine tools, computed tomography (CT), precision instruments, testing equipment, elevator lighting, imported equipment, and production lines. They are also suitable for users at the end of low-voltage distribution networks where power supply voltage is too low or too high, fluctuating widely, and for electrical equipment with large load fluctuations. They are particularly suitable for all applications requiring high voltage waveform stability.
As high-precision, high-efficiency mechanical equipment, CNC machine tools generally require stable and reliable operation. A stabilized power supply is a crucial accessory for CNC machine tools, primarily ensuring proper operation and precise machining. The following are reasons why CNC machine tools are equipped with a stabilized power supply:
1. Stable voltage output: The proper operation of CNC machine tools requires a stable power supply. A stabilized power supply can provide a stable output voltage, preventing interference from power grid fluctuations and noise on the CNC system, thereby ensuring proper operation and precise machining.
2. Improved system stability: The control system of CNC machine tools places very high demands on power supply, requiring a stable voltage and current supply. A stabilized power supply ensures system stability and reliability, preventing system crashes or errors caused by power supply interference.
3. Protecting electronic components: The electronic components in CNC machine tools are very sensitive to voltage fluctuations. Unstable voltage can cause damage to the components. A stabilized power supply protects these components, extending the machine tool's lifespan and reducing maintenance costs.
4. Improved machining accuracy: The machining accuracy of CNC machine tools is affected by power supply fluctuations. A stabilized power supply can provide highly stable power output, ensuring machining accuracy and quality, meeting the demands of high-precision machining.
5. Improve Production Efficiency: A regulated power supply ensures stable machine tool operation, reduces interruptions and failure rates, improves production efficiency, reduces production costs, and enhances competitiveness.
DC Regulated Power Supply for CNC Machine Tools: The Key to Improving Machining Precision and Stability
I. The Importance of DC Regulated Power Supply for CNC Machine Tools
1. Improve Machining Precision
The machining accuracy of CNC machine tools is affected by the stability and reliability of their electrical systems. A stable DC power supply ensures the proper functioning of electronic components, thereby improving CNC machine tool machining accuracy.
2. Ensure System Stability
The electrical system of a CNC machine tool requires operation in a relatively stable and controllable environment. A DC regulated power supply provides a stable voltage output, ensuring the proper functioning of all CNC machine tool components and reducing the probability of failure.
3. Extend Equipment Lifespan
A stable DC power supply helps reduce equipment failure rates, thereby extending equipment lifespan. Furthermore, a DC regulated power supply effectively reduces component wear and tear, lowers energy consumption, and promotes green production.
II. Classification of DC Regulated Power Supplies for CNC Machine Tools
Based on their operating principles and control methods, DC Regulated Power Supplies for CNC Machine Tools are primarily classified into the following types:
1. Linear Regulated Power Supplies: These control the output voltage by adjusting the conduction angle of the diode. They offer advantages such as stable output voltage and compact size, but are relatively inefficient and are suitable for general CNC machine tools.
2. Switching Regulated Power Supplies: These control the output voltage by switching the diode on and off. They offer advantages such as high efficiency and compact size, but are relatively expensive and are suitable for high-end CNC machine tools.
3. Hybrid Regulated Power Supplies: These combine linear regulated and switching regulated power supplies to meet diverse application scenarios.
III. Applications of DC Regulated Power Supplies for CNC Machine Tools
1. Providing Stable Power Supply for CNC Systems
DC Regulated Power Supplies for CNC Machine Tools can directly provide stable and reliable power to various components of a CNC system, ensuring its normal operation.
2. Providing Power Support for Servo Drives
Servo drives are key components for achieving high-precision motion in CNC machine tools. A stable DC power supply provides a good power supply environment for the servo drive, ensuring the proper operation of the servo system.
3. Providing a stable power supply for other machine tool components
In addition to the CNC system and servo drive, other components of a CNC machine tool (such as the spindle and tool magazine) also require a stable DC power supply. A regulated DC power supply for a CNC machine tool can provide these components with a stable and reliable power supply, ensuring the proper operation of the entire machine tool.
In general, regulated power supplies are primarily used to ensure proper operation and precise machining, enhance system stability and reliability, protect electronic components, improve machining accuracy, and increase production efficiency. As an indispensable component of CNC machine tools, regulated power supplies play a vital role in their performance and effectiveness.
