IPS-PFC2000-150 AC 110V-240V TO 0-24V 36V 48V 60V 72V 110V 150V DC 2000W PFC Switching Power Supply 1-year warranty

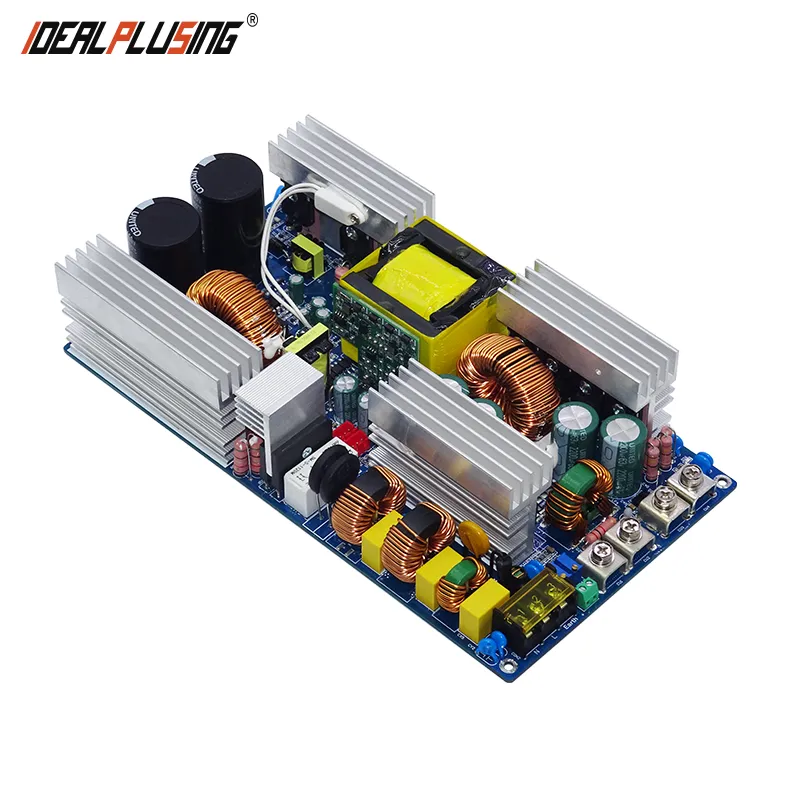

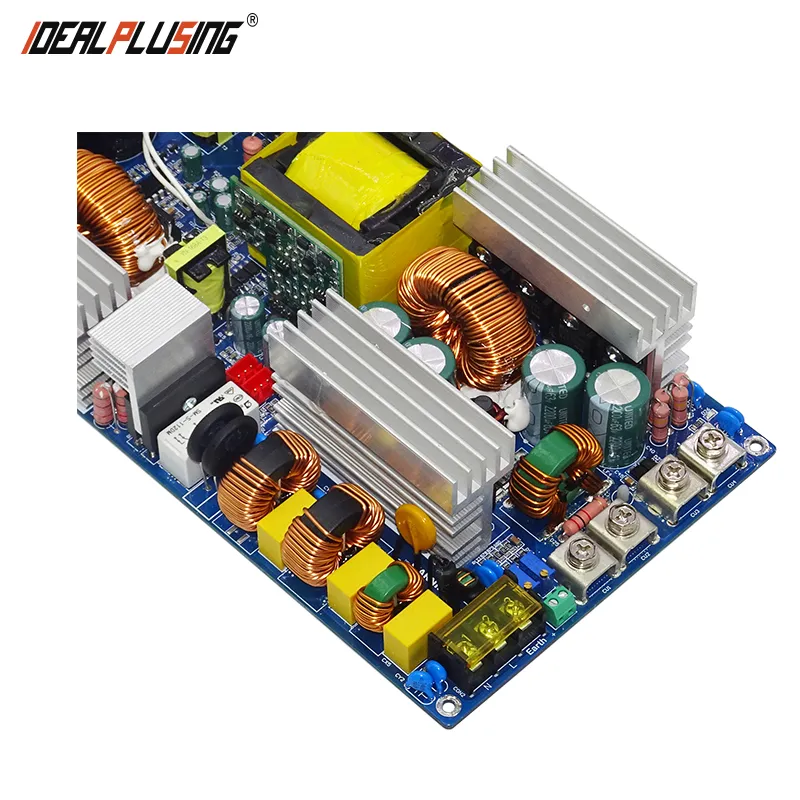

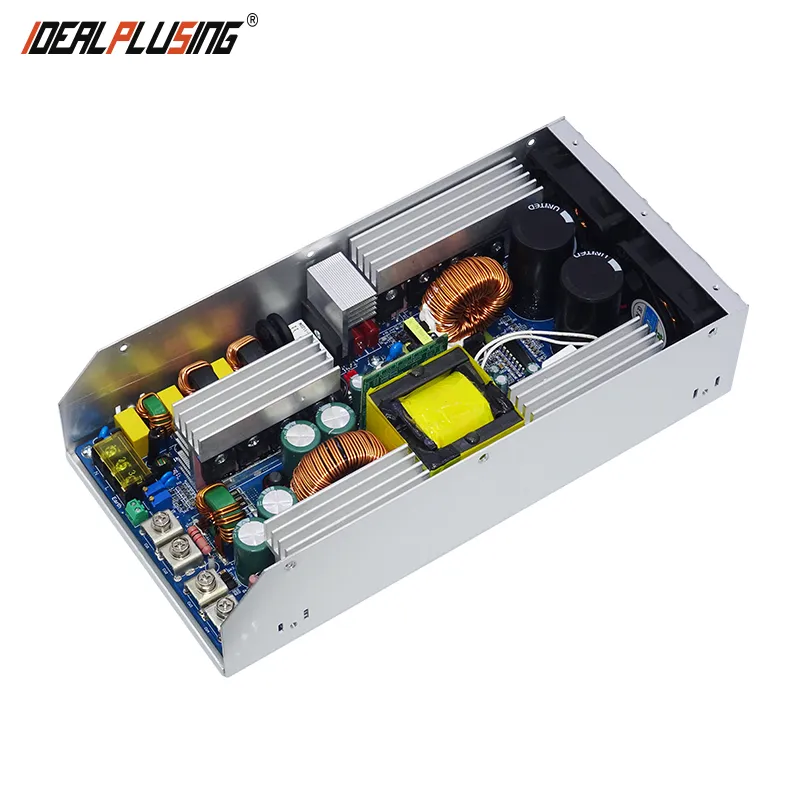

Model: IPS-PFC2000-150 150VDC 12.5A 2000W switching mode power supply ① AC INPUT : 110/220VAC±20% 50/60hz ② DC OUTPUT : 150VDC, 12.5A ③ Capacity: 2000W ④ Size: L280*W140*H65(MM) ⑤ Weight:2.3KG/3KG ⑥ Material of shell : Aluminum ⑦ Design: switch mode & pfc

MODEL

IPS-PFC2000-24

IPS-PFC2000-36

IPS-PFC2000-48

IPS-PFC2000-60

IPS-PFC2000-72

IPS-PFC2000-110

IPS-PFC2000-150













Output

parameters

DC output voltage

24V

36V

48V

60V

72V

110V

150V

AC 220V input

Rated output current

83A

55.5A

41.6A

33A

27.7A

18A

13.3A

Rated output power

2000W

2000W

2000W

2000W

2000W

2000W

2000W

AC 220V input

Rated output current

62.5A

41.6A

31A

25A

20.8A

13.6A

10A

Rated output power

1500W

1500W

1500W

1500W

1500W

1500W

1500W

conversion efficiency

88.5%

90.5%

91%

91%

91.5%

93%

93.5%

Ripple (full load)

200mv

230mv

250mv

250mv

280mv

300mv

350mv

Linear adjustment rate

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load adjustment rate

±1%

±1%

±1%

±1%

±1%

±1%

±1%

Voltage stabilization accuracy

±3%

±3%

±3%

±3%

±3%

±3%

±3%

Start up, rise time

2S/300ms

hold up time:15ms

Input

parameter

input voltage

AC 110v-260v (wide voltage adaptive, no conversion required)

AC input frequency

47-63Hz

Input current

(maximum)

Full load 2000W output, using 220VAC input, input current 10A

Full load 1500W output, 15A when using 110VAC input (when using 110V input, the maximum power is limited to 1500W)

power factor

Using AC220V input, when the power supply is 100% full load, the power factor PF value is ≥0.97 (refer to the PF curve diagram below)

Using AC1100V input, when the power supply is 100% full load, the power factor PF value is ≥0.98 (refer to the PF curve diagram below)

Surge current

220VAC/45A   110VAC/22A

function



 PS-ON

PS-on terminal short circuit: no output voltage of power supply

PS-on terminal open circuit : The power supply has an output voltage

Note: PS-on can control the power output voltage on and off. When the output voltage is turned off, the power supply is in the low power standby state (less than 10 watts), and only the auxiliary power supply circuit is working inside. The cooling fan will operate normally, not the power supply of 220 V input end will be disconnected.

 Output voltage regulation

The output voltage is adjustable throughout the whole process, and the potentiometer V can be adjusted manually. You can also use an external 0-5V or 0-10V to adjust the output voltage (this function needs to be modified)

Output current regulation

The output current is adjustable. Potentiometer a can be adjusted manually. When the load reaches the current setting value, the power supply will output in constant current mode

Protection

function

over load protection

The overload protection mode is constant current limiting mode, the lock output current value remains unchanged, and the output voltage decreases with the increase of load

Output short circuit

protection

After the output short circuit, there is no voltage output, and the output voltage will be automatically restored after the short circuit is removed

Output overvoltage

protection

When the output voltage increases to 115% of the rated voltage, the power will be turned off Output, not automatically restored. To turn off the input voltage, wait for 10 seconds and then turn it on again

                Overheating protection

When the temperature of the heat sink of the PWM transistor reaches 85°C±5%, the output voltage is turned off, and the temperature drops to 75°C±5%, and it will automatically recover

Security

and EMC

standard

EMC standard

MEET EN55022 CLASS B,EN61000-3-2

Insulation impedance

I/P-O/P,I/P-FG,0/P-FG:100M Ohms /500VDC /25℃/70%RH

Leakage current

≤3.5MA/AC220V

Withstand voltage

Input and output: 3000VAC Input and ground: 1500vac

Between output end and housing: 500VAC

other



Heat dissipation mode

Fan heat dissipation (temperature control automatic speed regulating fan, double

fan, internal air blowing mode)

Cooling fan

Noise value

In the indoor environment of about 25 dB, when two fans rotate at full speed, about

42 dB is measured at 50cm away from the power supply

working temperature

-30 ℃ - 45 ℃. To reduce power under high temperature environment, refer to the temperature load drop curve below

size

Length 280mm * width 140mm * height 65mm

weight

2.3kg (excluding package and accessories)

Installation hole position

The length spacing is 254MM and the width spacing is 122mm. Use external fittings

bracket

Tips

1. Pay attention to ventilation and heat dissipation during use. Do not install the power supply in a fully sealed box. The heat dissipation outlet of the power supply and the fan inlet cannot be blocked by objects.

2. This power supply is only for indoor use, not rainproof, not waterproof, not dustproof, not for outdoor use, not suitable for high temperature environment above 50 ℃


MODEL

IPS-PFC2000-24

IPS-PFC2000-36

IPS-PFC2000-48

IPS-PFC2000-60

IPS-PFC2000-72

IPS-PFC2000-110

IPS-PFC2000-150

Output voltage

24V

36V

48V

60V

72V

110V

150V

AC100-185V input

24V-1500W

36V-1500W

48V-1500W

60V-1500W

72V-1500W

110V-1500W

150V-1500W

AC186-260V input

24V-2000W

36V-2000W

48V-2000W

60V-2000W

72V-2000W

110V-2000W

150V-2000W

Tip: When the AC100-185V input, the maximum output power is 1500W.

AC186-260V input, the maximum output power is 2000W
