Adjustable DC regulated power supply is a high-precision power supply with single-phase or three-phase input and high-power DC output, which can reach 400kW. It has excellent electronic characteristics such as ultra-high accuracy, high precision, and high stability. It can provide high-power ultra-low ripple DC power supply on the production line, making the product performance more perfect.
It has a complete protection circuit and can better meet the user's simple and convenient use needs. Compared with the switching power supply, it has the advantages of high precision, small ripple, no high-frequency radiation interference, and wide application occasions.
The performance characteristics of the DC regulated power supply are as follows:
1. It has an external analog detection signal and can monitor the rated operating status of the power supply in real time;
2. It has two output modes: constant current and constant voltage overcurrent;
3. 8-inch touch flat display operation, easy to operate;
4. It adopts a multi-channel closed-loop control circuit with fast response speed, stable output and high precision;
5. It has an emergency stop button that can instantly stop the power output;
6. It has an automatic voltage drop compensation function and high output voltage accuracy;
7. It has a variety of communication interfaces and supports MODBUS-RTU communication protocol;
8. It has input overvoltage, undervoltage, phase loss, output overvoltage, overcurrent, power device overheating protection and other functions;
9. It adopts soft switching control technology and IGBT circuit, and the overall efficiency is more than 90%.

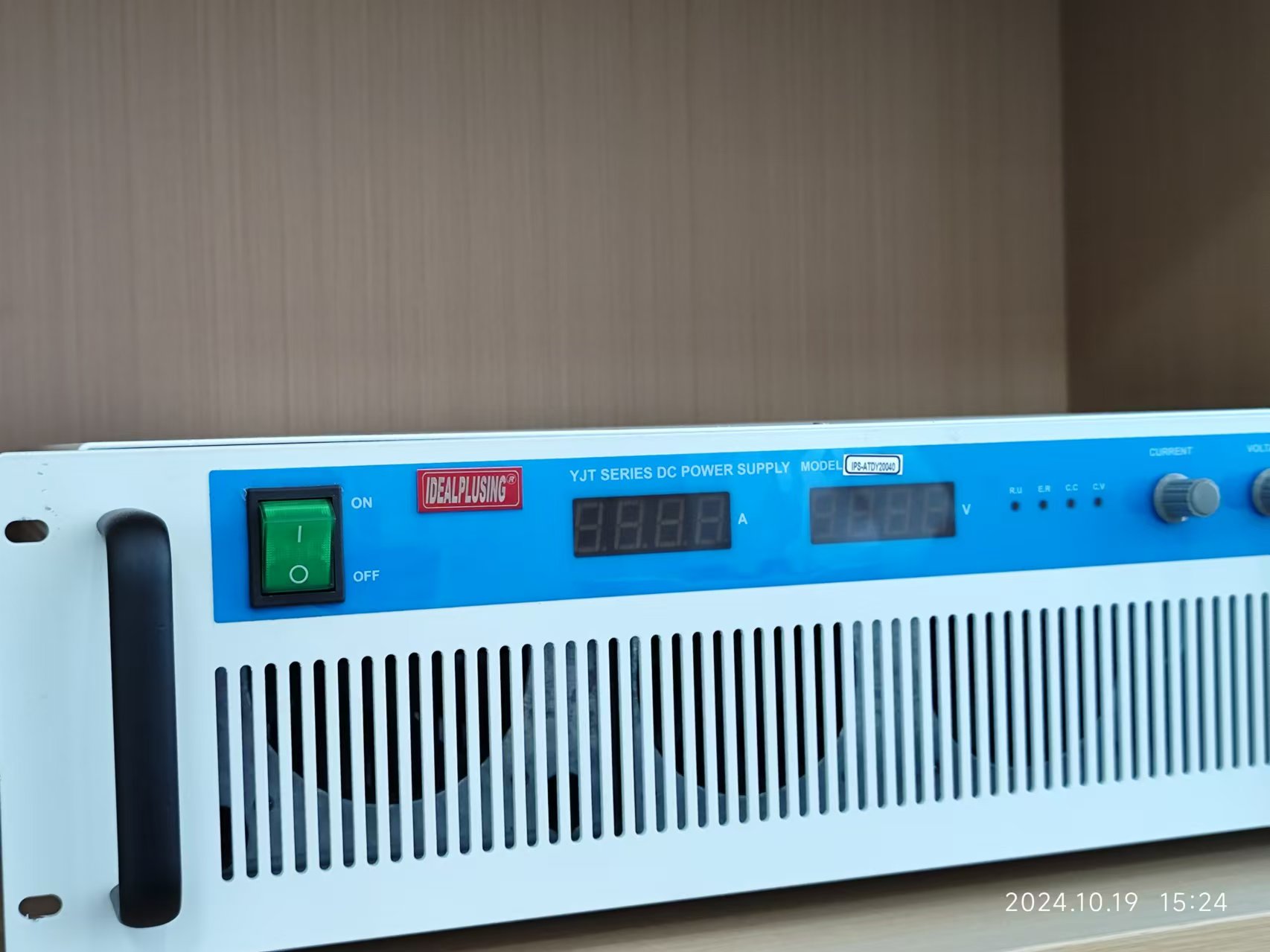

Model :IPS-ATDY20150 20VDC 150A 3000W DC Power Supply Specification :
① AC INPUT: Single phase 220VAC±15% 50/60HZ
② DC OUTPUT: 0~20VDC, 0~150A
③ Max power: 3000W
④ Machine size: 483*430*90(MM)
⑤ NW: 16KG, GW: 18KG
⑥ Protection:lower voltage, over voltage, over current, short circuit, overheating
⑦ Package: Pearl cotton and carton double protection
We specialize in customizing DC power supply to meet your specific requirements. With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 2000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
