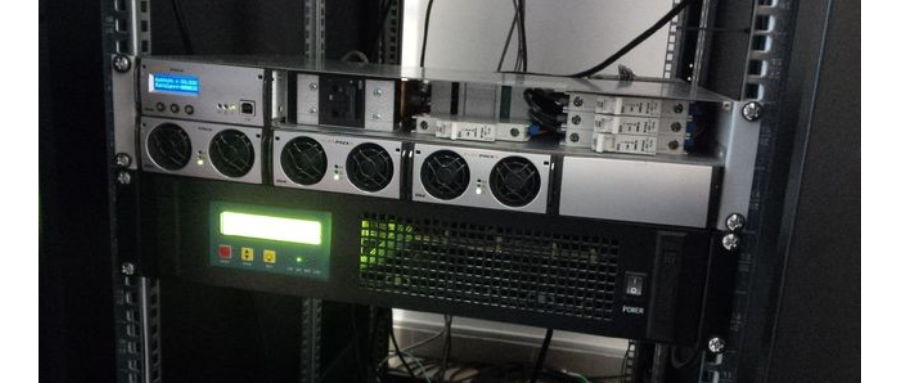

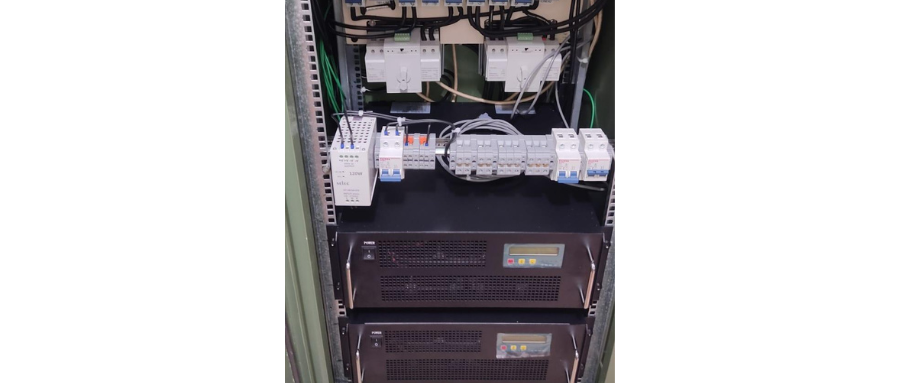

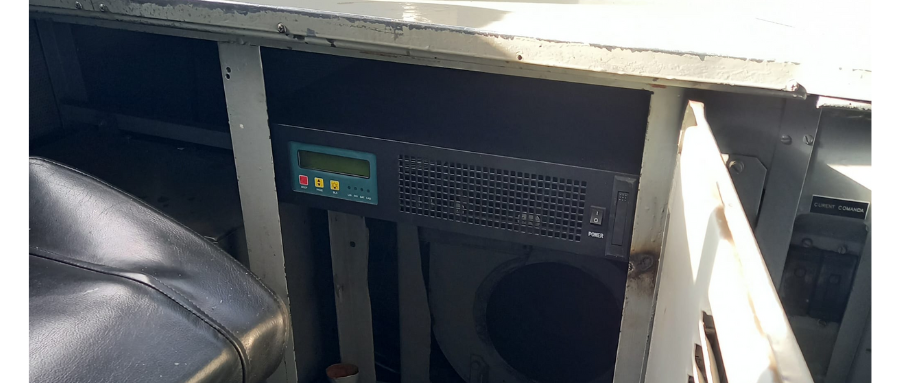

IDEALPLUSING Communication inverter power supply equipment is a conversion device that converts AC power and DC power into uninterrupted and purified AC power, providing computers and other electrical equipment with usable continuous AC power to prevent AC power instability and power outages.

Technical characteristics of inverter power supply:

Adopting CPU control, the circuit is simple and reliable;

Adopting SPWM pulse width modulation technology, the output is a pure sine wave with stable frequency and voltage, noise filtering, and low distortion;

Built-in bypass switch, fast switching between AC power and inverter, can choose AC power supply or DC power supply, selected by the dial switch;

The front panel of the inverter has LCD or LED display mode, and the status is clear at a glance;

Completely isolated inverter technology, output noise-free pure sinusoidal AC voltage

Allowing to cut off DC when the machine is turned on, the machine automatically switches to AC bypass, which does not affect the power supply of the load, and is convenient for maintenance and replacement of the battery;

Divided into AC main supply type and battery main supply type: the dial switch can be selected.

A) Main power supply type: when there is main power, it is in main power output, and automatically switches to inverter output when the main power input fails;

B) Battery main supply type: when there is main power, it is in inverter output, and automatically switches to main power output when the DC input fails;

In DC main supply mode, if the battery or DC voltage is too high or too low, the DC inverter will automatically shut down and automatically switch to bypass output. If the battery voltage returns to normal, the power supply will automatically resume inverter output;

In DC main supply mode, if the load is overloaded, the DC inverter will automatically shut down and automatically switch to bypass output. 60 seconds after the overload is eliminated, the power supply will automatically resume DC power supply output;

Support RS485 communication function. Use it to understand the working status of the power supply in real time;

Provide three sets of passive dry nodes, which are used for DC fault, inverter fault, and main power fault respectively;

Support no DC startup function, which can run in the state of only main power. This function allows the inverter power supply to be put into use in advance and then install the battery.

Notes:

To ensure that this system can function properly, please pay attention to the following matters:

Follow the instructions and operate in accordance with the law.

Be careful when moving the machine.

Please install the power supply according to the instructions.

To avoid personal injury and machine damage caused by electric shock, a good grounding system is required.

Avoid overloading to avoid machine failure.
